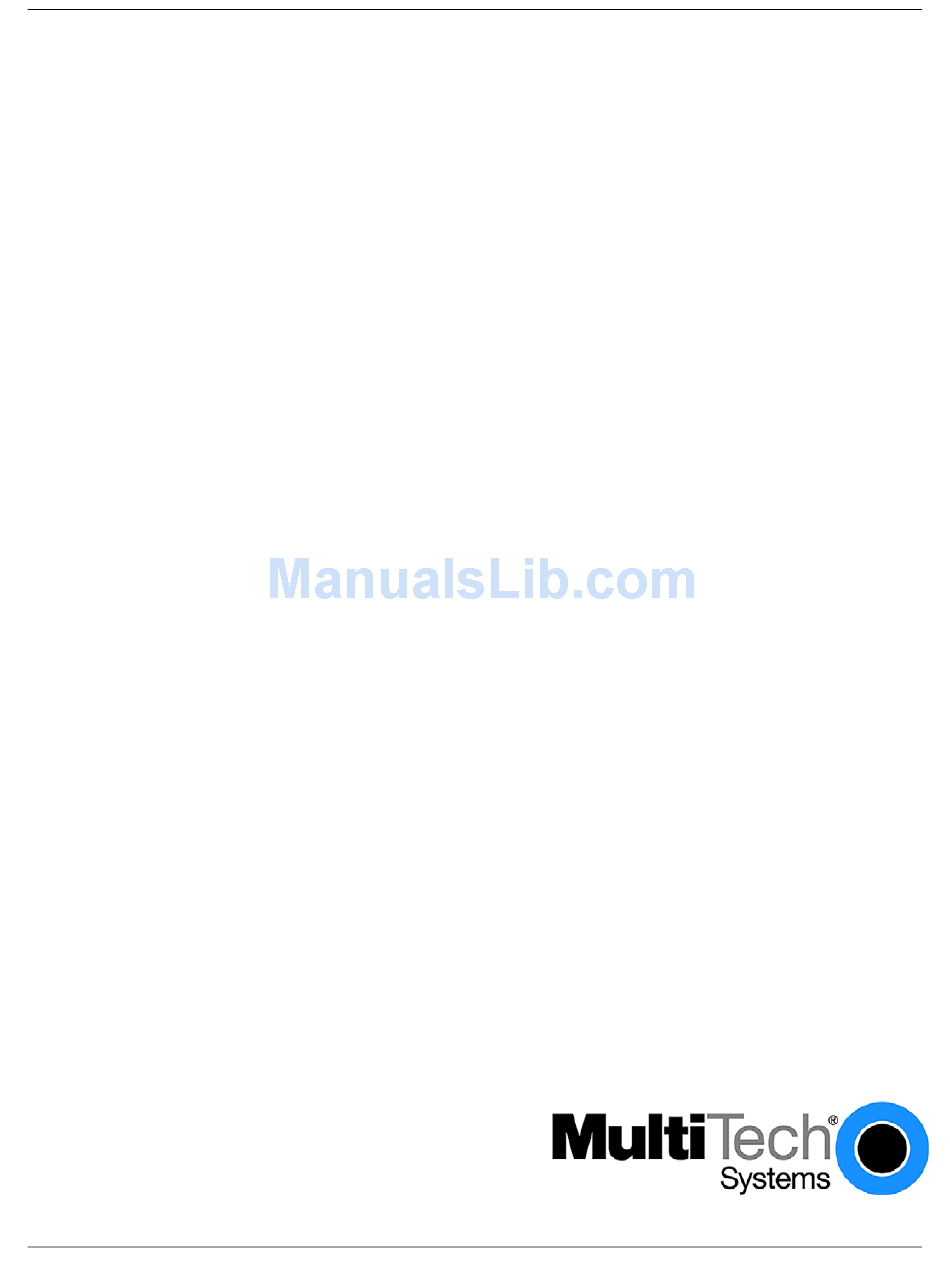

- Page 1 RackMountedModems ZDX Series Modem Racks User’s Guide ...
- Page 2 Record of Revisions Revision Date Description A 03/31/04 Replaces 82040205 Rev F. This new release is published on CD 05/04/09 Added a link to the Multi‐Tech Web site for the Warranty statement. Updated the Technical Support section. B 12/12/2011 Applied styles. Removed product CD. Warranty For Warranty information, see the Multi-Tech Web site at http://www.MultiTech.com Patents This device covered by one or more of the following patents: 6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567; 5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627; 5,754,589; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030; 5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725; 5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470; 5,463,616; 5,453,986; 5,452,289; 5,450,425; D353,598; 5,355,365; 5,309,562; 5,301,274 Other Patents Pending Trademark Registered trademarks of Multi‐Tech Systems, Inc. are as follows: Multi‐Tech logo and MultiModem. World Headquarters Multi‐Tech Systems, Inc. 2205 Woodale Drive Mounds View, Minnesota 55112 (763) 785‐3500 or (800) 328‐9717 FAX (763) 785‐9874 Technical Support Country ...
-
Page 3: Table Of Contents
Contents Chapter 1 – Product Overview .......................... 4 Technical Specifications ............................ 4 Chapter 2 – Installing Modems in the Rack ....................... 5 Before You Begin .............................. 5 Safety Recommendations............................ 5 Installing the Rack and Modems .......................... 5 Tips for Mounting Modems in the Rack ........................ 7 Powering Up ................................ 7 Appendix A— Class A Notice and Safety and Power Requirements .............. 8 47 CFR Part 15 Regulation ............................ 8 CE mark .................................. 8 Safety Requirements .............................. 8 Power Requirements .............................. 10 ZDX Series Modem Racks User’s Guide 3 ... -
Page 4: Chapter 1 - Product Overview
Chapter 1 – Product Overview This guide explains how to install and operate MultiModemZDX fax modems while using a Multi‐Tech ZDX modem rack. This guide describes the modem rack, technical specifications, power supply, how to install a modem in the rack, connecting RS232C and phone lines and powering up. ZDX rack holds up to twelve modems and a redundant power supply. The ZDX rack clearly displays what is happening with your data communications. Each modem has its own LED display, with indicators such as Transmit Data, Receive Data, Carrier Detect, Speed Status, Off Hook, Terminal Ready, Error Correction, and Fax mode. The rack is available in both 115V and 230V versions. The rack is 19 inches wide by 5 ¼ inches high. You can mount the rack in the same cabinet as your computer, or you can enclose the rack in a separate cabinet. To install modems into the rack, simply open the rack door and slide in the modems. You connect RS232C cables and phone cords to the modem's connectors on the back of the rack. Technical Specifications Rack capacity Up to twelve modems Connectors IEC 320 inlet power connector Dimensions 19" wide x 5 ¼" high x 7 ¾" deep 48.26cm wide x 13.28cm high x 19.6cm deep Weights Rack with power supply: 8lbs. (3.7kg) Rack with power supply and 12 modems:14½lbs. (6.6kg) Power supply input 90 ‐ 240 Volts AC, 50/60 Hz, 2.0A 2 amp slo‐blo fuse Output +9 volts DC regulated 4.4 amps maximum Power consumption 40 watts with a fully loaded rack Ambient temperature 32° to 104° F (0° to 40° C) Indicators Two LEDs indicate presence of 120/230 volts AC power and 5 volts DC power 4 ... -
Page 5: Chapter 2 - Installing Modems In The Rack
Chapter 2 – Installing Modems in the Rack Before You Begin The MultiModemZDX modems are shipped with the DTR signal controlled by the interface and the modem’s Command mode enabled. With rack‐mount modems, it is assumed: ● Modems are in a central site computer environment, with the modems connected to a mini or mainframe computer. ● The main purpose of the modems is to automatically answer incoming calls from remote users. Disable command mode unless you want to give the modem commands. Leaving Command mode enabled offers the possibility of a user calling into the modem and reconfiguring it, or causing it to dial out. Refer to the appropriate modem owner’s manual to configure the modem for your application. Safety Recommendations Observe the following safety recommendations when installing a Multi‐Tech ZDX Rack. ● Never install telephone wiring during a lighting storm. ● Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. ● Never touch insulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. ● Use caution when installing or modifying telephone lines. ● Avoid using a telephone (other than a cordless type) during an electrical storm. There may be a remote risk of electrical shock from lighting. ● Do not use the telephone to report a gas leak in the vicinity of the leak. ● This product is for use only with listed computers, or equivalent. Installing the Rack and Modems To install the ZDX rack, with up to 12 ZDX modems in the rack. Unpack the rack and check all items against the shipping list to ensure that you have received the correct items. Rack ... - Page 6 Chapter 2—Installing Modems in the Rack You won’t use the typical power supply cord when you install the modem in a rack. Note: Ensure that the power on/off switch on the ZDX modem is in the On position before you put the modem in the rack. When the modem is in the rack, you don’t have access to the power on/off switch. Slide a ZDX modem into one of the twelve available slots. Connect the appropriate power cable on the back of the rack to the modem's power jack. You may have to hold the modem in place from the front while plugging in the power cable. The top power cable supplies power to the top 6 modems and the bottom power cable supplies power to the bottom 6 modems. For each modem being installed, repeat these steps: ensure the power on/off switch is On, slide the modem into an available slot and connect the power cable to the modem. To connect the RS232C serial cables and telephone lines to the modems, refer to the MultiModemZDX Quick Reference Guide. When all the modems are connected to the computer and telephone lines, plug the AC power cord supplied with the rack into the power cord connector on the back of the rack and to a live AC outlet. 6 ZDX Series Modem Racks User’s Guide ...
-
Page 7: Tips For Mounting Modems In The Rack
Chapter 2 – Installing Modems in the Rack Tips for Mounting Modems in the Rack If the chassis is installed in a closed or multi‐rack assembly, the operating temperature of the rack environment may be greater than the ambient temperature. Be sure to install the chassis in an environment that is compatible with the maximum rated ambient temperature. See Technical specifications in Chapter 1. When mounting the equipment in the rack make sure mechanical loading is even to avoid a hazardous condition, such as loading heavy equipment in the rack unevenly. The rack should safely support the combined weight of all equipment it supports. When connecting the equipment to the supply circuit, be sure to check equipment nameplate ratings to avoid overloading circuits. Overloading the circuits may cause damage to over‐current protection devices and supply wiring. Slots and openings in the cabinet help provide ventilation. To ensure reliable operation of the product and to protect it from overheating, maintain a minimum of 1 inch clearance on the tops, and 1 inch clearance on the sides. Powering Up Once power is applied to the rack, the modems perform a diagnostic self‐test, indicated by the speed LEDs flashing in sequence for approximately two seconds, then the 19 or 28 (depending on model of ZDX modem) lights. If none of the modems have power, check the power cord connection and that the AC outlet is live. If one or more of the modems do not power up, check the power connection to that modem. If one of the green power supply LEDs on the front of the rack is not on, then one of the redundant power supplies is defective. Models with AC power inputs are intended to be used with a three‐wire grounding type plug—a plug that has a grounding pin. Equipment grounding is to ensure safe operation. Do not defeat the grounding means and verify device is reliably grounded when mounted within a rack. ZDX Series Modem Racks User’s Guide 7 ... -
Page 8: Appendix A- Class A Notice And Safety And Power Requirements
Appendix A— Class A Notice and Safety and Power Requirements 47 CFR Part 15 Regulation This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to 47 CFR Part 15 regulations. The stated limits in this regulation are designed to provide reasonable protection against harmful interference in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: ● Reorient or relocate the receiving antenna. ● Increase the separation between the equipment and receiver. ● Plug the equipment into an outlet on a circuit different from that to which the receiver is connected. ● Consult the dealer or an experienced radio/TV technician for help. This device complies with Part 15 of the 47 CFR rules and with RSS‐210 of Industry Canada. Operation of this device is subject to the following conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference that may cause undesired operation. Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. CE mark The CE mark is affixed to the enclosed Multi‐Tech product to confirm compliance with the following European Community Directives: Council Directive 89/336/EEC of 3 May 1989 on the approximation of the laws of Member States relating to electromagnetic compatibility; and Council Directive 73/23/EEC of 19 February 1973 on the harmonization of the laws of Member States relating to electrical equipment designed for use within certain voltage limits; ... - Page 9 Appendix A— Class A Notice and Safety and Power Requirements Conductors must have a cross‐sectional area of not less than 1.00 mm 2 Exigences de Sécurité Aucun réglage manuel de l'équipement n'est nécessaire pour des connexions à l'alimentation principale sous une tension et une fréquence nominales. Le cordon d'alimentation a été conçu pour servir de dispositif de déconnexion. La prise d'alimentation doit être installée près de l'équipement et doit être facile d'accès. Afin de réduire les risques de choc, toutes les ouvertures doivent être couvertes pendant le fonctionnement normal de l'équipement. N'utiliser que des prises et cordons d'alimentation répondant aux normes de sécurité du pays de destination. La superficie de la section des conducteurs doit être supérieure ou égale à 1,00 mm 2 . Requisitos de Seguridad No son necesarios ajustes manuales del equipo para la conexión a la corriente de la red dentro del voltaje y frecuencia establecidas. El conector de alimentación de energía sirve como dispositivo de desconexión. La toma de corriente se debe instalar cerca del equipo y tener un acceso sencillo. Para reducir el riesgo de sacudida eléctrica, todas las aberturas deben estar cubiertas durante el manejo normal del equipo. Utilice solamente los enchufes y cables para la conexión del suministro de energiá a la energiá primaria que cumplan con los requerimientos regulativos y de seguridad del país en que se usen. Los conductores deben tener un área transversal mayor de 1,00 mm 2 . Sicherheitsanforderungen Bei Anschluß am Versorgungsnetz innerhalb der Nennleistung und ‐frequenz ist es nicht erforderlich, dieses Gerät manuell nachzustellen. Die Netzschnur dient als Trennvorrichtung. Die Steckdose muß in der Nähe des Geräts installiert werden, um leicht zugänglich zu sein. Um Elektroschockgefahr zu vermindern, müssen beim normalen Betrieb des Geräts alle Öffnungen abgedeckt sein. Zum Anschluß an das Primärstromnetz nur Stecker und Anschlußkabeln benutzen, die den Sicherheits‐ und Überwachungsvorschriften des Landes entsprechen, in dem sie angewendet werden. Leitungsdrähte müssen einen Durchmesser von mindestens 1,00 mm 2 haben. ZDX Series Modem Racks User’s Guide 9 ...
-
Page 10: Power Requirements
Appendix A— Class A Notice and Safety and Power Requirements Power Requirements AC 90‐240V, 50/60 Hz, 2.0A CAUTION: For continued protection against risk of fire, replace with same type and rating of fuse. Safety requirements are not fulfilled unless the equipment is connected to a wall outlet socket that is provided with an earth contact. Mains Wiring Instructions (U.K.) When wiring the mains plug the following instructions must be followed: • The core which is coloured green and yellow must be connected to the terminal in the plug which is marked with the letter E or by the earth symbol, or coloured green and yellow. • The core which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. • The core which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red. Alimentation Requise C.A. 90‐240V, 50/60 Hz, 2.0A ATTENTION: Pour garantir une protection continue contre tout risque d'incendie, utilisez toujours des fusibles de même type et de même intensité. Les conditions de sécurité ne sont pas remplies si votre équipement n'est pas branché sur une prise murale avec mise à la terre. Requisitos de Potencia C.A. 90‐240V, 50/60 Hz, 2.0 Amp ATTENCION: Para garantizar la protección continua frente al peligro de incendio, sustitúyase con un fusible del mismo tipo e iguales especificaciones de funcionamiento. Adviertase que los requisitos respecto a medidas de seguridad no quedan satisfechos a menos que este equipo eléctrico esté conectado a una toma de corriente mural conectada a tierra. Stromaufnahme AC 90‐240V, 50/60 Hz, 2.0A VORSICHT: Als Vorkehrung gegen Brandgefahr immer nur Sicherungen der gleichen Art und mit gleichem Nennwert verwenden. Die Sicherheitsvorschriften sind nur erfüllt, wenn das Gerät an eine geerdete Wandsteckdose angeschlossen ist. 10 ZDX Series Modem Racks User’s Guide ...
