Summary of Contents for Rainbow Technologies CLD54D

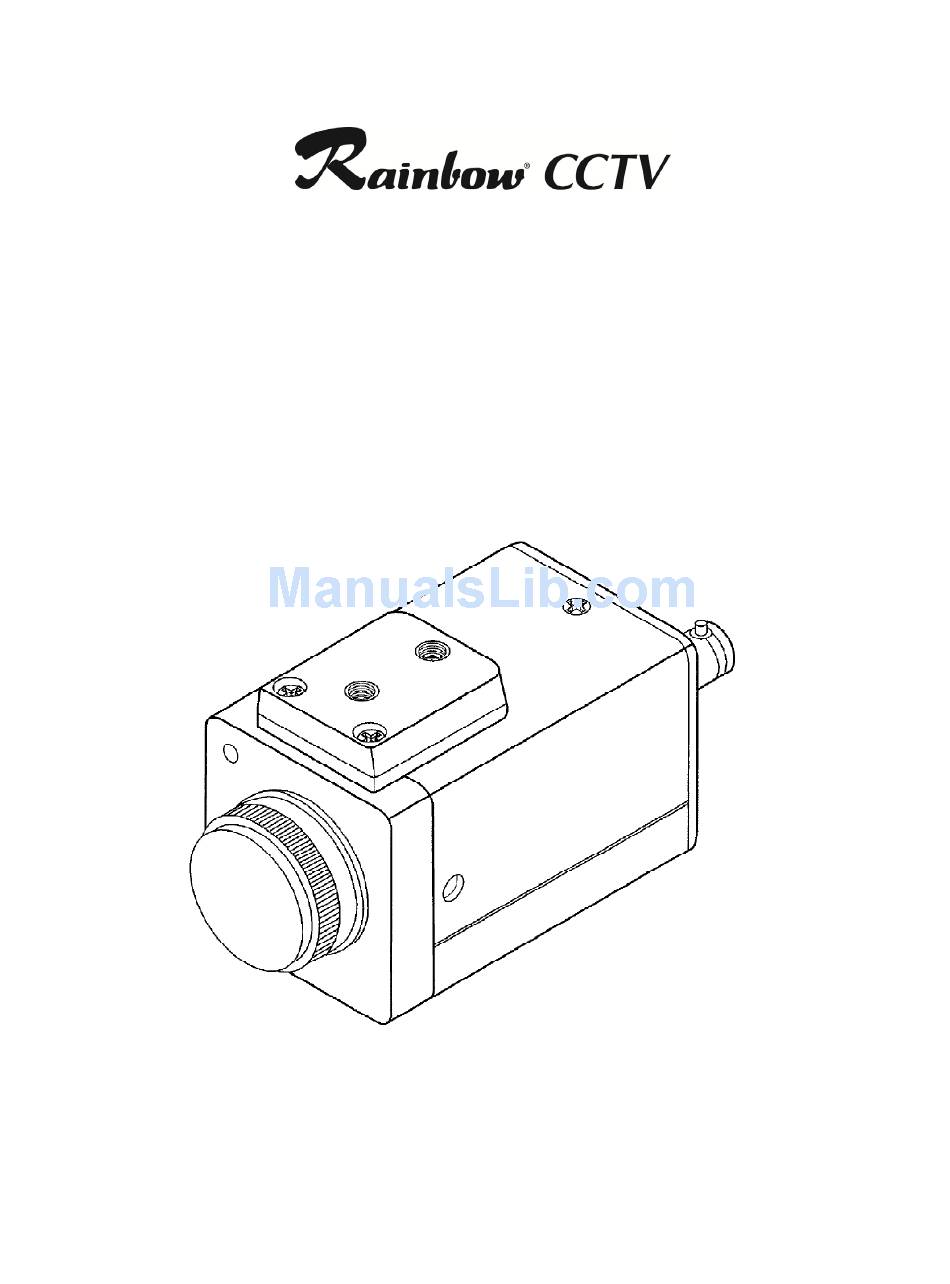

- Page 1 CLD54D / DNL54D CLD54D / DNL54D User Manual User Manual www.rainbowcctv.com v1.0...
- Page 5 ① Video output connector (BNC) 1Vp-p/75Ω composite video signal output connector. ② OSD Control Controls for OSD - On Screen Display ③ Power LED This LED turns ON only when the power is supplied properly and the converter (or the regulator) inside the camera works sell. ④...
- Page 6 ⑦ Camera Mount For mounting the camera to standard 1/4-20 mounts This mount can be mounted on the top or bottom of the camera. To install this on the top of the camera, remove the "PASSED" label first and move the mount from the bottom of the camera. ⑧...
- Page 7 ⑬ Backfocus Lock Screw The position of the CCD can be locked into place after final adjustment. Please reference the instructions below. 1. Adjust the backfocus of the camera after installing the lens if you find the lens focus does not provide enough range.
- Page 8 OSD adjustment OSD Direction & Enter button in rear plate * To access OSD menu, push the SET UP button. OSD menu description Main menu OSD adjustment Sub menu MANUAL/DC selectable LENS EXPOSURE 0/18/24/33 selectable AWC/ATW/MANUAL/PUSH selectable AWB MODE R-Y GAIN 0 ~ 255 selectable IMAGE B-Y GAIN...
- Page 9 OSD Menus Use the OSD adjustment to navigate the menus, press the button for "Enter" SETUP menu Description EXPOSURE EXPOSURE LENS SEL. LENS SEL. BRIGHT BRIGHT DC LV. DC LV. SHUTTER SHUTTER 1/60 1/60 24 DB 24 DB 1. LENS SEL : This menu is for lens application. Lens Type Shutter Lens Sel.
- Page 10 FUNCTION FUNCTION DN MODE DN MODE COLOR COLOR BURST BURST COLOR▶BW COLOR▶BW BW▶COLOR BW▶COLOR DLY TIME DLY TIME 1. DN MODE : Day & Night function is selectable as below. * AUTO : camera will be color during the day and B&W at night FUNCTION * COLOR : camera will remain in color at all times * BW : camera will remain in B&W at all times...
- Page 11 PRIVACY PRIVACY MASK1 MASK1 SET AREA↓ SET AREA↓ MASK2 MASK2 SET AREA↓ SET AREA↓ MASK3 MASK3 SET AREA↓ SET AREA↓ MASK4 MASK4 SET AREA↓ SET AREA↓ COLOR COLOR BLACK BLACK PRIVACY This mode allows for up for Privacy Zones (masks) to cover areas that are not be viewed or recorded Up to for zones can be selected (Mask 1, 2, 3, 4) After turning the mask on, select SET AREA to create the mask To create a mask area (press Enter to switch between the colors below):...
- Page 12 SPECIAL SPECIAL DPC SET DPC SET WHITE TH WHITE TH BLACK TH BLACK TH LUM TH LUM TH SYNC MODE SYNC MODE INTER INTER V_PHASE V_PHASE BAUDRATE BAUDRATE 2400 2400 PROTOCOL PROTOCOL PELCO_D PELCO_D 1. DPC (Defective Pixel Cancelling) SET : compensates for white and black defects on the CCD OPTION - WHITE TH : a white defect is compensated with an adjustment value from 0 To 255 - BLACK TH : a black defect is compensated with an adjustment value from 0 to 255...
- Page 13 SPECIFICATIONS FOR CLD54D NTSC (CLD54D) / PAL (CLD54DX) Video Signal System Image Sensor Interline 1/3" Sony Super HAD-Ⅱ CCD VBS compoite 1.0Vp-p/75 ohms Image Output 2:1 Interlace Scanning System 540 TV lines or more at center Resolution (horizontal) 0.1 Lux Sensitivity (F1.2)
- Page 14 SPECIFICATIONS FOR DNL54D NTSC (DNL54D) / PAL (DNL54DX) Video Signal System Image Sensor Interline 1/3" Sony Super HAD-Ⅱ CCD VBS compoite 1.0Vp-p/75 ohms Image Output 2:1 Interlace Scanning System 540 TV lines or more at center Resolution (horizontal) 0.03 Lux Sensitivity (F1.2) 48dB or more (AGC-OFF) S/N Ratio...
