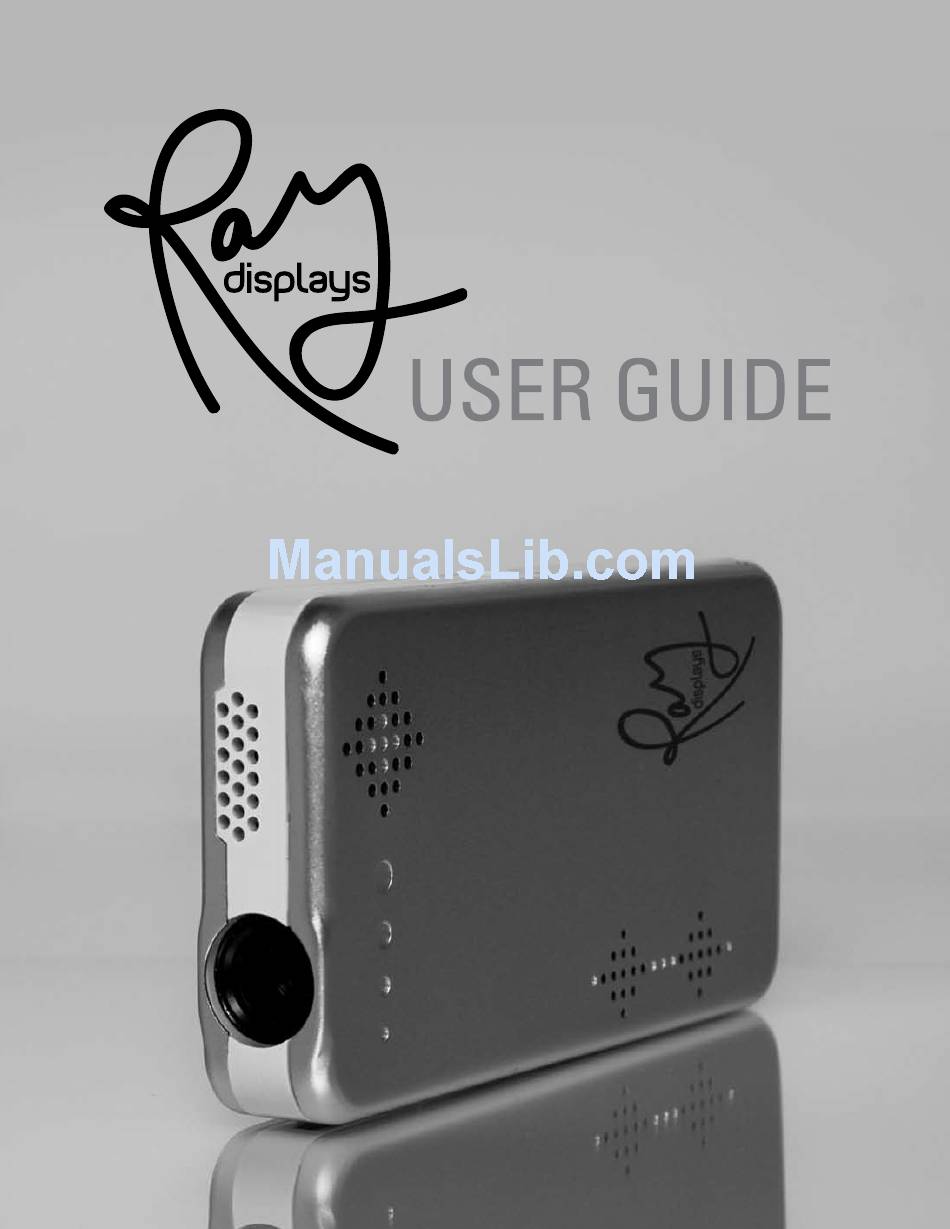

Summary of Contents for Ray display Pico Projector
-
Page 3: Table Of Contents
Table of Contents 1 The Ray Pico Projector Installation Preparation 2 Ray Box Contents 3 Ray Features 4 Getting Started with Ray Basic Connections Setup Information 5 Watching Videos 5 Connecting Equipment 8 Charging Ray 8 Specification 9 Safety and Cleaning... -
Page 4: The Ray Pico Projector
60 inch picture for excellent viewing. Installation Preparation: For best results it is advisable to learn how to correctly utilize the Ray Pico Projector and its numerous products including: Digital cameras—to show pictures to friends and family. •... -
Page 5: Ray Box Contents
Box Contents Please check and identify the supplied accessories. Pico Projector 2. AC adapter with mini USB Plug—Input: 100-240V ~50-60Hz Output: 5V 2000mA 3. Tripod 4. Audio Video Cable: 2.5mm 4-pole to 2.5mm 4-pole 5. Audio Video Cable: 2.5mm 4-pole to 3.5mm 4-pole 6. -
Page 6: Ray Features
Features Ray Projector Controls and Features Left Speaker Right Speaker Heat Vent Lens Focus On/Off Power/Charge Power Input TV Input Tri Pod Attachment Bottom View... -
Page 7: Getting Started With Ray
Slide the ON/OFF switch to the ON position. The Power/Charge Light will flash at a rapid rate about once every 1/2 second (approximately 120 flashes per minute). If the AC adapter is not attached and the light does not flash, the Pico Projector Battery must be CHARGED. Flashing Light... -
Page 8: Watching Videos
If the Pico Projector battery is discharged (DEAD), plug the AC Adapter into an electrical outlet and connect the mini USB plug to the Projector. The Power/Charge Light will start flashing once every second (60 flashes per minute) indicating the AC Adapter is connected to the Pico Projector. - Page 9 iPod, Cell RCA Audio/ Phone, DVD RCA Coupler Video Cable Input Item 7 Item 5 Yellow Yellow Yellow White White White Input Cameras and camcorders do not always have three RCA plugs. Cameras without sound typically have a single yellow plug for video while some with sound have two RCA plugs —...
- Page 10 IMPORTANT: Make sure the video player, camcorder, camera, MP3 or MP4 player has the TV out enabled and/or turned on. Consult the video player iPhone, or phone user manual for instructions on enabling the TV output. Typically the TV out will be found in the SETTINGS or TOOLS menu. For Example: Put iPOD in Video Menu and select Video Setting TV Out...
-
Page 11: Charging Ray
Charging For best long term results always start with a fully charged Ray. Turn the Power Switch to OFF. • Connect Ray to the AC Adapter. • Plug the AC adapter into an electric outlet. • When the Power Light flashes once per second the Ray is being •... -
Page 12: Safety And Cleaning
Safety and Cleaning Read all safety information below and operating instructions before using Ray to avoid injury. Important Safety Information: To reduce the risk of injury while operating the Ray Projector, please follow all instructions carefully. Operating Safety Precautions: Handling Ray. Do not drop, crush, puncture, incinerate, or open the Ray Projector. -
Page 13: Using The Ray Usb Power Adapter
Using the USB Power Adapter: Firmly insert the Ray USB Power Adapter connector into the Ray. • Insert the power adapter firmly into the power outlet (the power light • should start flashing after a few seconds). Caution: Do not connect, disconnect or clean the Ray USB Power Adapter with wet hands. -
Page 14: Important Maintenance & Operating Information
Additional Safety Information: Ray projects video through a lens on to a screen using LED light sources. The closer an object is to the lens of the Ray, the brighter the image/light emitted from the lens. A properly connected Ray will output an image through the lens. To verify an image, hold the Ray 6 inches from a light colored surface. - Page 15 Storing Ray: Store the Ray Projector in a place where the temperature is always between -20º and 45º C (-4º to 113º F). Caution: Do not leave Ray in the car, since interior temperatures in parked vehicles may exceed the desired range. When using iPod or charging the battery, it is normal for the Ray to get warm.
-
Page 16: Battery Replacement
Note: This Ray Projector has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are deigned to provide reasonable protection against harmful interference in a residential installation. This projector generates, uses, and may radiate radio-frequency energy. -
Page 17: Disposal And Recycling Information
Disposal and Recycling Information: Your Ray must be disposed of properly according to local laws and regulations. Because this product contains a battery, the product must be disposed of separately from household waste. When your Ray reaches its end of life, contact Ray or your local authorities to learn about recycling options E&H Innovations LLC ©... -
Page 18: Warranty
Warranty Ray Display (“Ray”) warrants this product (except battery packs) against defects in material or workmanship for one (1) year from the original date of purchase. Pursuant to this Limited Warranty, Ray will, at its option, (i) repair the product using new or refurbished parts or (ii) replace the product with a refurbished product.
