INTRODUCTION
SP980

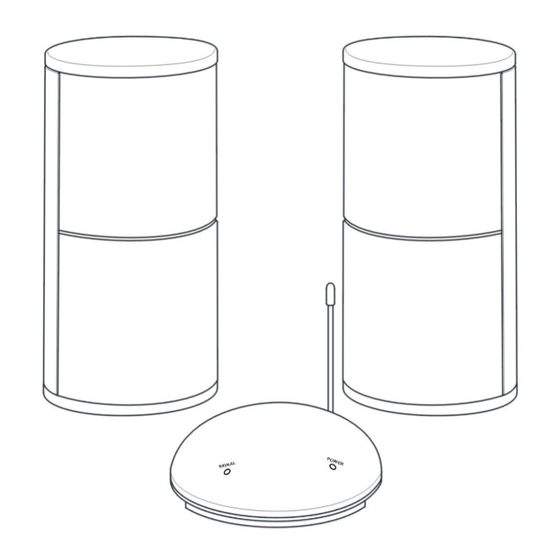

This 863 MHz stereo wireless speaker system uses latest wireless
technology that enables you to enjoy music and TV sound anywhere inside
or outside your home. You can simply connect the system to any audio
Cordless Stereo 863MHZ
source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player.
Without complicated wiring and installation with your Audio/Video
Speaker System
equipments and rear channel amplifier, the system enables you to enjoy
thrilling, lifelike sound stereo in minutes.
FEATURES
1. Automatic Phases Lock Loop (PLL) scanning system on speaker
receivers
2. Phase Lock Loop (PLL) transmission system on transmitter
3. 863 MHz RF technology panel-like speaker system.
4. RF technology lets you roam freely throughout your house.
5. Operating distance up to 100 Meters
6. No line of sight limitation.
7. Virtually interference free stereo quality.
8. ALC and auto ON/OFF control.
9. Auto tuning function.
10. Bass boost function
11. Stereo (L and R) and Mono Selection
User's Manual
Please read before using the equipment
P.2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for Yaesu SP980
- Page 1 INTRODUCTION SP980 This 863 MHz stereo wireless speaker system uses latest wireless technology that enables you to enjoy music and TV sound anywhere inside or outside your home. You can simply connect the system to any audio Cordless Stereo 863MHZ source such as Radio, TV, VCR, Hi-Fi and CD/MP3/VCD/DVD player.
- Page 2 COMPONENT IDENTIFICATION INSTALLATION TRANSMITTER TRANSMITTER 1. Insert the antenna tube into the antenna wire. Antenna 2. Connect the supplied AC power adaptor to an electrical wall outlet. 3. Plug the AC power adaptor in the DC jack located on the rear of the transmitter.
- Page 3 SPEAKER RECEIVERS 5. Push the “SCAN” auto-tuning button to get the best tuning reception in the speakers. When the button is 1. Insert 6 pieces ‘AA’ size ALKALINE pressed, frequency tuning starts battery into the battery compartment with automatically and it stops when a correct polarity at the rear of the speakers signal is detected.
- Page 4 6. The BASS BOOST button can be used to enhance the bass sound NOTE : depending your music You should now be able to place the speakers freely from room to room preferences. Turn bass/boost effect ON without disruption. If disruption should occur (signal breaks up), press the simply by pressing the button down, and speaker’s “SCAN”...
- Page 5 TECHNICAL SPECIFICATIONS TROUBLE SHOOTING NO SOUND Transmission Mode UHF stereo Ensure the AC adaptor is fully inserted into the AC outlet and the Carrier Frequency 863 MHz power connection input on the transmitter. Operation Voltage Transmitter, DC 12.5V 150mA Ensure the speaker is switch ON. Speaker, 6 X ‘AA’...
