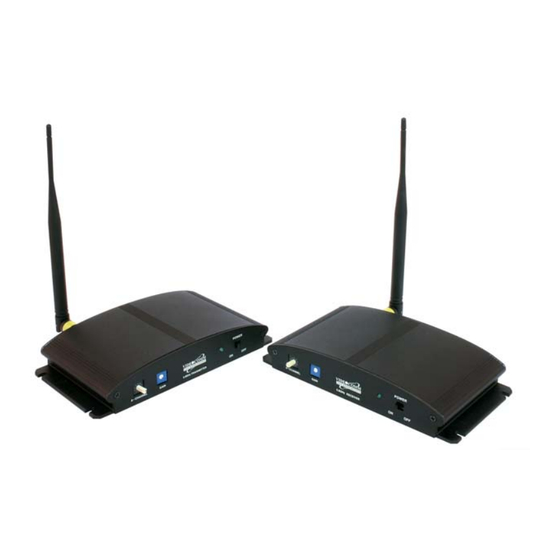

- Page 1 5.8GHz DeskTop Video Series Manual Rev. C 2007 5.8GHz DeskTop Transmitter & Receiver It’s About Real-Time OWNER’S MANUAL VideoComm Technologies (888) 379-2666 US Toll Free (905) 339-0366 Phone (905) 339-1776 Fax http://www.VideoTransmitters.com/ info@VideoTransmitters.com...
-
Page 2: Table Of Contents
II. In order to comply with the FCC/IC adopted RF exposure requirements, this transmission system will be installed by an authorized professional installer of VideoComm Technologies. Installation of all antennas must be performed in a manner that will provide at least 23cm clearance from the front radiating aperture, to any user or member of the public. -
Page 3: Introduction
• High resolution, real time wireless video up to 1,000 feet line of sight • One Year Limited Warranty • RoHS compliant models available upon request. • Perfect for commercial, industrial, scientific, law enforcement and government video security applications. VideoComm Technologies Customer Service Bus (905)-339-0366 US Toll Free 888-379-2666 Fax (905)-339-1776 E-mail- info@VideoTransmitters.com... -
Page 4: Parts List
If any parts are missing or damaged, contact VideoComm Technologies, Customer Service or your re-seller immediately. PARTS TC-5808 TX-5808 RX-5808 Desk Top Transmitter - # TX-5808 Desk Top Receiver - # RX-5808 12VDC Power Supply - # PS-1250 3dBi Gain Omni Antennas - # RUB-5803... -
Page 5: System Setup
4. Repeat these steps for the receiver. The receiver must have the same and matching channel to receive the video signal 5. We strongly recommend that you do not adjust the video gain adjustment without first consulting a member of the VideoComm Technologies Tech Support Team Channel # 1 5.733 GHz Channel # 6 5.828 GHz... -
Page 6: Conducting A Bench Test
Compare the unit to the product photo on the attached specification sheet. • Check for physical damage to the devices, contact your distributor or VideoComm Technologies Technical Support immediately should you suspect damage to the unit. 2. Bench Testing Your 5.8GHz device •... -
Page 7: Tips & Trouble Shooting
5.8GHz DeskTop Video Series Manual Rev. C 2007 TIPS & TROUBLE SHOOTING Things that block transmission Things that block transmission are not always obvious. Consider any obstruction that may get in the way or reduce the wireless signal strength along the way. Here are some of the most common pitfalls: •... - Page 8 5.8GHz DeskTop Video Series Manual Rev. C 2007 Interference We strongly recommend that you always conduct a temporary setup of any wireless equipment before systems are permanently mounted. As we are sharing a radio frequency that are considered part of the public band, we do not have any entitlement to that frequency and must accept interference if it exists.
-
Page 9: Specifications
5.8GHz DeskTop Video Series Manual Rev. C 2007 SPECIFICATIONS Operating Frequency 5.725GHz – 5.875GHz, 8 User Selectable Channels Radiated Power 50mV/m @ 3m Range (Line-of-Sight) Up to 1,000 feet Line-of-Sight / 300 feet indoors Transmitter Antenna Type 3dB Fixed OmniDirectional Receiver Antenna Type 3dB Removable OmniDirectional Receiver Sensitivity... -
Page 10: Warranty Information/ Terms & Conditions
5.8GHz DeskTop Video Series Manual Rev. C 2007 WARRANTY INFORMATION/ TERMS & CONDITIONS VideoComm Technologies, herein referred to as “VCT.” LIMITED WARRANTY VCT hereby warrants, subject to the conditions here in below, that should this product become defective by reason of improper workmanship or material defect during the specified warranty period, VCT will repair the same, effecting all necessary parts without charge for either parts or labor, or replace the unit at VCT option.
