Summary of Contents for UFREE SCOOTER PB-G02

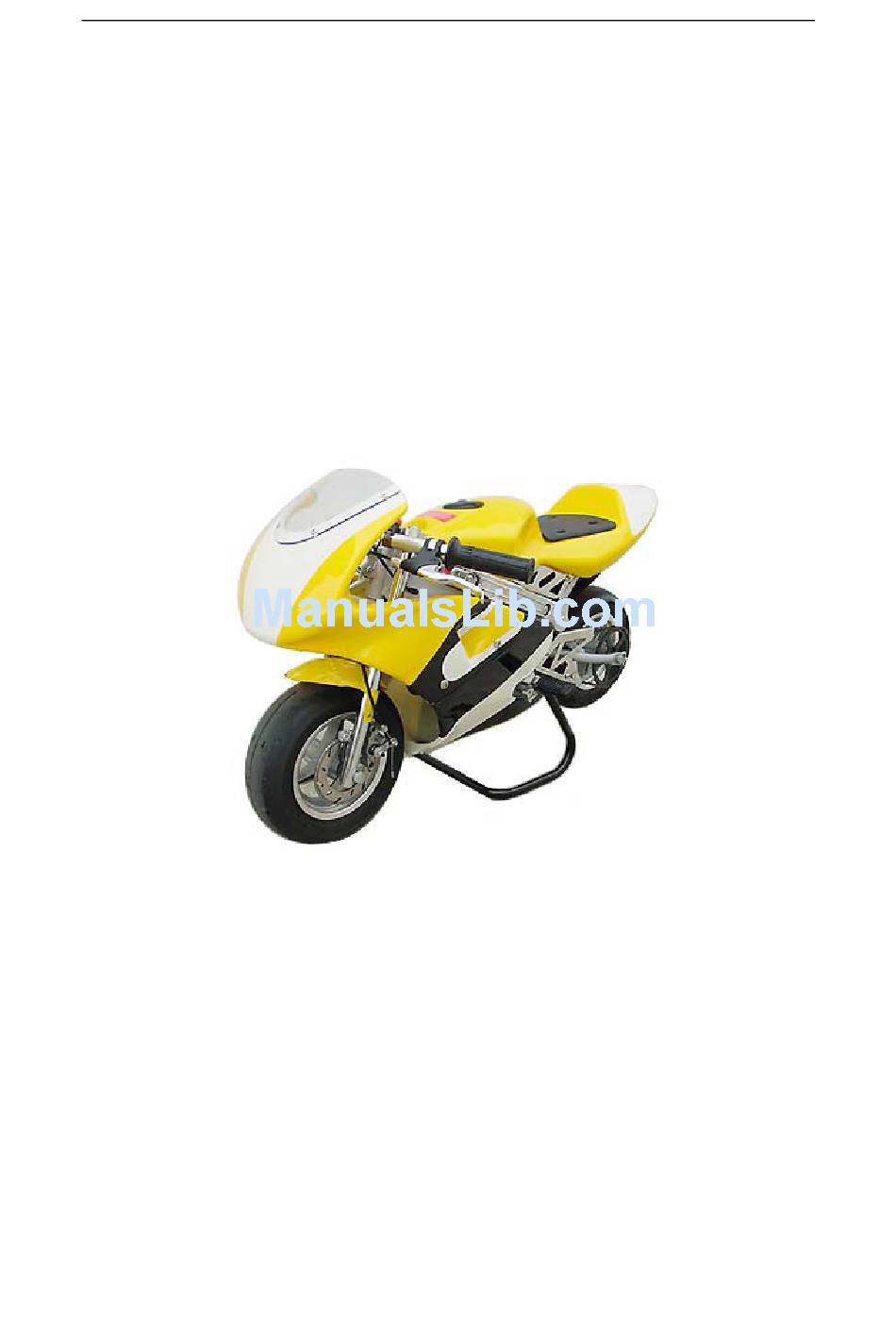

- Page 1 UFREE SPORTS VEHICLE www.scooter-manufacturer.com USER MANUAL POCKET BIKE PB-G02...
-
Page 2: Table Of Contents
REMOVE AND REFIT THE FRONT WHEEL.FIG. 5……………………………..7 REMOVE AND REFIT THE REAR WHEEL . FIG. 5………………………………7 REPLACEMENT OF SPROCKET -FK3.9………………………………………..7 ENGINE……………………………………………………………………………..8 POCKET BIKE PB-G02 .FJG. 5…………………………………………………9, 10 PARTS LIST……………………………………………………………………11 12 FRONT AND REAR BRAKES .FIG. 7…………………………………………….13 REPLACEMENT OF TIRE .FIG. 5…………………………………………………14 DISMANTCING AND ASSEMBLY OF AIR FFLTER-FIG.3………………….. -
Page 3: Introduction
INTRODUCTION The Minibike -PB-G02 is designed and built for use on a paved closed circuit track. The track should be clean and without obstacles of any kind. Qualified adults and younger persons can drive the minibike. Children can drive the minibike only under the supervision of a responsible adult person. -
Page 4: Unpacking And Setting Up Before Riding
UFREE SPORTS VEHICLE www.scooter-manufacturer.com UNPACKING AND SETTING UP BEFORE RIDING The minibike is delivered in a cardboard carton and packed with folded handlebars and brake levers. After unpacking, set up the handlebars into the position, that suits the best for driving. The maximum pulled brake lever position should not touch on the handlebar grip. -
Page 5: Starting The Engine .Fig. 2
UFREE SPORTS VEHICLE www.scooter-manufacturer.com STARTING THE ENGINE To be done only on the starting stand - Fig. 2. After opening the tank filling hole, fill the lank with fuel and close it by screwing-in cap. Open the petrol supply cock by turning the small lever into position "ON", Fig. -
Page 6: Riding
UFREE SPORTS VEHICLE www.scooter-manufacturer.com PERIODIC MAINTENANCE Periodic maintenance is the best way to help the machine perform well, give longevity and provide safety and low cost operation. In addition, you will be spared from many-worries from self caused problems, resulting from poor maintinence or no maintinence. -
Page 7: Brakes Adjusting .Fig. 4
UFREE SPORTS VEHICLE www.scooter-manufacturer.com ADJUSTING THE BRAKES Fine brake adjusting: Fine Fig. 4 brake adjustment can be carried out on both ends of brake bowden wire by means of the screw 1 and nut 2. Basic brake adjusting: It is carried out in such a way,... -
Page 8: Remove And Refit The Front Wheel.fig. 5
UFREE SPORTS VEHICLE www.scooter-manufacturer.com REMOVE AND REPLACE THE FRONT WHEEL - FIG. 5 Before dismantling the front wheel it is necessary to remove the front brake pads from the front brake, so it is possible to move the brake caliper from the wheel and be able to draw out the wheel and tire. -
Page 9: Engine
UFREE SPORTS VEHICLE www.scooter-manufacturer.com... -
Page 10: Pocket Bike Pb-G02 .Fjg. 5
UFREES PORTS VEHICLE www.scooter-manufacturer.com 9£ ¬ 10... - Page 11 UFREE SPORTS VEHICLE www.scooter-manufacturer.com C40.00.000 MINIBIKE E40.008.00 STARTER SPRING S C R E W M 5 ×1 6 STEERING C40.10.002 E40.009.00 RATCHET WHEEL C40.01.004 BOWDEN OUST GUARD SCREW M 5 × 20 C40.00.015 E40.00.000 ENGINE E40.011.00 C40.02.003 SCREW M 5× 30 WASHER 4.5×16×1.5...
- Page 12 UFREE SPORTS VEHICLE www.scooter-manufacturer.com C40.02.907 - FRONT BRAKE COMPLETE C40.10.907 -REAR DRAKE COMPLETE Fig.7...
-
Page 13: Parts List
UFREE SPORTS VEHICLE www.scooter-manufacturer.com REPLACEMENT OF TIRE - FIG.5 Remove the wheel from the minibike. For the front wheel unbolt the brake disk and for the rear wheel, the brake disk and sprocket. Deflate the tire by removing the valve stem. Place the wheel on a hard surface and press the tire bead from the wheel rim in to the middle relief at centre of rim.
