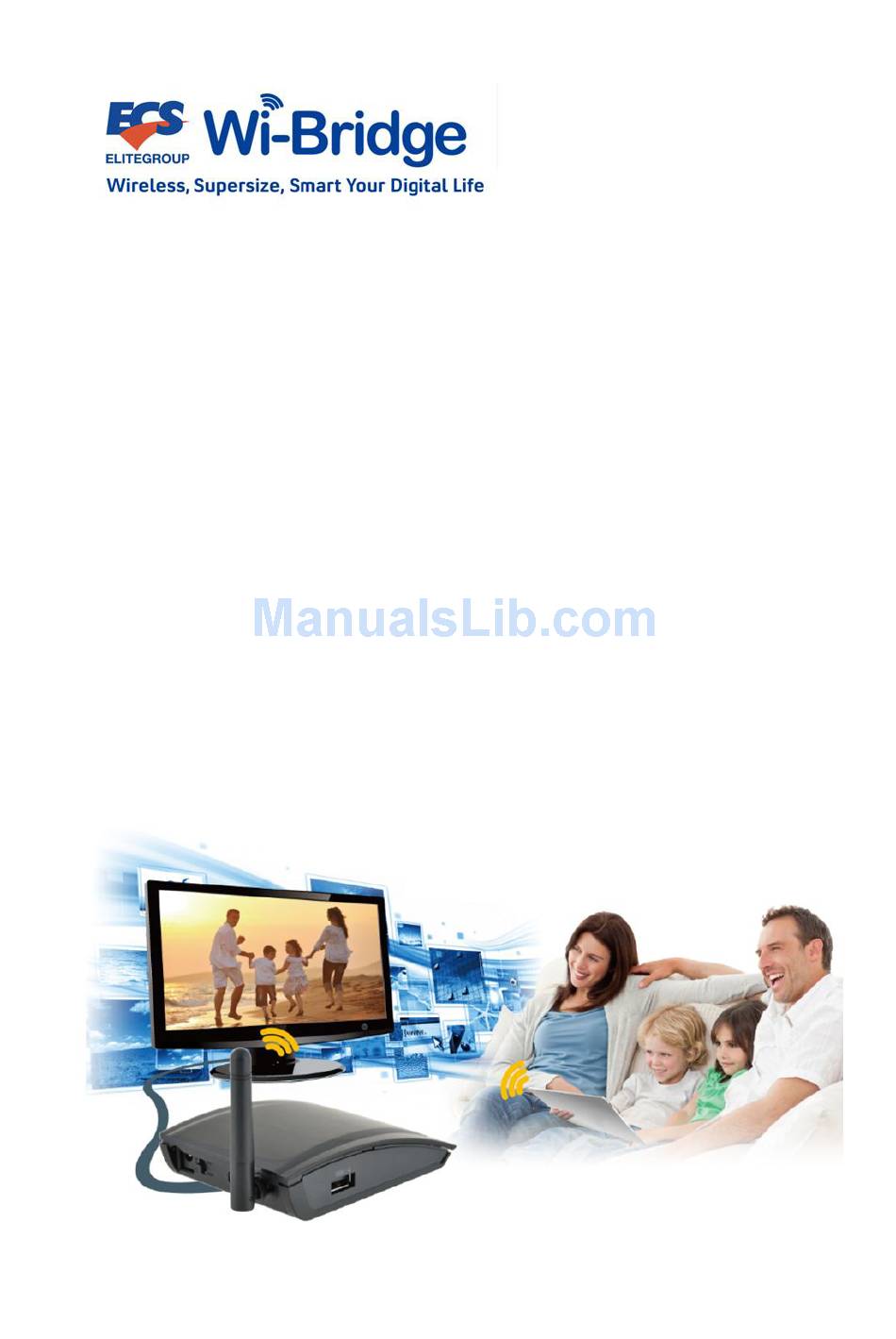

Wi-Bridge User Manual
Ver. 1.0

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Wi-Bridge and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ECS Wi-Bridge

Summary of Contents for ECS Wi-Bridge

  • Page 1 Wi-Bridge User Manual Ver. 1.0...

  • Page 2: Table Of Contents

    INDEX INDEX Product SPEC………………………………………………………………………………………………………………………………..2 Device Installation ..........................3 Client Controller Applications Installation ..................4 Wi-Bridge Home Screen ........................5 Wi-Bridge Configure on LCD Monitor/TV……………….…………………………………………………………………7 IrDA Remote Controller ........................10 Wireless Network Configuration ..................... 11 Device Name Modification ......................12 Language Setting ..........................12...

  • Page 3: B R I E F I N T R O D U C T I O N

    Wireless Network Connection  AP Mode (Default mode) The Wi-Bridge device acts as a wireless access point. It allows you connect your windows computer or smart device to LCD TV directly. This setup constructs a temporary wireless network for a non-wireless environment.

  • Page 4: Product Spec

    Wi-Bridge User Manual Remote Controller Model Name Wi-Bridge Type Wireless Adaptor for your devices 1 x HDMI v1.3 port Output Connectors 1 x USB v2.0 port for keyboard/ mouse/ pen drive Video Support Full HD 1080P Resolution Storage NAND Flash: 256MB...

  • Page 5: S E T U P G U I D E

    Step 3. Press the Power button on the Wi-Bridge device to turn it on. Wi-Bridge will be powered on. The Boot Screen & Home Screen as below will be shown on the LCD TV screen when the system is ready.

  • Page 6: Client Controller Applications Installation

    Wi-Bridge User Manual Remote Controller The default setting will be “AP mode” when use Wi-Bridge for the first time. If you want to make the Wi-Bridge device connect to the wireless network, you can use the Remote Controller to configure the wireless network or use wireless mouse on Wi-Bridge to set the configure on LCD TV directly.

  • Page 7: W B Dug

    It shows the current network connection mode and the client device connection status. If Wi-Bridge runs in LAN mode and is waiting for the client device to connect, the Home Screen will be shown as below. If Wi-Bridge runs in LAN mode and a PC client device is connected, the Home Screen will be shown as below.
  • Page 8 Wi-Bridge User Manual Remote Controller If Wi-Bridge runs in AP mode and is waiting for client device to connect, the Home Screen will be shown as below. Page 6...

  • Page 9: Wi-Bridge Configure On Lcd Monitor/Tv

    Wi-Bridge User Manual Remote Controller Wi-Bridge Configure on LCD Monitor/ TV You can do some setting the “Configure & Setting Icon” on the Monitor/ TV directly from wireless mouse for controlling. Because the default mode is “AP mode”, you can set it on the Monitor/ TV easily. The screen will be shown as below.
  • Page 10 Note1: The device name should be in the English alphabets and/or underscores. And its length must be less than 12 characters long. Note2: You can select the wifi hotspot under your device connected to Wi-Bridge. Note3: Please wait with patient when you change to Lan mode or AP mode cause it need some time to scan the environment.

  • Page 11: System Setting

    Wi-Bridge User Manual Remote Controller System Setting The Wi-Bridge Device had been set to a default name when it was manufactured. User can rename the device using the Remote Controller without other control applications. Wi-Bridge provides four languages for selecting – English, Simplified Chinese, Japanese and Traditional Chinese.

  • Page 12: Irda Remote Controller

    Wi-Bridge User Manual Remote Controller Remote Controller Button Description Power Navigation (Up, Down, Left, Right) Reserved Return Menu Page 10...

  • Page 13: Wireless Network Configuration

    To configure the wireless network for the Wi-Bridge device, you can follow the steps listed below: Step 1. At first, plug in the Wi-Bridge device power adapter to the outlet and turn on the device. If the device is working, skip this step.

  • Page 14: Device Name Modification

    “Enter” key and press the [OK] button to submit the name. Step 5. The Wi-Bridge device will return to Home Screen and the new name will be shown. Note: The device name should be in the English alphabets and/or underscores. And its length must be less than 12 characters long.

  • Page 15: W I N D O W S C O N T R O L A P P L I C A T I O N ( F O R P C / N B )

    WiFi 802.11n Run Application You can double click the “Wi-Bridge Window Control” shortcut icon that is on the desktop to run the application manually. If the Windows firewall or other third party firewall applications alert that the Wi-Bridge Windows Control application requires network access, you should click the [YES] button to allow the application to connect to the network.
  • Page 16 In the “Local Shared Folder Settings” window, you can add or remove the folder that contains media files you want to play remotely. Alternatively, you can also set the sharing folder by clicking the [sharing folder management] button ( ) while the Wi-Bridge Windows Control application is running. Page 14...
  • Page 17 These devices include all devices connected to the same wireless network as your Windows computer. Note: The Wi-Bridge wireless network able to connect one device at one time  Click the [Network Switcher] button ( ) to change the wireless network.
  • Page 18 In the “Wireless” tab page, click the [Add] button to show the wireless network list. Select your preferred network and click the [Connect] button. If the network is connected successfully, the Wi-Bridge Windows Control application will disconnect from the device automatically and the Wi-Bridge device will connect to the preferred network automatically. Page 16...
  • Page 19 Wi-Bridge User Manual Wi-Bridge Windows Control Application Play Media Files on the Wi-Bridge Device In the “Play” Window, you can play a media item on the Wi-Bridge device by double clicking it.  Click the playback control buttons ( ) to control the media item playback.
  • Page 20 There are 2 mirror types: Main Type and Extend Type. If Main Type is selected, the main screen content will be outputted to the Wi-Bridge device; if Extend Type is selected, an extend screen will be enabled on the Windows PC and its content will be outputted to the Wi-Bridge device.
  • Page 21 Wi-Bridge User Manual Wi-Bridge Android Control Application Wi-Bridge Android Control Application runs on Android 2.2 or above systems. To get better performance, the device with 1GHz CPU is recommended. Network Connection Guide Please download and install the AP- “4TV” in Android market first.
  • Page 22 Wi-Bridge User Manual Wi-Bridge Android Control Application Connect to the 4TV Device You can find all the 4TV devices that connect to the same wireless network as the Android phone.  Tap on the [Refresh 4TV device list] button ( ) to refresh the device list.
  • Page 23 Play Media File on the 4TV Device Once the Wi-Bridge device is successfully connected, the 4TV control screen will be shown. You can play the media file on the Wi-Bridge device or mirror screen content on Wi-Bridge device. On the “Control” screen, if the USB storage device and SD card have been connected to the Wi-Bridge device, they will appear in the media server list.
  • Page 24  Tap on the category buttons which are on the top of the list.  Tap on the device to return to the Wi-Bridge Control Screen. When you tap on a video or music item, the play screen below will be shown.
  • Page 25 On the 4TV Control screen, you can tap on the “4TV Remote Configuration” item to open the Remote Setting window. In the Remote Setting window, you can get the Wi-Bridge system information, configure 4TV wireless network and change the TV mode.
  • Page 26 Wi-Bridge User Manual Wi-Bridge iOS Control Application Wi-Bridge iOS Control Application runs on iOS 4.2 or above systems. To get better performance, iPhone 3GS/ 4/ 4S, iPod Touch 4G, iPad 1 are recommended. Please download and install the AP- “4TV” in APP Store first.
  • Page 27 Wi-Bridge User Manual Wi-Bridge iOS Control Application Play Local Media Content The following steps show how to play the media clips which are in local device. Step 1. Select “Local Device” from media source list. Step 2. The iOS Control application can list the “Camera Roll” and “Photo Library”...
  • Page 28 Wi-Bridge User Manual Wi-Bridge iOS Control Application Step 4. After a clip is select, the media player list will be displayed automatically. You should select a player to play the item. Step 5. After the media player selected, the “Playback” screen will be shown.
  • Page 29 Wi-Bridge User Manual Wi-Bridge iOS Control Application Play Media Content from Remote Server The following steps show how to play the media clips which are on remote server. Step 1. Select a DLNA DMS server, the shared library will be listed.
  • Page 30 Wi-Bridge User Manual Wi-Bridge iOS Control Application  Tap button on navigation row to go to the corresponding level directly.  Tap [Play] button ( ) to play the selected item directly. If the selected item is a folder, all items included in the folder will be played continuously.
  • Page 31 Wi-Bridge User Manual Wi-Bridge iOS Control Application Step 4. After the media player selected, the “Playback” screen will be shown.  Tap on [Other Media Players] button ( ) to select another player to play current clip.  Tap on [Back] button ( ) to back to previous screen.

  • Page 32: Frequently Asked Questions

    Why can’t my Wi-Bridge device be connected to the wireless network automatically? For first time users, the Wi-Bridge device works in AP mode by default. You need to configure the wireless network setting for it. Please refer to the “Quick Start: Wi-Bridge Windows Control”...
