Summary of Contents for Gold Medal TS1

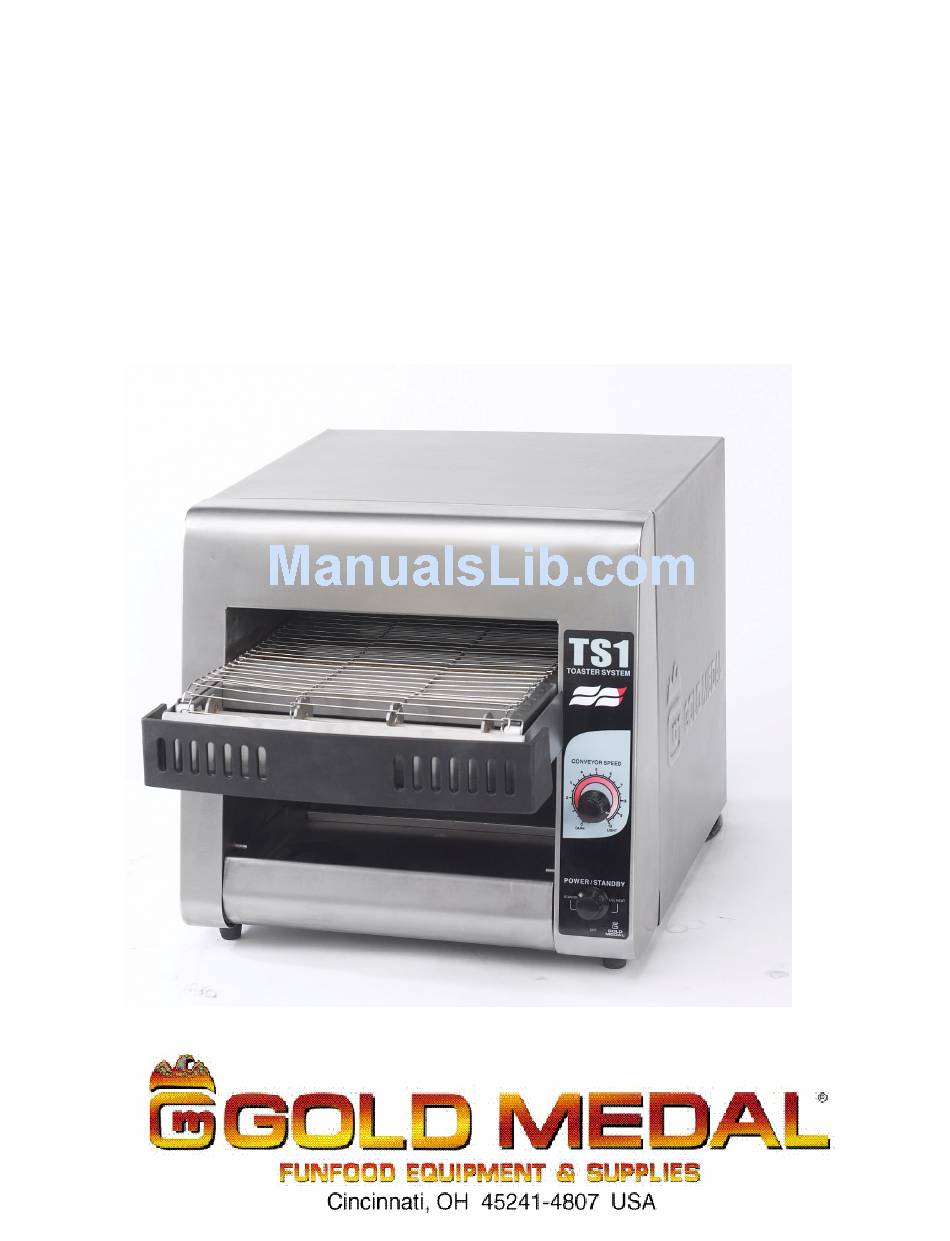

- Page 1 Part No. 44162 Revised: June 2006 TS1 TOASTER SYSTEM Instruction Manual Models # 5700 AND # 5700SF...
-
Page 2: Safety Precautions
__________________________________________________________________________Toaster Oven System SAFETY PRECAUTIONS Model # 5700 & # 5700SF... -
Page 3: Checking Shipment
__________________________________________________________________________Toaster Oven System TOASTER SYSTEM INSTALLATION CHECKING SHIPMENT Unpack the unit from the shipping container and check thoroughly for any damage which may have occurred in transit. Any claims should be filed immediately with the transportation company. ELECTRICAL REQUIREMENTS Voltage for your toaster is 120 Volt, 60 Cycle, single phase. The 5700 will draw a maximum of 13.7 amps. -
Page 4: Controls And Their Functions
__________________________________________________________________________Toaster Oven System OPERATING INSTRUCTIONS CONTROLS AND THEIR FUNCTIONS ROTARY POWER SWITCH Your toaster is equipped with a power saving feature. Turn the power control switch clockwise or counter clockwise to the following positions: FULL POWER This is the normal operating mode, the equipment is at full power and ready to use. Two off positions are provided, rotate to this position to is to turn the unit off. -
Page 5: Maintenance
__________________________________________________________________________Toaster Oven System CLEANING To keep your toaster in top operating condition, the following steps should be performed daily or weekly as indicated. 1. Turn power switch to the OFF position. Disconnect unit from power source. 2. On a cool unit, remove crumb tray and clean, slide clean crumb tray back into place. 3. - Page 6 __________________________________________________________________________Toaster Oven System REPLACING HEATER TUBES 1. Disconnect unit from power supply. 2. Remove the outer wrapper, by removing the screws in the back of the unit. Once screws are removed, lift the wrapper back up first, and pull lower sides of unit apart. Slide wrapper away toward back of unit.
-
Page 7: Troubleshooting Guide
4. Slide motor up, remove chain from sprockets. 5. Move the conveyor by hand, to check for binding. 6. If conveyor rotates freely, call Gold Medal Technical Support, motor or speed control may need to be replaced. 7. Disconnect from power source. Heat element may need to be replaced. -
Page 8: Ordering Spare Parts
3. Please include your model name and machine serial number (located on the machine nameplate) with your order. Address all parts orders to: Parts Department Gold Medal Products Co. 10700 Medallion Drive Cincinnati, Ohio 45241-4807 or, place orders at: (513) 769-7676... - Page 9 __________________________________________________________________________Toaster Oven System Model # 5700 & # 5700SF...
- Page 10 __________________________________________________________________________Toaster Oven System Model # 5700 & # 5700SF...
- Page 11 __________________________________________________________________________Toaster Oven System Model # 5700 & # 5700SF...
- Page 12 __________________________________________________________________________Toaster Oven System Model # 5700 & # 5700SF...
- Page 13 __________________________________________________________________________Toaster Oven System Model # 5700 & # 5700SF...
- Page 14 __________________________________________________________________________Toaster Oven System PARTS LIST – TOASTER OVEN Model # 5700 Item # Part # Description Qty. 22038 Lead-in Cord 44107 Heater Assembly 44109 Bearing Assembly 44110 Drive Assembly Rear 44113 Heater Lock 44114 Drive Chain 44115 Fan Blower 44116 Heat Shield Top 44117 Crumb Tray...
-
Page 15: Electrical Schematic
__________________________________________________________________________Toaster Oven System Electrical Schematic Model # 5700 & # 5700SF... -
Page 16: Warranty
__________________________________________________________________________Toaster Oven System WARRANTY WE WARRANT to the original purchaser the Gold Medal equipment sold by us to be free from defects in material or workmanship under normal use and service. Our obligation under this warranty shall be limited to the repair or replacement of any...
