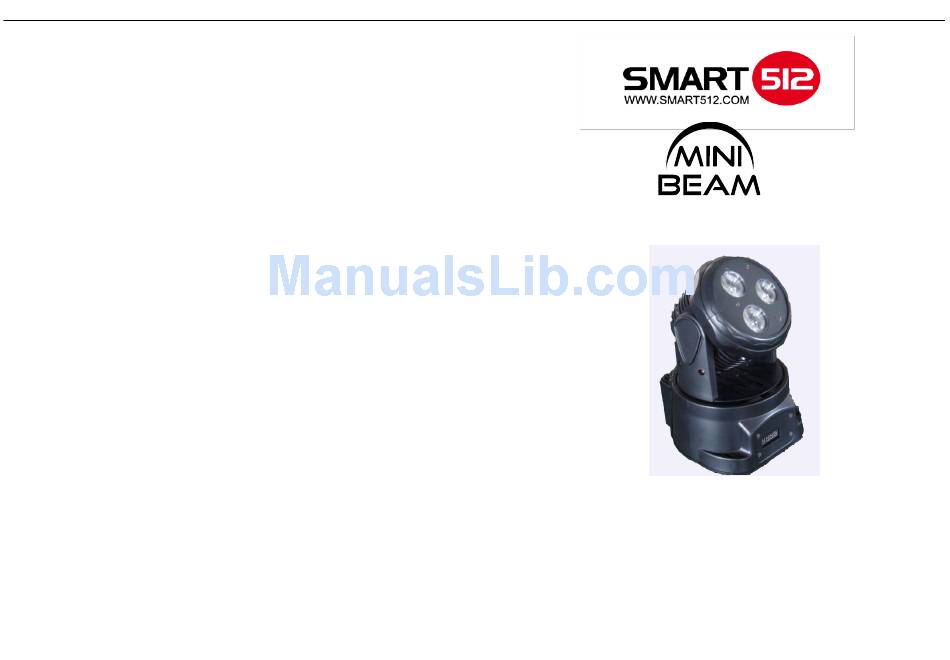

Smart512 Mini Beam User Manual

Mini moving head led beam

Advertisement

Quick Links

AFTER SERVICE

8
1 Our company offer technical consultation to customers for ever.
2 If the machine is wrong and need repairment, please truthfully fill in the related content and
feedback us the problems timely, as well as we have to improve the product.
3 In addition to the lamp, also matching accessories are as follows:
accessories:Power line 1 piece Optional parts:(customers)
Signal line
Light hook
Note:
Based on our company continue to improve the product, the statement containing data may have
changed, and will not notice the change any more. Company retains its right to change specifications
related when product is improved. Thanks for your understanding
Innovation, Quality, Performance
Users manual 1 sheet

User Manual

Mini moving head led beam
Professional Entertainment Equipment

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mini Beam and is the answer not in the manual?

Questions and answers

Summary of Contents for Smart512 Mini Beam

  • Page 1: User Manual

    AFTER SERVICE ○ 1 Our company offer technical consultation to customers for ever. ○ 2 If the machine is wrong and need repairment, please truthfully fill in the related content and feedback us the problems timely, as well as we have to improve the product. ○...
  • Page 2 6.Throubleshooting TABLE OF CONTENTS Following are a few common problems that may occur during operation. Here are some suggestions for easy troubleshooting: 1. Safety Instructions A. The unit does not work, no light and the fan does not work 1. Check the connection of power and main fuse. 2.
  • Page 3 1. Safety Instruction Solder a 120 ohm 1/4W resistor between pin 2(DMX-) and pin 3(DMX+) into a 3-pin XLR-plug and plug it in the DMX-output of the last unit. 2.Connect the unit together in a `daisy chain` by XLR plug from the output of the unit to the input Please read carefully the instruction, which includes important information about of the next unit.
  • Page 4: Channel Modes

    Installation 4. channel modes: The unit should be mounted via its screw holes on the bracket. Always ensure that the unit is firmly fixed to avoid vibration and slipping while operating. And make sure that the structure to which you 11 channel are attaching the unit is secure and is able to support a weight of 10 times of the unit’s weight.
  • Page 5 3. How To Set The Unit Pan Inversion 3.1 Control panel Press the MENU button to show on the display. Press the ENTER button and the display will blink. Use the DOWN and UP buttons to select the (normal) or (pan inversion) mode.
  • Page 6 3.3 MENU DMX 512 Address Setting ADDR (001-512) MENU Press the MENU button to show on the display. Press the ENTER button and the display will blink. Use the DOWN and UP buttons to change the DMX512 address. Once the address has been selected, SLND press the ENTER button to setup, to go back to the functions without any change press the MENU button again.
