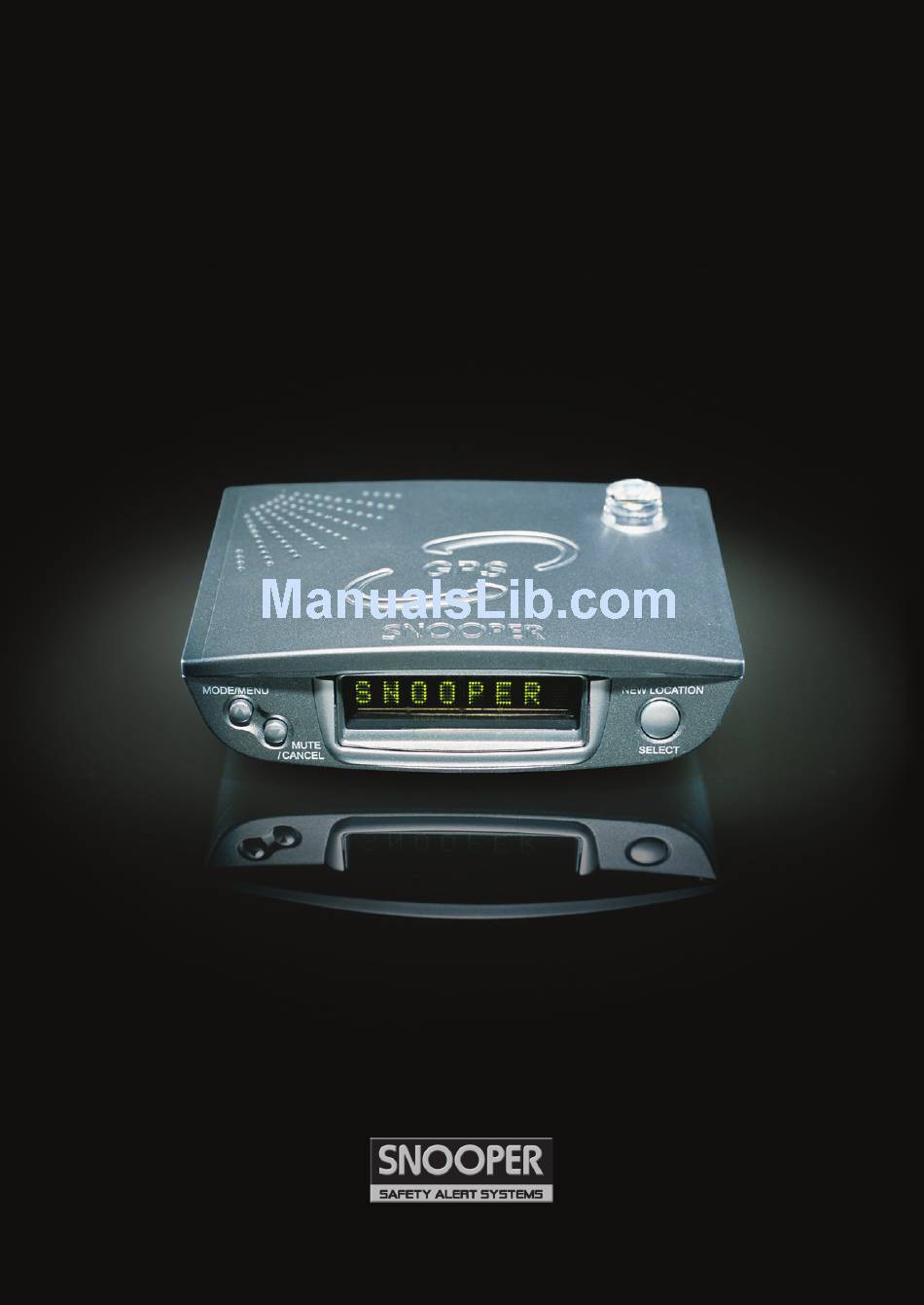

- Page 1 Evolution plus G P S S p e e d C a m e r a D e t e c t i o n S y s t e m User Manual...
-
Page 2: Introduction
Evolution GPS location device. Utilising the very latest Global Positioning Satellite (GPS) technology, Snooper have created the Evolution, which has been designed to help you drive safely within the confines of today’s speed limits, by alerting you quickly,... -
Page 3: Table Of Contents
Contents Page Introduction Components Features Registering your Snooper Evolution Software CD Downloading Installing the Evolution Operating Instructions Features and Settings Motorcycle Installation Troubleshooting Specification Snooper Accessories & Price List Service under Warranty... -
Page 4: Components
Components The following components come as standard with your Snooper Evolution: - 1 x Snooper Evolution system 1 x Quick Start Guide 1 x Windscreen suction cup bracket 2 x Hook and loop fastener Straight power lead with cigarette lighter socket adaptor... -
Page 5: Features
Features MODE/MENU NEW LOCATION MUTE SELECT /CANCEL DC 12V OFF 2 POWER ON/OFF A MODE/MENU & Scroll Button B MUTE/CANCEL & Scroll Button C New Location & Select Button D LED Text Display E 360 o Laser Prism F Rear Laser Sensor G Windscreen Bracket Mounting Slot H 12V Power Input Socket USB Computer Interface Socket... -
Page 6: Registering Your Snooper Evolution
IMPORTANT! PLEASE READ BEFORE USING YOUR SNOOPER EVOLUTION The Snooper Evolution Plus does not come with a safety camera database pre installed for security reasons. You must first register your Evolution before you can perform a download of the Enigma database to your Evolution. There... -
Page 7: Software Cd
Software CD Before you can begin downloading the database onto your Snooper Evolution you will need to install the Evolution Updater software first and then the driver software for the USB PC connection lead that enables you to do this. -
Page 8: Downloading
PC. ** If you have a Firewall on your computer the software may appear to hang and/or your Firewall software will inform you that the Evolution Plus software is trying to access the internet. Please make sure that you grant/allow/permit access through the Firewall. -
Page 9: Installing The Evolution
For optimal results mount the Evolution onto the vehicles windscreen or alternatively it can be mounted on the dashboard using the hook and loop fastener. When installing your Snooper Evolution please consider the following: • The unit, with its built in GPS antenna has a clear view of the sky* •... - Page 10 Installing your Snooper Evolution using the Windscreen Suction Cup bracket You can mount your Evolution to the inside of your vehicles windscreen using the suction cup windscreen bracket provided. Simply select a position within the windscreen so that the top of the unit has a clear view of the sky,...
- Page 11 Installing your Snooper Evolution using the Hook and Loop fastener The Snooper Evolution can be installed anywhere on the dashboard as long as the built in GPS antenna has a clear view of the sky and you can easily see the LED text display and operate the controls safely. You will also need to be sure that you can connect the power connection cable.
-
Page 12: Power Connection
Power Connection Using the cigarette lighter socket The Evolution is supplied with two power cables one of which can be connected to the vehicles cigarette lighter socket as follows. • Connect the smaller right angled plug to the socket marked ‘DC 12V’ on the Evolution. - Page 13 Direct connecting/hard wiring your Evolution You can power your Snooper Evolution by wiring it directly to your vehicles 12V electrical system using the ‘Hard Wire’ cable supplied as standard with your unit.
-
Page 14: Operating Instructions
ON/OFF Volume dial towards you. The LED text display will briefly read ‘Snooper’, Logic # (see page 23), Mway, City or All (page 15) and finally ’Searching for Satellites...’ will scroll across the screen as the unit begins to search for satellite connection. - Page 15 CITY Mode In CITY mode the Snooper Evolution will ignore any alert generated via GPS that is actually located on a motorway and is in range of your device but not an immediate threat to you, as you are not actually travelling on that section of road.
- Page 16 When approaching the first camera in the SPECs system your Snooper Evolution will begin to alert you at your chosen preset alert distance with the display indicating ‘SPECs Str’ and emitting either a voice or your chosen audible alert.
- Page 17 MUTE/CANCEL button. Laser Alerts The Snooper Evolution incorporates a built-in laser detector. As laser often requires instant action the device simply gives you an audible or voice alert whilst the display will flash ‘Laser’.
- Page 18 When you attempt to save the new coordinate and the display reads ‘Mem Full’ it means that the memory in your Snooper Evolution is completely full. If Return to contents...
- Page 19 you want to store any different coordinates you will have to either delete some or all of the existing coordinates stored in the unit’s memory. 9. Deleting Stored Coordinates If you would like to delete any of the coordinates you have stored in your units memory simply enter the units Menu by pressing the MODE/MENU button (button 1) for approximately two seconds.
-
Page 20: Features And Settings
Menu. 3. Warn Sel The Snooper Evolution allows you the option of choosing whether or not you would like to receive advanced warnings of Primary Schools (Schools are time sensitive on the Evolution – 08:30-09:30am, 12:00-13:00 and 15:30 to... - Page 21 ‘Changed’ twice and will return to the Menu. 5. Set Time The Snooper Evolution can be configured to display the time on the Standby Screen. This reading is generated in Greenwich Mean Time (GMT) directly from the satellites and is completely accurate. However it does not automatically adjust for British Summer Time (BST) and is required to be adjusted manually.
- Page 22 7. MEM Edit It is possible to add and edit your own personal locations on your Snooper Evolution. To add a new location make sure you are stationary and parked in a safe, legal manner then press and hold the ‘New Location’ button (button 3) for approximately two seconds.
- Page 23 10. Logic There are a number of different ways that you can programme your Snooper Evolution to locate fixed cameras. You can choose between three different Logic Modes: Logic 1 When this mode is selected your unit will alert you via your chosen audible alert as well as visual alerts of fixed cameras on both sides of the road.
-
Page 24: Motorcycle Installation
700m Motorcycle Installation The Snooper Evolution can be installed on to a motorcycle. An ear piece is available as an optional extra so that audible alerts can be heard. Instructions for mounting the Evolution are as per the installation guide on pages 9 to 13. -
Page 25: Troubleshooting
Troubleshooting Evolution Downloads If you are having difficulty performing a download to your Snooper Evolution you should consult the following checklist first before contacting technical support. If you are still unable to perform a download after following this checklist then please contact our Technical Helpline on 0870 787 0700 and select Option 3. - Page 26 If you have not installed the software you will not be able to perform a download to your Evolution. Once the software is installed there will be a new icon on your desktop: ‘Evolution Plus’. Please check to see if you have the latest version of this software by visiting www.snooperneo.co.uk and clicking on the link ‘Download software’.
- Page 27 Warning: We do not recommend disabling your firewall software in order to perform a download to your Snooper Evolution nor can we advise how to alter the settings on third party software nor can we be held responsible for any action taken by the computer user that makes the computer more vulnerable to viruses and computer hackers.
- Page 28 If you have a specially treated windscreen some manufacturers leave a small section of the windscreen untreated. If the unit is not positioned properly in this untreated area then the unit may loose satellite signal frequently. Reposition the unit within this untreated area. The device does not appear to respond to Police speed monitoring systems Have you performed a download recently? If not, perform a fresh download to ensure that you have all the latest coordinates stored on your device.
-
Page 29: Specification
Specification General Power requirements 10 – 16V DC, 310mA (Negative Ground) Temperature Range 4 to 158 F (-20 to 70 Dimensions Width 105mm Depth 75mm Height 27mm Laser Optical 360 degree sensor Receiver Type Pulsed Laser Signal Receiver Detector Type Digital Signal Processed Pulse Width Discriminator Opto Sensor... -
Page 30: Snooper Accessories & Price List
Snooper Accessories & Price List The following accessories are available from your local Snooper dealer. For further details please visit www.snooperuk.com External GPS extension antenna……………………………………..£34.99 Coiled power lead with cigarette lighter adaptor……………………….. £12.99 2m Straight power lead with cigarette lighter adaptor………....£12.99 2m Straight hard wire lead with fuse…………………………………….. -
Page 31: Service Under Warranty
Your Snooper Evolution comes with a standard two year manufacturer’s warranty. If, for some reason, your unit requires service under warranty return your Snooper Evolution, via special or recorded delivery and in suitable packaging to: The Returns Department Performance Products Limited...
