Summary of Contents for SpeakerCraft STT 2.0

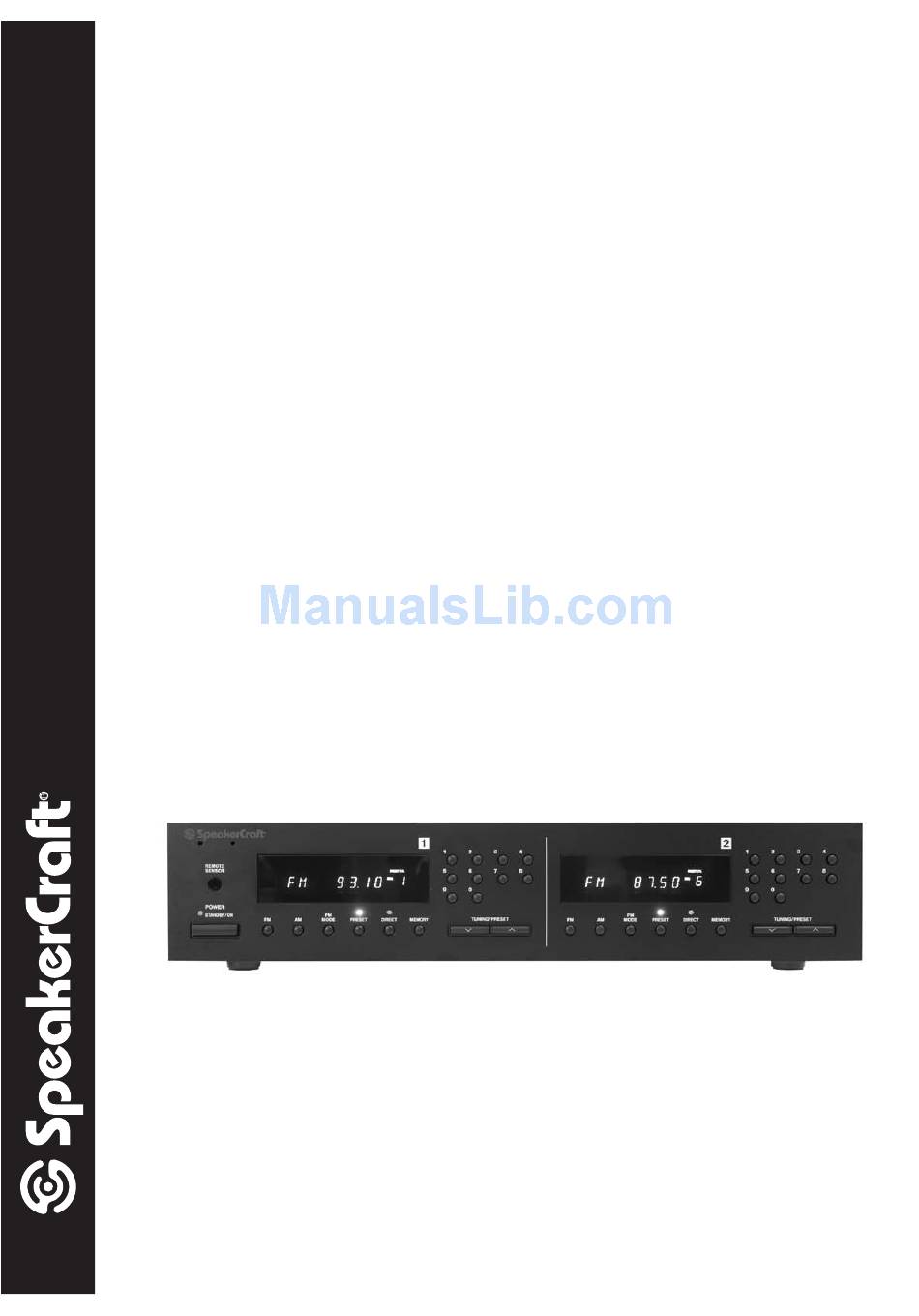

- Page 1 Owners Manual STT 2.0 Digital AM/FM Twin Tuner Thank you for choosing SpeakerCraft. Read this manual carefully to get the best performance from this unit.
-
Page 2: Important Safety Instructions
Important Safety Instructions Important Safety Instructions 1) Read these instructions. 2) Keep these instructions. 3) Heed all warnings. 4) Follow all instructions. 5) Do not use this apparatus near water. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT 6) Clean only with dry cloth. -
Page 3: Table Of Contents
Contents Remote Control Unit The provided Remote Control Unit allows the unit to be operated Important Safety Instructions ......2 from a distance. -
Page 4: Connection
TUNER IN TUNER IN Amplifier Amplifier RACK MOUNT ANGLE KIT 1. Remove the screws and washers from each side of the STT 2.0. 2. Using the provided screws, attach the mount angles to the STT 2.0. (L: left, R: right) -
Page 5: Audio Out
Connection FM Antenna • If the AM loop antenna provided does not deliver sufficient reception (often due to being too far from the transmitter or Connect an outdoor FM antenna to the FM 75 ohm socket. in a concrete building, etc.), it may be necessary to use an Generally, a 3-element antenna will be sufficient;... -
Page 6: Names Of Each Control
Names of Each Control E F G H E F G H Buttons for TUNER 1 Buttons for TUNER 2... - Page 7 Names of Each Control REMOTE SENSOR When operating the STTR remote control unit, point it towards the REMOTE SENSOR. STANDBY indicator This indicator lights when the unit is in the standby mode. When the unit is turned on, it goes off. POWER switch Press this switch to turn the unit on or off.
-
Page 8: Radio Reception
Radio Reception Manual Selection (Selecting stations which cannot be tuned automatically) TUNER 1 TUNER 2 When the TUNING/PRESET button is pressed momentarily (0.5 second or less), the frequency changes by a fixed step. FM : 0.2 MHz steps Press the POWER switch to turn the unit on. AM : 10 kHz steps Press the TUNING/PRESET button repeatedly until the station you want to listen to is found. -
Page 9: Preset Tuning 1
Preset Tuning 1 TUNER 1 TUNER 2 Manual Memory Presetting While the MEMORY indication is flashing select the preset you would like to use for this station by EITHER: You can store your favorite FM and AM stations into any of the 30 Scroll up or down using the TUNING/PRESET buttons until the preset locations by: preset is displayed. -
Page 10: Troubleshooting
Preset Tuning 2 Troubleshooting If you experience any problems with the unit, please take a moment to look through this chart and see if you can solve the problem yourself before you call your dealer or service center. No power •... -
Page 11: Specifications
In no event will SpeakerCraft be liable for any incidental or consequential damages arising out of the use or inability to use the product, even if SpeakerCraft Inc. - Page 12 RS-232 Commands STT 2.0 DIGITAL AM/FM TWIN TUNER RS-232 COMMANDS PURPOSE: This document describes the RS-232 commands that will operate the STT 2.0 Twin Tuner through the 9-pin RS-232 connector on the rear panel. General Information: Data Rate: 19,200 baud...
