Summary of Contents for Sinocan T06-15

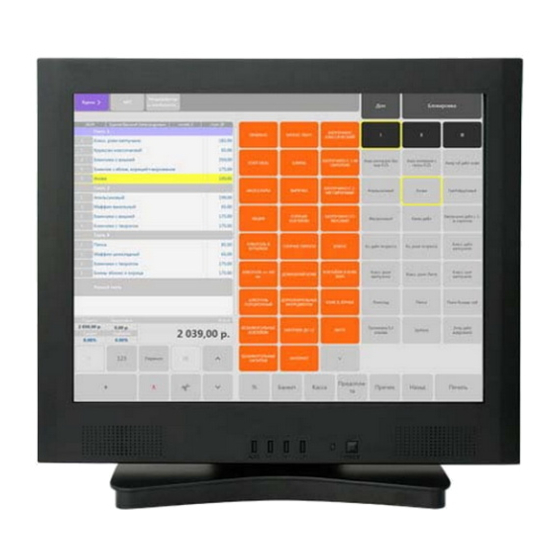

- Page 1 User’s Manual Touch Screen Monitor Model: T06-15/17/19/22W Version 2.0 2010.10...
- Page 2 Sinocan International Technologies Co., Ltd. Disclaimer The information in this document is subject to change without notice. Sinocan company makes no representations or warranties with respect to the contents hereof, and specifically disclaims any implied warranties of merchantability or fitness for a particular purpose.
- Page 3 Warnings and Cautions Warning • Danger — Explosion hazard. Do not use in the presence of flammable anesthetics. • To prevent fire or shock hazards, do not immerse the unit in water or expose it to rain or moisture. • Do not use the unit with an extension cord receptacle or other outlets unless the prongs of the power cord can be fully inserted. • RISK OF ELECTRICAL SHOCK — DO NOT OPEN. To reduce the risk of electrical shock, ...
- Page 4 to monitor a critical function. ♦ The internal speakers of this touchmonitor must not be the sole method of warning of a critical function. Critical functions are: 1. Life support devices or systems are devices or systems which, (a) are intended for surgical implant into the body, or (b) support or sustain life, or (c) whose failure to perform when properly used in accordance with instructions for use provided in the labeling, can be reasonably expected to result in significant injury to the user. 2. A critical component is any component of a life support device or system whose ...
-
Page 5: Table Of Contents
Product Description ....................... 7 LCD Monitor Performance Features ................7 TFT LCD Monitor Panel................... 7 External Medical Grade Power Adaptor..............7 INSTALLATION AND SETUP ................... 8 Unpacking Your Touchmonitor..................8 Product Overview ......................8 Front View .........................9 Rear View ........................ -
Page 6: Introduction
NTRODUCTION Product Description The T06 series touch screen monitors which use liquid crystal monitor (LCD) technology, designed to present information to the operator, care-giver and the patient. The T06 series features both serial and USB touch interfaces as standard configuration. The T06 series functionally consists of 15/17/17/22 inch LCD main monitor with a touch screen. - Page 7 Monitor area 376 mm (H) x 301 mm (V) Pixel pitch 0.294 mm (H) x 0.294 mm (V Contrast ratio 1000:1 typical Brightness LCD 250 cd/m2 (Typical) Response time 5msec typical Monitor color 16.7 million colors, 6 Bit with dithering Typical vertical viewing angle: 89 deg (looking down) / 89 deg (looking up) Typical horizontal viewing angle:...
-
Page 8: Installation And Setup
NSTALLATION AND ETUP This chapter discusses how to install your LCD touchmonitor and how to install touch screen driver software. Unpacking Your Touchmonitor Check that the following items are present and in good condition: Product Overview ... -
Page 9: Front View
Front View T06‐15 T06‐17 ... -
Page 10: Side View
Side View Kensington™ Lock ... -
Page 11: Usb Interface Connection
The Kensington™ lock is a security device that prevents theft. To find out more about this security device, go to http://www.kensington.com. USB Interface Connection Your touchmonitor comes with one USB cable. (For use with Windows 2000, ME, and XP, 7 systems only.) To set up the monitor, please refer to the following figures and procedures: ... - Page 12 The following illustrations guide you step by step in connecting your touchmonitor using a Serial or USB cable connection with VGA video cable.. Connect one end of the VGA cable to the rear side of computer and the other to the LCD.
-
Page 13: Optimizing The Lcd Monitor
After you have attached all the cables to the monitor; gently bring all the cables toward the center so they fit under the cable cover lip. Snap the cable cover in place over the connections. Optimizing the LCD Monitor To ensure the LCD monitor works well with your computer, configure the monitor mode of your graphic card to make it less than or equal to default resolution, and make sure the timing of the monitor mode is compatible with the LCD monitor. -
Page 14: Installing The Usb Touch Driver
capabilities of your touchmonitor is sent to your video monitor adapter when Windows starts. If Windows detects your touchmonitor, follow the instructions on the screen to install a generic plug-and-play monitor. Refer to the appropriate section below for driver installation instructions. ... -
Page 15: Installing The Serial Touch Driver
Installing the Serial Touch Driver Installing the Serial Touch Driver for Windows 7, Windows XP/2000 please ope n 1. Insert the Touch Drivers CD-ROM in your computer’s CD-ROM drive. the folder your \\CD-ROM\Resistive Touch Drivers\Serial\Driver 2. Select the drivers folder to complete the driver setup for your version of Windows. ... -
Page 16: Operation
For best performance, your touchmonitor should be operating in native resolution, that is 1024x768 for T06-15, 1280x1024 for T06-17/19, 1680x1050 for T06-22W at 60-75 Hz. Use the Display control panel in Windows to choose standard resolution. Operating in other resolutions will degrade video performance. For further information, please refer to Appendix A. -
Page 17: Controls And Adjustment
Table 1 - User controls Control Function Menu monitor and menu exit Adjusts the increasing value of the selected OSD control option. Adjusts the decreasing value of the selected OSD control option AUTO Auto-Adjust POWER Auto-Adjust Controls and Adjustment OSD Menu Functions To monitor the OSD Menu, press the button. -
Page 18: Power Led Monitor & Power Saving
• Recalls the factory OSD default settings. RGB - Color Temperature • Select preset color temperature of 9300°K, 6500°K, 5500°K, 7500°K or select USER to customize Red, Green and Blue gain. Audio • Adjust audio volume of speakers internal to the 1528L monitor. Sharpness •... - Page 19 minimum glare. CAUTION · In order to protect the LCD, be sure to hold the base when adjusting the LCD. · For models without a touchscreen take care not to touch the screen. ...
-
Page 20: Troubleshooting
CHAPTER ROUBLESHOOTING If you are experiencing trouble with your touchmonitor, refer to the following table. If the problem persists, please contact your local dealer or our service center.Sinocan Technical Support numbers are listed on page 28. Solutions to Common Problems Problem Suggestion(s) The monitor does not respond •... -
Page 21: Native Resolution
APPENDIX ATIVE ESOLUTION The native resolution of a monitor is the resolution level at which the LCD panel is designed to perform best. For the TouchSystems LCD touchmonitor, the native resolution is 1024 x 768 for the 15.0 inch size, 1280x1024 for the 17/19 inch size, and 1680x1050 for the 22 inch size. -
Page 22: Touchmonitor Safety
APPENDIX TOUCHMONITOR SAFETY This manual contains information that is important for the proper setup and maintenance of your touchmonitor. Before setting up and powering on your new touchmonitor, read through this manual, especially Chapter 2 (Installation), and Chapter 3 (Operation). 1. - Page 23 · To clean the touchscreen, use window or glass cleaner. Put the cleaner on a soft cloth and wipe the touchscreen. Never apply the cleaner directly on the touchscreen. ...
- Page 24 APPENDIX ECHNICAL PECIFICATION T06-15 Touch Monitor Specification T06-15 Model Desktop Form factor Black Enclosure color 15.0" Diagonal size Aspect ratio Horizontal: 12.0" (304 mm) Useful screen area Vertical: 9.0" (228 mm) Width: 13.8" (350 mm) Height: 12.2" (310 mm) Depth: 6.9"...
- Page 25 30 W Power consumption (typical) 3-Tracks Magnetic Stripe Reader, USB interface VFD Customer Display, 2 lines with 20 characters per line, Options Serial interface Wall mount or celling mount brackets Operating: 0°C to 40°C (32°F to 104°F) Temperature Storage: -20°C to 60°C (-4°F to 140°F) Operating: 20%-80% Humidity(noncondensing) Storage: 10%-90%...
- Page 26 Colors 16.7 million Brightness(typical) LCD panel: 250 nits ResistiveTouch: 200 nits Response time - total (typical) 5 msec Viewing angle (typical) Horizontal: ±80° or 160° total Contrast ratio (typical) 1000:1 Input video format Analog VGA Input video signal connector D-Sub 15-Pin VGA type Input frequency Horizontal: 31.5-60.2 kHz Vertical: 56.3-75 Hz...
- Page 27 T06-19 Touch Monitor Specification Model T06-19 Form factor Desktop Enclosure color Black Diagonal size 19.0" Aspect ratio 4:03 Useful screen area Horizontal: 12.0" (304 mm) Vertical: 9.0" (228 mm) Monitor dimensions (with stand) Width: 13.8" (350 mm) Height: 12.2" (310 mm) Depth: 6.9" (175 Dimensions vary with stand position and options selected Native (optimal) resolution 1280 x 1024 @ 85 Hz...
- Page 28 Actual without stand: 7.3 lb (3.3 kg) Shipping with stand: 15.4 lb (7.0 kg) Shipping box dimensions(W x D 16.54" (420 mm) x 14.96" (380 mm) x 10.24" (260 mm) x H) Optional product coverage Advance Unit Replacement program (North America only) Backlight lamp life Typical 30,000 hours to half brightness MTBF...
- Page 29 Vertical: 56.3-75 Hz Power supply Internal AC, Optional external DC (power brick) Input voltage AC: 100-240 VAC, 50/60 Hz DC: +12VDC ±5% Input connector AC: IEC 60320 C6 DC: Coaxial power jack (2 mm pin diameter, 6.4 mm barrel diameter, 8.8 mm barrel length) Power consumption (typical) 45 W Options...
-
Page 30: Contact Us
APPENDIX ONTACT Contact Us Sinocan International Technologies Co., ltd. A8 Building, Peking University Founder Shiyan Science Park, Bao'an, Shenzhen, China 518108 +86-755-26915588 (telephone) +86-755-86612352 (fax) support@lcdpc.com.cn(Support Dept.) sinocan_rma@lcdpc.com.cn (RMA Dept) marketing@lcdpc.com.cn(Marketing&Sales Dept.) http://www.lcdpc.com.cn Replacement Parts Item Part Number Power Adapter... -
Page 31: Warranty
WARRANTY Except as otherwise stated herein or in an order acknowledgment delivered to Buyer, Seller warrants to Buyer that the Product shall be free of defects in materials and workmanship. The warranty for the LCD panel and touch panel is 1 year, for components of the product is 2 years. - Page 32 SUBSTITUTE GOODS BY BUYER OR FOR ANY SPECIAL, CONSEQUENTIAL, INDIRECT, OR INCIDENTAL DAMAGES. Buyer assumes the risk and agrees to indemnify Seller against and hold Seller harmless from all liability relating to (i) assessing the suitability for Buyer’s intended use of the Products and of any system design or drawing and (ii) determining the compliance of Buyer’s use of the Products with applicable laws, regulations, codes, and standards.
