Summary of Contents for Smarthome 1623PC PC-IR Linc

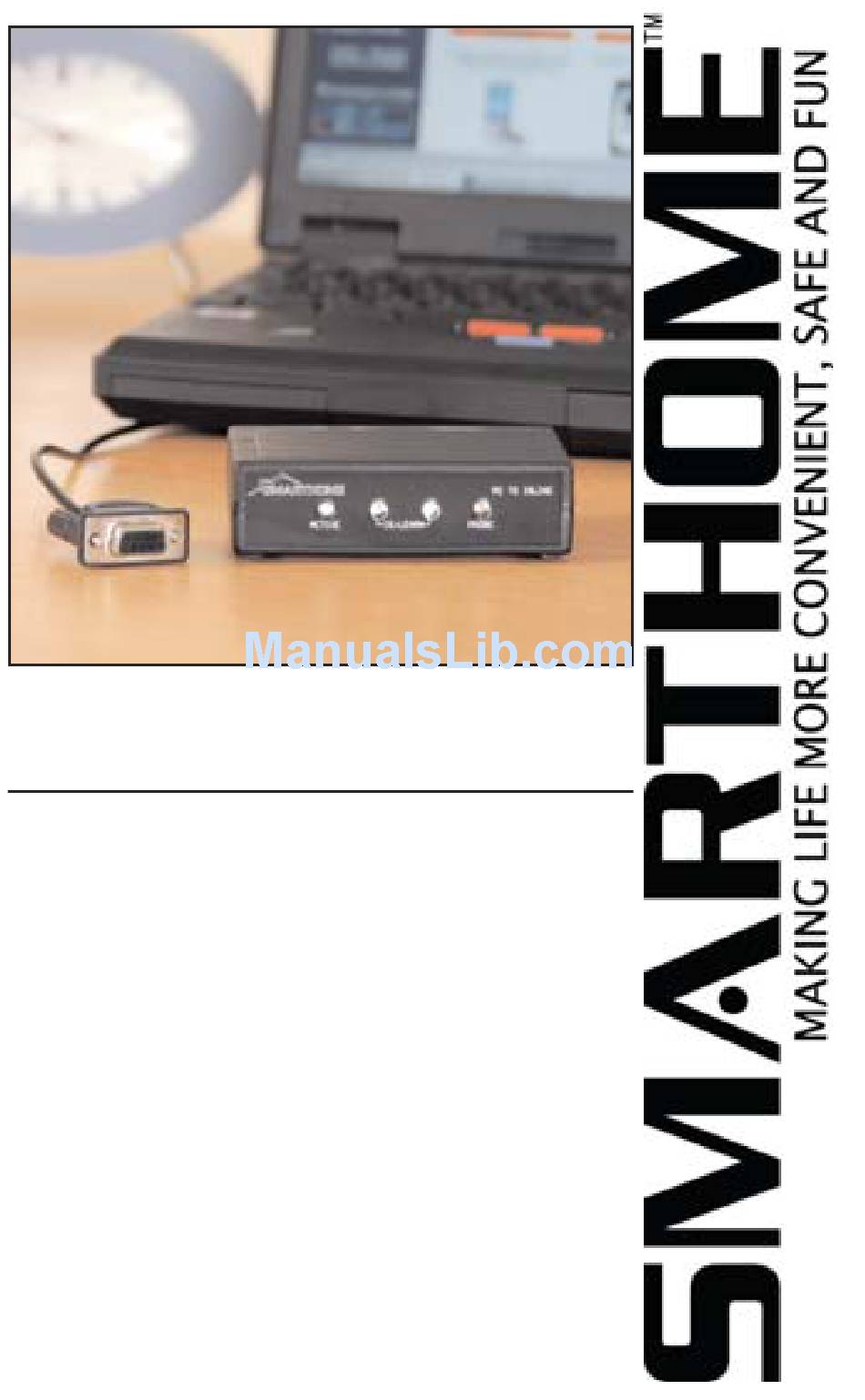

- Page 1 PC-IR Linc Control your Audio-Video equipment with a computer! Model #1623PC PC-IR Linc...
-
Page 2: Key Features
Mini Stick-On IR Emitters, SmartHome #8170S and #8171S. A level of intelli- gence can also be added to the PC-IR Linc by using it with one of the Smarthome Probes. Probes may be used for many purposes including detecting the power sta- tus of an AV device. -
Page 3: Quick Start Instructions
During program- • The Probe jack will accept the ming, it will indicate that the unit is Smarthome Probes to monitor the ready to learn an IR signal. power status of equipment. • The two IR/Learn blast emitters •... - Page 4 Optional Accessories for the PC-IR Linc A level of intelligence can also be added to the PC-IR Linc by using it with one of the Smarthome Probes. Probes may be used for many purposes including detecting the power status of an AV device.
-
Page 5: Installation Tips
Installation The PC-IR Linc should be installed in a location that has a standard 120-volt house- hold receptacle readily accessible. If external Mini Stick-On IR Emitters are not being used, place the IR Linc in a location that allows the built-in IR blasters to be within line-of-site of the equipment. -
Page 6: Software Installation
3. Follow the on-screen instructions to continue and complete the installation. 4. After installation is complete, an icon will be created in the program menu under the Smarthome. 5. Open the folder and click the icon to run the program. - Page 7 Clicking on the "Clear all learned IR" command will clear all the learned IR in mem- ory and learned IR command selector box in the lower half of the window. Remember that deleted IR commands cannot be retrieved. Clicking on either "Probe On Event"...
- Page 8 The file will be saved in the directory where the program is located and will have a ".ir" extension. A different directory can be selected by choosing one from the "Save in:" box at the top of the window. From there, it can be moved to another folder or place it on the desktop.
-
Page 9: Learning Tips
Using a Probe With the PC-IR LINC Software The PC-IR Linc can use external a Smarthome probe to help determine an AV device’s power status. The green “PROBE” indicator provides a visual confirmation of the probe status. -
Page 10: Troubleshooting And Technical Support
(step 4) on page 5. not work. I can't see my Mini Stick- Most brands of Mini Stick-on Emitters don't produce visible light. Check on Emitters blink when a with your supplier or Smarthome for visible emitters, sometimes called command is sent. "Blink Emitters". - Page 11 Please visit a retailer or distributor for the complete line KeypadLinc 6 with of automation products from Smarthome Design. 450W Integrated Dimmer...
- Page 12 Smarthome Limited Warranty Smarthome warrants to the original consumer purchaser of this product that, for a period of one year from the date of purchase, this product will be free from defects in material and workmanship and will perform in substantial conformity to the description of the product in this Owner's Manual.
