Summary of Contents for RF-Tuote SMART mini

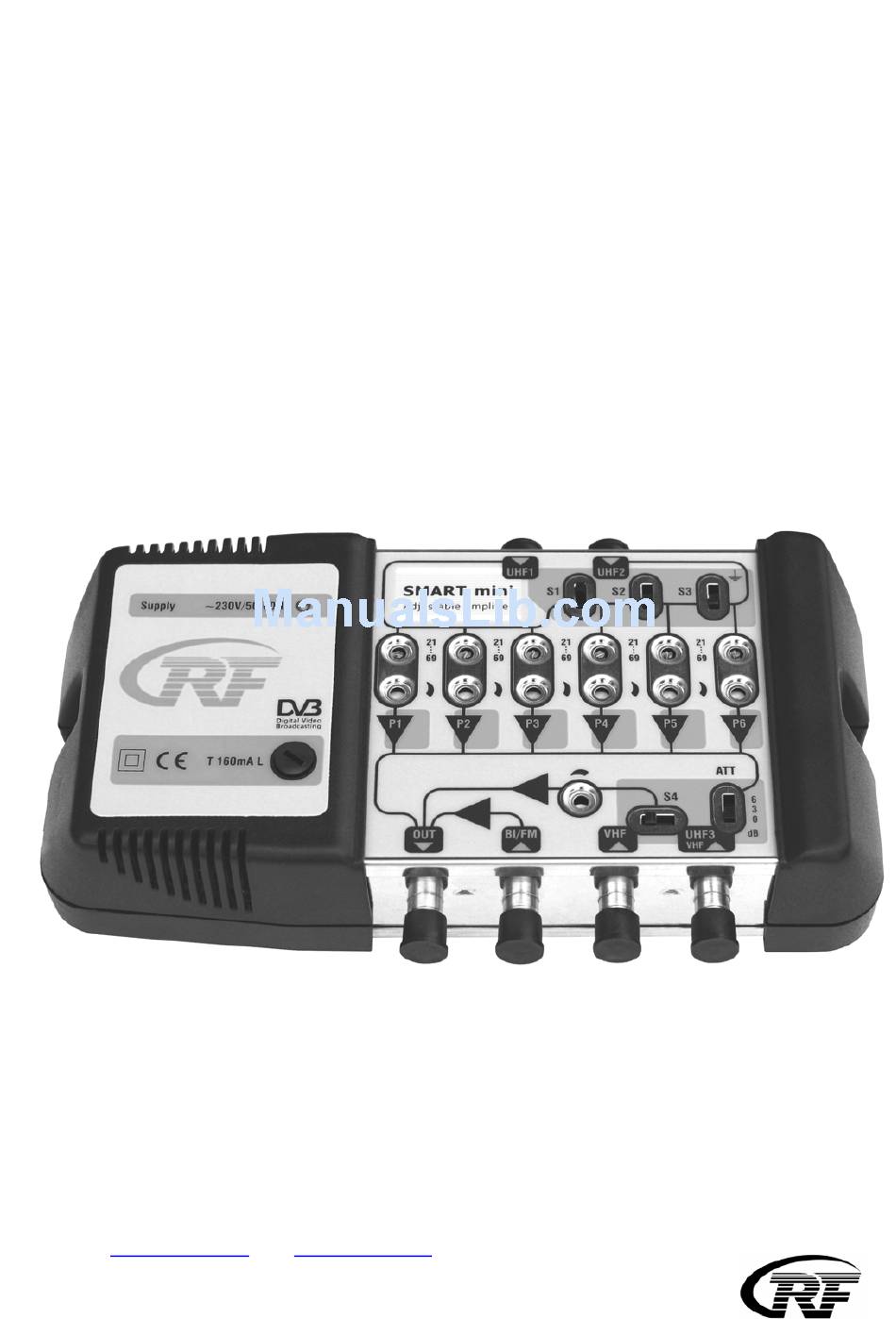

- Page 1 SMART mini Adjustable amplifier User´s manual RF-Tuote Oy, Telakkatie 25 25570 Teijo FINLAND puh. 02-7366360, fax. 02-7366355 e-mail. info@rf-tuote.fi www.rf-tuote.fi...
- Page 2 SMART mini enables to receive these signals, to equalize their levels and to amplify them. The SMART mini amplifier can be used as an independent unit, as well as a part of a bigger head-end station.
- Page 3 c) Preamplifiers will be detected automatically and the 12V DC voltage will be providing on proper input. d) UHF3 input is universal input. To this input is possible to connect: - TV band IV and V antenna, or - TV band III, IV and V antenna (VHF input will be disconnected, UHF3 input becomes wideband input VHF+UHF –...
- Page 4 IV. VHF output signals settings Using the gain regulator „ ” of UHF range, set the required output signal level. V. FM path The BI/FM path is not adjustable. VI. Connecting of additional devices Additional devices (video recorder, PC, camera with A/V modulator, etc.) can be connected after switching off the amplifier.
