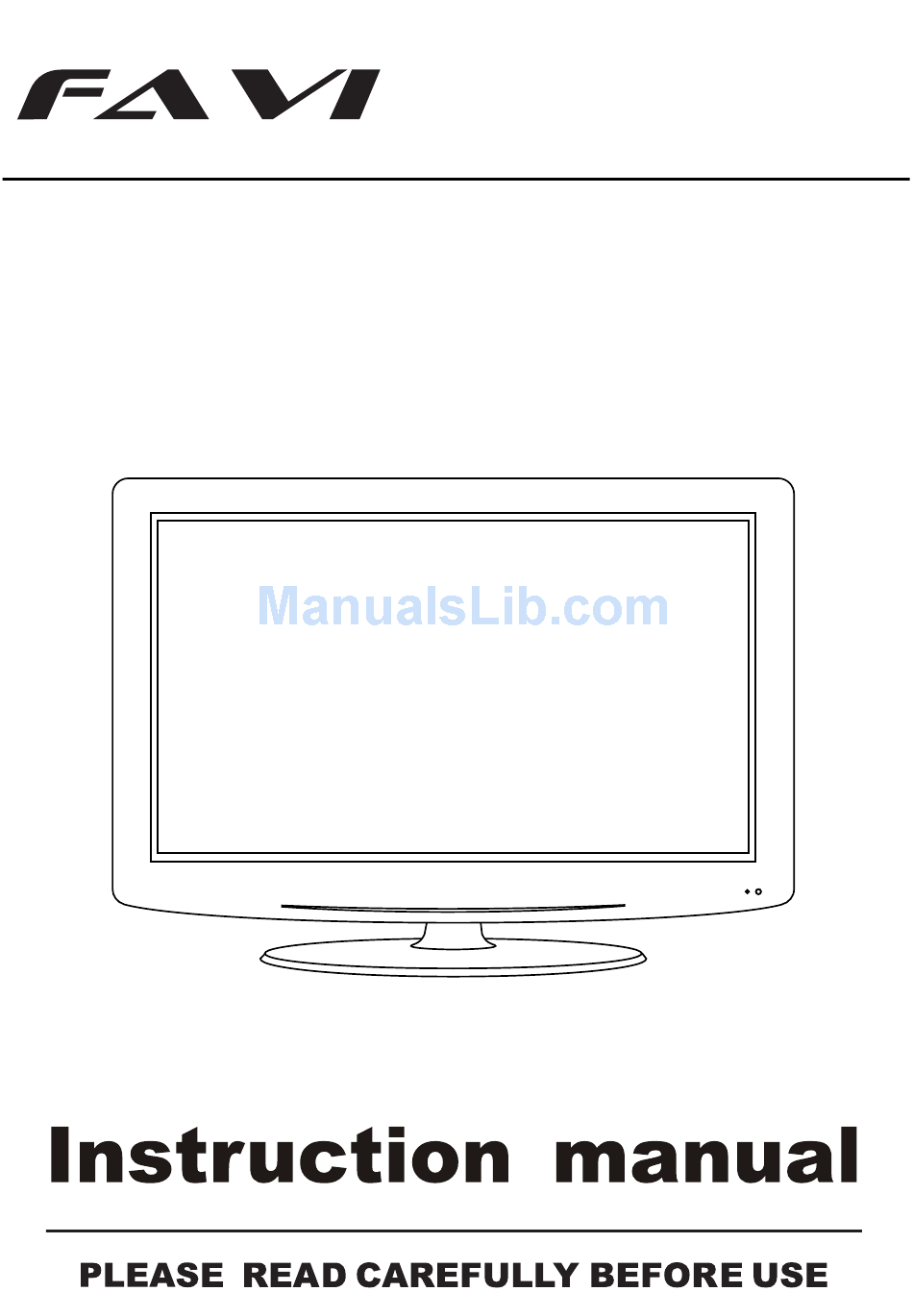

- Page 1 ENTERTAINMENT 26” LCD TV with DVD MODEL NO.: L2626EA-V-P/WH...
-
Page 3: Table Of Contents
Contents Contents Caution Safety Information Accessories Technical Specification Product Introduction Front View Rear View Connections Remote Control Basic Operation OSD Menu 9-15 1. Picture menu 2. Audio menu 3. Time menu 4. Setup menu 5. Lock menu 6. Channel menu 14-15 DVD Operation 16-19... -
Page 4: Caution
Caution Caution The lightning flash with arrowhead symbol, within an equilateral triangle is intended to alert the user to the presence of un-insulated “dangerous voltage” within the products enclosure that may be of sufficient magnitude to constitute a risk of electric shock to the persons. The exclamation point within an equilateral triangle is intend to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 5: Safety Information
Safety Information Safety Information To ensure reliable and safe operation of this equipment, please read all of the instructions carefully in this user guide, especially the safety information below. Electrical safety • The TV set should only be connected to a main supply which matches that stated on the label on the main adapter. -
Page 6: Accessories
Accessories & Technical Specification Accessories INPUT PICTURE SOUND SLEEP DISPLAY VOL+ MUTE VOL- EXIT MENU SETUP LANGUAGE ZOOM SUBTITLE SLOW MENU ANGLE TITLE GOTO PROGRAM INTRO REPEAT User’s manual Remote control Main cable * Note: The configuration of the components may look different from the following illustration Technical Specification - TV system ATSC/NTSC... -
Page 7: Product Introduction
Product Introduction Product Introduction Front View INPUT: Display the input source menu. MENU: Display/exit the OSD menu. CH+/-: Scan through channels. VOL+/-: Adjust the volume. POWER: Turn on/standby the TV set. Play the next track or chapter Play the previous track or chapter Eject the disc Play the disc playing Pause the disc playing... -
Page 8: Connections
Connections Connections AC POWER IN L IN R IN Pb Pr COAX Video L IN R IN HDMI3 HDMI1 -for upgrade R IN Pb Pr L IN S-VIDEO Video R IN L IN AC POWER IN: Connect to an earth 100-240V 50/60Hz outlet with the Power Cable. -
Page 9: Remote Control
Remote Control Remote Control The remote control is using Infrared(IR). Point it towards the front of the LCD TV. The remote control may not work correctly if it is operated out of range or out of angle. INPUT INPUT POWER Press to display the input source Press to turn the TV on/standby menu... -
Page 10: Remote Control
Remote Control Remote Control INPUT Number buttons for DVD. Pressing “-/--”button to display “SELECT 10+”, and press a number button to play the program. DISPLAY( In DVD) Press to display the current mode’s information. LANGUAGE Select DVD disc language. PICTURE SOUND SLEEP DISPLAY ZOOM... -
Page 11: Basic Operation
Basic Operation Basic Operation Power on/off 1. Connect to the power supply with the power cord and turn on the switch. 2. -To turn on the TV Press POWER/ button on the TV or remote control. -To turn off the TV Press POWER/ button on the TV or remote control. -
Page 12: Osd Menu
OSD Menu OSD Menu 1. Picture menu Description Picture mode: Select between Standard, Dynamic, Mild, Sports and User. You may select the picture mode directly by pressing the PICTURE button on the remote control. Contrast: Control the difference between the bright and dark regions of the screen picture. Brightness: Adjust brightness of the picture. -
Page 13: Audio Menu
OSD Menu OSD Menu 2. Audio menu Description Sound Mode: Select your desired picture mode as follows: Flat, Music, Movie, Sports and User. You may select the sound mode directly by pressing the SOUND button on the remote control. Bass: Low frequency intensity. Treble: High frequency intensity. -
Page 14: Time Menu
OSD Menu OSD Menu 3. Time menu Description Sleep timer: You may set the automatic shutdown timer choosing from 5 to 240 minutes, or deactivate this function. Time zone: Select between Pacific, Alaska, Hawaii, Eastern, Central, Atlantic and Mountain. Daylight Saving Time: Select between On and Off. Clock: User can not change time manually during DTV mode, for time is from signal source directly. -
Page 15: Setup Menu
OSD Menu OSD Menu 4. Setup menu Description Menu Language: Select OSD menu language. Transparency: Turn on or off the transparency menu function. Zoom Mode: Select the zoom mode between 16:9, 16:9 zoom, 4:3, 4:3 zoom. Noise reduction: Select the noise reduction mode between Strong, Off, Weak and Middle. PC SETUP: If the video input signal comes from your PC, you may adjust the H-Position, V-Position, Clock, Phase or even perform an Auto adjustment. -
Page 16: Lock Menu
OSD Menu OSD Menu 5. Lock menu You must enter the password to gain access to the Lock menu. The default password is 0000. You may modify the following options: Description Change password: Change the password, you must enter the new password twice to confirm it. Note: Do not forget the password. -
Page 17: Channel Menu
OSD Menu OSD Menu 6. Channel menu Description Air/Cable: Allows you to select antenna between Air and Cable. If you select “Cable”, the following items (Favorite, Show/Hide, Channel NO, Channel Label and DTV Signal) are unable to be used. Auto Scan: Enter the Auto Scan menu to start auto scan. If you select “Cable”... - Page 18 OSD Menu OSD Menu Show/Hide: Allows you to show or hide the channels. button to highlight the desired item, then press OK button to show or hide the highlighted channel. Channel No.: Show and select the channel. Channel Label: Allows you to setup a label for the channel. Press button to select the position of the table, and press button to select the...
-
Page 19: Dvd Operation
DVD Operation DVD Operation DVD Basic Operation Turn on your TV then use the INPUT button on the remote control or on the TV to select DVD mode. Place a disc Insert a disc according to the silk. Do not touch the playing surface. automatically draw the disc into the player. -
Page 20: Disc Care
DVD Operation DVD Operation Subtitles 1. Compatible with DVD, SVCD discs. 2. Press the Subtitle button on the remote once, and the subtitle info banner appears 3. When a DVD or SVCD is recorded with subtitles, you can use the Subtitle feature to view the subtitles on-screen. -
Page 21: Dvd Systerm Setup
DVD Operation DVD Operation DVD System Setup change them again. General Steps of Setup Menu 1. Pause or Stop the player. Press SETUP on the remote control. The main menu will be shown as below. 2. Press the button to select the Icon of the desired section, e.g. “TV System" and press button to open that section. -
Page 22: Dvd Operation
DVD Operation DVD Operation "0000". Using the button, move the highlight to "PASSWORD", press the button and enter "0000". You will see the padlock symbol open. You may now change the RATING or put in a new password number. If the Lock symbol is BLUE you must press the button to enter the Please remember or write down the new Password and keep safe. -
Page 23: Simple Troubleshooting
Simple Troubleshooting Simple Troubleshooting If the display fails or performance dramatically deteriorates check the Display in accordance with the following instructions.Remember to check the peripherals topinpiont the source of the failure. If the display still fails to perform as expected,connect your helpline for assistance. No power - Check all connections to the TV.
