Summary of Contents for Replay XD720

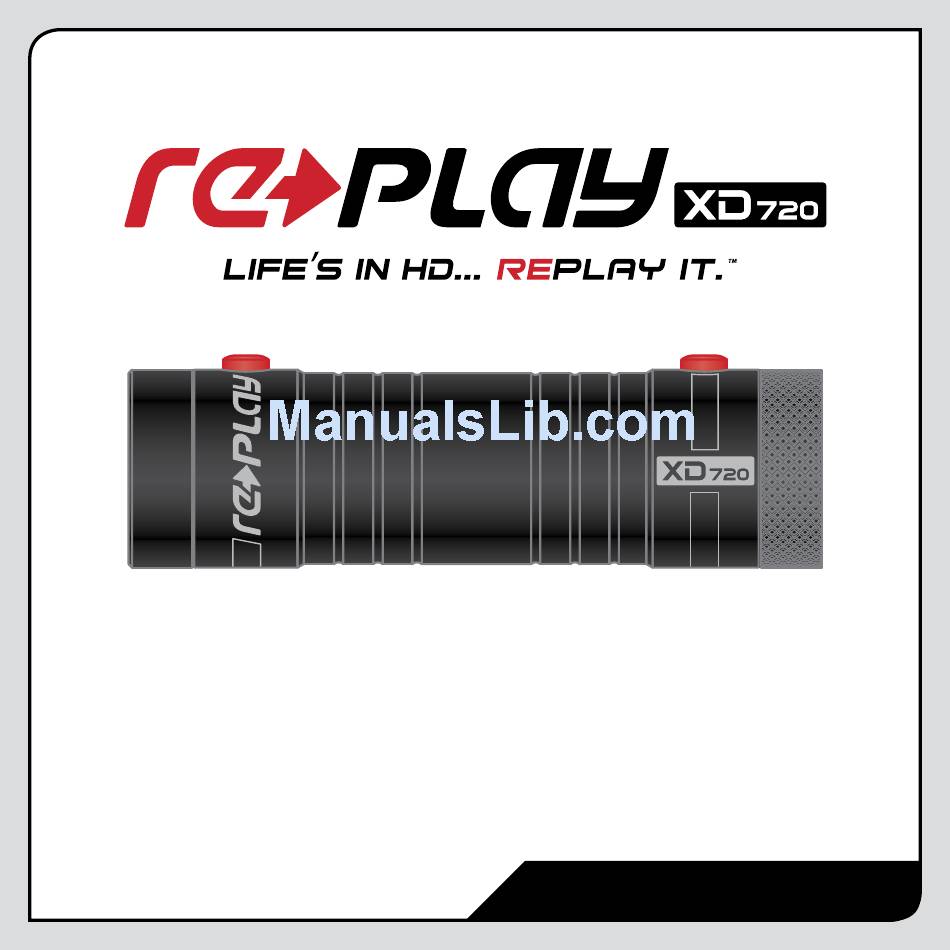

- Page 1 Q U I CK S TA R T G U I D E...

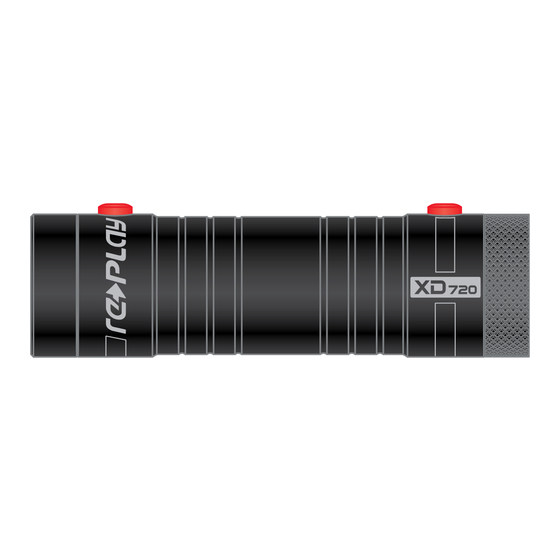

- Page 2 Replay XD720 Camera (A) Power On/Off, (B) Record, Stop, Clip, (C) Removable Lens Cover (D) Removable End Cap (E) Record On/Off Red LED (F) Power On/Off Blue LED (G) Horizontal Sight Line (H) Vertical Sight Line (I) microSDHC Slot (J) Charging Green LED, No SD Card Red LED (K) Frame Rate Switch (FPS) (L) Audio Line-In Switch (Ext.
- Page 3 Power Off: Hold down the front button (A) for 4 sec. and release, the Replay XD720 will vibrate 1 time & power off. Note: The power button will not function when recording. This is normal to prevent accidental powering off.
-
Page 4: Rear View
1. Slide the INT./EXT. switch (L) to choose audio option. a. Internal Mic (Default) b. External Mic-in, disables internal Mic External Mic-in is compatible with Replay XD720 HDMI Audio Adapter or Replay XD720 HW Kit, available at www.replayxd.com For Advanced Users and Setting Profiles visit www.replayxd.com/replay-XD720-advanced/... - Page 5 5. Adjust swivel 360º or tilt ~8º by releasing the heim cam lever and position Replay At room temperature, XD720 in desired direction, then lock the cam lever. Make sure the cam lever is tight. wait for at least 24 hours...
- Page 6 4. Slide LowBoy mount into SnapTray until it is fully seated and clicks. The LowBoy mount has the surface. Bond strength rubber strips to hold your Replay XD720 from rotating when seated, make sure your rotation will increase through time.
- Page 7 4. The laser etched logos on the side of the Replay XD720 are level and can act as tilt indicators. 5. To make sure you are aiming your Replay XD720 in the desired direction, simply look down the length of the housing from the rear–forward as if you’re looking through a telescope.
- Page 8 HEIMLOCK SWIVEL/TILT MOUNT LOWBOY MOUNT Mounting angle and setup: 1. When using a HeimLock mount or LowBoy mount it is important to mount them at an optimal position. Please reference the illustration on this page for possible positions. 2. When mounting to a helmet, most people have a tendency to lower their head from 15º to and excess of 20º. It is important to recognize what the natural angle or active position of your mounting locations are on items such as: helmets, hats, handlebars, vehicle bodies, etc.
-
Page 9: Side View
2. Plug the USB cable into the supplied Car Adapter, PC/Mac USB 2.0 port, or our AC Wall Adapter accessory. 3. The green charging status LED at the rear of the Replay XD720 will illuminate to tell you it’s charging. When the green LED turns off,... - Page 10 CABLE 1. Remove rear protective cap and use option (1) or option (2). 2. Option (1): Take the microSDHC out of the Replay XD720 and use a SDHC compatible card reader to transfer your files to your computer. 3. Option (2): Download from the Replay XD720 USB port.
- Page 11 Your Replay XD720 records and saves to a file called a MOV. Your video file is compatible with most current media players on a PC or Mac. Many video editing software titles are compatible out of the box such as: Adobe Premier, Apple Final Cut, iMovie, &...
-
Page 12: What The Warranty Covers
STABLE IMAGING SOLUTIONS, LLC. LIMITED WARRANTY WHAT THE WARRANTY COVERS Stable Imaging Solutions, LLC. (SIS) warrants for 180 days from the date of purchase of product it will be free from defects in material and workmanship. WHAT IT DOES NOT COVER This warranty does not cover damage due to: •... - Page 13 • All trademarks and registered trademarks mentioned herein are recognized as the property of their respective holders. Replay XD , Replay XD720 is a product of Stable Imaging Solutions, LLC. in California. ® www.Replayxd.com ©2012 Stable Imaging Solutions, LLC., Replay XD All rights reserved.
- Page 14 FCC Compliance Statement This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Radio and TV Interference This equipment has been tested and found to comply with the limits for a Class B digital device in accordance with the specifications in Part 15 of FCC rules.
- Page 15 HardCore Billet Flat VHB Mount HardCore Billet Tripod Mount VIEW ALL OF OUR ACCESSORIES AT WWW.REPLAYXD.COM Billet SuctionCup Short Arm Mount VHB SnapTrays - 5 Pack ProLens 37mm Adapter Replay XD720 Hardwire Kit Replay XD Mic Replay XD Tshirt ACCESS O R I ES...
- Page 16 Replay XD a fine brand of Stable Imaging Solutions, LLC. Sales & Technical Support: Phone: 1-805-480-9800 Sales: sales@replayxd.com Support: support@replayxd.com Office & Administration: Monday–Friday, 9am–5pm (PST) Corporate Address: Stable Imaging Solutions, LLC. 3709 Old Conejo Road Newbury Park, CA 91320...
