Velleman K3511 Illustrated Assembly Manual

Velleman K3511 Illustrated Assembly Manual

Remote controlled car alarm
Hide thumbs Also See for K3511:

Advertisement

Quick Links

Download this manual See also: User Manual
Remote controlled car alarm
Total solder points: 88 + 68 + 367
5 ⌧ advanced
Difficulty level: beginner 1
2
3
4
K3511
K3511
ILLUSTRATED ASSEMBLY MANUAL
H3511IP-2

Advertisement

loading

Related Manuals for Velleman K3511

Summary of Contents for Velleman K3511

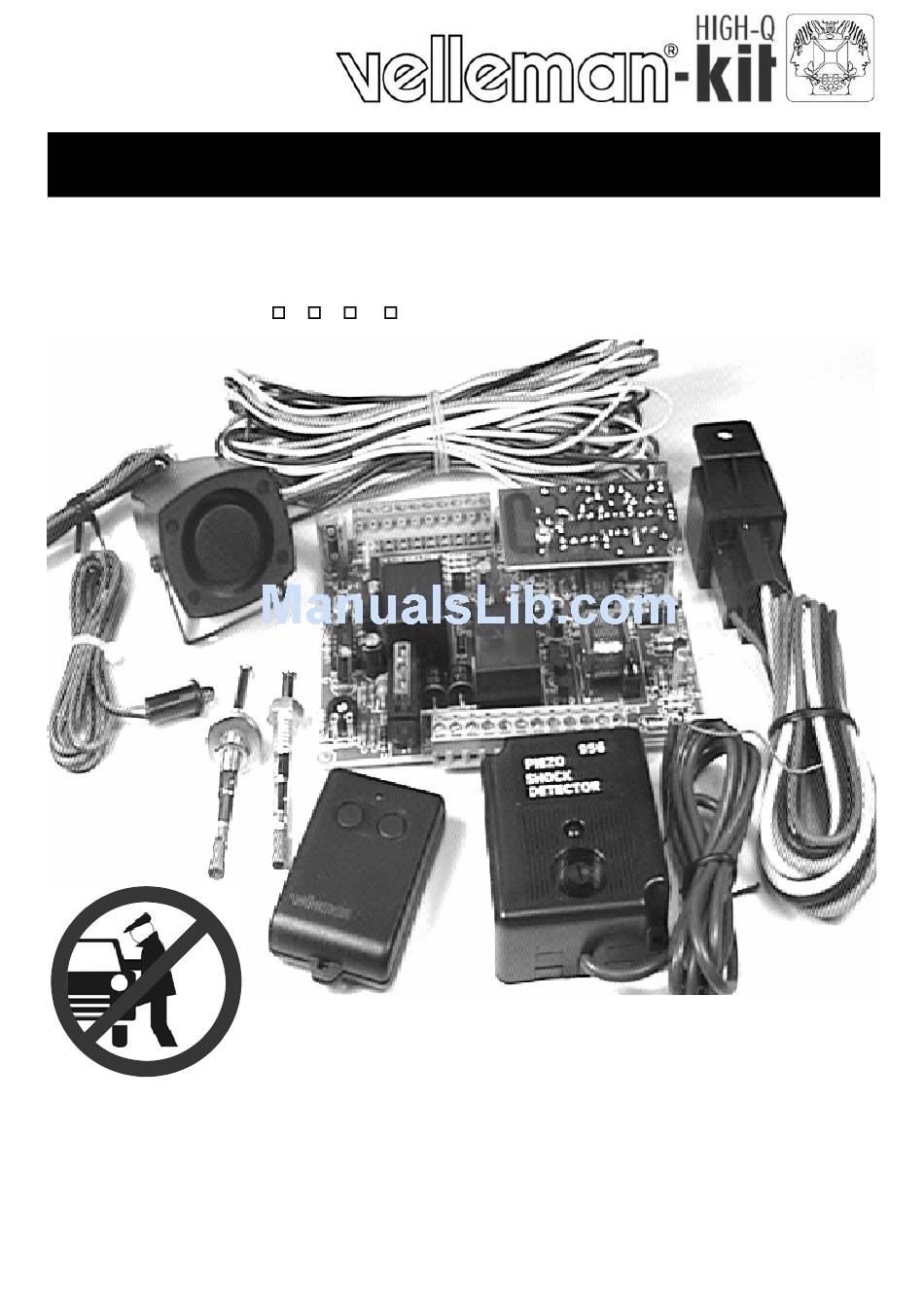

  • Page 1 Remote controlled car alarm Total solder points: 88 + 68 + 367 5 ⌧ advanced Difficulty level: beginner 1 K3511 K3511 ILLUSTRATED ASSEMBLY MANUAL H3511IP-2...
