Summary of Contents for Nokeval FTR960

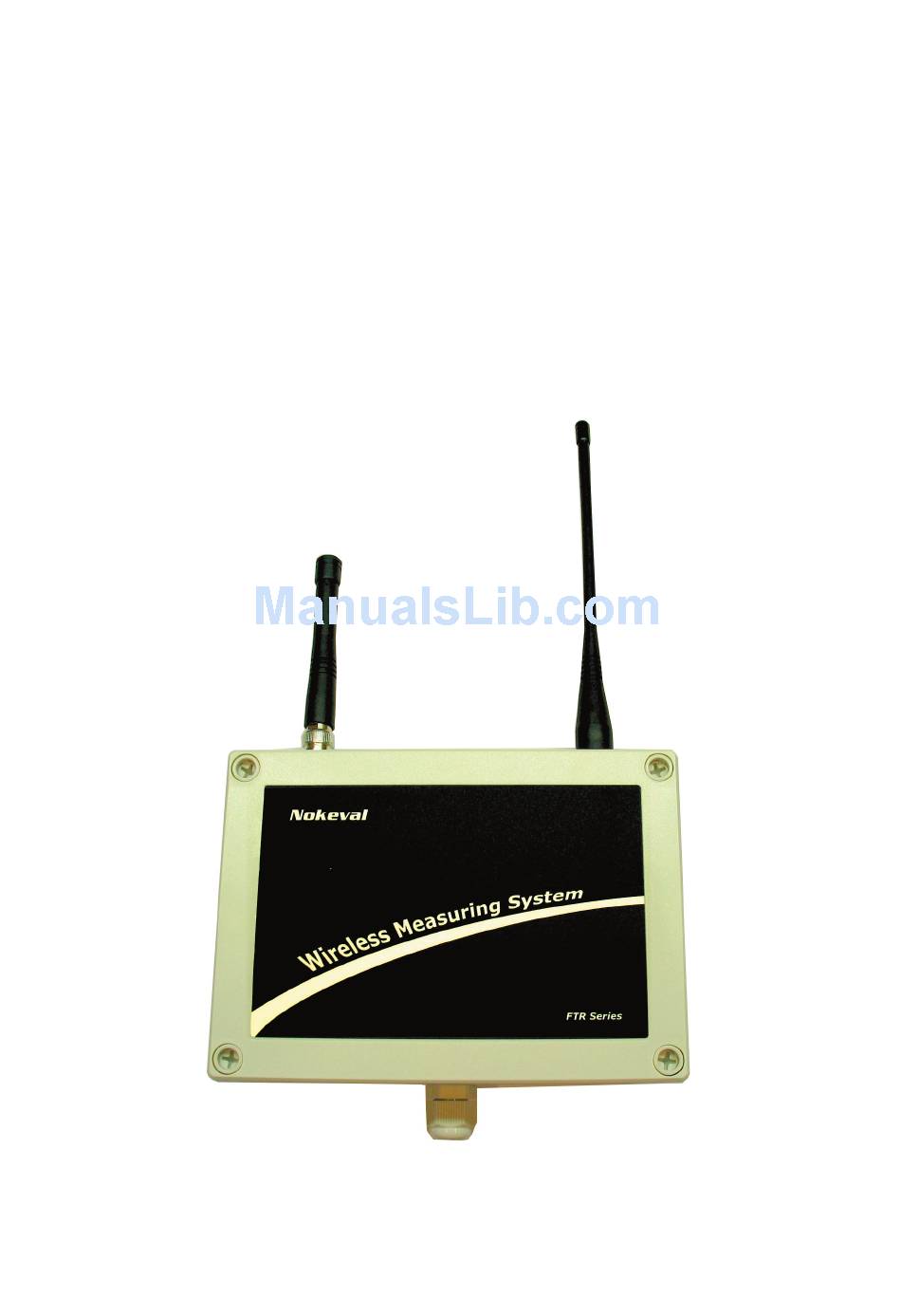

- Page 1 User manual 29.6.2007 V 1.1 FTR960 ADIO DATA REPEATER Nokeval...
- Page 2 Transmitters can also have different transmission intervals. FTR960 uses license free 433.92 MHz frequency band (ISM) so it can be freely used, for examp- le, almost in whole Europe. FTR960 is housed in a field enclosure and equipped with detachable screw post connectors.
-
Page 3: Installation
INSTALLATION Connections 1 2 3 4 1,3 mm DC jack 8...30 VDC The supply voltage 8...30 VDC is connected using 1.3 mm DC jack (centre connector positive) or by using detachable screw post connector terminals 1 (+) and 2 (-). Both supply voltage connec- tors are internally connected. -
Page 4: Indicator Lights
Indicator lights The device has three indicator lights: Power, TX and RX. In normal operation these lights are not normally needed but they are very useful when troubleshooting error conditions. Power Power This indicator is always lit when power is applied to the device. This indicator light flashes every time data is sent. - Page 5 In this way the receiver that is placed in the center of the warehouse can receive transmissions anywhere from the warehouse. Warehouse FTR960 FTR970 FTR960 50..200 m...
- Page 6 Both repeaters can be placed in the coverage area of one receiver like in the example picture below. 50..200 m FTR960 FTR960 Coverage Warehouse area FTR970 RS-485 / RS-232 / USB The maximum number of transmitters The maximum number of radio transmitters in a coverage area is limited by radio standards.
-
Page 7: Specifications
SPECIFICATIONS Radio Other Receiver External dimensions Standard antenna: helical whip antenna Connector: 50 Ω female BNC connector Max input power: +10 dBm Frequency band: license free 433.92MHz subband e according to ERC/REC 70-03 Bandwidth: 180 kHz Selective filter: Yes, SAW type Sensitivity: -100 dBm (3·10 error ratio) - Page 8 Nokeval Yrittäjäkatu 12 37100 Nokia Finland Tel +358 3 3424800 Fax +358 3 3422066 www.nokeval.com...
