Summary of Contents for SmartLinc SwitchLinc Lite

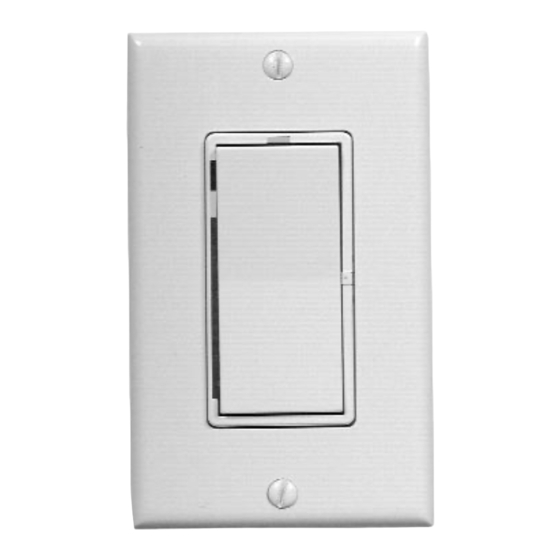

- Page 1 S S w w i i t t c c h h L L i i n n c c L L i i t t e e Remote Control Dimmer Switch O O w w n n e e r r ’ ’ s s M M a a n n u u a a l l For Models #2384W/I (and Slave Remote Dimmer Model #1135W/I)
- Page 2 SwitchLinc Lite is easily installed and programmed. It installs (connects to home wiring) just like a regular light switch. This makes it ideal for retrofits and easy for new homes, with no special training required to install it.
- Page 3 ROCKER BOTTOM UNTIL YOU HEAR A CLICK. A “System Off” sticker will be exposed on the top of the rocker. Orient SwitchLinc Lite so the LED is at the top, and make connections according to the “Switch- Linc Wiring Diagram” below. Wire “slave” switches according to the “SwitchLinc Multi-Way Wiring Diagram”...
- Page 4 (e.g., TouchLinc). The light will blink and the nightlight LED will stop flashing. The “Ramp Rate” is the rate at which SwitchLinc Lite brings the brightness of the light up or down when the switch is turned on locally or receives a powerline carrier (X-10) ON-command to its primary address.
- Page 5 Tap the Set Button TWICE. The light will blink. The ON-Level is the default brightness level to which SwitchLinc Lite will adjust the light when the switch is turned on locally or receives a powerline carrier (X-10) ON-command to its primary address.
- Page 6 Transmit the following PLC sequence: M16, O16, P16, N16, P16 Transmit the following PLC sequence: N16, M16, O16, P16, P16 SwitchLinc Lite will return the lighting circuit being controlled to its last brightness level when power is restored after a power outage.
- Page 7 • Load types: permanently installed incandescent and general inductive loads • Single pole or multi-location (with Slave Dimmers) • Operation: Dimming Triac • Maximum load: 600 watts / 600 VA • Input power: 125 VAC, 5 amps, 60 Hz • Connections (16 AWG): Black (to line) Red (to load) White (to neutral, required)
