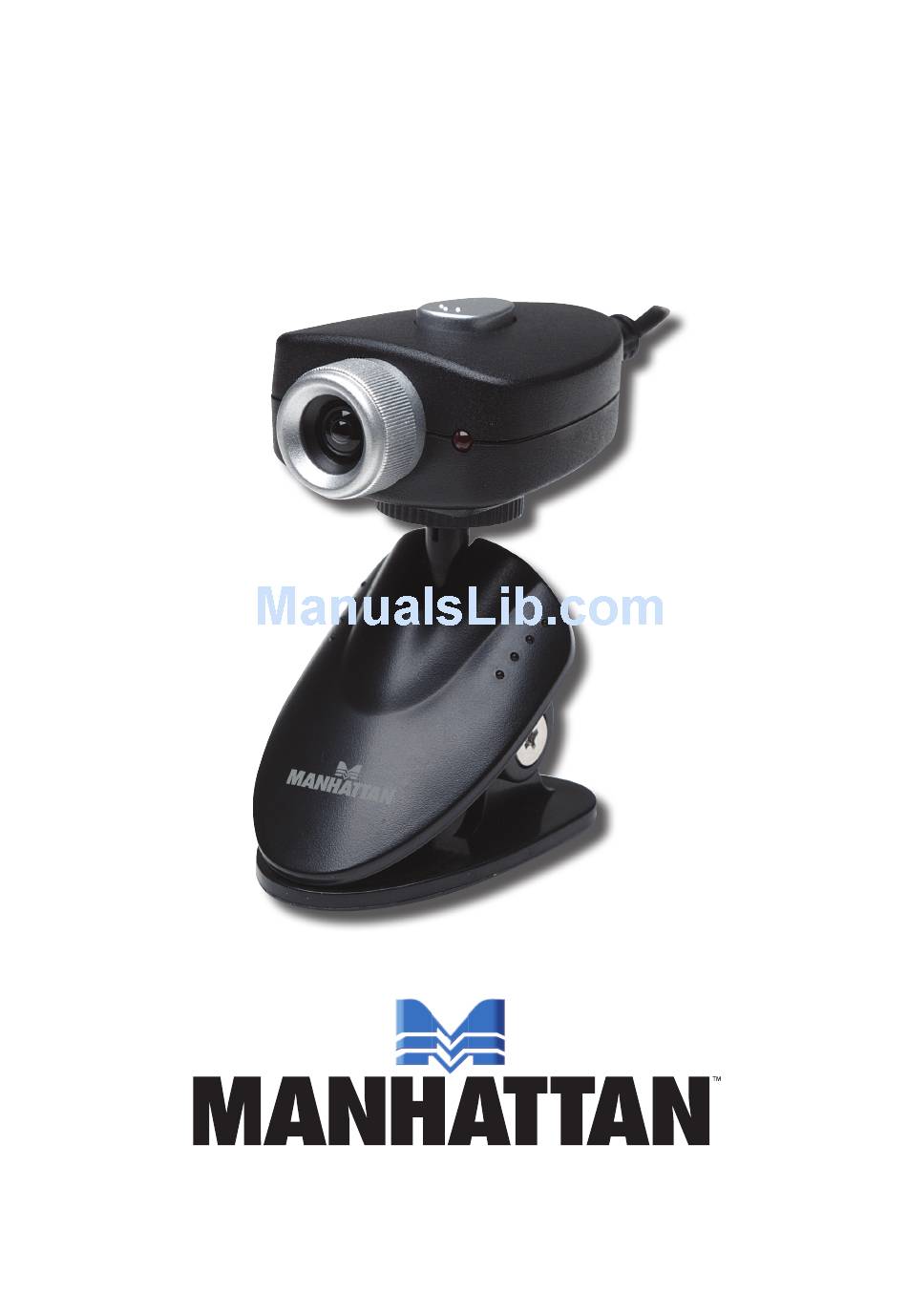

WEB
CAM
500
USER
MANUAL
MODEL 460668
MAN-460668-UM-0806-06

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 460668 and is the answer not in the manual?

Questions and answers

Summary of Contents for Manhattan 460668

  • Page 1 USER MANUAL MODEL 460668 MAN-460668-UM-0806-06...
  • Page 2 INTRODUCTION Thank you for purchasing the MANHATTAN Web Cam 500, Model 460668. ® With simple, operation and easy-to-use software, the camera’s 5.0-megapixel (software enhanced) CMOS lens captures crisp and clear images and smooth, steady video to share with family and friends. The compact size, attractive finish and Plug and Play installation make it a good accessory for desktop and notebook computers.
  • Page 3: Software Installation

    HARDWARE 1. With your computer on, plug the Top-mount snapshot button camera into a USB port on the cable PC/notebook/netbook. 2. Use the clip on the camera base to Focus ring position the camera as desired. NOTE: You may prefer to wait until you are adjusting the focus ring Base with clip during the software installation so...
  • Page 4 File (F) Device (D) Options (O) Capture (R) Preview (P) Help (H)   The Menu bar is at the top of the image screen. To the lower left of the image is information about what camera is being used and the frame rate per second. The feature items on the menu bar —...
  • Page 5 saving captured snapshots to. This only needs to be done once: The VideoCap software program will continue to write to the same folder each time a snapshot is saved. • File Index Reset This resets the location of the video and snapshot save locations. •...
  • Page 6 options for audio recording, frame rate, video format and maximum length (in time) of video capture. It is where you can configure the settings for taking snapshots, starting video capture and stopping video capture. Preview This menu option will provide different resolutions for the Preview screen. The window will resize itself automatically when a new resolution is selected.
  • Page 7: Specifications

    SPECIFICATIONS Standards and Certifications • USB 1.1 • CE • RoHS • WEEE Lens • CMOS Sonix 201 DSP color sensor; 300k pixels (software enhanced; interpolated to 5.0 M pixels) • Lens: F2.2 1/4-inch lens with focus ring • Image Focus: 50 mm to infinity Image •...
  • Page 8: Waste Electrical And Electronic Equipment

    WASTE ELECTRICAL & ELECTRONIC EQUIPMENT Disposal of Electric and Electronic Equipment (applicable in the European Union and other European countries with separate collection systems) ENGLISH This symbol on the product or its packaging indicates that this product shall not be treated as household waste.
  • Page 9 ITALIANO Questo simbolo sui prodotto o sulla relativa confezione indica che il prodotto non va trattato come un rifiuto domestico. In ottemperanza alla Direttiva UE 2002/96/EC sui rifiuti di apparecchiature elettriche ed elettroniche (RAEE), questa prodotto elettrico non deve essere smaltito come rifiuto municipale misto. Si prega di smaltire il prodotto riportandolo al punto vendita o al punto di raccolta municipale locale per un opportuno riciclaggio.
  • Page 10: Warranty Information

    ITALIANO: Per informazioni sulla garanzia, accedere a www.manhattan-products.com/ warranty. EN MÉXICO: Póliza de Garantía MANHATTAN — Datos del importador y responsable ante el consumidor IC Intracom México, S.A. de C.V. • Av. Interceptor Poniente # 73, Col. Parque Industrial La Joya, Cuautitlan Izcalli, Estado de México, C.P. 54730, México. •...
  • Page 11 FEDERAL COMMUNICATIONS COMMISSION REGULATORY STATEMENT FCC Class B This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of Federal Communications Commission (FCC) Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 12 Wszystkie nazwy handlowe i towarów są nazwami i znakami towarowymi zastrzeżonymi odpowiednich firm odnośnych właścicieli. MANHATTAN® offre una linea completa di componenti per PC, periferiche, cavi e accessori. Chiedi maggiori informazioni al tuo rivenditore di computer o visita il sito www.manhattan-products.com.
