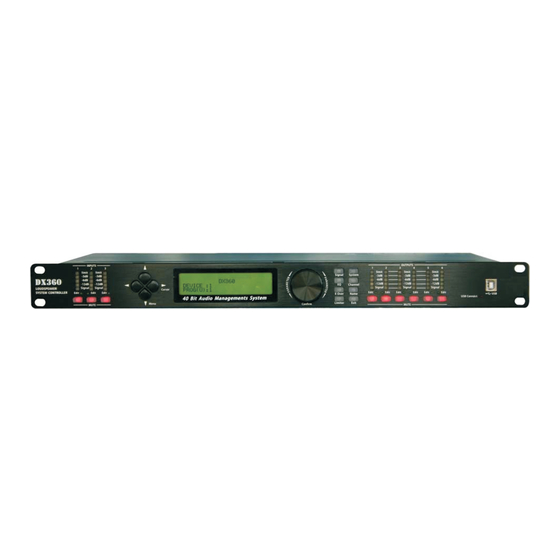

- Page 1 DX Loudspeaker Controller User Manual DX-360/480 DX SERIES USER MANUAL LSS Advanced Speakers Systems Via On.Longo 53, 89024 Polistena (RC) ITALY Tel. (+39) 0966 932199 Fax (+39) 0966 933007 www.lss.it info@lss.it...
- Page 2 LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it...
- Page 3 16. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS. LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it...
-
Page 4: Table Of Contents
6.2 System Menus...............13 7.0 QuickReference.............17 8.0 PC Control Software ........... 18 9.0 Specifications..............19 10.0 Warranty................21 LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... -
Page 5: Introduction
- DxDrive CD (incl. User Manual & PC Software, and USB Driver) *USB driver must be installed prior to usage LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... -
Page 6: Features
USB and RS-485 interfaces for PC Control and Configuration Pink noise and single frequency generator Original Neutrik XLR connectors Security Lock LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... -
Page 7: Front Panel Functions
*Channel - Input Mix *Name (Channel name) - for each input/output channel. *Exit – exit control for main system. LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... - Page 8 6. LCD – 4 line x 32 letters for showing all the necessary information to control the unit. 7. Cursor control- 4 ways Cursor control. LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it...
-
Page 9: Rear Panel Functions
** DX Series ** DX-360 v1.00 DEVICE : 1 PROG (U):1 *(U)> User program (F) Factory program LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... -
Page 10: Operating The Device
System menu. The maximum delay permitted is 1000ms. OUI_1:XXXXXX MENU:Signal LEVEL:0.00dB DELAY :0.105ms LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... - Page 11 Ranges from 12 to 48dB/octave. If the selected Filter Type is Linkritz Riley, the available slopes are 12 / 18 / 24 / 48 dB/octave. LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it...
- Page 12 Name - Channel Name • Name - Channel name. It is 6 characters in length. OUT 1:XXXXXX MENU:Name NAME:XXXXXX LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it...
-
Page 13: System Menus
LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... - Page 14 DELAY UNIT: ms /cm / ft Set the Delay unit in ms or cm or ft LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it...
- Page 15 • NAME - Program Name, allows a maximum length of 15 characters. SYSTEM Recall P:1 XXXXXXXXXXXX SYSTEM Store SYSTEM Store NAM:XXXXXXXXXXXX LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it...
- Page 16 PC application software. The factory default of a new unit does not require a password. *Password SYSTEM SETUP MENU: Password *------* *------* LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it...
-
Page 17: Quickreference
Source Source 1, 2, 3 , 4 Off / On Channel Name Ch-Name NAME 6 characters LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... -
Page 18: Pc Control Software
The LCD will display below when PC software are connected and all of the parameters or settings can only be controlled by DxDrive. PC Connecting… … LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... -
Page 19: Specifications
Power: Standard IEC Socket General Power: 90-120 or 200-240 VAC (50-60Hz) Dimensions: 19”x1.75”x9” (483x44x229 mm) Weight: 7lbs / 3.2kg LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it... - Page 20 Copy channels: All parameters (with PC software) Channel Names: 6 character length **Note: Specifications subject to change without notice** LSS Advanced Speakers Systems via On. Longo 53 89024 Polistena (RC) ITALY tel +39 - 0966 - 932199. fax +39 - 0966-933007 e-mail: info@lss.it...
