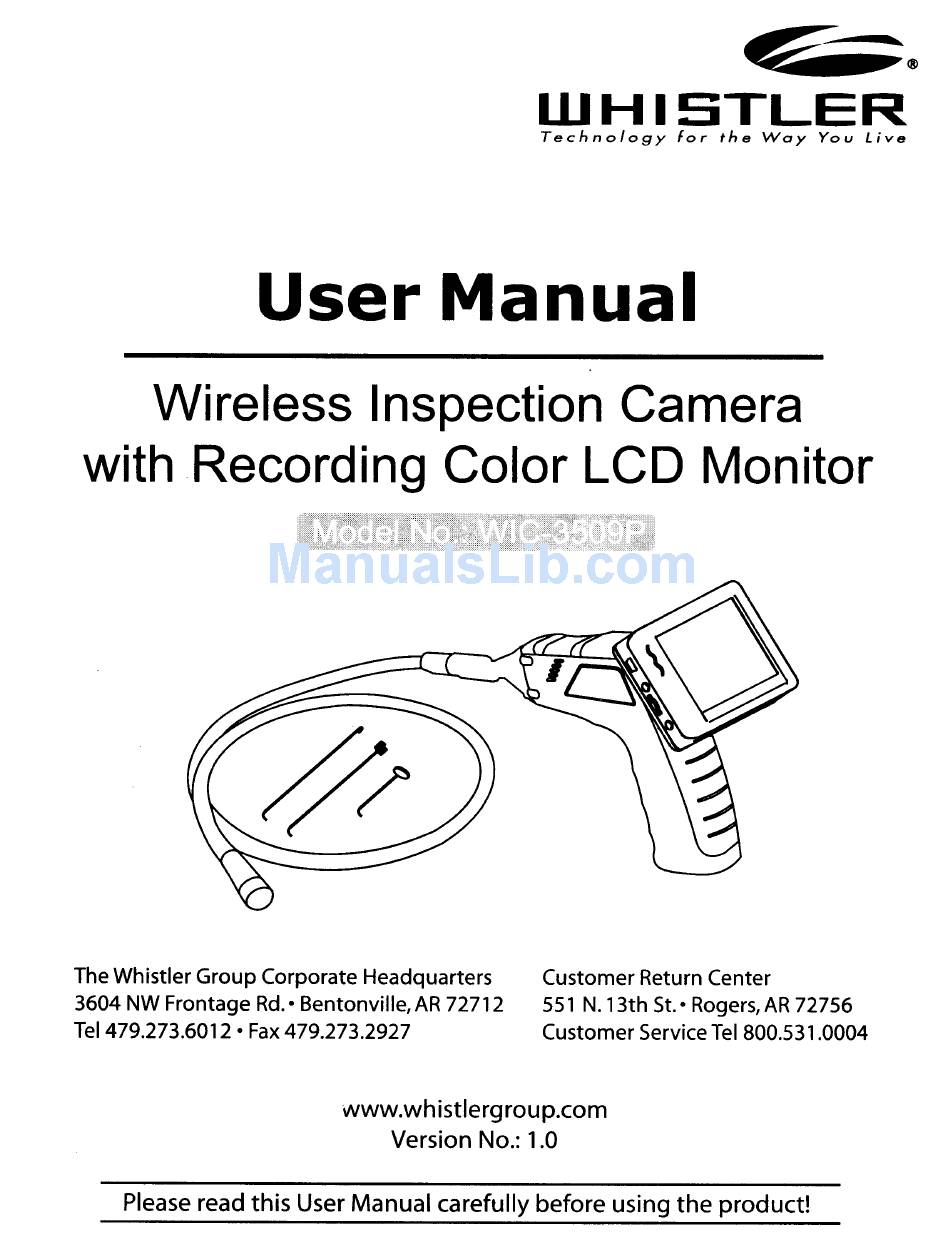

User Manual
WHISTLER
Technology for the Way You Live
User Manual
Wireless Inspection Camera
with .Recording Color LCD Monitor
The Whistler Group Corporate Headquarters
3604 NW Frontage Rd.· Bentonville, AR 72712
Tel 479.273.6012 • Fax 479.273.2927
Customer Return Center
551 N. 13th St.· Rogers, AR 72756
Customer Service Tel 800.531.0004
www.whistlergroup.com
Version No.: 1.0
Please read this User Manual carefully before using the product!
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Whistler WIC-3509P
Summary of Contents for Whistler WIC-3509P
- Page 1 Technology for the Way You Live User Manual Wireless Inspection Camera with .Recording Color LCD Monitor The Whistler Group Corporate Headquarters Customer Return Center 3604 NW Frontage Rd.· Bentonville, AR 72712 551 N. 13th St.· Rogers, AR 72756 Tel 479.273.6012 • Fax 479.273.2927 Customer Service Tel 800.531.0004...
-
Page 2: Table Of Contents
CONTENTS Welcome Packing List················ Component/Controls ........3 Installation····················· Operation Basic Operation ............... 7 Other Operations Settings For Monitor &... -
Page 3: Welcome
It can be used to look into tight spots and wirelessly transmit real-time video to the monitor. Typical applications include HVAC, automotive inspection, cable routing, etc. If you have questions concerning the operation of this Whistler product, please call: Customer Service 1-800-531-0004 Monday - Friday·... -
Page 4: Packing List
PACKING LIST 9mm Camera with Handheld Grip 3.5 in. LCD Monitor 3 ft. tube _-----0 Mirror Accessory Magnet Accessory Hook Accessory Clip Clip Clip Accessory Collar Adapter Cable Power Adapter Magnetic Swivel Mount - 2-... -
Page 5: Component/Controls
COMPONENTS/CONTROLS Camera Power Indicator Signal Output Flexible Tube Power ON/OFF Brightness Adjustment Camera Lens and LEOs Monitor Power ON/OFF Power Indicator USB Socket Video Output SD Card Socket Menu Power Supply Socket Down Reset Signal Input - 3 -... -
Page 6: Installation
INSTALLATION Install the batteries, camera tube, and micro card (optional) before using product. Install Batteries 1. Using a screwdriver, remove screw and cover. 2. Remove battery compartment and insert four new batteries into the proper slots in the battery compartment. Proper battery orientation is indicated on the battery compartment. - Page 7 Install Monitor for Wired Use The product also supports wired use by connecting the monitor to the camera. (f!!j Installed Slide the successfully monitor downward Install the Magnetic Swivel Mount The magnetic swivel mount can be used to secure the monitor to a metal object Install the bracket as shown below.
- Page 8 Insert SO Card (Optional) :>;;.. ~--~ After the Card is inserted SD card properly, the monitor will indicate " D " "D " icon; otherv~dse icon will appear. Connect USB Cable (Optional) Use the USB cable to connect the monitor to a PC. The USB online icon appears on the PC.
-
Page 9: Operation
OPERATION Basic Operation 1. Rotate the ON/OFF switch to turn on the camera. The power indicator on top of the grip will illuminate. The intensity of the LEOs that surround the camera on the imager head can be adjusted by rotating the switch. FourLEDs provide lighting 2. -
Page 10: Record Video
4. Gently guide the tube into the desired location. Slight adjustments can be made while maneuvering the head in a forward direction. wireless wired The flexible tube can be bent to accommodate exploration in a variety of locations. Other Qperation and Settings for Monitor Record Video 1. -
Page 11: Take Photo
2. Press OK button to record: Recording " c::::J • Recorded Time 2009/02/11 [00:05:43J 14:50:40 " Time Stamp 3. Press OK button again to stop recording. • The Video will be automatically saved as a file every 30 minutes. "~" SD card is full when the SD card icon changes to Take Photo 1. - Page 12 Play Video/Picture 1. During operation, press button to display: 0001/0007 PLAYBACK 2009-01-11 2009-01-12 2009-02-05 2009-02-09 2009-02-11 2. Press button to select folder, then press OK button: 2009-01-101 0002/0005 video file picture file 05:53:00 CH4" 05:53:03 05:56:40 05:59:03 CH4" VIOl' 06:05:17 For Video: Press button to select video, then press OK button to play...
- Page 13 Pause: press OK button in playing status to pause; press again to resume; Fast Forward: press button in playing status; Fast Backward: press button in playing status; Stop/Exit: press button. For Picture: Press button to select picture, then press OK button to display, press OK button again to exit.
-
Page 14: Delete Folder
3. Press button to select file, press and hold button for 2 seconds: 12009-01-101_, 0_00_2_/o_0_05-, J~"::-->.:'-: 05:53:03 05:56:40 05:59:03 06:05:17 4. Press button to select "YES" , then press OK button to delete selected file; press to exit. Delete Folder To delete a folder, follow the same procedures as deleting a file. - Page 15 Language Setting 1. In the setting mode, press button to select "SYSTEM SETTING", press OK button to enter; 2. Press orC!) button to select "Language", press the OK button: Language ~[g)~~~ ~~@]~~ OK: V English 3. Press or C!) button to select a suitable language; 4.
-
Page 16: Format
Format ® 1. In the setting mode, press button to select "SYSTEM SETIING", press OK button to enter; 2. Press button to select" Format" , press OK button: FORMAT WILL ERASE ALL DATA ARE YOU SURE? YEsl 3. Press or C!) button to select "YES" , then press OK button erase all data. -
Page 17: View Version Information
View Version Information ® 1. In the setting mode ,press button to select "SYSTEM SETIING ", then press OK button to enter; ® 2. Press button to select "Version", press OK button to enter and view the version of product. Frame Rate Setting 1. -
Page 18: Recording Type
__ _-_ _ _ . - - - - - - - - - _ . . Time Stamp OK: V 3. Press button to select" Off", "On", press OK button to confirm and exit. Recording Type 1. In the setting mode, press button to select"... -
Page 19: Event Playback
Date/Time Setting C!> In the setting mode, press button to select" Date/Time" , press OK : Date/Time ..~... OK:V 2. Press OK button to select Date or Time; press button to modify; press button to confirm and exit. EVENT PLAYBACK 1. - Page 20 SPECIFICATIONS Model No. GB8803 Imaging Sensor CMOS Total Pixels (NTSC) Horizontal View Angle 45 degree Transmission Frequency 2468MHz Minimum Illumination Modulation Type Bandwidth 18MHz Tube Diameter Power Supply 4 AA batteries Unobstructed Effective Range 32.8 Waterproof Capacity IP67(only for imager head) 7.3 x 5.7 x 1.6 (in.) Dimensions(W (Exclude Flexible Tube)
- Page 21 A CAUTION • Do not expose the monitor or grip to dripping or splashing liquids. • Turn off the camera and monitor when not is use. • Use only the AC adaptor and cable supplied with the unit. • Remove the batteries when cleaning the unit. •...
- Page 22 There are no express warranties covering this product other than those set forth in this warranty. All express or implied warranties for this product are limited to the above time. Whistler is not liable for damages arising from the use, misuse, or operation of this product. During the warranty period, defective units will be repaired without charge to the purchaser when returned with a dated store receipt to the address below.
- Page 23 FCC 10: TW5GB8802-GB8803 Note: Changes or modifications not expressly approved by Whistler could void the user's authority to operate the equipment. EU Environmental Protection Waste electrical products should not be disposed of with household waste.
