Universal Audio Delay Processor
CUSTOMER
SUPPORT
INFORMATION
Model AD-340
Order toll-free in the U.S. 800-959-6439
FREE technical support, Call 714-641-6607 or fax 714-641-6698
Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780
Web site: www.hallresearch.com E-mail: info@hallresearch.com
User's Manual
UMA1186 REV A
Advertisement
Table of Contents
Summary of Contents for HR AD-340

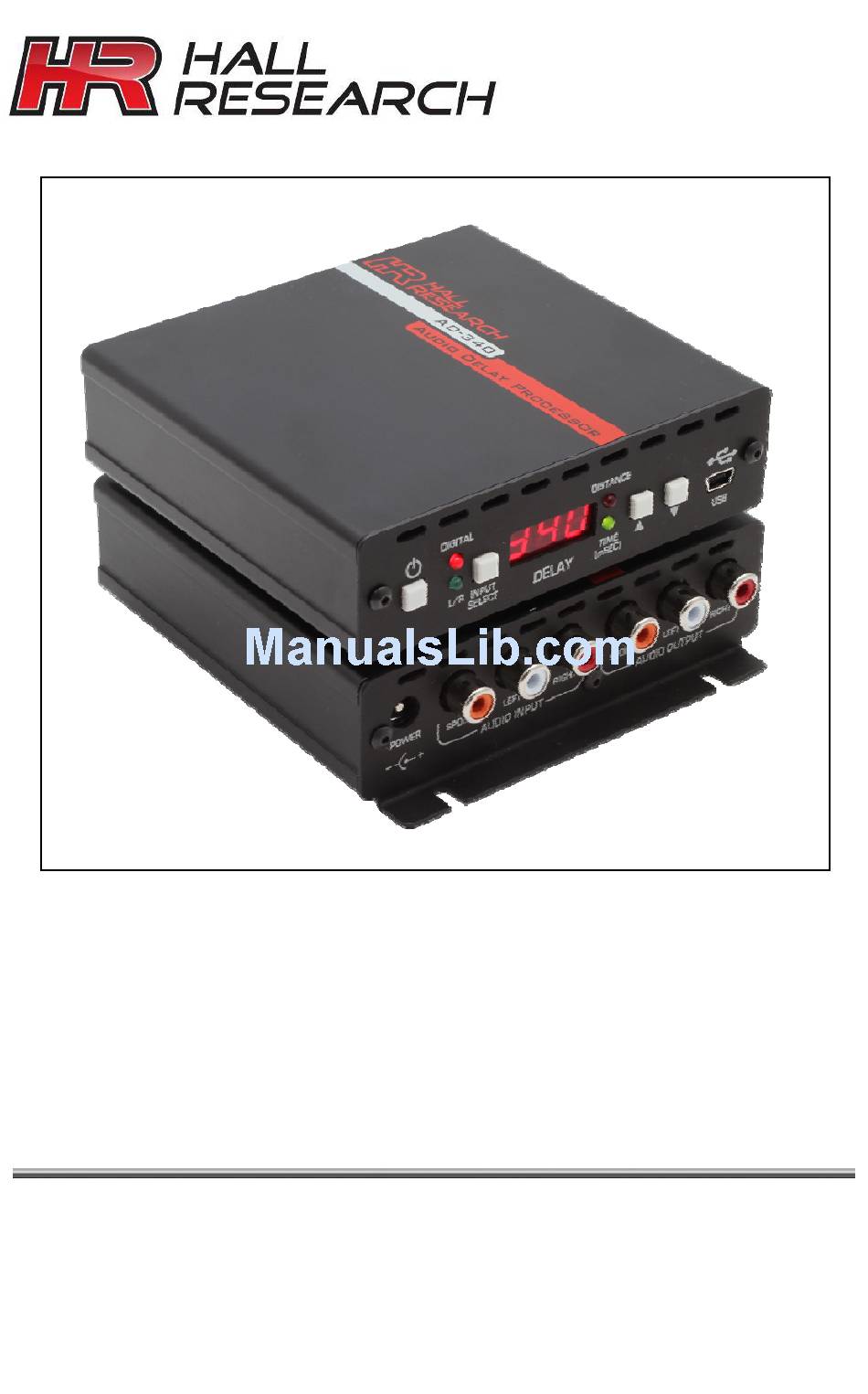

- Page 1 User’s Manual Model AD-340 Universal Audio Delay Processor Order toll-free in the U.S. 800-959-6439 CUSTOMER FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Address: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com UMA1186 REV A...
-
Page 3: Table Of Contents
Universal Audio Delay Processor Contents 1 Introduction ..................2 1.1 General ......................2 1.2 Features....................... 3 2 Installation ..................4 2.1 Package Contents ..................4 2.2 Front and Rear Panel .................. 4 2.3 Input and Output Connections ..............5 3 Configuration & Operation ............. 6 3.1 Front-Panel Button Operation.............. -
Page 4: Introduction
The AD-340 can be configured directly from the Front Panel Push Buttons or from the GUI when the AD-340 is connected to a Windows HOST PC with a USB cable. The Software GUI for the AD-340 is designed to be an intuitive and powerful user interface, and the front panel is simple and easy to use. -
Page 5: Features
Universal Audio Delay Processor 1.2 Features • Stereo Analog Input and Outputs (left and right channel) – RCA connectors • Analog Audio Compatible with 2 Vrms Line level for CD, DVD and BD Players • Digital Audio Input and Outputs - SPDIF over coaxial - for RCA connector •... -
Page 6: Installation
2.2 Front and Rear Panel The AD-340 is in a 4-inch wide enclosure with mounting bracket on the rear panel. All Analog and Digital Audio Inputs/Outputs and the power connections are on the rear of the unit. The LEDs, 7-segment LED and Push Buttons and the Mini-USB connector are on the front panel. -
Page 7: Input And Output Connections
Install the Windows-Based Software GUI on the Host PC. Connect the Windows Host PC to the AD-340 with the provided USB Cable with the Mini-B USB Connector. Note: Sound is output simultaneously on both the Analog and Digital outputs... -
Page 8: Configuration & Operation
Model AD-340 3 Configuration & Operation 3.1 Front-Panel Button Operation Button Function Description (1) POWER Standby Standby mode = USB inactive, Power On/Off Audio non-functional (to completely turn the unit off, disconnect the power supply) (4) SELECT Select ANALOG or... -
Page 9: Windows-Based Software Gui
Universal Audio Delay Processor 3.2 Windows-Based Software GUI The AD-340 Programmer is a software-based solution capable of configuring any setting on one or more AD-340 devices connected to the Windows PC via a valid USB connection. 3.2.1 Installation A compatible PC with Windows XP™ or later operating system with a USB connection is required: •... -
Page 10: Operation
The AD-340 Audio Delay automatically configures as a HID (Human Interface Device) and does not require any USB drivers installed by the end-user. When the AD-340 is attached to a valid USB port, the Windows™ system will automatically detect and identify the appropriate USB driver. There may be a short delay while this process occurs. - Page 11 Power Selection Device is powered on and enabled Standby: Device is powered off and disabled Device Name Used to give the AD-340 device a descriptive name up to eight (8) characters long. The DEFAULT name is USBDEVHR.
- Page 12 Model AD-340 Input Selection Analog: Select for Analog Audio Inputs. (E.g. from a PC Audio Output) Digital: Select for Digital Audio Inputs. (E.g. from a SPDIF Audio Output) Sampling Rate Analog: Adjustable to 32 kHz or 48 kHz. Digital: Actual Bitstream type and sampling rate displayed.
- Page 13 This is to prevent the user from hearing undesirable changes in the audio. Front panel Lock: If selected, the AD-340 device will not respond to the front panel buttons. NOTE - When the front panel is locked, the unit disables the Stand-by...
-
Page 14: Audio Configuration
The Encoded Bitstreams Formats must be decoded by an A/V receiver or similar audio equipment with embedded Dolby Digital or DTS decoder for full 5.1 channel functions. (Note: Analog Audio is auto-muted when the AD-340 detects a non-PCM bitstream). Press the SELECT button for Audio Input Type Selection. LEDs... -
Page 15: Sampling Rates
Dolby Digital Stereo and Surround (only digital output) DTS Surround (only digital output) DTS-CD Surround (only digital output) The AD-340 indicates SPDIF Errors and if SPDIF is Unlocked on the SPDIF PLL lock Range: 32 kHz to 196 kHz 3.3.2 Sampling Rates For Analog Input, the user can choose between 48 kHz (for quality audio) or 32 kHz (for increased delay time) sampling rates. -
Page 16: Analog Input/Output Volume Control
Model AD-340 3.3.4 Analog Input/Output Volume Control The analog input and output is set to Line Levels for CD, DVD and BD Players at (5.6 V- ), so if any of these sources are used the volume control Vrms peak-to-peak should be set to Unity Audio Gain (Default). - Page 17 The speed of sound increases with a rise in temperature and decreases with a fall in temperature. The AD-340 Audio Delay Processor is designed to provide a flexible way to adjust for these types of delay by adding a digital delay function based on 5 different delay types.
- Page 18 Model AD-340 In calculation of delay needed for given distance the unit includes correction needed for Haas effect. This correction masks localization of delayed audio source, so the listener still perceives the sound coming from far source. The maximum number of milliseconds of delay possible is a function of the audio...
-
Page 19: Factory Default Settings
4 Troubleshooting 4.1 FAQ The analog sound is distorted. The AD-340 is designed with Nominal Line Level for CD, DVD and BD Player, set at 2 (or 5.6 Vrms ). Set the Audio Gain to Unity for audio sources at Line Level. However, for added... -
Page 20: Contacting Hall Research
Why do the 4 Front Panel LEDs only blink when I power on the unit? The AD-340 verifies that the internal firmware is valid. If an error is detected, the system will automatically wait for firmware to be loaded. This should never happen in normal use, but the GUI can be used to reload firmware into the system. -
Page 21: Specifications
Universal Audio Delay Processor 5 Specifications Analog Audio: Standards Stereo (Left and Right Channel) Signal Level Line Level – 2 (5.6 V Vrms peak-to-peak Sampling Rate Selectable: 32 kHz or 48 kHz Cable/Connectors Coaxial Cable with RCA Connector Frequency Response (20 Hz –... - Page 24 © Copyright 2013. Hall Research, Inc. All rights reserved. Order toll-free in the U.S. 800-959-6439 CUSTOMER FREE technical support, Call 714-641-6607 or fax 714-641-6698 SUPPORT Mail order: Hall Research, 1163 Warner Ave. Tustin, CA 92780 INFORMATION Web site: www.hallresearch.com E-mail: info@hallresearch.com...
