R-4A56
SCHEMATIC
NOTE: CONDITION OF OVEN
1. DOOR CLOSED
2. COOKING TIME PROGRAMMED
3. START KEY TOUCHED
N.O.
COM.

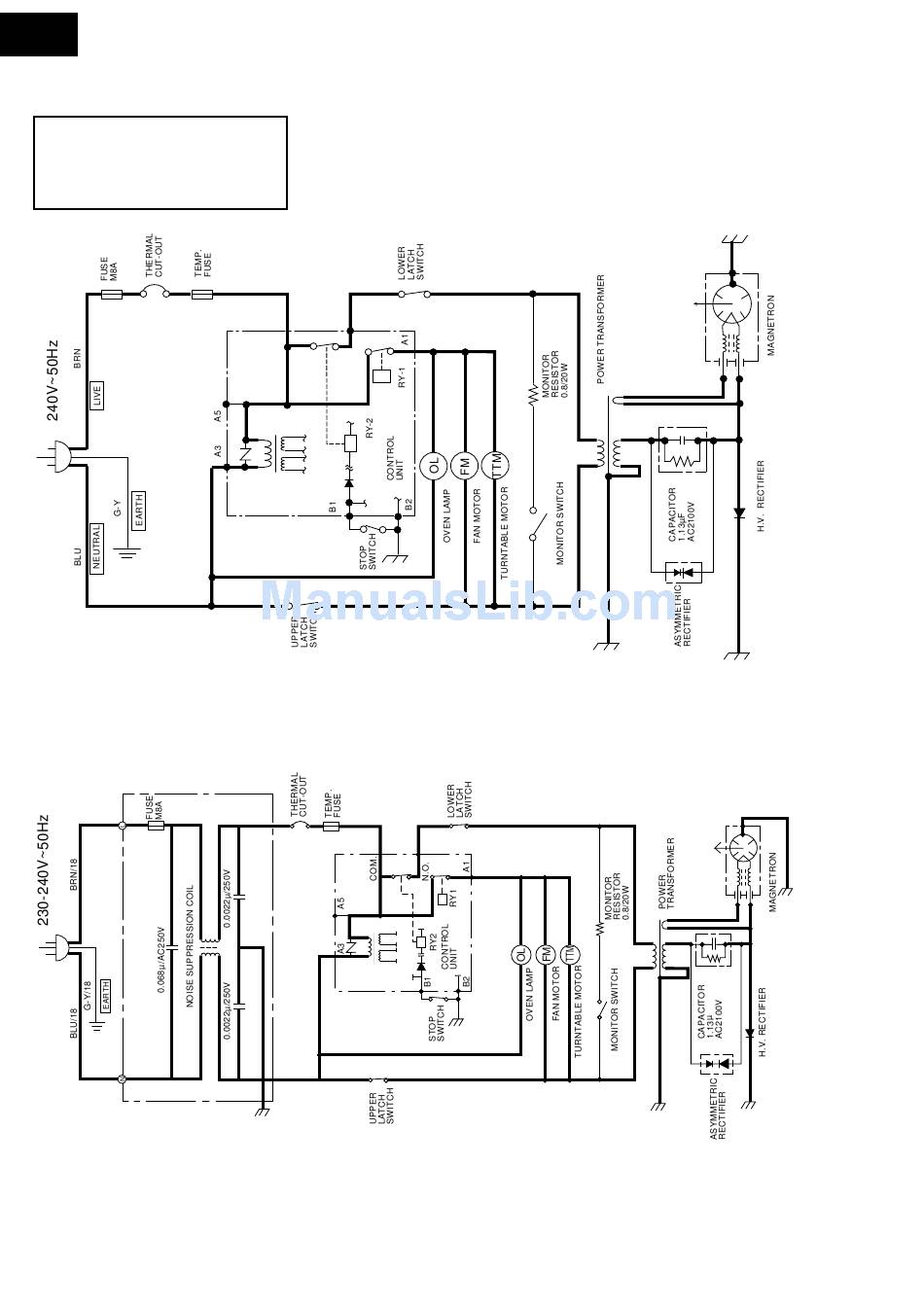

Figure O-2. Oven Schematic-Cooking Condition (for Australia)
Figure O-2. Oven Schematic-Cooking Condition (for New Zealand)
