Summary of Contents for Fidelity Audio DAC?150

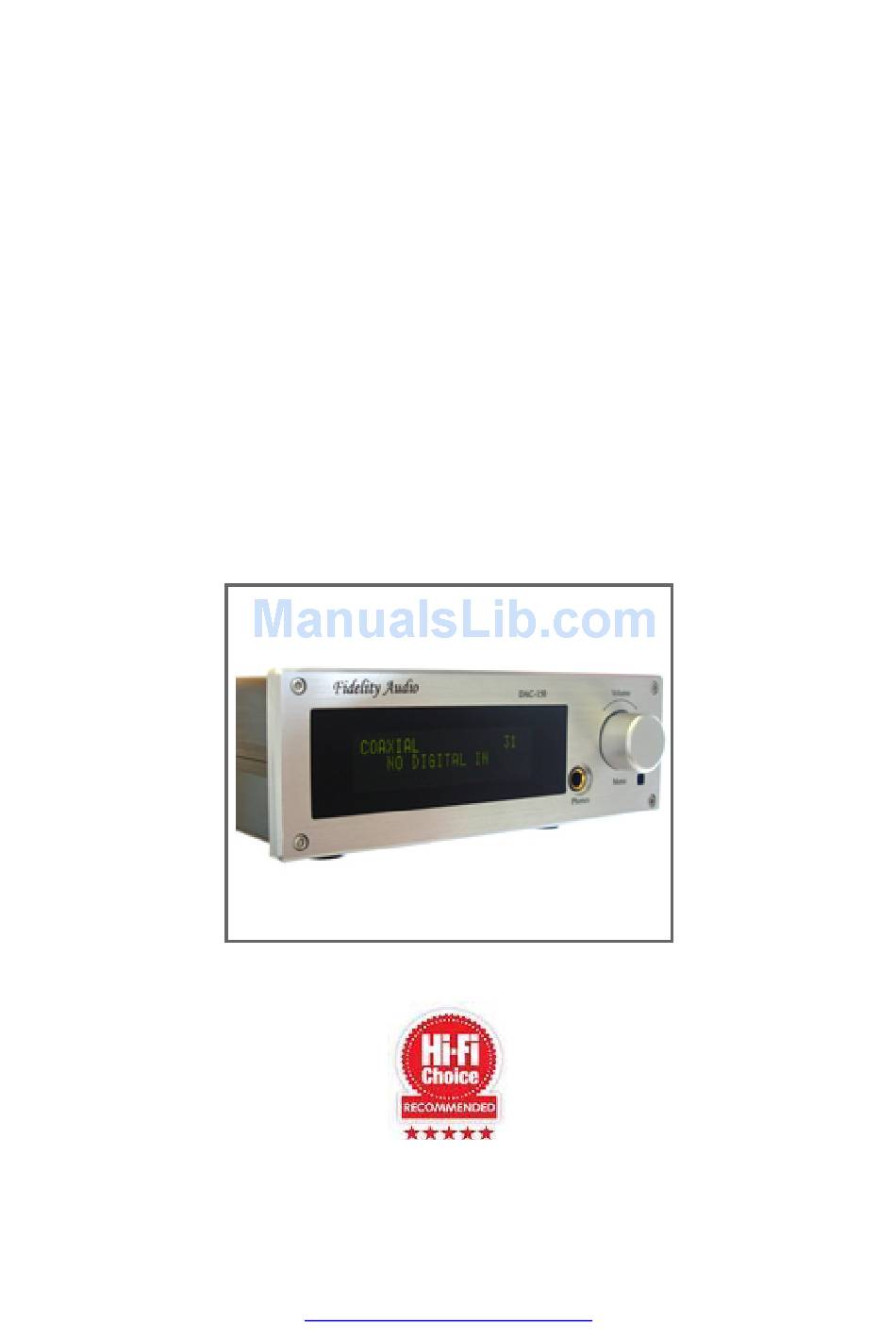

- Page 1 Fidelity Audio DAC‐150 User Manual www.fidelityaudio.co.uk...
- Page 2 Menu and options 1）Input Select The DAC‐150 has 3 digital audio inputs COAXIAL / USB / OPTICAL and 1 ANALOG input. These 4 inputs can be selected via the remote control or the jog switch knob at the front of the dac. COAXIAL USB OPTICAL ANALOG 2）Auto Detect From the menu (accessed from the remote or jog switch knob) you can access the ‘AUTO DETECT’ feature. This can be set to either ‘OFF’, ‘DETECT ON POWER UP’ or ‘ALWAYS DETECT’. Note:‐ When the unit is set to auto detect, the analogue input is disabled. ...
- Page 3 3）Volume adjust During playback you can adjust the volume output of the dac PRE OUT with either the remote or menu access (DAC OUT sockets are fixed at line level). 4）Volume set The max volume can be set in the MAX VOL SET menu. This stops the volume going over the set level (this works on the pre out and headphone outputs only) 5）Output set This option allows the user to switch between headphone out or pre out (accessed via the remote or menu) Note:‐ Line out / Dac fixed output remains on ...
- Page 4 6）Brightness set Adjust the brightness of the VFD display 7）Performance Parameters 1. Standard input connector: SPDIF, Coaxial, USB, Analogue Input (CMC Gold over Copper Connectors). 2. Input Frequency: 44.1 , 48 , 96KHz / 16 / 24Bit auto‐recognized. 3. SNR: >115Db. 4. Dynamic Range: 110Db. 5. THD+N: 1KHz% 0.0006. 6. Frequency response: 20‐20KHz. 7. DAC power : <18W. 8. Headphone out power: 300R / 300mW. 9. Dimensions: 230*320*60mm. 10. Weight: 2.6 Kg. 11. Packing Size: 320 * 230 * 120mm 8 ) Product Features 1. USB, Coaxial, Optical & analogue inputs 2. Analogue Pre‐amplifier 3. Analogue / Digital Headphone amplifier 4. High quality power supplies 5. High quality Analogue circuits (LME49710 & LME49720) 6. High quality VFD Display 7. CS4396 DAC chip, DIR9001 digital receiver, TE7022 USB ...
- Page 5 9 ) Illustration of the rear panel 1. Analogue Aux audio input 2. Pre Amplifier output 3. Line level (DAC Direct) output 4. Digital Coaxial input 5. Digital USB input 6. Digital Optical input 7. Power Switch 8. Power supply input interface Package contents: 1x DAC‐150 1x User Manual 1x USB cable 2x Remote control ...
- Page 6 For warranty service, contact your dealer or Fidelity Audio directly : Fidelity Audio 33 Arksey Lane Bentley Doncaster DN5 0RX England Telephone: +44(0)‐1302‐563124 Fax: +44(0)‐1302‐739739 Email: sales@fidelityaudio.co.uk Web site: http://www.fidelityaudio.co.uk ...
