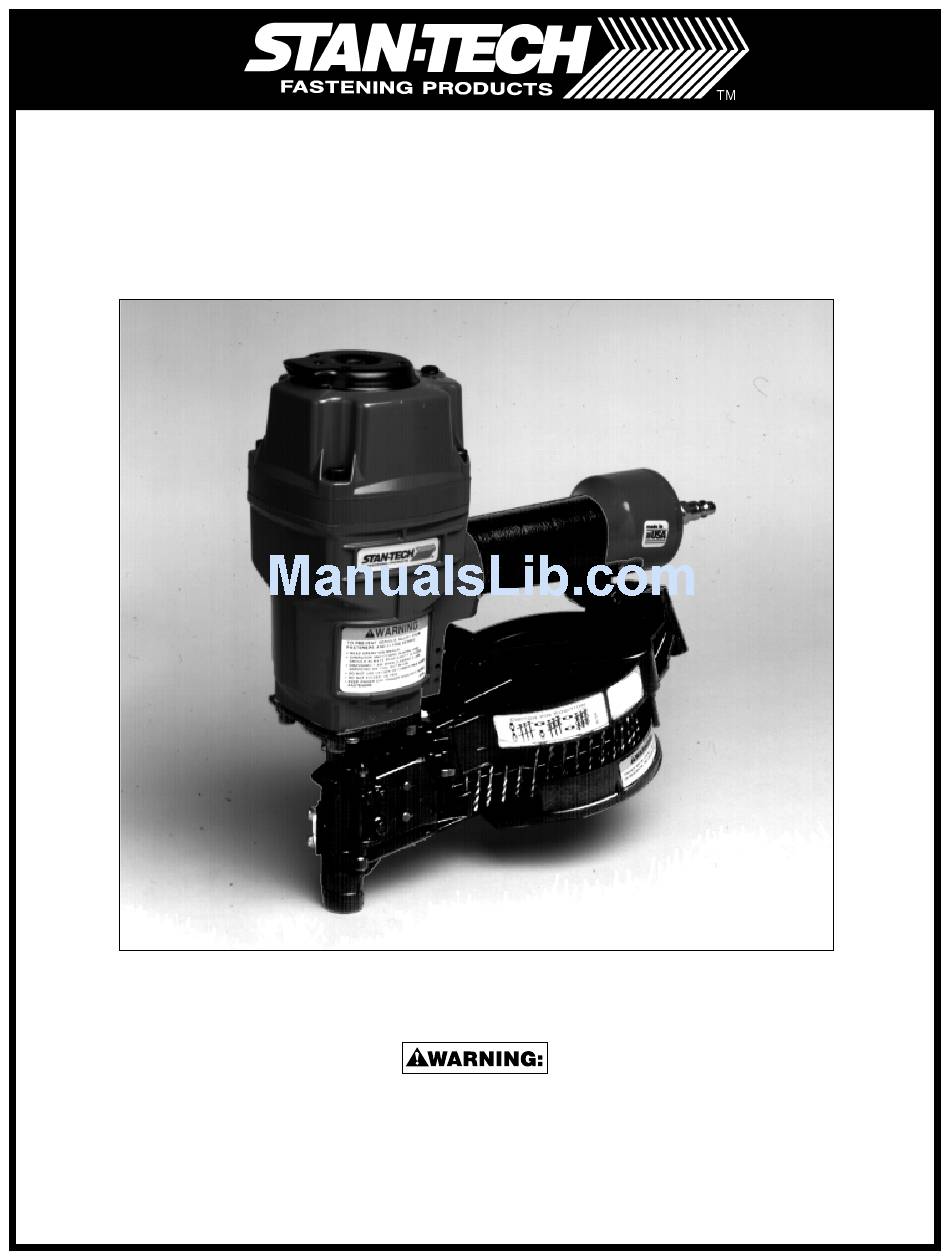

Stan-Tech SDCN14B Operation And Maintenance Manual

Coil-fed pneumatic nailers

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

SDCN14B

MODEL

COIL-FED PNEUMATIC NAILERS

OPERATION and MAINTENANCE MANUAL

BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL, TO UNDERSTAND

AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE

TOOL FOR FUTURE REFERENCE.

IF YOU HAVE ANY QUESTIONS, CONTACT YOUR STAN-TECH

REPRESENTATIVE OR DISTRIBUTOR.

103640REVC 4/98

Table of Contents

Need help?

Do you have a question about the SDCN14B and is the answer not in the manual?

Questions and answers

Summary of Contents for Stan-Tech SDCN14B

Page 1 BEFORE OPERATING THIS TOOL, ALL OPERATORS SHOULD STUDY THIS MANUAL, TO UNDERSTAND AND FOLLOW THE SAFETY WARNINGS AND INSTRUCTIONS. KEEP THESE INSTRUCTIONS WITH THE TOOL FOR FUTURE REFERENCE. IF YOU HAVE ANY QUESTIONS, CONTACT YOUR STAN-TECH REPRESENTATIVE OR DISTRIBUTOR. 103640REVC 4/98...
Page 2: Table Of Contents
To obtain warranty service, you must return the product at your expense together with proof of purchase to a Stan-Tech warranty repair center or you may call us at 1-800-343-1234 for the location of additional authorized warranty service locations in your area.
Page 3: Safety Instructions
SAFETY INSTRUCTIONS EYE PROTECTION which conforms to ANSI specifications and provides protection against flying particles both from the FRONT and SIDE should ALWAYS be worn by the operator and others in the work area when loading, operating or servicing this tool. Eye protection is required to guard against flying fasteners and debris, which could cause severe eye injury.
Page 4: Tool Specifications
DO NOT EXCEED THIS RECOMMENDED OPERATING PRESSURE. AIR CONSUMPTION: The SDCN14B requires 4.3 cubic feet per minute of free air to operate at the rate of 100 nails per minute, at 80 p.s.i. (5.6 kg/cm ). Take the actual rate at which the tool will be run to determine the amount of air required.
Page 5: Air Supply: Fittings, Hoses, Filters, Air Consumption, Regulators, Operating Pressure, Setting Correct Pressure
AIR SUPPLY AND CONNECTIONS Do not use oxygen, combustible gases, or bottled gases as a power source for this tool as tool may explode, possibly causing injury. FITTINGS: Install a male plug on the tool which is free flowing and which will release air pressure from the tool when disconnected from the supply source.
Page 6: Loading The Tool
Fig. 12 FASTENER SPECIFICATIONS •The SDCN14B uses a wide range of steel nail sizes in lengths of 1-1/4” to 2-1/2” (32mm to 64mm) and shank diameters of .080 to .090 (2mm to 2.3mm). •Also uses aluminum nails in lengths of 1-3/4” to 2-1/2” (44mm to 64mm) and shank diameters of...
Page 7: Tool Operation
I. READ AND UNDERSTAND THE WARNINGS CONTAINED IN THIS MANUAL. II. REFER TO “TOOL SPECIFICATIONS” IN THIS MANUAL TO IDENTIFY THE OPERATING SYSTEM ON YOUR TOOL. There are three available systems on STAN-TECH pneumatic tools. They are: 1. TRIGGER OPERATION 2. CONTACT TRIP OPERATION 3.
Page 8: Tool Operation Check
• Do not operate this tool if it does not contain a legible WARNING LABEL. NOTE: Do not continue to use a tool that leaks air or does not function properly. Notify your nearest Stan-Tech representative if your tool continues to experience functional problems.
Page 9: Basic Tool Operation
“O”-rings. Coat each “O”-ring with “O”-LUBE before assembling. Use a small amount of oil on all moving surfaces and pivots. After reassembly add a few drops of STAN-TECH Air Tool Lubricant through the air line fitting before testing.
Page 10: Trouble Shooting
TROUBLE SHOOTING PROBLEM CAUSE CORRECTION Trigger valve housing leaks air O-ring cut or cracked Replace O-ring Trigger valve stem leaks air O-ring/seals cut or cracked Replace trigger valve assembly Frame/nose leaks air Loose nose screws Tighten and recheck O-ring or Gasket is cut or cracked Replace O-ring or gasket Bumper cracked/worn Replace bumper...
Page 11: Driver Maintenance
DIRECTIONAL EXHAUST DEFLECTOR Loosen screw as shown. Adjust to desired exhaust direction and tighten screw. SDCN14B DRIVER MAINTENANCE INSTRUCTIONS Wear on the driving tip will affect the nail drive, giving symptoms of bent and incompletely driven nails, and damaged nail heads.
Page 12: Fastener Depth Control Adjustment
FASTENER DEPTH CONTROL ADJUSTMENT The Fastener Depth Control Adjustment feature provides control of the nail drive depth, from flush with or just above the work surface to shallow or deep countersink. TO ADJUST THE FASTENER DEPTH CONTROL: DISCONNECT TOOL FROM AIR SUPPLY BEFORE ATTEMPTING ANY PARTS DISASSEMBLY AND BEFORE CHANGING THE WORK CONTACTING ELEMENT ADJUSTMENT.
Page 13: Accessories
ACCESSORIES AVAILABLE: 100679 Lube (1LB. CAN) NOTES AND RECORDS -13-...
