Summary of Contents for Elinchrom Ranger RX

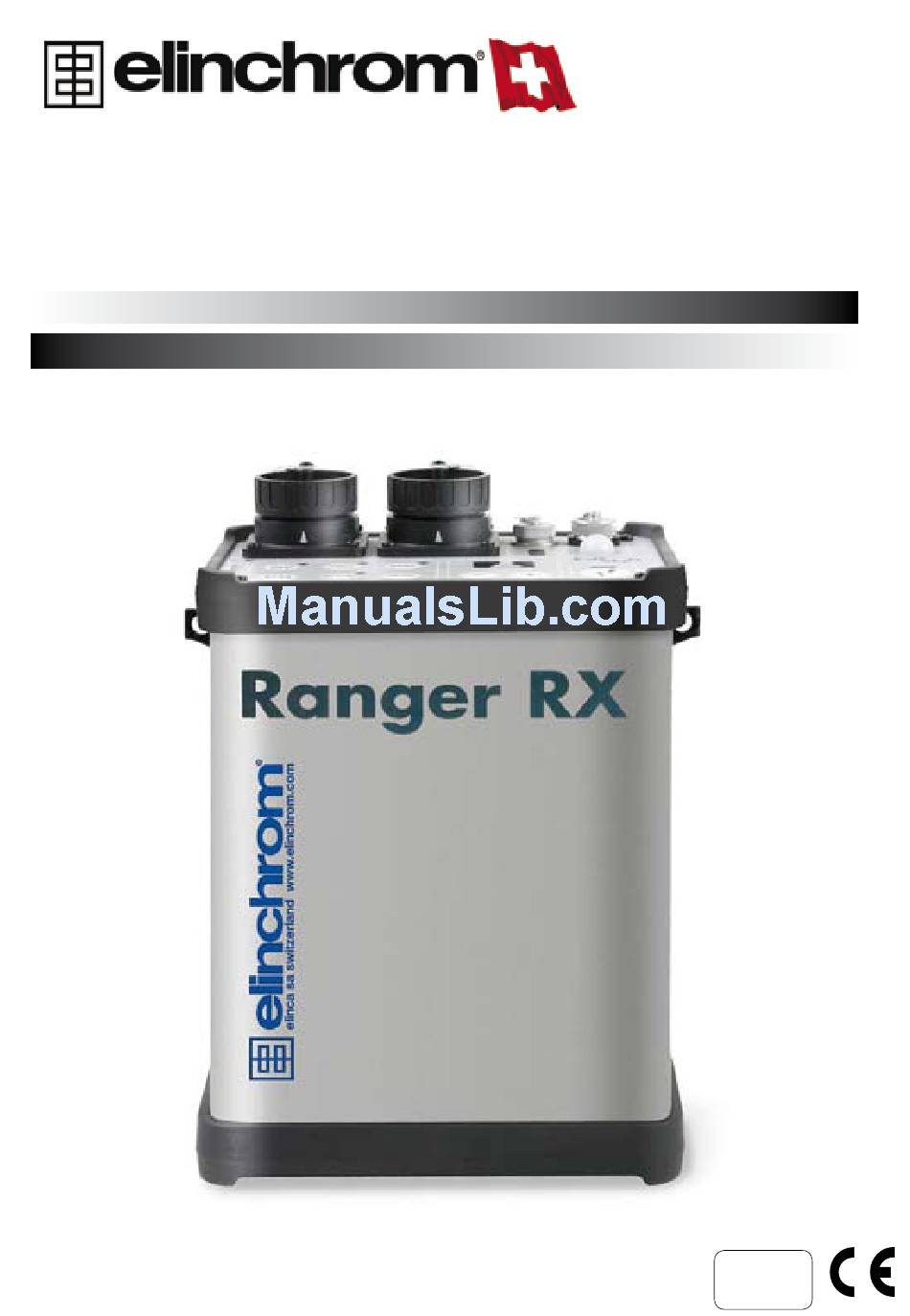

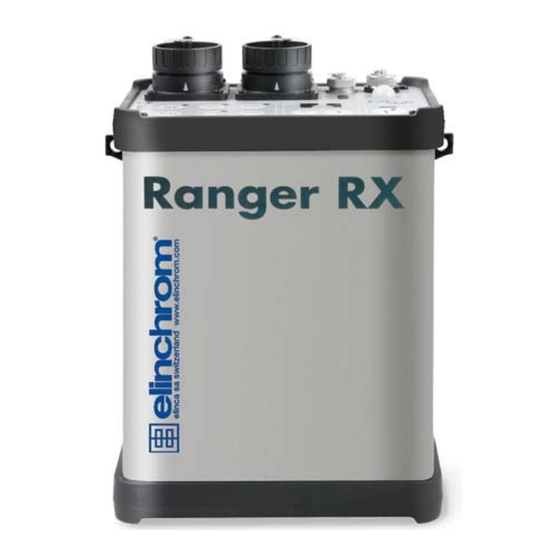

- Page 1 Operating Manual Ranger RX Battery Power Pack English Elinca S.A Ranger RX 01.06.2007 ENG (73300) Printed in Switzerland...
-
Page 2: Table Of Contents
Synchronisation, Wireless Remote control and flash triggering Change the battery Battery charging, battery fuses Flashheads connections Flashheads Technical Data Elinchrom Accessories Guarantee P.S: Technical data subject to change. The listed values are guide values which may vary due to tolerances in components used. -
Page 3: Introduction
ELINCHROM in lighting products for the studio and the utilization of the latest technology in this area. Totally integrated to the range of the ELINCHROM flashes, the Ranger RX units maintain the traditional look and function that is ELINCHROM. -
Page 4: Declaration Of Conformity, Disposal And Recycling, Ce Marking
Any components not reclaimed will be disposed of in a environmentally acceptable manner. If you have any question on disposal, please contact your local office or your local ELINCHROM agent (check our website for a list of all ELINCHROM agents world wide). -
Page 5: Safety Notice And Precaution
• The Ranger RX power pack is designed to keep out humidity and dust. When it is possible, sockets should be sealed with the supplied caps and please ensure the Battery Box is secure inside the Ranger RX housing. -
Page 6: Before You Start
• Check always if flashheads connections are plugged in correctly and locked with the bayonet! Battery With a flattened battery in place, the Ranger RX may be used with the charger connected. However, the recycle time between full power flashes will be 50/60 seconds due to limited charging current. -
Page 7: Control Panel
13. Battery charge indicator battery and increases the lifetime of the (100%, 50% and 10%). battery. 14.Synchro-socket, traditional Elinchrom 4. Photocell on/off switch with Led indicator. socket, weatherproofed. 5. Modelling lamp switch, three functions. 15. Battery charge socket and Remote 6. -
Page 8: Functions
Note: In the unlikely case of malfunction, please check the charge and modelling lamp fuses. Auto OFF – Function (2) If this function is switched on (indicated by the green LED) the Ranger RX power pack will switch off after 5 min with not in use. -
Page 9: Functions
In emergency, switching off the unit and waiting for some minutes will permit a few extra flashes (at slow charge). The “intelligent” electronics saves the battery from over discharging. An "Auto Battery Save" system switches off the Ranger RX pack immediately after 4 Beep signals. -
Page 10: Synchronisation, Wireless Remote Control And Flash Triggering
The charge socket is as well the interface for the EL-Skyport Trigger and Remote System. With the EL-Skyport RX Trigger Set 19362, the Ranger RX can be triggered wireless, up to approximatly 100 m distance. Apart from triggering, the Transmitter offers modelling lamp on/off settings and flash power control in 1/10th steps. -
Page 11: Battery Charging, Battery Fuses
2. 4 AF (Quick acting / 5 x 20 mm) charge fuse (on the top side of the Battery Box) 3. 10 AF (Quick acting / 5 x 20 mm) modelling lamp fuse inside Ranger RX housing. The Battery Box must be removed before the fuse can be exchanged. -
Page 12: Flashheads
Ranger/Free Lite S and A Flashheads Ranger/Free Lite S and A heads are designed specifically for the Ranger RX battery pack. The special flashhead bayonet plug with locking ring protects against dust and humidity. The modelling lamp can be activated for 15 or 30 seconds. -
Page 13: Technical Data
• Battery charging fuse is brocken, replace fuses (page 10) • Charger is brocken • Battery is out of lifetime • => Internal defect • Do NOT open the unit yourself! • Bring your Ranger RX (with charger, heads, battery & cables) to an Elinchrom service. -
Page 14: Elinchrom Accessories
19360 Receiver and cables) EL-Skyport Computer remote set 19361 EL-Skyport RX Set (need adaptator) 19362 EL-Skyport RX Adaptator for Ranger RX 19374 Accessories for Ranger RX (only) Ranger RX Battery Box, including battery 19290 Charge adaptator for external car battery... -
Page 15: Guarantee
GUARANTEE This ELINCHROM product will be repaired free of charge by the vending agent if during a period of 24 months from date of purchase its working order is impaired through a manufacturing or material defect. The faulty product should be immediately sent to the authorized dealer or ELINCA agent. - Page 16 www.elinchrom.com...
