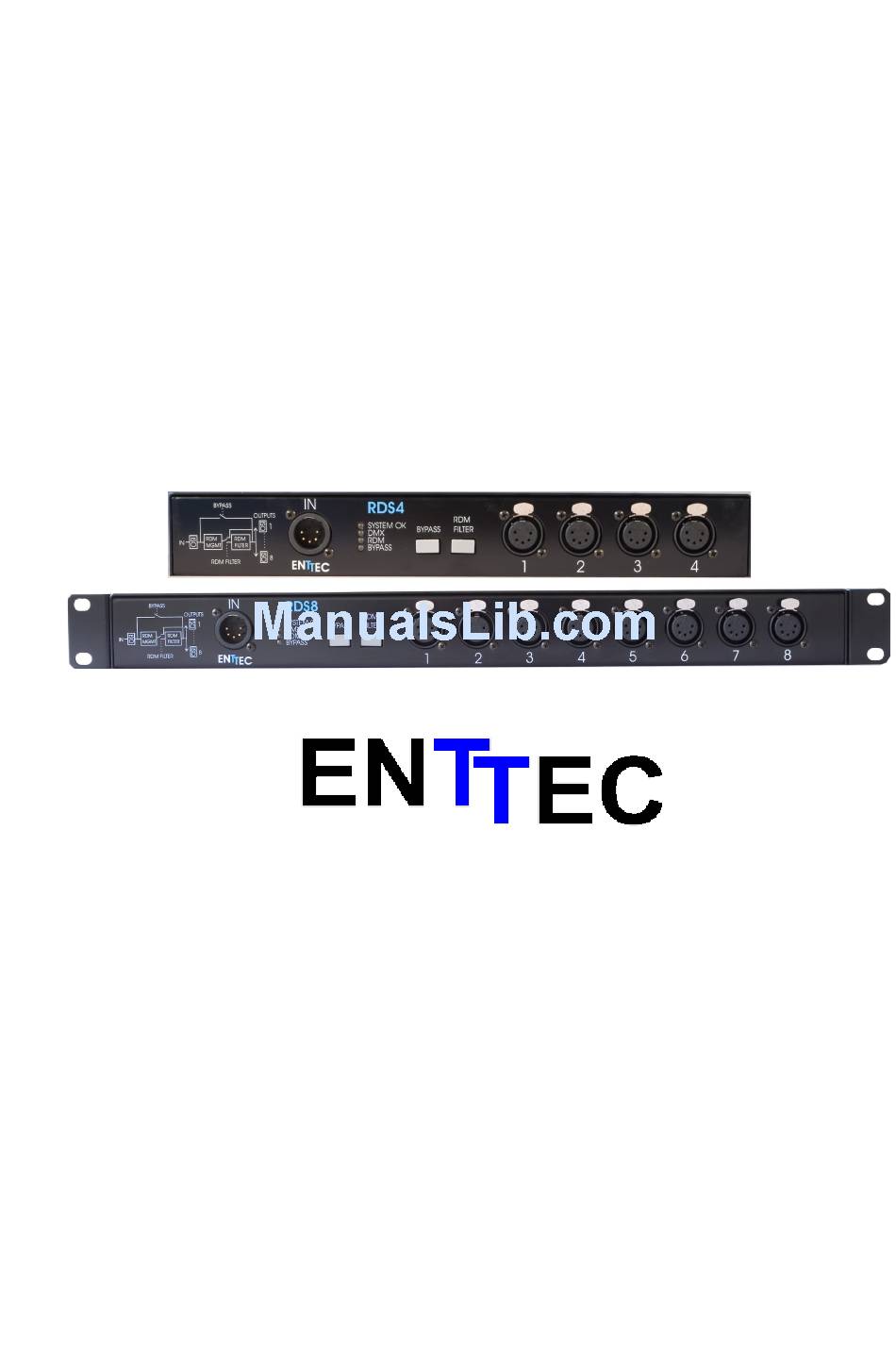

Page 1: Models Rds4 And Rds8
RDM Splitters Models RDS4 RDS8 User Manual www.enttec.com June 2007... -
Page 2: Package Contents
Package Contents Your RDS4 package should contain these items: RDS4 (Part No. 70037) IEC Power Cord (Australia only) This user manual Your RDS8 package should contain these items: RDS8 (Part No. 70036) IEC Power Cord (Australia only) This user manual If any item is missing or damaged, please contact your supplier immediately. -
Page 3: Table Of Contents
Models RDS4 and RDS8 ............1 Warranty ..................4 Contacting ENTTEC ............... 4 Getting Support ................4 Getting to know your RDS4 or RDS8 ..........5 Features .................... 5 Layout ....................6 Connecting the RDS4 or RDS8 ............7 Power supply ................8 DMX Out ................. -
Page 4: Warranty
PO Box 282 Vic 3101 Australia Getting Support If you require support for the RDS4 or RDS8 please visit the Support area of our website at www.enttec.com. There you can fill out a support request ticket for prompt assistance with your enquiry. -
Page 5: Getting To Know Your Rds4 Or Rds8
Getting to know your RDS4 or RDS8 Thank you for purchasing the RDS4 or RDS8. At Enttec we are proud of our products and we hope you will enjoy using them as much as we enjoy designing and building them. -
Page 6: Layout
Layout The RDS4 case is 1.75” (44.45mm) in height, 11.82” (300mm) wide and 4.53” (115mm) deep. This makes it easy to put on a tabletop or shelf, and with an optional mounting bracket you can place it on a truss or pipe. -
Page 7: Connecting The Rds4 Or Rds8
XLR 5pin Female (not shown in closeup) DMX512 Output. Connects up to 4 (RDS4) or 8 (RDS8) cables which in turn may connect to one or more (up to 32 standard) DMX512 devices. Additional RDS splitters may be used to connect to more devices or split into more cable runs for convenience of wiring. -
Page 8: Power Supply
RDS device being installed. Electrical Isolation The RDS4 and the RDS8 are constructed with state of the art isolation placed next to the inputs and all the outputs. That means you have 1500V worth of protection against harmful surges and transient spikes from output to output, as well as between any of the branches and the controller plugged to the input. -
Page 9: Powering Up The Rds4 Or Rds8
Powering up the RDS4 or RDS8 As there is no power switch, when the RDS4 or RDS8 is plugged in, it should be powered on. You can confirm this by noticing that when first connecting it, the SYSTEM OK LED status indicator light should come on and then blink regularly. -
Page 10: Filtered Mode
Button Position Filtered Mode BYPASS FILTER When the RDM Filter Button is not depressed (it will stick out relative to the front panel more) then your RDS device is in the Filtered Mode. The RDM LED does not blink when in this mode because no messages will be passed. -
Page 11: When To Use The Bypass Mode
no RDM signals will be passed back from the fixtures to the controller. The BYPASS LED will light up to indicate that you're in this state, but none of the other LEDs (System OK, DMX etc) will be illuminated, as the processor is no longer monitoring the status of the signal being received. -
Page 12: Appendix 1 - Connector Pinouts
Appendix 1 - Connector Pinouts DMX OUT Pin 1 Ground Pin 2 Data - Pin 3 Data + Pin 4 Pin 5 DMX IN Pin 1 Ground Pin 2 Data - Pin 3 Data + Pin 4 Pin 5 RDM Splitters Manual... -
Page 13: Appendix 2 - Fcc Declaration
PO Box 282, Kew, Vic, 3101 Australia declares that the products RDS4 and RDS8 comply with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 14 different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. In order to maintain compliance with FCC regulations shielded cables must be used with this equipment. Operation with non-approved equipment or unshielded cables is likely to result in interference to radio and television reception.
-
Page 15: Appendix 3 - Eec Declaration
PO Box 282, Kew, Vic, 3101 Australia declare under our sole responsibility that out products RDS4 and RDS8 conform to the requirements of Council Directives 89/336/EEC and 73/23/EEC and therefore complies with the requirements of Council Directive 73/23/EEC, (The Low Voltage...
