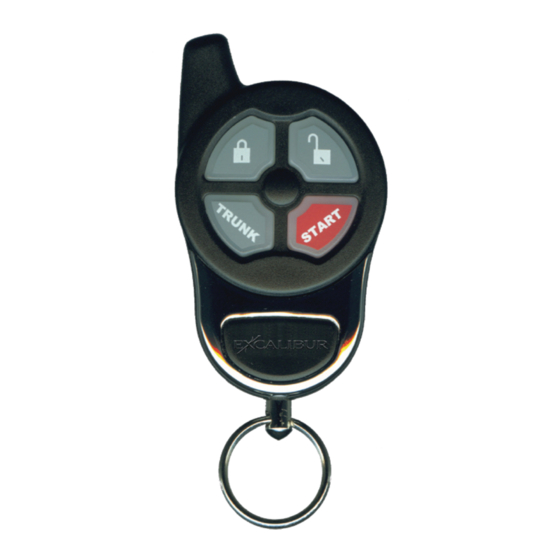

Transmitter Overview ThE TRAnSmiTTER Transmitter part number: 147-03 Call your dealer or visit www.caralarm.com to order replacement transmitters. 1) Antenna 2) Lock Button 3) Unlock Button 4) Trunk Button 5) Start Button Transmitter battery replacement: Remove the small screw from the lower back case, and separate the transmitter halves�...
Page 4
Transmitter Functions (cont’d) TRUnK RELEASE / ChAnnEL 2: Press the “TRUnK” button for 3 seconds� • ThE SySTEM WILL DISARM AnD ThE TRUnK WILL OPEn (IF EqUIPPED)� REmOTE START: Press and release the “START” button twice within 5 seconds� (see user feature #21 for additional options) •...
Page 5
Transmitter Functions (cont’d) ChAnnEL 4 (iF EQUiPPED): Press and hold the “LOCK” & “TRUnK” buttons for 3 seconds� • yOUR SySTEM WILL ACTIVATE ThE ChAnnEL 4 OUTPUT� ChAnnEL 5 (iF EQUiPPED): Press and hold the “UnLOCK” & “START“ buttons for 3 seconds •...
Transmitter Functions (cont’d) SEnSOR BYPASS: Press and release the “TRUnK” button within 5 seconds of locking/arming the alarm system� • ThE SySTEM WILL gIVE OnE ChIRP TO InDICATE ThE SEnSOR IS ByPASSED� AUXiLiARY FUnCTiOnS 1-4: The actual operation of these functions will vary from car to car� They are designed to operate extra functions like automatic sliding doors or motorized hatches�...
Other Remote Start Features (cont’d) the programmed time (1, 2, or 3 minutes), and then automatically turn it off� • The system may be locked while the engine is running. Turbo Timer can be prevented from engaging, or “bypassed” if desired, by turning the engine off before engaging the parking brake, or if it’s already engaged, step on the brake pedal to turn the engine off�...
Security System Features (cont’d) PRE-wARn DETECTiOn This system’s impact sensor is designed, in addition to detecting a full impact, will warn away potential violators when it detects a light impact to the vehicle� The system will respond by chirping the siren/horn 3 times and locking the doors� This is very use- ful when an intruder attempts to unlock the door with “slim jim”...
Using The Valet Switch (cont’d) REmOTE START VALET mODE, disables remote start� Keyless entry and alarm functions still operate� To enter remote start valet mode, perform the following steps: STEP 1 - Disarm the system (by remote or by emergency override) STEP 2 - hold the brake pedal then press and hold the valet switch for 2 seconds�...
The Status Light (cont’d) flash a number of times to indicate exactly which zone(s), has been violated. It will store the last 2 violated circuits and continually repeat the flash pattern until the sys- tem is disarmed and the vehicle’s ignition key is turned On� 2 FLAShES: hood trigger 3 FLAShES: Door trigger 4 FLAShES: Sensor port trigger...
Anti-Carjacking Protection (cont’d) Step 1 Turning the vehicle’s ignition off� Step 2 Turning the ignition back on� Step 3 Within 5 seconds, perform an Emergency Override using the Valet Switch� If the SecureCode has been customized, the correct number of Valet Switch presses must be made�...
Programming Features Step 1 Turn the ignition key “On”, then “OFF” Step 2 Within 5 seconds of step 1, press the valet switch 5 times to access user features (10 times to access installer features)� ~ The siren/horn will sound and the status light will turn on� Step 3 Within 10 seconds of step 2, press the valet switch the number of times cor- responding with the desired feature’s number�...
Page 13
User Programmable Features (cont’d) Feature #4 - Starter interrupt Functions Alarm Only (press “arm/lock” button to program) - DEFAULT (press “disarm/unlock” button to program) Automatic (press “trunk” button to program) Alarm & Anti-Grind (press “start” button to program) Alarm Only - The Starter Interrupt is operable whenever the alarm is armed� Off - Completely eliminates the Starter Interrupt output�...
Page 14
User Programmable Features (cont’d) Feature #10 - Confirmation Chirp Volume medium high (press “trunk” button to program) - DEFAULT Low (softest) (press “arm/lock” button to program) medium Low (press “disarm/unlock” button to program) high (loudest) (press “start” button to program) This feature allows the choice of four different volume levels of the system’s confirma- tion chirps which is demonstrated as you change the setting�...
Page 15
User Programmable Features (cont’d) Feature #16 - Alarm Functions Bypass (press “disarm/unlock” button to program) - DEFAULT (press “arm/lock” button to program) This feature converts the system into a strictly Keyless Entry/Remote Start System by eliminating all antitheft alarm-oriented operations and features� Feature #17 - ignition Activated Anti-Carjacking Protection (press “disarm/unlock”...
installer Programmable Features This group of Installer Programmable Features are all accessed as a group in the second level of features’ programming� These features have a direct affect upon the system’s operations related to the installation and vehicle type AnD ShOULD OnLY BE ChAnGED BY ThE inSTALLER!!! Feature #1 - Doorlocking Functions 0.8 Second Outputs (press “arm/lock”...
Page 17
installer Programmable Features (cont’d) Feature #6 - Engine Detection method Tachless hi (press “arm/lock” button to program) - DEFAULT Tachless Lo (press “disarm/unlock” button to program) Tach wire (press “trunk” button to program) Data Tach (press “start” button to program) Crank Only (press “lock”...
Page 18
installer Programmable Features (cont’d) Feature #10 Gasoline Or Diesel Engine Gasoline (press “lock” button to program) - DEFAULT Diesel 15 Sec. Delay (press “unlock” button to program) Diesel 20 Sec. Delay (press “trunk” button to program) Diesel 30 Sec. Delay (press “start” button to program) This feature changes the system’s timing of the ignition and starter output sequence for gas or diesel engines�...
Programmable Features matrix User Feature Programming: Ignition on, off, press valet 5 times # Feature Lock Button Unlock button Trunk button ”START” button 1 Secure Code 1, 0 (default) 2 Last Door Arming On w/o lock On w/ Lock 3 Automatic Rearming On w/o lock On w/ Lock Enhanced Rearm...
Page 20
Back Cover Color cover is in a separate file.
