Summary of Contents for Elite Core PM-16

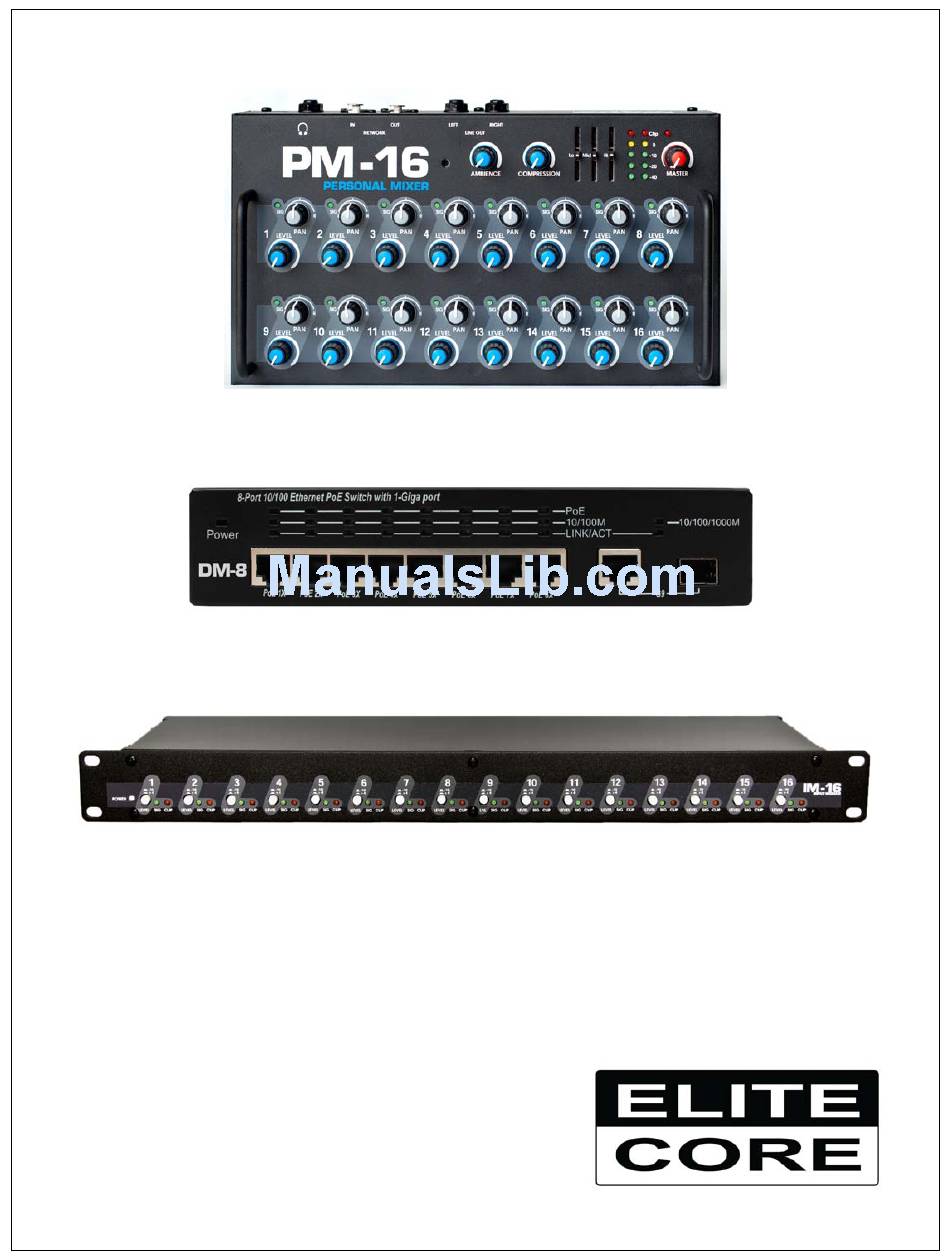

- Page 1 PM-16 Personal Monitoring System User Guide www.elitecoreaudio.com info@elitecoreaudio.com 920 South D Street Fort Smith, AR 72901 855-276-2673...
-
Page 2: Important Safety Instructions
Elite Core PM-16 User Guide Important Safety Instructions WARNING: To ensure a long healthy life for you and your new PM-16 System, please read these instructions before proceeding. Water and moisture Do not expose the equipment to rain or moisture or use in damp or wet conditions. Do not place con- tainers of liquids on surfaces where liquid may spill into any openings. -
Page 3: Limited One Year Warranty
Limited One Year Warranty This product was manufactured in the USA by Elite Core Audio and is warranted to be free from defects in materials or workmanship for a period of one year from the date of purchase by the original owner. -
Page 5: Table Of Contents
Table of Contents Important Safety Instructions ..................... ii Limited One Year Warranty ....................iii FCC Class A Radio Frequency Interference Statement ..........iii PM-16 System Overview ......................7 IM-16 Input Module ........................9 IN Connectors ...........................9 THRU Connectors ........................9 TRS Send/Return ........................9 Multichannel Record Output....................9... - Page 6 Elite Core PM-16 User Guide PM-16 System Connections ....................17 Standard PM-16 Personal Monitoring System with One DM-8 ......17 System with One DM-8 and More than Eight PM-16s ..........17 PM-16 System Without a DM-8 ..................18 System with Additional DM-8s ..................18 Using LINE OUT ........................18...
-
Page 7: System Overview
We know you'll be happy with the PM-16 system. If you have any comments or questions, please get in touch with us. We like to get feedback from and interact with our users: •... - Page 8 We recommend using a DM-8 Distribution Module to deliver AC power and audio to the PM-16s but it is not required. See PM-16 System Connections on page 17 to learn how to connect the PM-16 with or without a DM-8.
-
Page 9: Input Module
Route the analog inputs to another IM-16 or even another manufacturer’s input module. Many instal- lations have an existing monitoring system, but have chosen the PM-16 to expand their infrastructure. The THRU connectors make this cross-product integration possible. See System with Additional DM-8s on page 18 for other ways to expand a PM-16 system. -
Page 10: Network Connector
Connect a standard CAT5E cable from the IM-16’s RJ-45 NETWORK connector to the PoE x1 input on the DM-8 or NETWORK IN on the PM-16. See PM-16 System Connections to learn how to interconnect all PM-16 System components. SIG and CLIP LEDs Each channel has two front panel LEDs: •... -
Page 11: Distribution Module
Elite Core PM-16 User Guide DM-8 Distribution Module One DM-8 Distribution Module can deliver power and audio to eight PM-16 Personal Mixers. Since the DM-8 delivers power over the CAT5E cable, its PM-16s do not need a power supply. Figure 5 DM-8 Distribution Module front panel (top), and rear panel (below) The front panel has the following LEDs and connectors: •... - Page 12 Elite Core PM-16 User Guide...
-
Page 13: Personal Mixer
We recommend keeping the channel LEVEL controls lower than the MASTER level. See the SIG section below to avoid clipping the channel input. PAN sets the channel’s left/right balance. This allows each PM-16 Personal Mixer to set not only its own mix but unique stereo assignments as well. -
Page 14: Master Controls
If either red clip LED lights, we recommend reducing your output level to preserve headroom. The clip LED lights 3 dB below actual clipping. The red LED to the right of the output LEDs lights when the PM-16 is connected to a power source, either from the DM-8 or its own power supply. -
Page 15: Rear Panel
RJ-45 NETWORK IN and OUT • Stereo ¼-in Output Compatible with headphones, earbuds, custom IEMs, or our optional EC-WBP wired body pack • DC POWER inlet Figure 7 PM-16 Rear Panel See PM-16 System Connections to learn how to interconnect the PM-16 components. - Page 16 Elite Core PM-16 User Guide...
-
Page 17: System Connections
Ethercon connector for added protection and stability. We recommend a maximum cable length of 500 ft (150 m). All PM-16 systems must use an IM-16 Input Module and one or more PM-16 Personal Mixers. We recommend using the DM-8 Distribution Module to deliver audio and power to the PM-16s, but it is not required (see below). -
Page 18: System Without A
Elite Core PM-16 User Guide PM-16 System Without a DM-8 A PM-16 can receive audio directly from the IM-16 Input Module and pass it to other PM-16s. How- ever, each PM-16 must use its own power supply. To connect PM-16s without a DM-8: 1. -
Page 19: System Specifications
66 dB (22 Hz - 22 kHz) Latency < 0.878 ms (measured from analog input to analog output) Headphone: sleeve of TRS jack is grounded to the PM-16 chassis Grounding Line Out: sleeve of line out jacks are grounded to the PM-16 chassis...
