Page 1: Important Safety Instructions

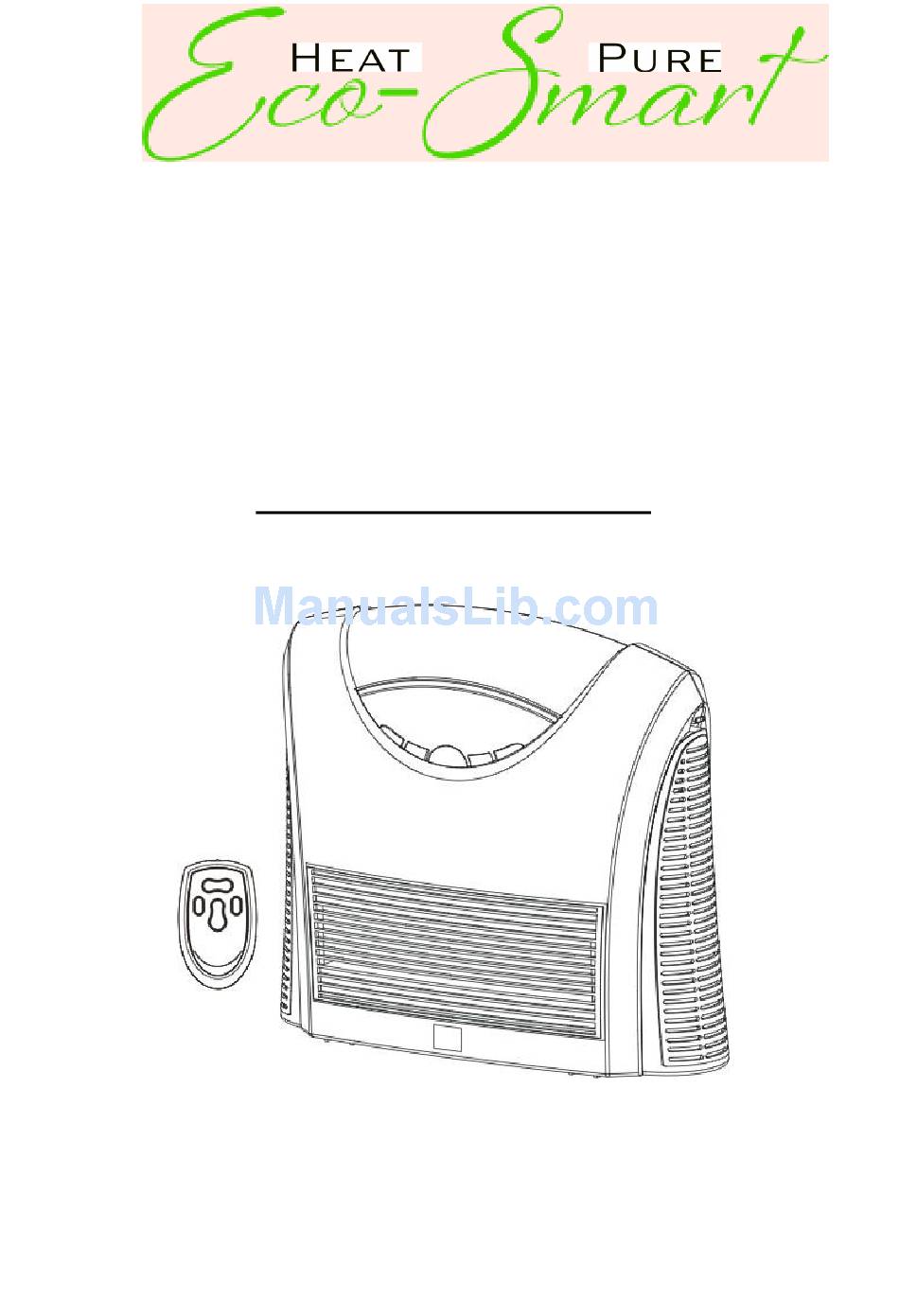

2 in 1 AIR PURIFIER INFRARED ZONE HEATING SYSTEM with ELECTROSTATIC COLLECTOR AND HEATER OWNER’S MANUAL Model No. ATI-HPE-PD www.advancedtechinfrared.com READ AND SAVE THESE IMPORTANT SAFETY INSTRUCTIONS... - Page 2 ► Read carefully before attempting to assemble, install, operate or maintain the appliance. ► Protect yourself and others by observing all safety information. ► Failure to comply with instruction could result in personal injury and/or property damage. ► Retain instruction for future reference. When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electric shock and injury to persons, including the following: 1.
- Page 3 9. NEVER insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire or damage the appliance. Do not block or tamper with the appliance in any manner while it is in operation. 10.
- Page 4 22. DO NOT use the appliance outdoors. 23. WARNING: To reduce the risk of fire or electric shock, DO NOT use this air purifier with any solid-state speed control device. 24. The ESP filters have many edges and areas that can trap water. The ESP filters should be completely dry before installing it into the unit.
- Page 5 - 3 - OZONE SAFETY INSTRUCTIONS The electrostatic air purifier will produce small amounts of ozone as a by-product. This unit complies with the requirements of UL 867 for acceptable levels of ozone (less than 0.05 parts per million by volume of air circulating through the product). People with a history respiratory problems or lung disease should consult a physician before using this product.
- Page 6 - 4 - WARNING! DO NOT DEPEND ON THE ON/OFF BUTTON OR POWER SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE APPLIANCE. ALWAYS UNPLUG THE POWER CORD. 1. When the air purifier is initially plugged in, the buzzer will come on a “beep” voice and Power Indicator will remain lit indicating that there is power to the unit.
-
Page 7: Automatic Temperature Control
- 5 - ESP RESET FUNCTION: If the ESP filter is defect or need to be cleaned, the ESP filter will stop working, however, the fan still blows. Now you need to turn off the air purifier and unplug the unit, clean or reinstall the ESP filter then turn on the unit again. - Page 8 - 6 - REMOTE CONTROL FUNCTION: All the functions performed with the Remote Control work identically to the manual controls. (Figure 2) 1. Install two “AAA” batteries as shown in Figure 2. 2. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable (nickel-cadmium) batteries.
- Page 9 - 7 - REMOVING/CLEANING/INSTALLING PRE-FILTERS (See Figure 3) ● To remove air inlet covers 1. Turn off and unplug the unit; 2. Press the spring buttons and take off the air inlet covers from the unit. The pre-filters are attached on the air inlet covers. (See Figure 3 and consult the indication of arrow) ●...
-
Page 10: Safety Feature
- 8 - 4. Insert the ESP filters back into the unit. NOTE: The product may experience some discoloration on ESP filters over time. This is normal and does not affect the performance of the product in any way. CLEANING AND MAINTENANCE THE UNIT 1. -
Page 11: Troubleshooting Tips
- 9 - TROUBLE SHOOTING TIPS If the product shuts off unexpectedly, safety features may have been activated to prevent damage or injury. If this happens: 1. Be sure the product is plugged into a working electrical outlet; 2. Check to be sure the ESP filters is firmly seated in place; 3. - Page 12 - 10 -...
