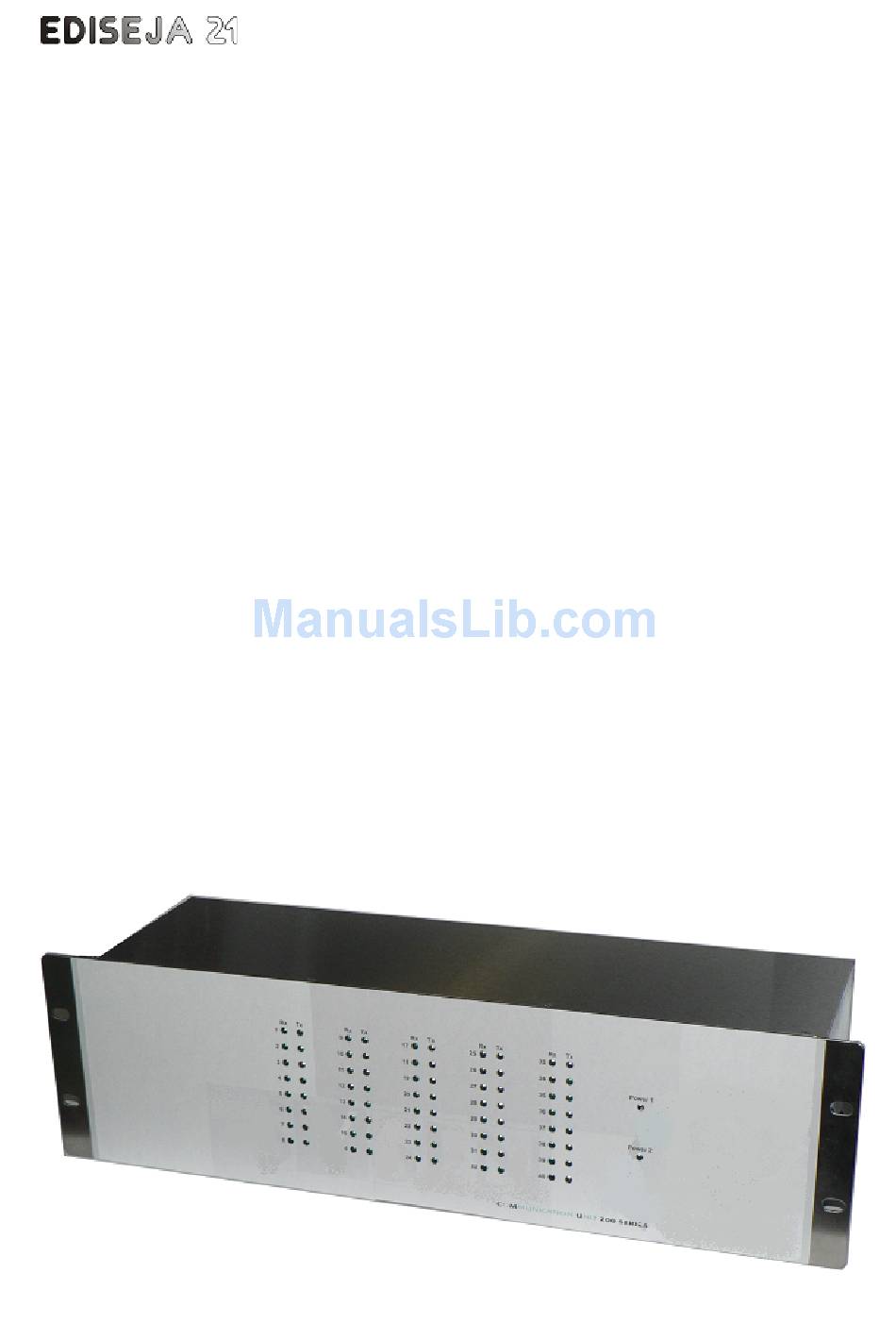

CMU 200 - User manual Communication Units Project CMU 200 Device name CMUMU200_V3-13_02_01-CMU200-user_manual Document Version Grega Flander Author 01.02.13 Date Reference document Consultants Grega Flander Approved by CMUMU200 Code 1 – first release History 2 – 39 channel star coupler added 3 –...
Page 4
CMU 200 - User manual General information These paper contain the information that is necessary for the proper and safe operation of the described devices. This paper is intended for technically qualified personnel. Warning! Hazardous voltage is present inside the device during operation. Disregarding of safety rules can result in severe personal injury or property damage.
PC serial com port extender (for example USB to 4 serial com) CMU 200 device is a couple of software and hardware. For different purposes, different software versions and different hardware configuration have been developed. Software Software is application dependent and allows different hardware configurations. Software's task is switching between communication ports and allows almost any combination between them.
On following pages schematics of some devices are drawn. Due to many options it is not possible to present every possible variant. If there is no variant needed, please contact us. STAR COUPLERS Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 200 User manual CMUMU200 01.02.13...
HARDWARE DESCRIPTION HARDWARE DESCRIPTION Installed communication interfaces depend on device type. RS232 INTERFACE Picture 3.1: DB9 F connector Cable CMU 200 / RS232 to PC / RS232 CMU 200 Direction DB9 F pin Signal Signal DB9 F pin <------- ------->...
Page 16
CMU 200 - User manual RS485 bus termination and stabilisation baud rate RS485 bus termination and stabilisation TERMINATION At high transmission rates or long distance, RS485 bus termination is necessery. The termination on RS485 bus must be set on both ends of the RS485 bus.
CMU 200 - User manual Picture 3.3: 485 interface board appearance (left) and 48L interface board appearance (right) Picture 3.4: Data rate vs cable lenght FO MM INTERFACE BOARD Description Single, full duplex, multimode (820 nm), fiber optic port with ST connector (or other connectors - see ordering) with both positive or negative logic.
OFF in idle state). In other case, if optic loop on one port is broken, communication with other slave ports, also will not work. ETH INTERFACE BOARD Description Single virtual com port with RJ45 connector. Settings Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 200 User manual CMUMU200 01.02.13...
Page 20
CMU 200 - User manual Lantronix Redirector Picture 3.6: Lantronix Port Redirector settings Page: Company: Device: Document: Code: Version: Date: Ediseja 21 CMU 200 User manual CMUMU200 01.02.13...
CMU 200 - User manual INSTALLATION INSTALLATION Warning! Hazardous voltage is present inside the device during operation. Disregarding of safety rules can result in severe personal injury or property damage. Only qualified personnel may work with described devices after being familiar with warnings and safety notices in this paper and other safety regulations.
If single mode fiber optic interface is used do not look into the laser beam. MAINTENANCE Device is maintenance-free. Do not use liquids for cleaning the unit. Disconnect power supply before cleaning. Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 200 User manual CMUMU200 01.02.13...
CMU 200 - User manual TECHNICAL DATA Power supply 230 V (85 – 264 V) 220 V (120 – 370 V) Input voltage (70 – 100 V) 110 V (88 – 140 V) Power consumption (type dependent) 40 VA max...
Page 25
3U (133 mm) 154 mm + (see picture) connectors 0 °C to +55 °C Temperature range up to 95 % (noncondensing) Humidity operating Material inox Company: Device: Document: Code: Version: Date: Page: Ediseja 21 CMU 200 User manual CMUMU200 01.02.13...
CMU 200 - User manual Device Enclosure 4x M6 screw 19" rack Mount type Class Overvoltage category Communication indicator Receiveing yellow LED marked Rx Tranmitting green LED marked Tx DIMENSIONS Picture 6.1: CMU 200 dimensions Page: Company: Device: Document: Code:...
FO multimode SMA ....................... FOA x n Ethernet (one virtual com port) ..................ETH x n n ... number of interfaces - maximum number of interfaces in CMU 200 is 40! Each 23R and 2RI interface must be treated as two interfaces! Function: three ports star coupler (up to 13 independent channels) .............
