ENIGMA User Manual
Mega Systems Inc., Ltd. Co.,Ltd.
The pictures and data in the user manual are reference only, check the real
product please!

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the video processor and is the answer not in the manual?

Questions and answers

Summary of Contents for Mega Systems video processor

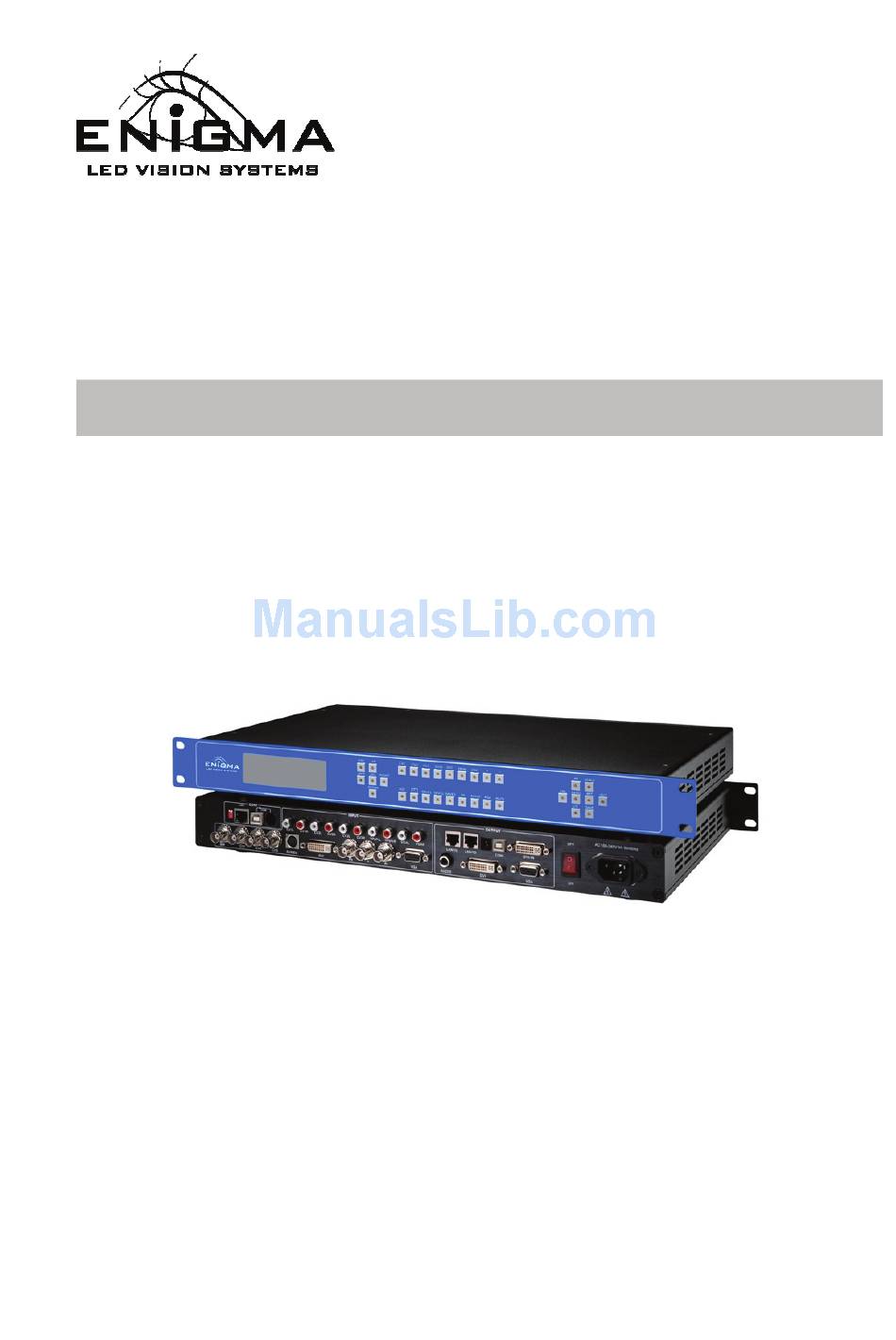

  • Page 1 ENIGMA User Manual Mega Systems Inc., Ltd. Co.,Ltd. The pictures and data in the user manual are reference only, check the real product please!
  • Page 2 CONTACT US Address:5718 Kenwick St, San Antonio, TX 78238 Tel:210-684-2600 Fax:210-855-6279 EMail:info@megasystemsinc.com WebSite:www.megasystemsinc.com Revision Format Time ECO# Description Principal 2010-1-15 0000 Release Lisa...

  • Page 3: Table Of Contents

    5.2 Run ENIGMA Console ..............19 6.0 FAQ .....................29 6.1 No output in target display ............29 6.2 VGA input could not work with ENIGMA Console ......29 6.3 DVI input could not work with ENIGMA ........29 6.4 Component input could not work with ENIGMA ......30 6.5 User settings can not save............30...

  • Page 4: Safety

    It is forbid to pour liquid, metal fragment or anything else inside this device to avoid fire and other accident. Once that happens, must remove power cord and try to make it clean before power on again. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...

  • Page 5: Specification

    2.0 Specification ENIGMA video processors are designed by the latest high performance image processing technology. ENIGMA can handle following video without limit, include CVBS（Composite）、S-Video (YC)、YCbCr、YPbPr、RGBHV（VGA）、 DVI-D、HDMI、SDI（SD-SDI、HD-SDI） and VOIP（Copper RJ45）. 2.1 Parameters Composite BNC Input Number of Inputs Supported Standards PAL/NTSC; 480i,576i Signal Level 1Vpp±3db (0.7V Video+0.3v Sync ) 75ohm...

  • Page 6: Audio Input

    48Kbps 24bit balance analog audio Function Source Switch support every signal alpha key operation PIP for SD with HD and HD with HD AV Sync supported Extras Communication RS232 USB TCP/IP Power Supply 85-264V 2A IEC-3 Working Environment 0°C~45°C ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...

  • Page 7: Connection

    2 、 10/100M interface (copper RJ45). Used to connect the computer by 568B-568A twist-pair; 3、USB interface，Used to connect the computer； 4、 RS232 interface (RJ11) for ENIGMA processor. Used to connect the computer; 5-14、Audio interface, support audio signals from DVD player or audio sources; 15-16、Gigabit copper port, connect to LED screen;...
  • Page 8 24 、 S-Video DIN 4, used to input S-Video signal （ PAL, NTSC, SECAM compatible）; 25、DVI input interface。Input the video signal from computer, DVI signal generator. Connect to the same DVI interface on ENIGMA; （This Connection does not support hot-plugging） 26-28、R/Pr G/Y B/Pb BNC, used to support SD/HD analog video input, up to 1080p60;...

  • Page 9: How To Install

    3.2 How to install ENIGMA frame size ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...

  • Page 10: Front Panel Keyboard Operation

    CV1 input is default source. With front panel keyboard, user can operate VSP with menu display on LCD module. 4.1 ENIGMA Operator Guideline ENIGMA front panel as following： 1. LCD Module; 2. Keyboard: ESC: push to exit from current choice item;...
  • Page 11 Reset button. Note: AB in ENIGMA doesn't support Fade-In-Out. SCALE: push to go to between scale zoom crop scale mode； BRT：push to adjust the brightness and the contrast ratio, push to enter to the relevant Menu, and then push the UP and DOWN to adjust the brightness and the contrast ratio.

  • Page 12: Video Processor Menu

    4.2 Video Processor Menu System menu as follows; >ENIGMA *Dev Info Recall ↓ Fig. 1 The first line shows ENIGMA. Push the right and left direction key to select the left or right menu. Before the menu item, if there is a * sign, means the menu item has been selected, you can push the Select key to enter it.
  • Page 13 ENIGMA support the minus pixel shift function, which ① ENIGMA can not support; Note: ② ENIGMA can not support pixel shift on the resolution 1920×1080P×60Hz. Pixel shift to minus: Press UP/DOWN and select the menu as shown in Figure 1: >ENIGMA...
  • Page 14 Select the input channel, push the UP/DOWN, and SEL to confirm the different input channel. User can also push the channel name on the keyboard to go into the input channel. Source Select >CV1 AB in ENIGMA is used to enable channel if dual channel mode. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 15 Push the FRE to freeze the live image or live the freeze image. Freeze Frame Once gain for live OR： Live Frame Once gain for live Push BRT to set the brightness and the contrast ratio: ENIGMA Brightness 50 ↓ OR： ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 16 SAVE2;Push SAVE1 or SAVE2 to execute relative operation after user save the operation sucessfully. Add prompt to save function For ENIGMA , when user push the SAVE key, the SAVE1、SAVE2 Note: and SAVE3 lights on the front panel will go on at the same time, it reminds user must press SAVE1 or SAVE 2 to finish the final save function.
  • Page 17 Sub window audio MUTE：mute the equipment, shown as the picture: Mute Touch MUTE again will revovery to play sound. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...

  • Page 18: Communication Software Guideline

    5.0 Communication Software Guideline ENIGMA video processor is very easy to be configured with user friendly communication software, support drag and drop operation for edit and display. Also can customized with schedule function. 5.1 Install Software Dual click ENIGMA.exe to install, select Chinese or English version for use，...
  • Page 19 If users agree to the agreement, user can select install directory in next dialog, else, click next to install software to default directory “C:\Program Files”. Click “next ”to go on. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 20 Click “next ”to go on. Click “finish” and ready to run ENIGMA console. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 21 ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...

  • Page 22: Run Enigma Console

    Comm port and pro-define IP address. After detect, open the device console, for example, if the device is VSP 618, then VSP 618 console will be load, as following. Default loading is ENIGMA if can not detect any device.
  • Page 23 Setup Communication ENIGMA Console support COM port or Ethernet (UDP) to access ENIGMA.For the first running ,user must click the to close COM Port. Click to change the COM Port and the Baudrate. Serial: user can make choice between existent com ports and baud rates;...
  • Page 24 COM. If ENIGMA console success to detect device in chain, the software version, device core version, firmware version and serial number will display on the bottom right corner of the screen. How to use Operator can check parameters by software.
  • Page 25 If user choose execute schedule when start, the next dialogue will display when software run. : Language. The software supports Chinese and English version. The picture following is the Chinese dialogue. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 26 : Save to flash. ：Load form Flash. Load user config from flash. : Factory setup : Advance, for adm. inistrator control. : Execute schedule or stop schedule. Help : Help. Display helps dialogue. : About. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 27 SDI 1 and SDI 2, and channel 2 includes DVI, YPbPr, VGA, HDMI1 and HDMI 2. The cross over interface picture means they can not access. The orange pane means selected interface for channel 1. The blue pane means selected interface for channel 2. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 28 Output: user can customize the brightness and the contrast. Display: user can customize image or images position and size just by drag and drop image (images) in this area. This process is sync to the parameters in images toolbars. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 29 Output polarity Normally, the polarity will set to be positive. If the Horizontal and vertical polarity of ENIGMA equipment is different from Tx, the polarity should be negative, or else it can not send data to the LED screen correctly.
  • Page 30 If users choose HDMI signal source with sound, users should choose“embedded audio”; If users choose HDMI signal source without sound, users can broadcast sound through External speaker and choose” HDMI outside embedded audio”. Clock Users can set or adjust lower computer time through” clock” ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 31 Equipment currently supports max 10 regular content; users can set in the “timing” option. Specifically how to implement devising schedule function, please refer to Appendix II. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...

  • Page 32: Faq

    3) Check the connection of output is ok. 4) Check the target monitor or display is not destroied or power down. 5）Check the output resolution of ENIGMA is not out of the maximal resolution of target display. 6) Check ALPHA value is not 0.

  • Page 33: Component Input Could Not Work With Enigma

    1, otherwise, “SAVE1” will be over write. 6.6 Can’t update main board software Connect the computer and ENIGMA , select *.mot. Download file to device. After the equipment power up, right-click the “.mot” file at the left side of menu, when the screen shows “waiting for update”, you can update the main board...

  • Page 34: Quick Start

    VPos：Set vertical size(vertical phase)； Scale > Step Set alpha Enter Alpha sub-menu can set the alpha of video, Press UP /DOWN to set the value of alpha; Port A and Port B represent two video channels; ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 35 Press FRE static frame button can freeze, press the button can freeze current active window image; You can make the screen switch between static and active with this button; Pictures show as below: Freeze Frame Once gain for live Live Frame Once gain for live ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...

  • Page 36: How To Control Processor With Console Software By Usb

    7.2 How to control processor with console software by USB? 1. Install the driver; Connect the USB cable to the PC and the video processor. Turn on the Enigma, for the first time to use USB, the PC will remind finding the new hardware and ask to install the driver for this new driver.
  • Page 37 When the installation fininsh, can go to check the installed COM port inside the device mangement, as following picture show: ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 38 2. Install the console software, and run after install, shows the interface of the console as following: ：Set the RS232 as installed just now, and set the Enigma Boud Rate to be: 115200. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 39 VSP516, just can see the difference of the SDI input; If power off during communication, should close the port first, and plug in out of the USB and do communication Note： again. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...

  • Page 40: How To Use Linsn Ledset Software

    7.3 How to Use LINSN Ledset software? 1. First, Install ENIGMA software and LINSN software. 2. Run ENIGMA software; to set the RS232. first choose the current RS232 you are using, ①Press then set the baud rate. ENIGMA Baud Rate work as 115200.
  • Page 41 As LINSN software will use RS232 for communication too, so user should first close ENIGMA console software RS232 communication after that press If in used , then to start the LINSN software. When you want to use ENIGMA software, you just need to close LINSN software, start the RS232 again.

  • Page 42: Appendix

    Turn off the power, take the two coding switch to “ON” sate. As below: Connect one side of the RJ11 download line to the RS232 on the video processor, and the other side to be connected to the serial port on the PC.
  • Page 43 After download, exit the program, turn off the power, tack the two coding switch back, as below, restart the equipment power, check if the equipment work normally. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...

  • Page 44: Appendix Ⅱ How To Add Tasks

    After device clock set, add task plan through” Timing Parameters”. 1. Users need to start “time-enabled” before using” timing device”. If you forget to start, time set may fail. Click “start” button , when the button changes to , it means time can start. ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 45 When device works under the dual channel mode, need to switch image 1 and image 2 set input signal one by one. Users can see the image 1 and image 2 input source information in the input source toolbar after setting. Shown as the picture: ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
  • Page 46 Click button ，you can see the input source, playing time, image size, position etc. of the current “tasks plan” Users can see all the “tasks plan” relevant content through “Timer index” switching ENIGMA User Manual Doc. No：RGB-RD-UM-V516E014...
