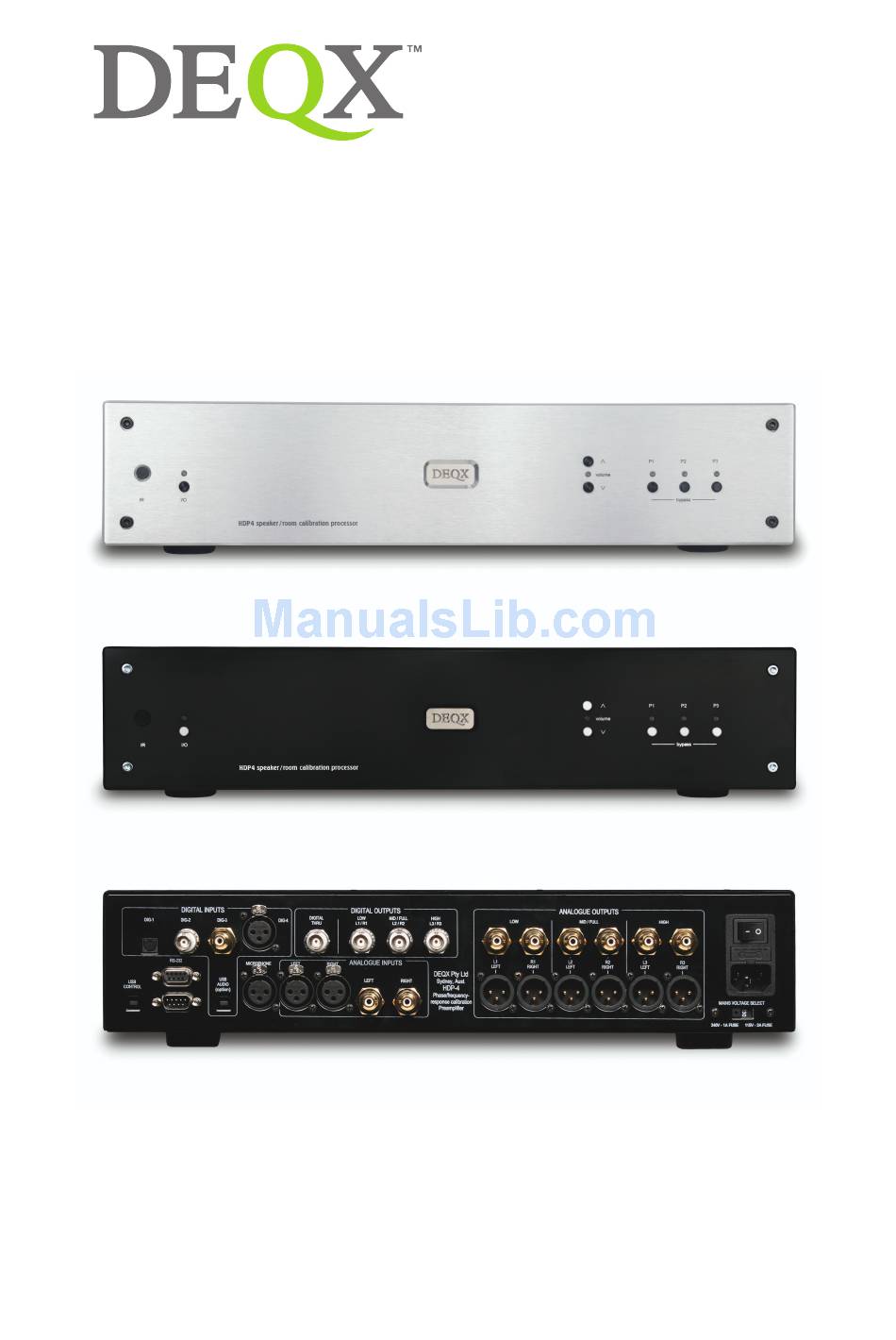

- Page 1 HDP-4 User's Manual Professional Digital Correction for Installers and End Users...
- Page 2 All other product or brand names may be trademarks or registered trademarks of their respective owners. Disclaimer and Limitation of Liability DEQX Pty. Ltd. assumes no responsibility for loss or damage resulting from the use of its products. Please refer to the license supplied with the DEQX Calibration software.
-
Page 3: Important Safety Instructions
DEQX HDP-4 Users Manual Important Safety Instructions Read these instructions entirely before installing or operating this product. Keep these instructions. Heed all warnings. Follow all instructions. Do not use this product near water. Clean only with a dry cloth. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions. -
Page 4: Table Of Contents
Document Version Release date 1 June 2012. This document relates to version 3.0 of the DEQX Calibration Software and version 201.05 of the firmware. The colors of button lights when the PDC is used with earlier versions of the firmware may differ from those described herein. For the latest software, firmware and documentation check www.deqx.com... - Page 5 DEQX HDP-4 Users Manual Installation 19 Determining speaker placement 19 Determining speaker configuration 19 Number of speakers 20 Number of drivers in each speaker 20 Crossovers 21 Speaker wiring and amplifier connection 21 ...
- Page 6 Unpacking t he u nit Carefully remove the unit and the accessory kit from the shipping carton. Check visually for shipping damage. Contact both the shipper and DEQX immediately if the unit or any of the accessories bear any sign of damage from mishandling.
- Page 7 The result is reduced distortion, coherent phase, a wider sound stage and improved imaging and accuracy. This diagram shows a typical home configuration, using the HDP-4. The CD player signal is preamplified, processed by the PDC, amplified and distributed to the speakers. The HDP-4 can provide dramatic performance improvements to a wide range of home stereo, home theatre and professional audio configurations.
- Page 8 DEQX u nit f eatures a nd o peration The DEQX unit provides a simple and elegant front panel for controlling input and output, volume and selection of stored profiles. Each profile stores one set of speaker correction, equalization and crossover curves.
- Page 9 DEQX HDP-4 Users Manual The button light indicates the gain as follows: Button Light Gain From -120 dB to –60 dB From –60 dB to –50 dB Yellow From -50 dB to –40 dB Green From -40 dB to -30 dB Blue From -30 dB to –20 dB...
-
Page 10: Use Of The Remote Control
DEQX HDP-4 Users Manual Use o f t he R emote C ontrol The remote control supplied with the Express Mk2 and the HDP-4 controls a number of functions of the unit. Refer to the figure below. -
Page 11: Volume
DEQX HDP-4 Users Manual Volume The Volume button adjusts the output volume of the unit in the same manner as the volume button on the unit’s front panel. In other words, each button press increments or decrements in 1dB steps from 0dB to above -24dB, then in 2dB steps above -36dB, then in 3dB steps above - 48dB, then in 6dB steps down to -120dB. -
Page 12: Advanced Eq
DEQX HDP-4 Users Manual Advanced E Q The EQ controls on the remote control allow the user to store and retrieve up to 100 EQ profiles, each consisting of up to three EQ settings. The EQ profiles are not the same as the four correction profiles (P1, P2, P3 and bypass) which can be stored on the unit. - Page 13 § the P3 light will be brighter when the high control is active The DEQX unit has a total of 10 eq settings per correction profile. 3 of these are reserved for the remote control’s EQ controls and 7 are reserved for the parametric EQ accessible from the DEQX Cal software.
-
Page 14: Input Select
DEQX HDP-4 Users Manual Input S elect There are eight input selection buttons: A1 – this selects analogue RCA (unbalanced) as the input source A2 – this selects analogue XLR (balanced) as the input source D1 – this selects digital Toslink (Otpical) as the input source D2 –... -
Page 15: Factory Settings
DEQX HDP-4 Users Manual Factory S ettings The unit is shipped with the following factory settings: Profile L1, R1 (Sub) L2, R2 (Mid/Woofer) L3, R3 (Tweeter) Profile 0/ Bypass Bypass Bypass Bypass Profile 1 Bypass Bypass Bypass Profile 2... -
Page 16: P1 - Analogue Input Selection
DEQX HDP-4 Users Manual Volume b utton -‐ D igital i nput s election Selects which rear panel digital input connector is in use. Button light Selection No Selection Green Digital 4 Blue Digital 3 P1 ... -
Page 17: Front Panel Button Light Special Modes
USB: The USB port is used for connecting a PC to the unit during initial installation and configuration. The RS232 serial port is provided as an alternative option. USB Audio: USB audio connector is used when the HDP-4 or HDP-Express II are fitted with the optional USB – I2S convertor is installed. - Page 18 96kHz is available Digital Output DSP input pass: this output allows the signal input of the DSP to be passed out with no processing to enalble multi way DEQX system in conjunsion with the RS232 system control interface.
-
Page 19: Installation
Speaker placement within a room can have a dramatic effect on the overall sound quality. If DEQX's parametric equalizer has been used to reduce room effects, it is important to leave the room and speakers configured as they were when the room measurement was made. -
Page 20: Number Of Speakers
For example, if you have a stereo system consisting of two bi-amped speakers and a subwoofer, you would choose the Bi Amp DEQX speaker configuration for each of the bi- amped speakers and the Subwoofer configuration for the subwoofer. More details are given in the DEQX Installer’s Manual and online help. -
Page 21: Crossovers
Speakers with multiple drivers typically contain crossovers to distribute frequencies to the internal drivers. A speaker may offer the option of bypassing the internal crossover and using an external crossover such as the DEQX PDC or HDP3. This requires additional amplification channels. See Speaker wiring and amplifier connection, below. -
Page 22: Single-Wired
In a single-wired configuration, a single cable connects the amplifier to the speaker. An internal crossover within the speaker filters the signal to distribute the appropriate frequencies to each driver. This corresponds to the DEQX Single Amp configuration. Bi-‐wired In a bi-wired configuration the speaker is connected to a single amplifier by two cables. -
Page 23: Tri-Wired
Bi-‐amplified In a bi-amplified configuration two separate amplified channels are connected to the speaker by two separate cables. This corresponds to the DEQX Bi Amp configuration. Note that it is preferable that the speaker’s internal crossover be disconnected in this configuration. -
Page 24: Choosing A Configuration
For a description of the DEQX unit connectors see Rear panel on page 17. The table below shows the signal present at each DEQX unit rear panel connector in each possible configuration. Left channel outputs are numbered L1-L3 and right channel outputs R1- R3. - Page 25 The table below lists the configurations and shows the connections for each channel. When using multiple DEQX units for home cinema applications these connections may not be the correct and the actual loudspeaker connected to a channel will depend on the installation.
-
Page 26: Single-Amp
DEQX HDP-4 Users Manual Single-‐amp The diagram shows stereo speakers, each in a single-amp configuration, with optional subwoofers. This uses up to four DEQX unit output channels. ... -
Page 27: Bi-Amp
DEQX HDP-4 Users Manual Bi-‐amp The diagram shows stereo speakers, each in a bi-amp configuration, with optional subwoofers. This uses up to six DEQX unit output channels. ... -
Page 28: Tri-Amp
DEQX HDP-4 Users Manual Tri-‐amp The diagram shows stereo speakers, each in a tri-amp configuration. This uses six DEQX unit output channels. ... -
Page 29: Glossary
Driver - One of the electro-mechanical cone (or ribbon) speakers located in a speaker cabinet HDP - (High Definition Processor) The DEQX CalibratedTM HDP-4 Processor is a 2-input, 6-output digital processor offering individual driver correction, high order digital crossovers, and room correction parametric equalisation. -
Page 30: Specification
DEQX HDP-4 Users Manual Specification Mains input voltage: 100-240VAC, 50-60Hz Power consumption: 60VA Dimensions: Height: 2U / 97mm Depth: 325mm Width: 430mm Signal to Noise Ratio: 107 dB, A-weighted Total Harmonic Distortion: 0.00045% Analogue input maximum levels: Balanced: +17 dBu differential (5.5 Vrms) Unbalanced: Default Level: +9 dBu (2.2 Vrms) -
Page 31: Installation Information
DEQX HDP-4 Users Manual Installation I nformation Installer: Date: Serial Number: Profile 1: (Front panel button 3) Profile 2: (Front panel button 4) Profile 3: (Front panel button 5) Profile 4: (Any 2 front panel profile buttons) Single Amp/Bi Amp/Tri... -
Page 32: Additional Notes
DEQX HDP-4 Users Manual Additional n otes ... -
Page 33: Speaker Room Layout Diagram
DEQX HDP-4 Users Manual Speaker r oom l ayout d iagram (We suggest that you number speakers on this diagram to match corresponding entries in the Installation Information table above) ... -
Page 34: Connection Diagram
DEQX HDP-4 Users Manual Connection d iagram ... -
Page 35: Installation Warranty
DEQX HDP-4 Users Manual Installation W arranty ... -
Page 36: Index
DEQX HDP-4 Users Manual Index Advanced EQ, 11, 12 RS232, 17, 18, 30 AES/EBU, 14, 18, 30 Single-amp, 26, 29 Analogue input, 8, 16, 30 Single-wired, 20, 22, 29 Bi-amp, 27, 29 Speaker configuration, 19 Bi-amplified, 23 Speaker connection, 24...
