D-Teg Smarty BX4000 User Manual

Drive recorder
Hide thumbs

Advertisement

Quick Links

Download this manual
• Thank you for purchasing this Drive Recorder.
• Before using the Drive Recorder, please ensure that you read
and understand this USER GUIDE.
• Please store the USER GUIDE in an easily accessible location.
• Before connecting and installing this Drive Recorder, please
refer to the appropriate instruction manual for proper operation.
3
C A M
Ver 2.0.1
1
st
Model : BX4000
Edition

Advertisement

loading
Need help?

Need help?

Do you have a question about the Smarty BX4000 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for D-Teg Smarty BX4000

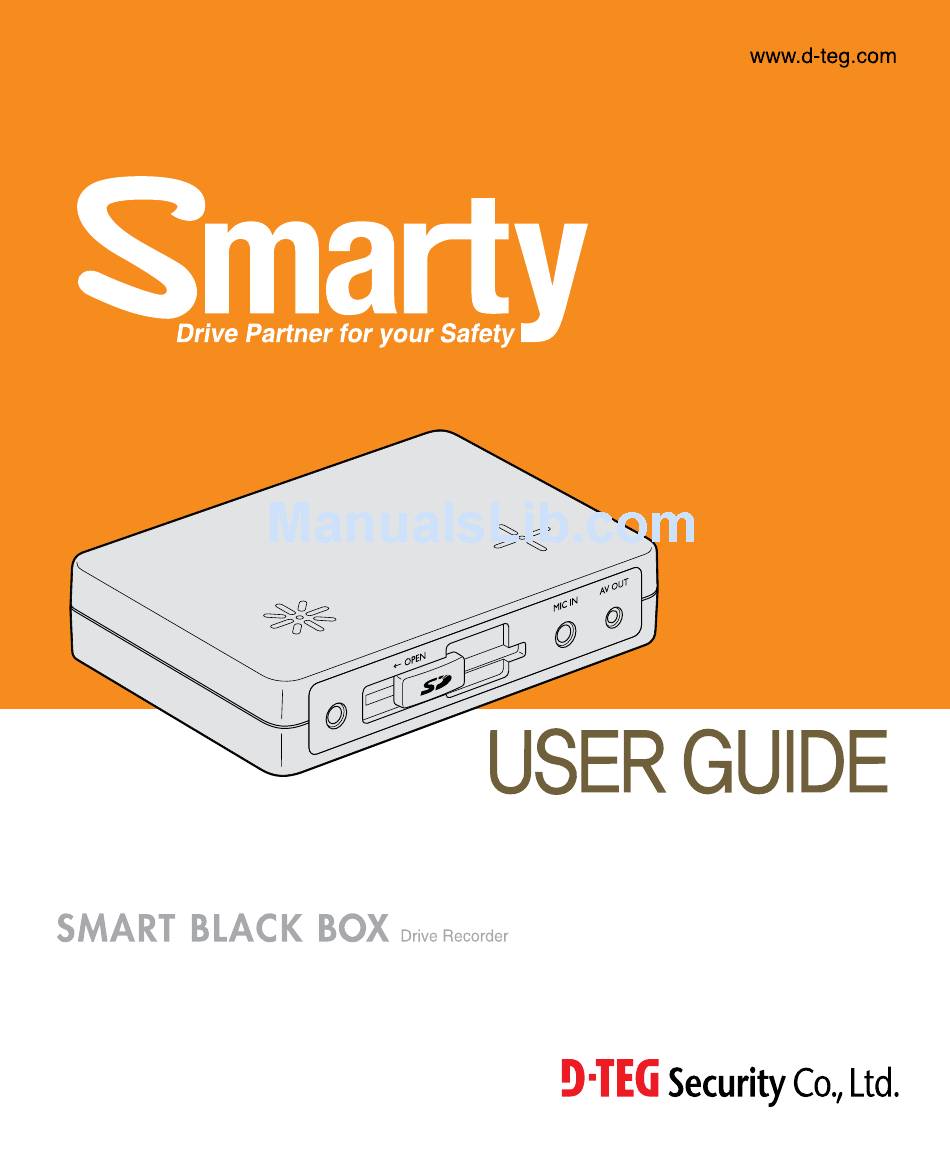

  • Page 1 Ver 2.0.1 Edition C A M Model : BX4000 • Thank you for purchasing this Drive Recorder. • Before using the Drive Recorder, please ensure that you read and understand this USER GUIDE. • Please store the USER GUIDE in an easily accessible location. •...
  • Page 2 INFORMATION TO THE USER This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 3 SAFETY ADVICE GPS Reception Activate the product in an area without large buildings CAUTION to improve GPS reception. The commercial purpose GPS has the average rage error of more RISK OF ELECTRIC SHOCK than 15 meters and the range error could be more than 100 meters DO NOT OPEN DO NOT OPEN due to environmental conditions like buildings, roadside trees etc.
  • Page 4 You should have a set of the following items for each BX4000 order You should have a set of the following items for each BX4000 order. FRONT 1. Smarty BX4000 unit 2. 4GB SD memory card Audio/Video (The PC Viewer software is Output in the provided SD card.)
  • Page 5 INTODUCTION INTODUCTION REMOTE CONTROLLER Power & Car Signal Input Record LED BLUE LED BLUE LED Black (Ground) Red(+) SHUTTER BUTTON Overwrite LED RED LED RED LED Y ll Yellow (Alarm3) PLAY BUTTON BLUE (Alarm1) PANIC BUTTON PANIC BUTTON FUSE FUSE 250V 3A Audio Video Output Cable White (Speed pulse)
  • Page 6 FUNCTION (MAIN UNIT) FUNCTION (MAIN UNIT) Automatic start Automatic start SD Memory Card Format Make sure that peripherals include cameras are properly connected. Remove the power first. Press and hold the [PLAYBACK] & [PANIC] button. Turn on the vehicle power, BX4000 will be automatically started. (Use the Then connect the power.
  • Page 7 OPERATION OPERATION INFORMATION OSD 1. Make sure that the power cable is properly connected and turn on the car power. Press [PLAY] button then the INFORMATION OSD (the summery of setting) 2. Blue LED & Red LED will turn on and slowly blinking simultaneously and will show up on the monitor as below, then Blue LED will remain on.
  • Page 8 OPERATION OPERATION G-Sensor Calibration PANIC RECORD BY PANIC BUTTON The panic recording by [PANIC] button will start by pressing the [PANIC] button G-Sensor Calibration is needed after installing the BX4000. with one short “Beep” sound. Blue LED will be blinking during the panic It detects the installed direction of the BX4000 for it to accurately record the recording.
  • Page 9 SOFTWARE USER GUIDE OPERATION PLAYBACK BX4000 PC Viewer Guide Press and hold [PLAY] button for more than 2seconds. The latest recorded file will playback on the screen. [WARNING] R [WARNING] Recording cannot be done during playback. t b d [PC SYSTEM REQUIREMENT] Explanation of PLAYBACK control button Recommended PC specifications for PC Viewer software Channel change: Press [PANIC] button.

  • Page 10: Installing Procedures

    INSTALLING PROCEDURES Connect SD memory card PC Vi PC Viewer software is in the provided SD card. i i th id d SD 1. Connect SD memory card in to the SD card reader. 1. Connect the SD card into your PC (if your computer does not have SD card 2.
  • Page 11 PC VIEWER SETTING FILE LOADING Check the file from the list using mouse or click [All] button Check the file from the list using mouse or click [All] button. To set PC Viewer select [File] and then click” PC Viewer Setting” And then click [Load] button.

  • Page 12: Playback Screen

    PLAYBACK SCREEN PLAYBACK Playback speed 6. Click [PLAY] button for playback. Date & Time CH1 CH2 CH3 [NOR]: Normal Recording Volume [G-Sensor]: Event Recording [G-Sensor]: Event Recording Display frame/Total frames number Playback position indicator Drag & Move the white line to move the playback position.
  • Page 13 PLAYBACK Google map (Event Recording File) The route taken will be displayed on the Google map at lower right NOTE: PC Keyboard hot buttons corner of the software. To see the route Function PC keyboard hot buttons & position on the Google map, the GPS data should be ld b...
  • Page 14 Thumb-nail Function Save JPG file & AVI file 7. Click button for 4x4 multi view (Thumb-nail function) Pause the playback and click ‘Save Image’ icon to make a JPG file. ‘Save Image’ icon Pause the playback and Click ‘Save AVI’ icon to make a AVI file. ‘Save AVI’...
  • Page 15 Print image Make Report 11. Pause the playback and click ‘Print Image’ icon. 12. Click [Print] button in the print preview windows for printing. [Print Title] & [Print Comment] & G-sensor graph & map will be printed on the first page. Print image icon Click [ 2x2 ] and then click [Print] to print 4 images in one page Click [ 2x2 ] and then click [Print] to print 4 images in one page.
  • Page 16 Backup Setting Drive Recorder 13. Click [Backup] icon to backup the files to the PC. 14. Click [Setting Drive Recorder] icon for setup. [Setting Drive Recorder] icon [Backup] icon Check & Load [Event], [Normal], [Panic] [Log] & [Memo] data first, before clicking the [Backup] icon.
  • Page 17 Setting Drive Recorder Setting Drive Recorder To record Camera2 or Camera3, Camera4 check “Use” box. To record Audio, check “Record Audio” box. To use Motion Detection as an Event, check “Motion” box per camera. Resolution PAL: 720x576, 720x288 NTSC: 720x480, 720x240 Frame Rate 1 Camera supports 1~25 fps@ 720x576, 1~25 fps @ 720x288 Record Mode...
  • Page 18 Setting Drive Recorder Setting Drive Recorder To record the car signal with video, set the Alarm configuration as below, To use the Alarm as an Event trigger, (i.e: so Event recording will start when a door is open or Meter is on) set the Alarm configuration as below, Vehicle ID Type in your Vehicle ID Password...
  • Page 19 Setting Drive Recorder Setting Drive Recorder Initialize SD card : All date will be deleted and set the configuration of Drive Recorder will default to the factory settings. Delete Record Data : All date will be deleted. Caution Once the record setting was changed all recorded Caution Once the record setting was changed, all recorded Before using “Car Pulse Type”, connect the White (Speed pulse) cable to data in SD card will be removed automatically.
  • Page 20 Setting Drive Recorder LOG FILE PLAYBACK 15. Click [About] icon to check the product information. 16. Select [LOG] tab windows and then check the log from the log list using mouse or click [Check All] button. Then click [Load] button. Log data About icon Log data will be recorded during driving even if there are no...
  • Page 21 GPS LOG TO KML CONVERTER (for Google Earth) GPS LOG TO KML CONVERTER (for Google Earth) Google Earth lets you import the log data and save routes, add Google Earth icon place marks (i.e. customer pick up locations, or other points of interest), add driving routes (to compare with the actual route taken, and it lets you To see the whole route on Google Earth, select a log file and click Google save it all within Google Earth for easy and free data management!
  • Page 22 APPENDIX (Firmware Upgrade) APPENDIX (Upgrade) First, upgrade the BX4000 main unit, 3. Uninstall the old version PC Viewer from the PC Second, install new PC viewer software on your PC, PC Windows [Start] => [Control panel] and then initialize the SD card using new PC viewer software. And uninstall [PCViewer] 4.
  • Page 23 Recording / Storage Time Table (NTSC) Recording / Storage Time Table (PAL) Note: This is a guideline only. Actual results may very depending on a variety of Note: This is a guideline only. Actual results may very depending on a variety of factors (Video signal, image, etc.) factors (Video signal, image, etc.)
  • Page 24 Buzzer / LED specification SPECIFICATION M d l BX4000 Model: BX4000 * Buzzer specification CH1- 5V camera in, CH2- 5V camera in, Condition Buzzer No. Buzzer On Buzzer Off Video In CH3- 5V camera in, CH4- camera in Event 1 sec SHUTTER(Snap shot) 200 msec Audio In...
  • Page 25 Technical Support & Warranty Optional Item DC 5V, CMOS camera for BX4000 TECHNICAL SUPPORT 1/4" CMOS Digital Sensor 310K pixels DTR-100 Angle of View: 170° [horizontal(131°) vertical (96 °)] For Technical Support, please contact your local distributor. Effective Pixel: 648 (H) x 488 (V) (NTSC/PAL) Video out: 1.0 Vp-p (Composite) Min.
  • Page 26 Optional Item (Safe Power Cable) Model name: DPWR‐300  The safe power supply cable will allow you to hard wire the  Drive Recorder series to the fuse box of your vehicle. Fuse: 250V 1A The safe power supply cable will automatically pp y cut off the battery power when battery voltage  dropped below 12V or 24V. Connect (+) to the fuse box. It should be connected to an It should be connected to an battery circuit. The ground cable should be connected to car chassis.
  • Page 27 Drive Partner for your Safety 0678 3F, Jungmin Bldg, 382-2, Yatap-dong, Bundang-gu, Seongnam, Gyeonggi-do 463-827, Korea Tel: 82-31-706-2514 , Fax: 82-31-706-2519 Email: dteg@d-teg.com Homepage: http://www.d-teg.com ©2011 D-TEG Security Co., Ltd. MADE IN KOREA...
