Summary of Contents for Custom Audio Electronics OD-100

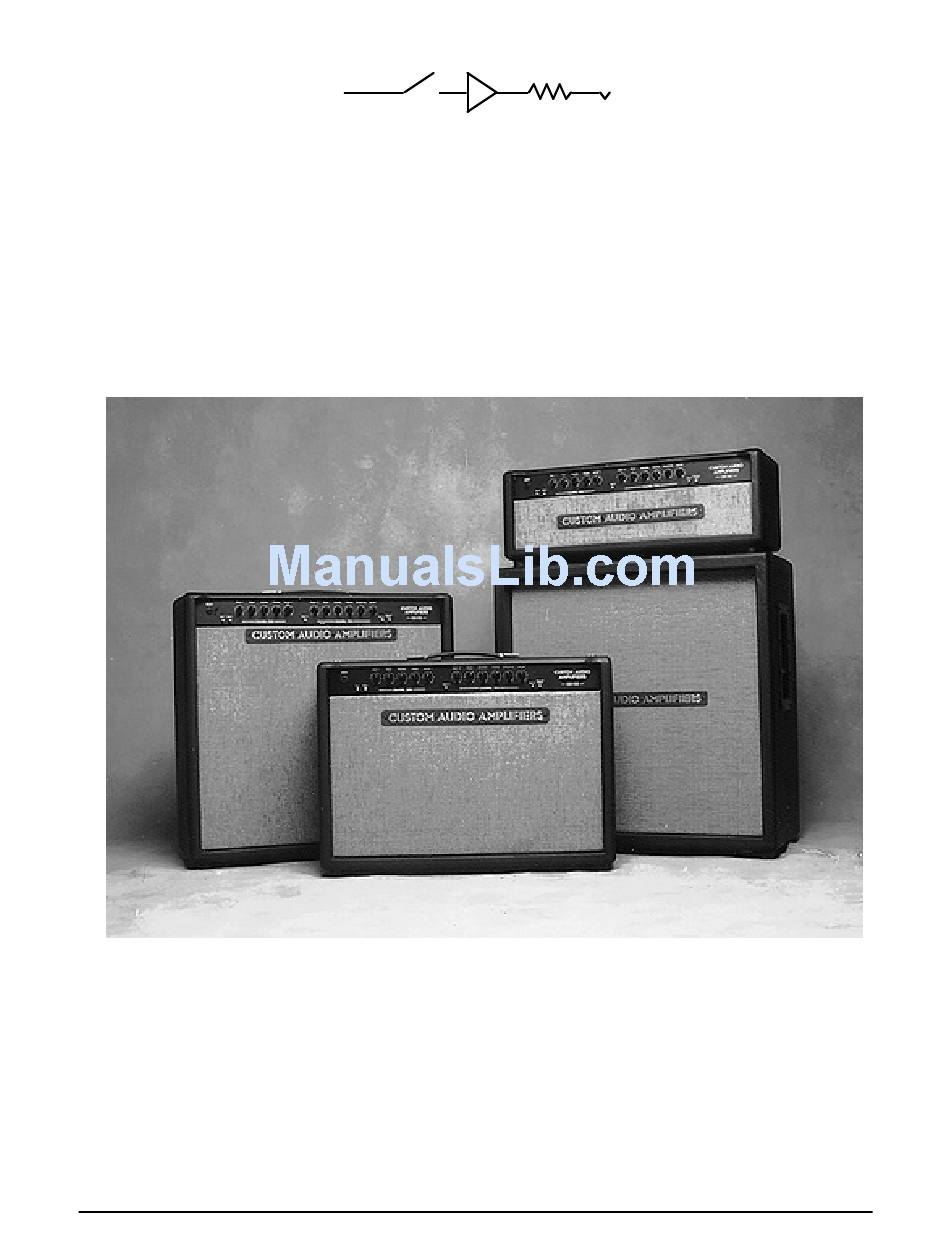

- Page 1 • • • OD-100 Tube Guitar Amplifiers OPERATING GUIDE 10648 Magnolia Blvd. North Hollywood, CA. 91601 Phone (818) 763-8898 Fax (818) 763-8890...
- Page 2 We at Custom Audio Electronics would like to take this opportunity to thank you for purchasing the OD-100 100W Guitar Amplifier. We think you will agree that it’s simple control layout offers a wide variety of extremely useful sounds. Since this amplifier is so new, a comprehensive owners guide is not available at this time.
- Page 3 In any case, it’s a welcome addition to Channel 2, making the OD-100 a true 2 Channel, 3 “mode” amp. At this point, it’s a good idea to mention Channel 2’s (and Channel 1’s for that matter!) excellent touch responsiveness.
- Page 4 Effects Loop The OD-100 effects loop is a tube buffered series loop. The effect send jack is always active and acts as a low impedance tube buffered preamp out capable of driving a wide variety of devices from low level pedals to line level “rack” gear. The level appearing at this jack is dependent on the setting of the Channel’s Level 1 or Level 2 controls, whichever is selected.
- Page 5 Tubes, Fuses, Power Requirements, etc. The OD-100 is a 100watt+amplifier utilizing 4 5881 output tubes and 6 12AX7 preamp tubes to achieve it’s glorious, robust and delightful tube tone. If you want to be a wise guy and run at a lower power output, remove the 2 outside power tubes and use a speaker output jack that is one tap lower than the cabinet impedance you are using.
