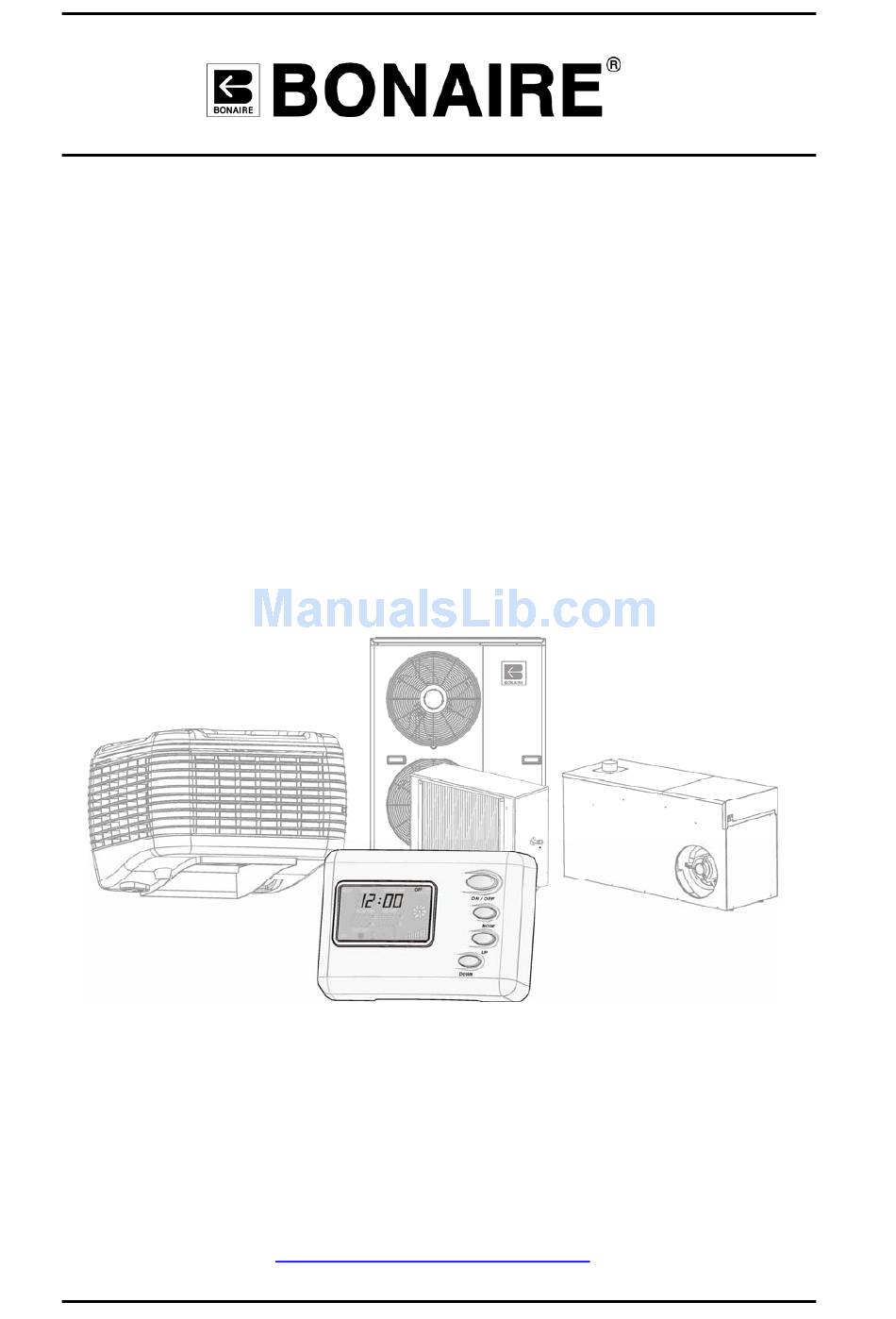

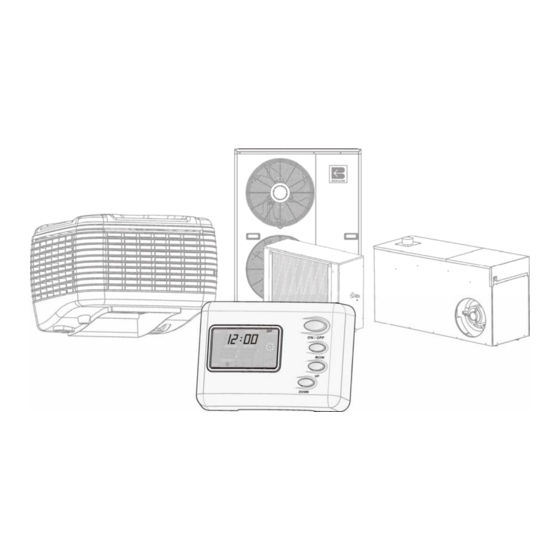

Add-on Refrigerated Air Conditioning
Ducted Evaporative Air Conditioning
Please keep this important manual in a safe place. It is the owner's responsibility to ensure that
regular maintenance is carried out on this ducted heating / cooling product. Failure to do so will
void all guarantees beyond statutory and legal requirements.
PNE2003 Series Control
Using the
Ducted Gas Central Heating
with your
multi-appliance
Manual Control
Owner's Manual
www.climatetechnologies.com.au
Advertisement
Table of Contents
Summary of Contents for Climate Technology Bonaire
-
Page 1: Ducted Gas Central Heating
Using the Ducted Gas Central Heating Add-on Refrigerated Air Conditioning Ducted Evaporative Air Conditioning with your multi-appliance Manual Control Owner’s Manual Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this ducted heating / cooling product. Failure to do so will void all guarantees beyond statutory and legal requirements. -
Page 2: Table Of Contents
First Startup Or Restart After Shutdown ................. 16 HEATER MAINTENANCE ......................... 17 General Maintenance......................17 Scheduled Maintenance ......................17 PROBLEM SOLVING..........................18 ADD-ON Refrigerated Air Conditioning............19 GENERAL INFORMATION........................20 Important Notice........................20 Data Location.......................... 20 Assembly..........................20 Page 2 Bonaire Control Systems... - Page 3 No Seasonal Maintenance...................... 29 TROUBLE SHOOTING GUIDE........................30 Control setup.....................31 SETTING UP THE CONTROL - GENERAL....................31 Before Starting ........................31 Installation..........................31 USING THE SETUP MODES ........................32 Product Identification ......................32 CODING..............................32 Auto-Coding ..........................32 Page 3 Bonaire Control Systems...
- Page 4 Unit - Ducted Evaporative Air Conditioner ................36 Unit – Ducted Heating......................36 Unit – Dual Cycle Refrigerated Air Conditioning..............37 Ductwork ..........................37 Site ............................37 Customer Hand Over ......................37 Warranty......................38 SERVICE ......................42 Page 4 Bonaire Control Systems...
-
Page 5: Introduction
Heating – 3, 4, 5 Star Ducted Gas Central Heaters. Dual Cycle Cooling - Refrigerated Air Conditioning (cooling only) designed to Dual Cycle to Ducted Gas Central Heaters. Fresh Air Conditioners - Ducted Evaporative Air Conditioners. Page 5 Bonaire Control Systems... -
Page 6: General Information
Warranty service work must only be carried out by Climate Technologies service division or its authorised service providers. See warranty section. SSEMBLY There is no assembly required of these Ducted Heating or Cooling products. Your Dealer or installer will carry out all assembly and commissioning upon installation Page 6 Bonaire Control Systems... -
Page 7: Navigating The Controls
Turns the unit ON or OFF MODE Pressing the MODE button cycles you through the available unit operation options. Pressing the UP button increases the fan or temperature setting. DOWN Pressing the DOWN button decreases the fan or temperature settings. Page 7 Bonaire Control Systems... -
Page 8: Quick Start - Simple Manual Operation
Adjust the fan speed or the temperature setting using the UP DOWN buttons. (The icon(s) availability will vary according to the Appliances selected.) STEP 4 Press the ON / OFF icon to turn unit off. Page 8 Bonaire Control Systems... -
Page 9: Control Functions
• Continuous fan – (COOL Dual Cycle Refrigeration) The fan symbol will be displayed in addition to the COOL and snow flake indicating the fan will run continuously while the condenser cycles on and off. Page 9 Bonaire Control Systems... -
Page 10: Icons
• To remove the child lock press and hold the UP and DOWN buttons together for 3 seconds. The padlock symbol will disappear from the screen display when the child lock has been removed. Page 10 Bonaire Control Systems... -
Page 11: Reset
Should you require a service call on your product please have this code ready for our service operator. To reset the unit and clear the fault, simply turn the control OFF then ON. Where possible the unit will resume operation immediately Page 11 Bonaire Control Systems... -
Page 12: Ducted Gas Central Heating
Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this Ducted Gas Central Heater. Failure to do so will void all guarantees beyond statutory and legal requirements. www.climatetechnologies.com.au Page 12 Bonaire Control Systems... -
Page 13: Safety
If the Err is displayed, turn the control OFF then ON and the unit will be ready to resume operation. Please refer to your problem-solving chart to assist resolving other problems. Page 13 Bonaire Control Systems... -
Page 14: Using Your Manual Control With Ducted Gas Central Heating
The control will run the heater until it measures temperature a little above your SET TEMP. The Page 14 Bonaire Control Systems... -
Page 15: Summer Fan (Fan Only)
After 3 seconds the room air fan will run. (Note the room air fan is only circulating room air, there will be no fresh air content.) Page 15 Bonaire Control Systems... -
Page 16: Summer Shutdown (Optional)
STEP 3 Switch the control ON STEP 4 Using the UP DOWN buttons decrease or increase the SET TEMP. If the SET TEMP is greater than the ROOM TEMP the heater will resume operation. Page 16 Bonaire Control Systems... -
Page 17: Heater Maintenance
(for your nearest Climate Technologies service office refer to Service section of this document). 2. Fan blades, motors, ignition systems and burners should be checked. Heater cabinet and immediate surroundings should be kept clean and clear. Page 17 Bonaire Control Systems... -
Page 18: Problem Solving
Unit should operate normally. If not a service call will be required. THIS TROUBLE SHOOTING GUIDE IS A REFERENCE ONLY. FOR SERVICE OR WARRANTY REQUIREMENTS PLEASE REFER TO THE WARRANTY SECTION OF THIS BOOK Page 18 Bonaire Control Systems... -
Page 19: Add-On Refrigerated Air Conditioning
Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this Ducted Gas Central Heater / Dual Cycle Air Conditioner. Failure to do so will void all guarantees beyond statutory and legal requirements. www.climatetechnologies.com.au Page 19 Bonaire Control Systems... -
Page 20: General Information
Should there be an interruption to the power supply during the cooling operation the controls will automatically shut down. When the power is restored, the control will be in the OFF position and therefore will not resume operation until turned ON. Page 20 Bonaire Control Systems... -
Page 21: Using Your Control With Dual Cycle Air Conditioning
The control will run the Dual Cycle refrigerated cooler until it measures temperature a little below your SET TEMP. The condenser will turn off until the temperature rises a little above SET TEMP before restarting. Page 21 Bonaire Control Systems... -
Page 22: Fan Operation
(Auto) Using the MODE button toggle through the available modes until you have COOL with the fan symbol (Continuous). The snow flake will only show if the SET TEMP is lower than the ROOM TEMP. Page 22 Bonaire Control Systems... -
Page 23: Ducted Evaporative Air Conditioning
Please keep this important manual in a safe place. It is the owner’s responsibility to ensure that regular maintenance is carried out on this Evaporative Air Conditioner. Failure to do so will void all guarantees beyond statutory and legal requirements. www.climatetechnologies.com.au Page 23 Bonaire Control Systems... -
Page 24: Introduction
Ceiling exhaust fans or ceiling vents should have a capacity equivalent to that of the air conditioner. MODEL MINIMUM RELIEF AREA Small 0.85 m² Medium 1.19 m² to 1.48 m² Large 2.02 m² Page 24 Bonaire Control Systems... -
Page 25: Dialflo
Drainage from the dump valve needs also to be plumbed away in accordance with local and state plumbing requirements. Its Climate Technologies recommendation that the drain form the dump valve is plumbed to waste. Page 25 Bonaire Control Systems... -
Page 26: Operating The Manual Control
DOWN buttons. The bar will increase of decrease indicating the nominal fan speed. There is a 3-second delay before the new setting is accepted. STEP 4 To turn the pump and fan off press the ON OFF button. Page 26 Bonaire Control Systems... -
Page 27: Fresh Air Mode
DOWN buttons. The bar will increase or decrease indicating the nominal fan speed. There is a 3-second delay before the new setting is accepted. STEP 4 To turn the fan off press the ON OFF button. Page 27 Bonaire Control Systems... -
Page 28: Ducted Evaporative Air Conditioner Maintenance
Turn of the water. Remove the split pin and then float arm. Remove piston and clean or turn seal. Flush system and replace piston, float arm and split pin. Note: Water supply line to float valve must be flushed before connecting. Page 28 Bonaire Control Systems... -
Page 29: Motor And Fan
This however does not remove the responsibility of the customer to have the unit service on an annual basis to check the unit function and to ensure the unit is clean and free from any mineral deposit build up. Page 29 Bonaire Control Systems... -
Page 30: Trouble Shooting Guide
Bleed off should be set at of white deposits maximum. More regular on pads maintenance may be required. THIS TROUBLE SHOOTING GUIDE IS A REFERENCE ONLY. FOR SERVICE OR WARRANTY REQUIREMENTS PLEASE REFER TO THE LAST PAGE OF THESE INSTRUCTIONS Page 30 Bonaire Control Systems... -
Page 31: Control Setup
Do not locate control near concealed hot or cold water pipes, warm air ducts, radiators, sunlight, or draughts from hallways, stairways or fireplaces and seal against draughts through wall cavities. These can all affect the temperature. Page 31 Bonaire Control Systems... -
Page 32: Using The Setup Modes
TEP 1 Turn the thermostat ON. TEP 2 Press and hold the ON / OFF button for 3 seconds to scan for the available products. All the segments will be displayed during the coding period. Page 32 Bonaire Control Systems... -
Page 33: Important Notes
Number F1 is always the most recent fault. See the fault code table below. STEP 4 To exit press the ON / OFF button. STEP 5 Reset the unit by turning the control OFF then ON. Page 33 Bonaire Control Systems... -
Page 34: Evaporative Air Conditioning Setup
STEP 6 To exit press the ON OFF button. Note: Each time the fan speed adjustment is used, the fan speed will revert to the default setting, not the last saved setting. Page 34 Bonaire Control Systems... -
Page 35: Ducted Gas Central Heating
STEP 6 To exit press the ON OFF button Note: Each time the fan speed adjustment is used, the fan speed will revert to the default setting, not the last saved setting. Page 35 Bonaire Control Systems... -
Page 36: Commissioning Check List
Heater is installed away from sources of dust and fumes (i.e. pool chlorine/petrol etc). Gas leaks checked for, none present. Flue outlet pipe complies with limits given / code and is sealed waterproof. Combustion air meets requirements (internal, under floor). Page 36 Bonaire Control Systems... -
Page 37: Unit - Dual Cycle Refrigerated Air Conditioning
The need to open windows and doors for the correct operation of Evaporative Air Conditioning The operation of the bleed or dumping system and it’s importance to operate at all times in a ducted evaporative air conditioner. Maintenance requirements Page 37 Bonaire Control Systems... -
Page 38: Warranty
Labour warranty as prescribed in the following table is void in this situation. Page 38 Bonaire Control Systems... - Page 39 An unauthorised person has attempting to repair the appliance. • A situation arises referenced in the trouble-shooting guide. • A charge will be made for work done or for a service call where there is nothing wrong with the appliance. Page 39 Bonaire Control Systems...
- Page 40 All other components being cabinets, louvres, filters etc. will not be covered by warranty. WARRANTY ON REPLACEMENT PARTS: Parts replaced under warranty are warranted for the balance of the original warranty period. Page 40 Bonaire Control Systems...
- Page 41 Please attach your proof of purchase here. Your receipt is your warranty and will be required to validate any warranty. DEALER PRODUCT INFORMATION: Dealer/Retailer: Dealer Address: Dealer Phone Number: Unit Model Number: Serial No: Date Installed: Serial No: Date Installed: Serial No: Date Installed: Installed by: Date Commissioned: Signature: Commissioned by: Page 41 Bonaire Control Systems...
-
Page 42: Service
(03) 8795 2457 Australian Capital Territory Western Australia (08) 9454 1000 Victoria/Tasmania (03) 8795 2456 Queensland (03) 8795 2457 Outside Metro areas please contact your nearest Climate Technologies Service Provider. New Zealand (ABERGAS LTD) 0800 161 161 Page 42 Bonaire Control Systems... - Page 43 Multi-Appliance Manual Control Service - Australia Page 43 Bonaire Control Systems...
- Page 44 Manufactured by Climate Technologies ABN 13 001 418 042 26 Nylex Avenue Salisbury, SA 5108 Australia www.climatetechnologies.com.au 5312270/E...
