Black BLK-IPE4101 User Manual

4-channel h.264 network video encoder
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

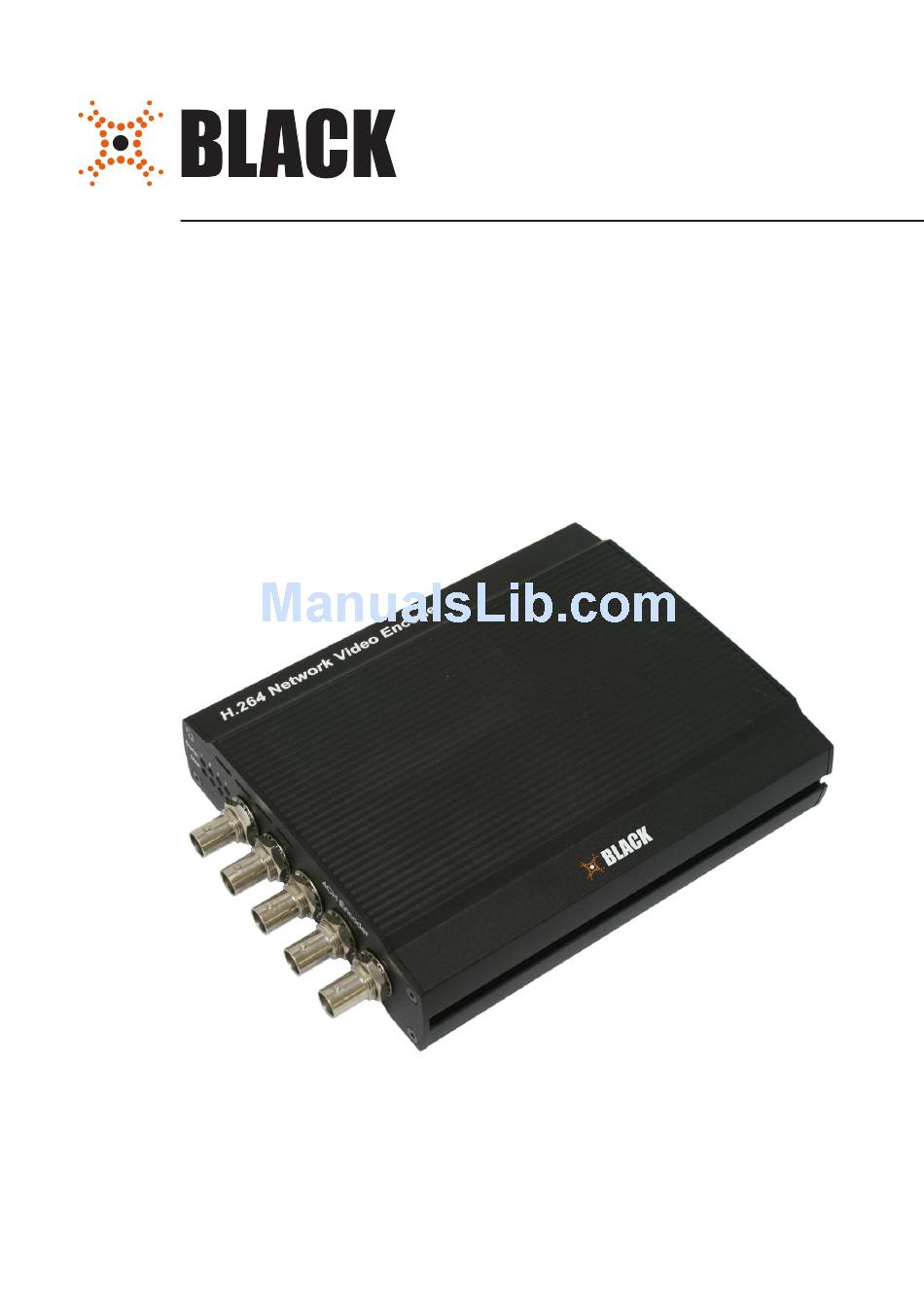

4-Channel H.264
Network Video Encoder

User Manual

Product: BLK-IPE4101
Please read this manual before using your encoder, and always follow the instructions for
safety and proper use. Save this manual for future reference.
BLK-IPE4101_PM
8/1/11

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BLK-IPE4101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Black BLK-IPE4101

  • Page 1: User Manual

    4-Channel H.264 Network Video Encoder User Manual Product: BLK-IPE4101 Please read this manual before using your encoder, and always follow the instructions for safety and proper use. Save this manual for future reference. BLK-IPE4101_PM 8/1/11...
  • Page 2 WARNING RISK OF ELECTRIC SHOCK. DO NOT OPEN. To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel. Operate this encoder only in environments where the temperature or humidity is within the recommended range. ...

  • Page 3: Table Of Contents

    Table of Contents SECTION 1 Features ................2 1.1 Front panel indicators and connectors .

  • Page 4: Features

    SECTION 1: FEATURES SECTION 1 Features The DIGIOP™ Black BLK-IPE4101 4-channel IP video encoder is a professional, premium-grade, state-of-the-art encoder designed for indoor installation in networks where exceptional video and audio quality is required with minimal bandwidth and storage available. Features include: 4-channel, H.264, MPEG-4, and MJPEG real-time encoding at D1...

  • Page 5: Front Panel Indicators And Connectors

    SECTION 1: FEATURES 1.1 Front panel indicators and connectors Status and Data LEDs on the front panel are provided for each IP encoder channel. Table 1. Status and Data LEDs indications Status Data Item Power OFF System initialization Blinking Dark Orange In Process Orange Normal State...

  • Page 6: Back Panel Connectors

    SECTION 1: FEATURES 1.2 Back panel connectors BLK-IPE4101 Encoder back panel Connect to a USB device (or USB hub) for external storage. Ethernet RJ-45 LAN connector for 10/100Base-T Ethernet. Pin block Terminal for audio output/input (A in , A out , alarm out (DO), sensor in (DI), and RS-232/RS-485 serial devices Reset Reset switch for restarting the encoder, or resetting the encoder to factory default settings.

  • Page 7: Installation And Setup

    SECTION 2: INSTALLATION AND SETUP SECTION 2 Installation and Setup 2.1 What’s in the box Your encoder includes the following: BLK-IPE4101 encoder • 12 V DC power adapter • 6-pin terminal blocks (2) • 8-pin terminal blocks (2) • Hardware installation kit including mounting brackets (2), screws (4), and wall inserts (2) •...

  • Page 8: Connections

    SECTION 2: INSTALLATION AND SETUP Slide the mounting brackets provided in the hardware kit into the slots on the side of the encoder. Do one of the following: If the mounting surface is a hard material, use the 1/2” self-tapping mounting screws provided in the hardware kit to —...

  • Page 9: Audio In/Out Connections (Ain, Aout, Channels 1 - 4)

    SECTION 2: INSTALLATION AND SETUP RS-232 TX, RX, Gnd Ain 1 - 4 DI 1 - 4 Ground Grounds Aout Common Aout 1 - 4 DO 1 - 4 Grounds RS-485 DATA+, DATA-, Gnd Terminal block pin assignments 2.4.1 Audio in/out connections (Ain, Aout, channels 1 - 4) The encoder includes an interface for a mono audio input (from a microphone) and a mono audio output (to a speaker) for each channel.

  • Page 10: Digital Out (Do) Connection

    SECTION 2: INSTALLATION AND SETUP Do not exceed the maximum input voltage or the relay switching rate. Refer to specifications in this manual  for more information. CAUTION Voltage type sensor wiring schematic Relay type sensor wiring schematic To connect a sensor to the encoder: Route sensor wiring to the encoder.

  • Page 11: Rs-485 Device Connection

    SECTION 2: INSTALLATION AND SETUP Digital out wiring schematic To connect digital out reporting device to the encoder: Route leads from the digital out devices to the encoder. Strip 1/4” of insulation from one device’s signal and ground wires and insert them into the lower terminal block in the DO ch 1 and DO GND pin locations, respectively.

  • Page 12: Rs-232C Device Connection

    SECTION 2: INSTALLATION AND SETUP Strip 1/4” of insulation from DATA+, DATA-, and GND wires from the device and insert them into the lower terminal block RS-485 D+, RS-485 D-, and RS-485 GND pins, respectively, as shown in the schematic above. 2.4.5 RS-232C device connection The RS-232C encoder interface can be connected to some devices, such as a Point of Sale (POS) terminal.

  • Page 13: Install Ipadmin Tool

    SECTION 2: INSTALLATION AND SETUP DC12V Power LAN and power connections  Overvoltage and overcurrent will cause severe damage to the encoder. CAUTION 2.5 Install IPAdmin Tool The IPAdmin Tool, included on the CD mini disk, is a utility that will discover cameras and encoders installed on your network and enable you to perform the initial network setup for each.

  • Page 14: Configure The Encoder Network Settings

    (fixed, unchanging) settings, your encoder must be configured with static network settings that are compatible with the network configuration. Additionally, if DHCP is not used on your network, DIGIOP™ Black encoders must be installed on the network and configured with new network settings one at a time to avoid addressing conflicts.
  • Page 15 SECTION 2: INSTALLATION AND SETUP Check the list of devices found by IPAdmin Tool. You can identify your encoder by the MAC addresses. The MAC addresses are assigned during manufacture and can be found on the label on the underside of the unit. In this example, the IP addresses were acquired through DHCP.
  • Page 16 SECTION 2: INSTALLATION AND SETUP Static Option In the IP Setup window, click the Static option bullet to select this option. If you have other compatible network settings you want to apply to the device, enter them in the appropriate locations. Click Setup to save settings, then click OK to confirm the change to network settings.

  • Page 17: Configuring Encoders On Networks Without Dhcp

    SECTION 2: INSTALLATION AND SETUP 2.6.2 Configuring encoders on networks without DHCP Encoders installed on a network without a DHCP server will initially use the factory default static network settings for each IP channel: IP address: 192.168.0.100 Subnet mask: 255.255.255.0 Gateway: 192.168.0.1 In networks without a DHCP server, encoders must be powered on and reconfigured one at a time to avoid addressing conflicts...
  • Page 18 SECTION 2: INSTALLATION AND SETUP Enter the IP Address, Subnet Mask, and Default Gateway for your PC’s Ethernet adapter into Table 1. The Ethernet adapter data you see by using ipconfig will probably be different from that shown in the example above. NOTE If you are using Windows Vista or Windows 7, the IP address is identified as the “IPv4 Address.”...
  • Page 19 Check LAN for default IP address compatibility Because all DIGIOP™ Black encoders and encoders are factory configured with the static IP address 192.168.0.100, check the LAN before connecting your encoder to ensure that network conflicts with existing devices won’t occur.
  • Page 20 SECTION 2: INSTALLATION AND SETUP The “Request timed out” response indicates that the IP address is not in use and the encoder can be connected without causing errors. Attach your encoder to the network and power it on Apply power to the encoder. When the encoder powers on, it performs an internal initialization, then establishes a connection to the LAN.
  • Page 21 SECTION 2: INSTALLATION AND SETUP Initial IP Address Rack Info Vin Channel MAC Address (no DHCP) R0, B0, M0 Vin1 192.168.0.100: 00:13:23:D4:D1:45 R0, B0, M1 Vin2 192.168.0.100 00:13:23:D4:D1:46 R0, B0, M2 Vin3 192.168.0.100 00:13:23:D4:D1:47 R0, B0, M3 Vin4 192.168.0.100 00:13:23:D4:D1:48 If an encoder channel was not found, click the Refresh button every minute until the four channels for your encoder appear in the list.

  • Page 22: Setup The Encoder Basic Configuration

    SECTION 2: INSTALLATION AND SETUP In the Login window, enter the ID and PW (password) for your encoder, then click Login. The default administrator ID and PW are root and pass. After entering the ID and PW, the IP Setup window closes. In the IPAdmin Tool window, click Refresh and verify that the entry representing the encoder R0,B0,M0 rack address now shows the new IP address.
  • Page 23 SECTION 2: INSTALLATION AND SETUP Typical initial camera view through the encoder If, after logging into your encoder, you cannot see live video and the message: NOTE “Can not Create XMLDOMDocument Install MSXML4.0” appears, download and install the MS XML 4.0 library. This library can be found at: http://www.microsoft.com/downloads/details.aspx?familyid=3144B72B-B4F2-46DA-B4B6- C5D7485F2B42&displaylang=en...
  • Page 24 SECTION 2: INSTALLATION AND SETUP Under the Basic Configuration menu, click Date & Time. In the Date & Time Setting options: www.digiop.com...
  • Page 25 SECTION 2: INSTALLATION AND SETUP Select the Time Zone you prefer. Select the Retrieve Time method, or select the Set Manually bullet and enter the appropriate information. Select the Sync Source and Interval you prefer. Click Apply. In the Basic Configuration menu, click Users. In the User List, click root, and then click Modify and follow the prompts.

  • Page 26: Image Quality Adjustments

    SECTION 2: INSTALLATION AND SETUP In the Users menu, click Apply, then click OK to restart the webserver (if you wish to do so at this time). Click Add to include other administrators, operators or viewers to the user list. Follow the screen prompts to complete the entries.

  • Page 27: Setup Sensor (Di) And Alarm (Do) Reporting

    SECTION 2: INSTALLATION AND SETUP Scroll to the bottom of the screen and click the PREVIEW button. Follow the screen instructions to open the camera view in another IE window. While observing the video in the PREVIEW window, adjust the values for brightness, contrast, hue, saturation, sharpness, and/or other parameters on screen.
  • Page 28 From the VIEW window, click: SETUP > Event Configuration > DI NOTE DI#2 is not functional in each BLK-IPE4101 IP channel. On the Publisher DI screen, enable the DO devices for the sensor input (DI). Configure the Subscribe Email, Multicast, TCP, and other settings as needed.

  • Page 29: Final Installation Checks

    SECTION 2: INSTALLATION AND SETUP Configure the Subscribe Email, Multicast, and TCP settings as needed. Click Apply. Click VIEW to return to the normal viewing window. 2.8 Final installation checks During final installation checks, the audio system, sensors and reporting devices, and the RS-485 connection are checked. On the VIEW screen, click SETUP >...
  • Page 30 SECTION 2: INSTALLATION AND SETUP In the Bi-directional Audio Settings menu, click the checkboxes to select “Listen to the audio from server with setting below” and “Talk to the speakers of server”. Click Apply, and then click VIEW to return to the camera view screen. On the VIEW screen, check the SPK and MIC options to enable the speaker at the encoder and the microphone on your computer.

  • Page 31: Cleaning

    SECTION 2: INSTALLATION AND SETUP To adjust the speaker volume go to the Bi-directional Audio Settings menu. In the Talk to frame, adjust the volume to the preferred level. Click Apply. At each (DI) sensor, cause a condition that would be produce an alarm condition. Verify that the alarm reporting (DO) device indicates the alarm, and that the alarm is reported as configured through the browser.

  • Page 32: Specifications

    SECTION 3: SPECIFICATIONS SECTION 3 Specifications Table 3. Specifications Parameter Value Number of Streams Dual Stream per channel, Configurable Input channel 4 channels Output Channel 1 channel (loop out) Video Compression H.264, MPEG-4, MJPEG Selectable per Stream Resolution D1 / 4CIF/ 2CIF / VGA / CIF / QVGA / QCIF Compression FPS 120 fps @ D1 for 4 channels Video input range...
  • Page 33 SECTION 3: SPECIFICATIONS Table 4. Video Content Analysis (optional) VCA Presence High Performance Advanced Tracking Algorithm, Low False Alarm Rate Easy to Use Intuitive Web Browser Interface Detection Zones Multi-segment Polygons and Lines On-screen Display Real-time Display of Tracking Data and Events Image Stabilization Electronic Stabilization Removes camera sway...

  • Page 34: Appendix A Troubleshooting

    APPENDIX A: TROUBLESHOOTING APPENDIX A Troubleshooting A.1 Reboot encoder The reboot process lasts about 4 minutes, during which time the encoder will not respond to the IPAdmin Tool or transmit video to NOTE a web browser The encoder can be rebooted in two ways: Using the IPAdmin Tool: Start the IPAdmin Tool.

  • Page 35: Check Firmware Version

    APPENDIX A: TROUBLESHOOTING To force the encoder to the factory network settings: Disconnect the power (adapter) from the encoder. While pressing and holding down the reset button, power on the encoder. Release the Reset button 5 seconds after applying power. Wait for the encoder to reboot.

  • Page 36: Appendix B Dimensions

    APPENDIX B: DIMENSIONS APPENDIX B Dimensions Back View 5.39” Top View Side View Front View www.digiop.com...
