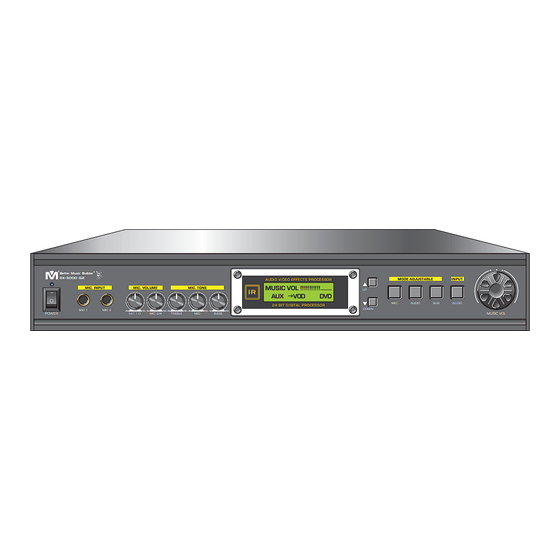

DX-3000 G2
MIC. INPUT
MIC. VOLUME
MIC 1
MIC 2
–10
+10
POWER
MIC 1/3
MIC 1/3
®
MIC. TONE
I R
–10
+10
–10
+10
–10
+10
–10
+10
MIC 2/4
TREBLE
MID
BASS
OWNER'S MANUAL
AUDIO VIDEO EFFECTS PROCESSOR
DX-3000 G2
G2 SERIES
Generation 2
XLR
AUDIO VIDEO EFFECTS PROCESSOR
MUSIC VOL !!!!!!!!!!!........
UP
AUX VOD
DVD
24 BIT DIGITAL PROCESSOR
DOWN
MODE ADJUSTABLE
INPUT
MIC
AUDIO
SUB
AUDIO
MUSIC VOL
Thank you for purchasing this unit. To
make full and effective use of this unit,
please read this Owner's Manual
carefully before operating it. Please
retain this manual for future reference.
w w w. B e t t e rM usi c B ui l d e r.c o m

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DX-3000 G2 and is the answer not in the manual?

Questions and answers

Related Manuals for Better Music Builder DX-3000 G2

Summary of Contents for Better Music Builder DX-3000 G2

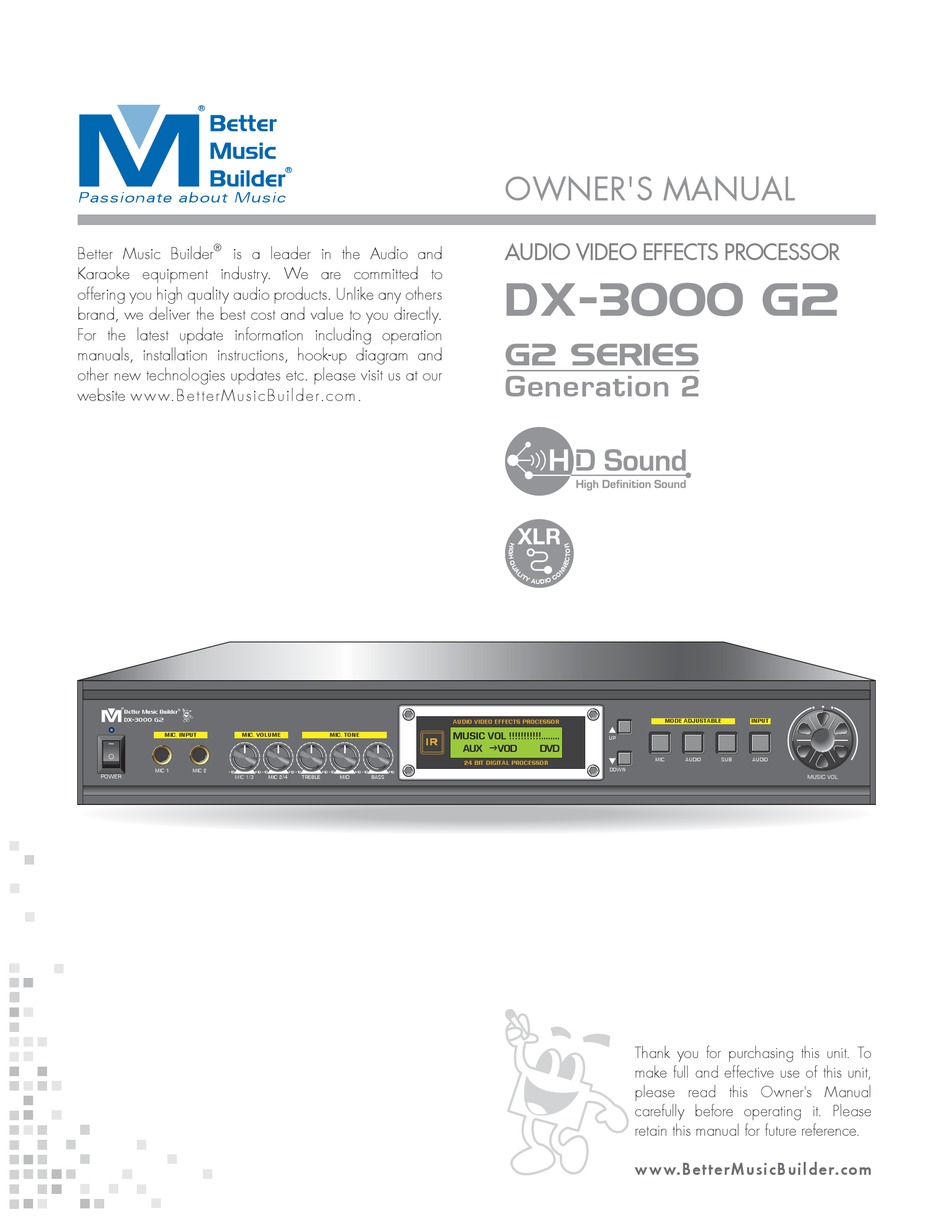

  • Page 1 ® OWNER'S MANUAL Passionate about Music AUDIO VIDEO EFFECTS PROCESSOR ® Better Music Builder is a leader in the Audio and Karaoke equipment industry. We are committed to DX-3000 G2 offering you high quality audio products. Unlike any others brand, we deliver the best cost and value to you directly.

  • Page 2: Table Of Contents

    CONTENTS INTRODUCTION ............................... Intro SYSTEM FEATURES ............................Features SAFETY INSTRUCTIONS ..........................Safety PACKAGE ACCESSORIES ..........................Package SPEAKER CONNECTION METHODS AND INFORMATION ..............Connection SYSTEM APPLICATIONS ........................... Applications • Small Format ............................... • Connecting the Power Amplifier to Mixer ....................• Connecting the Video Output Source ......................

  • Page 3: Introduction

    Features AUDIO VIDEO EFFECTS PROCESSOR The new DX-3000 G2 is a Generation 2 Audio/Video Processor from Better Music Builder. It is built basing on our observations and proven design of karaoke equipment, • 3-Channel speaker mixer Better Music Builder has been constantly improving and •...

  • Page 4: Safety Instructions

    120V AC-POWER AC-POWER CORD INCLUDED 11. Object and Liquid Entry: Care should be taken so that objects do not fall on, or liquids are not spilled into this ® Better Music Builder ® DX-3000 G2 MODE ADJUSTABLE INPUT AUDIO VIDEO EFFECTS PROCESSOR MIC.
  • Page 5 Do not place the electronic equipment onto the unstable table or stand. It is because it would fall easily from the ® Better Music Builder ® DX-3000 G2 AUDIO VIDEO EFFECTS PROCESSOR MODE ADJUSTABLE INPUT MIC.

  • Page 6: Package Accessories

    Generation 2 control unit to shock. In addition, <Mail in U.S.A. only> Consumers from Canada DX-3000 G2 / DX-5000 G2 can get the warranty card by downloading it do not expose the remote control from our website www.BetterMusicBuilder.com.

  • Page 7: Speaker Connection Methods And Information

    SPEAKER CONNECTION METHODS AND INFORMATION Connection CONNECTOR INFORMATION METHODS OF SPEAKER CONNECTION 1. Insert Type (Poor Connection) Balanced XLR Connectors E R S S P E A K Hot (+) Pin 2 Cold (-) Pin 3 Ring Shield (Ground) Pin 1 Shield SHIELD GOOD...

  • Page 8: System Applications

    MIC 4 RISK OF ELECTRIC SHOCK AC~120V 60Hz 35W INPUT DO NOT OPEN AC~220V 50Hz WITHOUT AUTHORIZATION DX-3000 G2 REAR VIEW SMART AUTO INPUT SELECT FOR MORE DETAILS PLEASE REFER TO PAGE 12. MUSIC SOURCE VIDEO MONITOR DISPLY 1 SAIS...
  • Page 9 O- 1 0 (10-inch woofer) for an area between CS-812 G2 300 and 500 square feet. DFS-112 SUB DFS-306 CS-812 G2 ® 3-CHANNEL POWER AMPLIFIER MIXER DX-3000 G2 SOURCE 9 :4 io rit & T in m te rta t up le ss...

  • Page 10: Connecting The Power Amplifier To Mixer

    AUDIO (XLR) BALANCE OUTPUT CH-2 BRIDGE IN CONNECTING THE VIDEO OUTPUT SOURCE The DX-3000 G2 comes with 3 dedicated composite video output. Typical connection usage such as for a small classroom show in the diagram or it can be use similarly in connecting to the amplifier with a KTV video touch screen stand.

  • Page 11: Connecting The Audio/Video Input Source

    CONNECTING THE AUDIO/VIDEO INPUT SOURCE Before connecting the source (i.e. AUX, VOD & DVD), turn off hardware management tools. It is controlled by a computer the power for all machine, so it would protect electric shock which contains all the song/video data. The VOD is capable and prevent damage to the equipment.

  • Page 12: Smart Auto Input Select

    SMART AUTO INPUT SELECT The Smart Auto Input Select function is designed for commer- VOD: VOD has priority when DVD is inactive. However, cial use to save you time by prioritizing audio inputs when both DVD and VOD are active, DVD has priority. automatically.

  • Page 13: Connecting The Microphone

    SERIAL NO.: AUDIO INPUT TERMINAL VIDEO INPUT TERMINAL AUDIO SAFETY OUTPUT AUDIO (XLR) OUTPUT MODEL: DX-3000 G2 FUSE MARK 029536-28 USA 020898-1 CALIFORNIA, UNITED STATES OF AMERICA E-mail: sales@bettermusicbuilder.com w w w . B e t t e r M u s i c B u i l d e r . c o m AUDIO (¼”) OUTPUT...

  • Page 16: Remote Control

    ECHO MICROPHONE EFFECT MODE 4 FIXED EFFECT MUSIC G2 SERIES Generation 2 DX-3000 G2 / DX-5000 G2 ECHO MASTER VOLUME MICROPHONE MASTER VOLUME INSERTING BATTERIES Open the battery compartment cover on the back of the MUTE remote control unit. The cover should open easily if you Mutes music only;...

  • Page 17: Operation

    OPERATION Welcome... PANEL FRONT PANEL OPERATION MICROPHONE INPUT ADJUSTING THE MICROPHONE TONE There are two microphone inputs jacks (1/4” unbalanced) in the front panel. There are three knobs under the MIC TONE: TREBLE, MID, MIC. INPUT BASS TREBLE: Slowly turn the knob clockwise to increase and counter clockwise to decrease the treble output for the microphones.
  • Page 18 LCD PANEL OPERATION Adjusting MIC Mode 1. Turn on the DX-3000 G2 by flipping the power switch to 1. Press the MIC knob for the first time, the LCD Window the ON [–] position. would appear as follows: 2. After turning the machine on, it takes about 20 seconds to MIC MASTER VOL boot it up for operation.
  • Page 19 Adjusting AUDIO Mode 6. Press the MIC knob for the sixth time, the LCD Window would appear as follows: 1. Press the AUDIO knob for the first time, the LCD Window would appear as follows: MIC VOL LOCK MUSIC TONE OFF BASS –10dB...
  • Page 20 6. Press the AUDIO knob for the sixth time, the LCD 2. Press the SUB knob the second time, the LCD Window Window would appear as follows: would appear as follows: MUSIC L IMI T VO L WOOFER INPUT ON !!!!!!!!!!!!!!!!!!!!....
  • Page 21 AUDIO INPUT SMART AUTO INPUT SELECT FOR MORE DETAILS PLEASE REFER TO PAGE 12. Press the AUDIO INPUT knob to select the source as follows: MUSIC SOURCE SAIS PRIORITY Press knob one time MUSIC VOL !!!!!!!!!!!..AUX VOD DVD SMART AUTO INPUT SELECT Press knob two times MUSIC VOL !!!!!!!!!!!..

  • Page 22: Physical Dimensions

    0.07% 20Hz~15kHz PORTABLE SYSTEM IN P B L E S T A S IC DUAL CHANNEL RECEIVER VM-93C 64 SELECTABLE WIRELESS SYSTEM Better Music Builder ® D IO CH01:752.20 mh CH01:763.20 mh DOWN DOWN POWER D IO RECEIVER - A LCD...

  • Page 23: Troubleshooting

    TROUBLESHOOTING Troubleshooting 1. MODE ADJUSTMENTS FROZEN 6. MACHINE HAS NO POWER SYMPTOM: mode adjustments for AUDIO, MIC or SUB frozen. REMEDY: check to see if the power cable is well connected and that the power switch on the front panel is turned on. CAUSE: “MUSIC VOL LOCK”...

  • Page 24: Warranty

    WARRANTY Warranty ONE-YEAR LIMITED WARRANTY FOR HOME USE ADDITIONAL NOTES: EQUIPMENT 1. Limited warranty for home use equipment is only valid in Our one-year warranty covers both parts and labors. The North America. warranty becomes effective from the date of your purchase 2.

  • Page 25: Agency Regulatory Notices

    AGENCY REGULATORY NOTICES Notices Federal Communications Commission Notice your waste equipment at the time of disposal will help to conserve natural resources and ensure that it is recycled in a These limits are designed to provide reasonable protection manner that protects human health and the environment. For against harmful interference in a residential installation.

  • Page 26: Final Words To User

    DEALER NAME______________________________________ machine to shut down suddenly. CITY_____________ ST./PROV.______ZIP/P.C.____________ Again, we must thank you for choosing Better Music Builder DEALER WEBSITE http://www.________________________ product. We hope you can make the best use of the machine and enjoy it for years to come. If you have any...
  • Page 28 Owner's Manual carefully before operating it. Please retain this manual for future reference. 361111014000 Printed on 100% Recycled Paper Code: 20120507 Comments E-mail to sales@bettermusicbuilder.com Copyright © 2012 Better Music Builder. All rights reserved. Legal trademark.
  • Page 29 Owner's Manual carefully before operating it. Please retain this manual for future reference. 361111014000 Printed on 100% Recycled Paper Code: 20120507 Comments E-mail to sales@bettermusicbuilder.com Copyright © 2012 Better Music Builder. All rights reserved. Legal trademark.

Table of Contents
