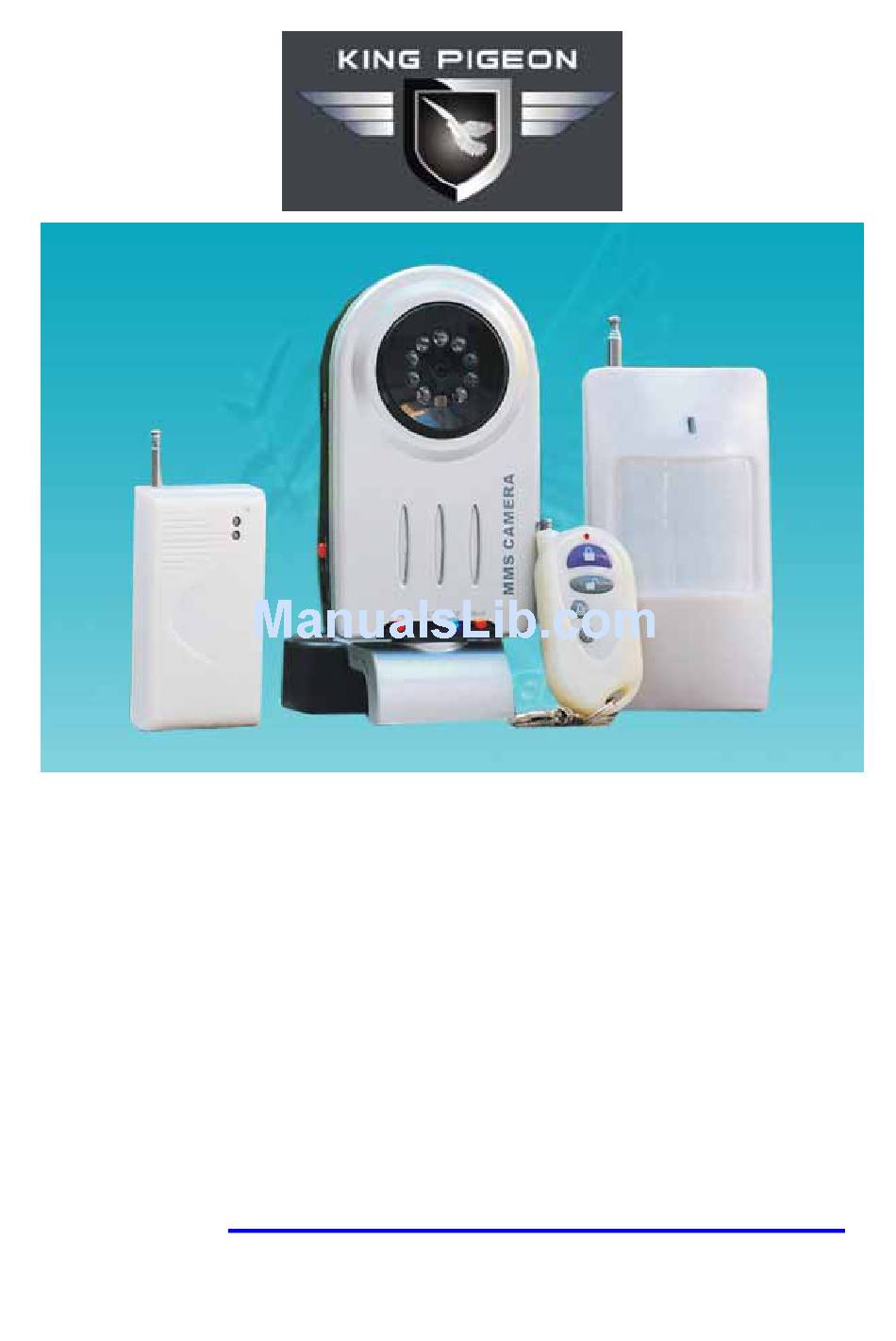

- Page 1 GSM MMS Camera S800 User Manual Ver 2.0 Date Issued: 2009-07-20 All rights reserved by King Pigeon Hi-Tech. Co., Ltd. Website: Http://www.GSMalarmsystem.com...
-
Page 2: Table Of Contents
Standard Packing list ------------------------------3 Physical Layout -------------------------------------3 Features ----------------------------------------------5 Settings -----------------------------------------------6 Operating Instructions ----------------------------13 Installation -------------------------------------------15 Add wireless sensors -----------------------------19 Technical specifications --------------------------21 Important information -----------------------------22 Maintenance-----------------------------------------22 Quality Warranty -----------------------------------22 King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020... -
Page 3: Brief Introduction
A Top Safety and Protection Solution In The Worldwide! 1. Brief introduction The GSM MMS Camera S800 is a new security protection solution special for home, house and office and other applications. It based on Wireless GSM Communication network, intergrated MMS and Computer technology. -
Page 4: Standard Packing List
Optional Accessories: (Wireless Sensors only) PIR Motion Sensor Glass Break Sensor Magnetic Window Sensor Magnetic Steel Scrolling Door Sensor And others. 4. Physical Layout 4.1 Control Unit physical layout King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020... -
Page 5: Features
Off means defense is /removal removed indicator On means onsite alarm Constant on sounds are available Buzzer indicator Orange Off means alarm sounds are unavailable 5. Features King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020... - Page 6 A Top Safety and Protection Solution In The Worldwide! 5.1 The advantages of the GSM MMS Camera S800 Can send photos(MMS) to cellphones when it activated, and require photos by user cellphone; Supports Timer: e.g.: fixed time armed or fixed time disarmed, fixed time capture picture then send to your mobile phones;...
-
Page 7: Settings
6. Settings [The S800 can be setup by two way, the first one is by SMS, another is by PC through USB cable. We suggest setup basic functions by SMS, setup MMS parameters and other functions by PC through USB Cable.]... - Page 8 SMS. After you reset the system, please send 000000 to the S800 again. After you setup the S800 by SMS, the S800 will return a confirmation to you by SMS. SMS Commands For GSM MMS Camera Setup Basic Functions Com.
- Page 9 3). Remove the 13570810254 from the family alarm number, you can send 30113570810254 to the S800. 4). Disable the buzzer when the S800 triggered, you can send 503 to the S800. 5) The format of other commands are similar to the above mentioned examples.
- Page 10 5) Click “No card mode” button, it will popup a windows, please see below, please click OK button then switch on the S800. 6) The S800 will connect the PC by USB Cable, you can check the process information at the right-bottom text label on the software. When it displays “Reload successfully, connected with pc”, then you can do the next step.
- Page 11 4 Family alarm numbers. 2) Click on the Emails page, then you can edit the email address, when the S800 triggered, it will send the alarm informations to these email box.(Some email proxy not support this function.) King Pigeon Hi-Tech.
- Page 12 Night Mode is to setup in night, the IR Led equipped with the camera will switch on or switch off. 4) Click the “MMS Prams” page, fill mmsc,setup the photo size, etc., and then click “SAVE” button. King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020...
- Page 13 Your should ask your gsm operator to get the MMSC url, Gateway IP, Port, APN, Tips: Username, Password parameters firstly. For S800, the Port must be 9201,can’t be 8080 port. please see below: 5) Click all SMS to edit the related sensor name, means when the sensor triggered, what SMS content you want to receive by SMS.
-
Page 14: Operating Instructions
8) Click Timer page to setup the Timer details. 9) Click the Others to add new wireless sensors. Learning new wireless sensor, remote control to the S800. In the submenu of the Others, click the Comm tool Button.Then you can see the study and erase button,... - Page 15 Notice: No matter in armed or disarmed mode, the AC power failure alarm function if you enabled in the software, when AC power failure, the S800 will alarm. Press Emergency button” ” on the remote control or Press any Emergency button.The Control Unit will enter emergency alarm status.
-
Page 16: Installation
Magnetic door/window sensors signal the Control Unit when the two parts separate by more than between 1.5 to 3.0cm. In some circumstances an Infrared beam fence is more appropriate than King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0... - Page 17 Installation: attach the larger half to the floor and attach (rivet or glue) the smaller half to the scroll steel door. An alarm is triggered when the halves are separated by more than three to 5.00 cm. Scroll Steel Door King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020...
- Page 18 Apply the detection area illustration below when installing. Wireless curtain sensor, detection area illustration below: 8.4 Install other sensors For smoke, you can use wireless smoke sensor, for gas leakage detection, King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020...
- Page 19 2 Turn the mainframe body to adjust for a photographing direction and a horizontal angle 62° 3 Make fine adjustment of camera lens cap to a desired height. King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020...
-
Page 20: Add Wireless Sensors
Locate the IC boards black jumpers, labelled A0-A7 and D0-D3. The A0-A7 , 3X8 PIN connectors,are the Wireless Address bits code area, and the D0-D3 are 3X4 PIN connectors, are Wireless data bits King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0... - Page 21 11) You can set many sensors in the same zone by set the same codes of the jumpers. Appendix: Zone Setting Table Wireless data bits Serial No. Deflaut Zone Name Zone 1 Inner Door Contact Sensor 1 King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020...
-
Page 22: Technical Specifications
Photograph best distance in night: in 6meters Image format: JPEG Internal Battery: 900mAH, about 12hours. Wireless Sensor receive mode: ASK Wireless Sensor frequency: 433MHz Max. Wireless sensor can be accepted: 10pcs. King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020... -
Page 23: Important Information
6) This product was designed for the indoor use. 7) Opening the control unit cover will void the warranty. 8) More informations will be avaible of the S800, we will not inform you again after we upgraded,please check with your dealers. - Page 24 The End! Any questions please help to contact us feel free. Email Us: Sales@Kingpigeon.com.cn Http://www.GSMalarmsystem.com Http://www.Kingpigeon.com.cn King Pigeon Hi-Tech. Co., Ltd. Page of 24 Ver 2.0 File No.: S8000020...
