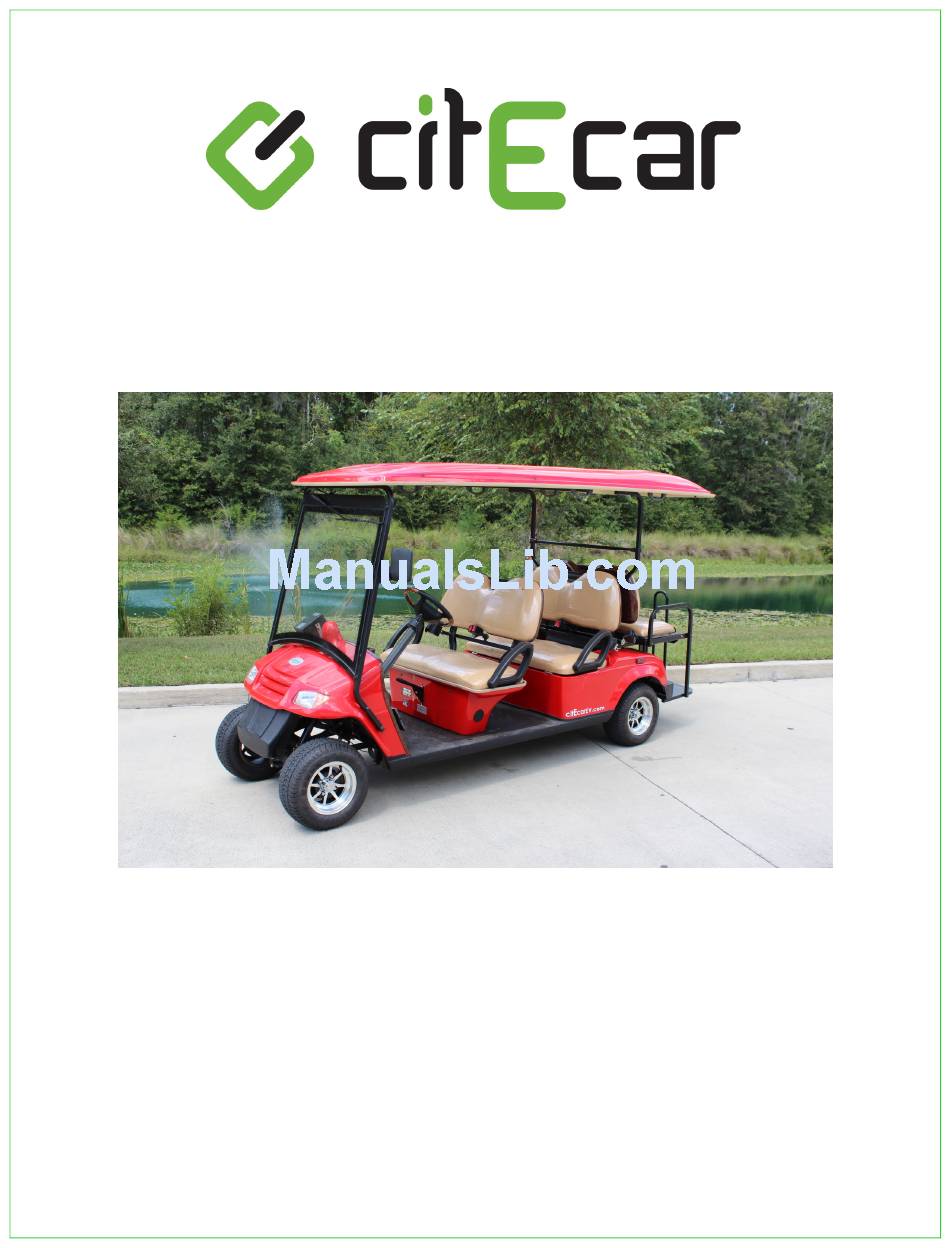

citEcar Street Legal Golf Cart
Owner's Manual
Sold and Distributed by
citEcar LLC
www.citEcarEV.com
Phone: (866) 542-8677
Fax: (352) 376-6810

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Street Legal Golf Cart and is the answer not in the manual?

Questions and answers

Summary of Contents for citEcar Street Legal Golf Cart

  • Page 1 Street Legal Golf Cart Owner’s Manual Sold and Distributed by citEcar LLC www.citEcarEV.com Phone: (866) 542-8677 Fax: (352) 376-6810...
  • Page 2: Table Of Contents

    Table of Contents Introduction ....................2 Operating System ...................4 Start Up Procedure ..................4 Important Rules to Remember ...............5 Disclaimer ......................5 Maintenance ....................6 Battery ........6 Charger ........6 Motor........7 Speed Controller ....8-9 Brake System ......9 Lubrication ......10 Break-In Procedure ....10 General Maintenance .....10 Warranty Information ..................11 Unit Information ....................12 Notes ......................13...
  • Page 3: Introduction

    Introduction citEcarEV, LLC is pleased to offer its line of low speed vehicles. These vehicles are perfect for driving around campgrounds, universities, neighborhoods, airports, and more! The street legal golf carts are offered in two, four, and six passenger models. Why would I want an LSV? It's logical! Sixty five percent of U.S.
  • Page 4: Operating System

    Operating System Ignition Key Switch - Insert the key and turn it clockwise to power on the lights, horn, and control system. Accelerator Pedal - This controls the driving speed. Step on slowly to accelerate, push all the way to the floor for full power. Release the pedal partially to reduce speed. Releasing the pedal completely will cut power to the engine and the vehicle will come to a stop.
  • Page 5: Important Rules To Remember

    Important Rules to Remember Before operating your low speed vehicle, you should familiarize yourself with your local laws. It is always important to remember the following rules: 1) Check with your local DMV for any laws that relate to using a low speed vehicle in your city.
  • Page 6: Maintenance

    Battery Information The battery bolts, wiring, and surface should always be kept dry and clean. To clean your battery, use a damp cloth. Always avoid letting water run over the batteries and onto the electrical wiring. Check the battery connections regularly for damaged poles or loose connections. Never store anything on top of the batteries.
  • Page 7: Motor

    Motor Always operate this vehicle in temperatures between °F and 104°F. Keep combustible materials away from the batteries and the motor. On a regular basis, it is suggested that the owner brushes away dirt and dust from the motor housing. This will allow the motor to stay properly ventilated. Troubleshooting Guide...
  • Page 8: Speed Controller

    Speed Controller The controllers used in our units are made in the United States by Curtis Controllers. The controller runs the speed, torque, smooth braking and efficiency without noise. All contacts should be checked for obstructions and should always be kept clean. You can clean the contacts with a brush or with high pressure air.
  • Page 9: Brake System

    Brake System To do a system check, step down on the brake pedal and measure the distance between the pedal and the front wall. The minimum gap should be no less than 1.96 inches. The gaps between the brake pads are self adjusting. The parking brake should be used when the vehicle is not in motion.
  • Page 10: Lubrication

    Lubrication Check all fluids and lubricate the vehicle monthly. Lubricate more frequently during periods of high use. Brake Fluid: 901 DOT3 Rear Axle: 90GL-5 Hypoid - 1 Liter Grease Lubrication Points: Steering column, axle, wheel bearings, steering ball joint Break-In Procedure A new low speed vehicle should be driven with a minimum load for the first full charge.
  • Page 11: Warranty Information

    Warranty Information 1. This limited warranty covers conversions to new vehicles, equipment furnished by citEcarEV ("the company") in or upon a passenger vehicle. Vehicle has a 3 year limited parts warranty. 2. The company warrants to original purchases that any defects in materials or workmanship, except as listed in para.
  • Page 12: Unit Information

    Unit Information Congratulations once again on the purchase of your brand new Low Speed Vehicle. With proper care and maintenance, we are sure you will enjoy many years of worry-free service from your LSV. Thank you for your purchase.
  • Page 13: Notes

    Notes ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________ ____________________________________________________________________...
