Summary of Contents for Cache coe8

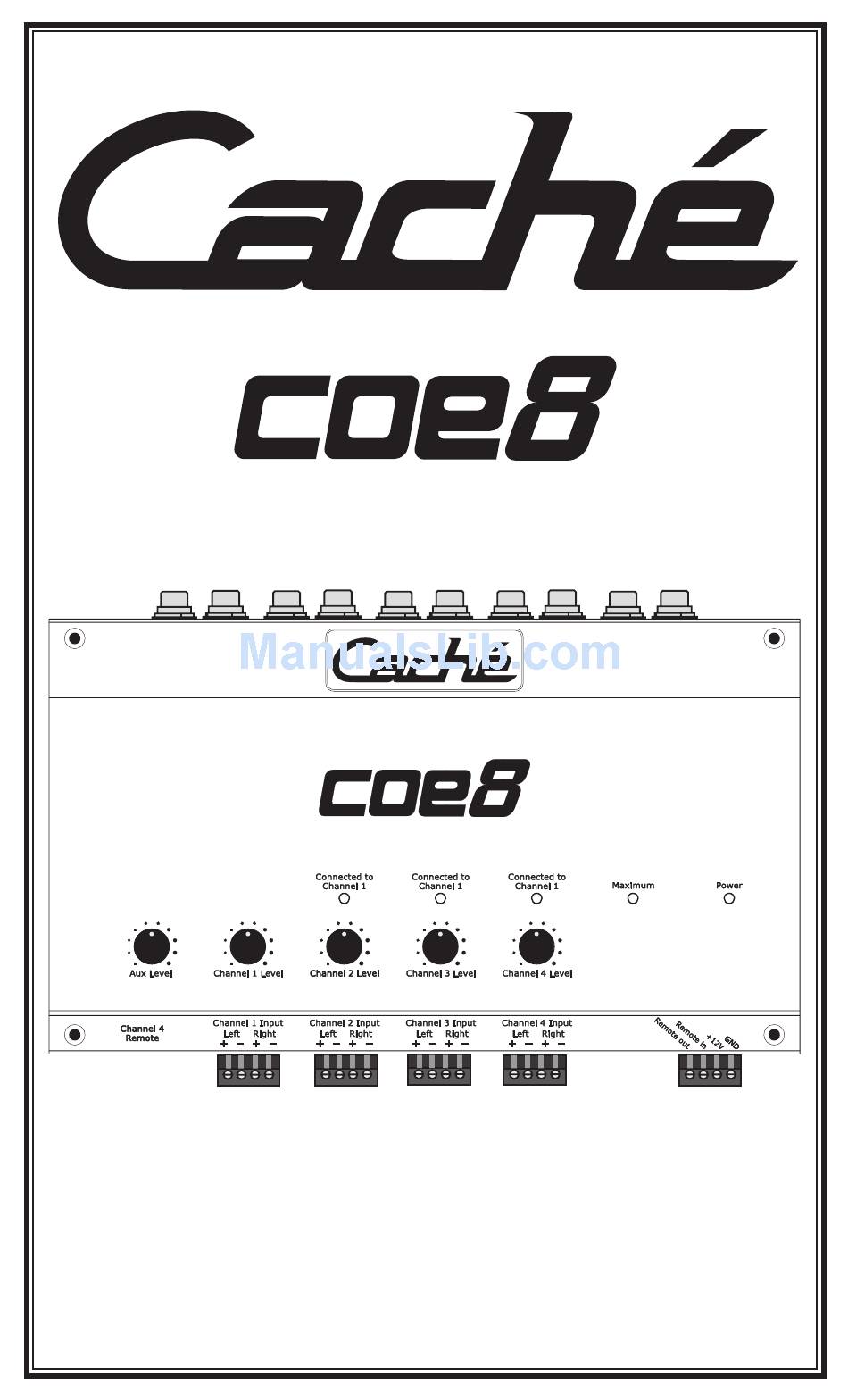

- Page 1 8 CHANNEL LINE OUTPUT CONVERTER OWNERS MANUAL...
- Page 2 •Poly Caps And Low Tolerance Resistors In All Signal Path Circuits • Power ON LED • Removable Terminal Blocks For All Input Connections • Proudly Designed And Engineered In The USA coe8 Specifications •Maximum Input Voltage......................50 V •Maximum Output Voltage....................9 V •THD............................0.01% •Input Impedance........................>20K ohms...
-
Page 3: Operation And Function
Remote Control- This port is for the dual function Caché remote control (Included). The first function is source selection. Pushing the control knob in will toggle the coe8's input between the AUX and Main channels. The second function allows the user to control the level of Channel 4's output up to the maximum adjustment level set on the coe8. -
Page 4: Installation Precautions
Installation Guidelines INSTALLATION PRECAUTIONS • Always mount the unit in a fashion so that it can be easily accessible for making adjustments. • Avoid mounting the unit to subwoofer enclosures or high vibration areas. • Do not cover the unit with carpet or any other material. •... -
Page 5: Internal Jumper Options
* coe8 shown with top cover removed. Isolation Jumpers- This jumper provides three different ground isolation options for the input of the coe8. The three input options include GND, Isolation, and 200ohms. Make sure the coe6 is turned off before making your selection. - Page 6 Internal Jumper Options...
-
Page 7: Example System
Example System #1 Jumper Position coe8 configuration for a full range high level 6 channel input system in direct mode. - Page 8 Example System #2 Jumper Position coe8 configuration for a full range high level 4 channel input system in direct mode.
- Page 9 Fact or y Installed Amplifier Jumper Position Data Bus Cable CHANNEL 2 IN BLEND MODE CHANNEL 3 & 4 IN DIRECT MODE coe8 configuration for an active 2 way front, plus rear input system using the blend mode on channel 2.
- Page 10 Example System #4 Jumper Position coe8 configuration for an active 3 way front, plus sub input system using the blend mode on channels 2 & 3.
- Page 11 Caché Warranty Caché warrants this product to be free from defects in material and work- manship for a period of one (1) year from the original date of purchase provided it was purchased from an authorized Caché retailer within the United States.
- Page 12 6915 W Frye Rd Chandler, AZ 85233 480 305 8999 480 813 6210 Fax www.cacheaudio.com...
