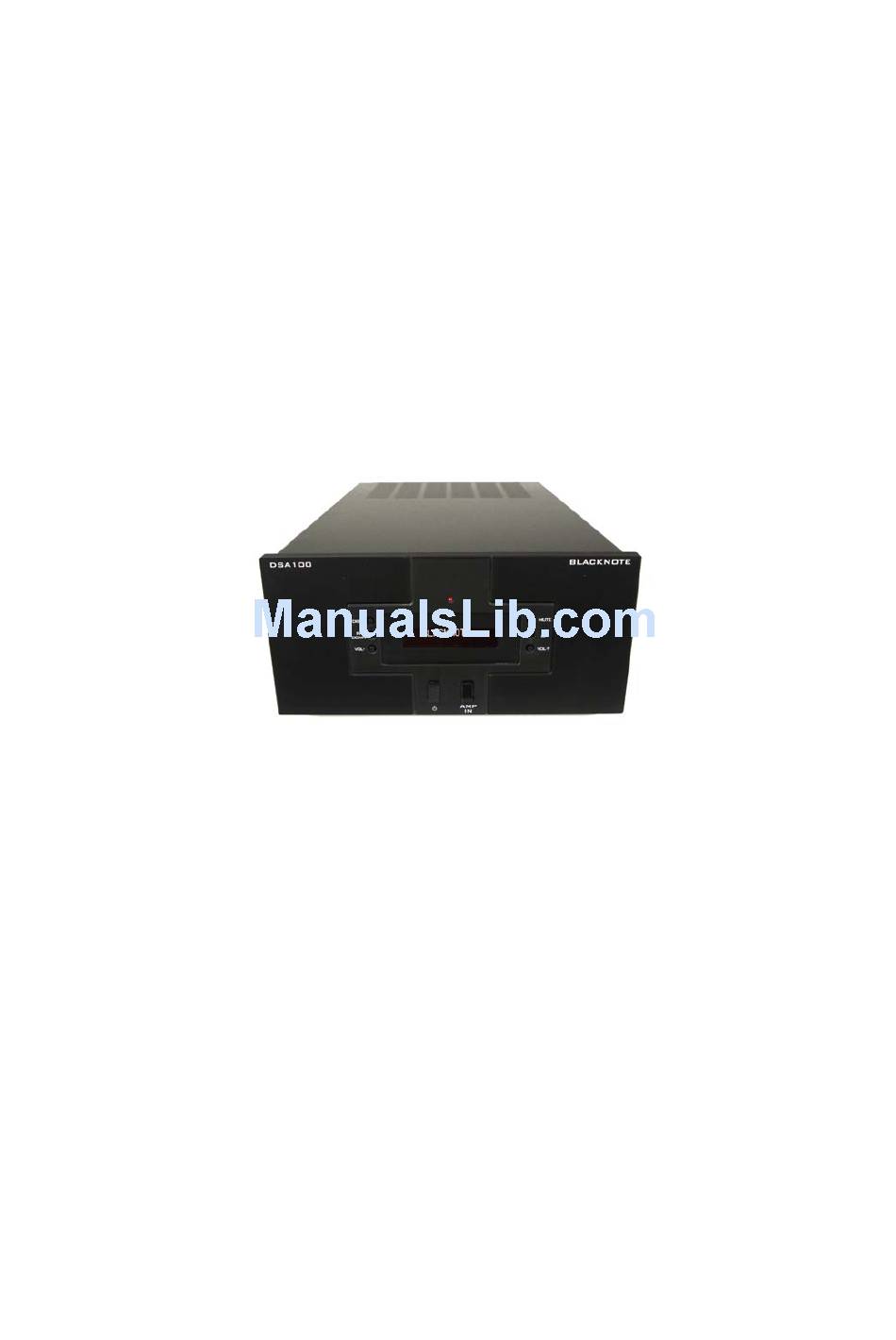

- Page 1 Blacknote® DSA 100 Special ITALIAN HI-TECH Digital Stereo Amplifier Owner’s Manual MANUFACTURED IN ITALY TEL.+39.0571.675005 FAX.+39.0571.675013...
-
Page 2: Table Of Contents
Congratulations & Introduction Contents of Packaging Back Panel Features Front Panel Active Volume Control Software Remote Control Functions Technical Specifications Warranty, Customer Service, Warnings & F.A.Q. VERY IMPORTANT: Please read the following instructions carefully before installing your Blacknote® Digital Stereo Amplifier... -
Page 3: Congratulations & Introduction
1ohm matching. The very low output noise & impedance of the Blacknote DSA100 SPECIAL amplifier and super wide bandwidth insure top class performance with level of accuracy hard to reach with traditional amplifiers. -
Page 4: Contents Of Packaging
This section describes how to install the DSA100 SPECIAL Digital Stereo Amplifier. The instructions are purely descriptive and necessarily generic. If you have any doubts or difficulties with this procedure please contact your local Blacknote distributor who will know how to assist you. -
Page 5: Front Panel
DSA100 SPECIAL Italian Hi-Tech Digital Stereo Amplifier (Operating Conditions) Once the DSA100 SPECIAL has been correctly assembled and positioned on a solid shelf and fully wired the player is ready to play. The DSA100 SPECIAL front Panel replies six basic function of the unit: ON OFF - It turns the unit ON/OFF completely. -
Page 6: Active Volume Control
(DSA DOUBLE MONO ACTIVE VOLUME CONTROL) The Double Mono Active Volume Control system of this unit is made with a Blacknote proprietary designed developed with a Texas Instruments PGA2310/2320 devices feature fine resistors step-by-step DOUBLE MONO high end performance for superior resolution, lowest distortion and perfect channel balance. -
Page 7: Remote Control Functions
Italian Hi-Tech Digital Stereo Amplifier (REMOTE CONTROL) The supplied remote control is the same of the Blacknote® Digital Player to integrate with one handset eventually the control of all the Blacknote unit. STAND-BY MODE – It partially turns OFF the unit and resets the Volume to zero. -
Page 8: Technical Specifications
DSA100 SPECIAL Italian Hi-Tech Digital Stereo Amplifier Technical Specifications The following details describe the basic technical specifications of the DSA100 SPECIAL Special Digital Stereo Amplifier at the time of drafting this manual. The specifications are subject to modification without notice. The product complies with the requirements laid down in the EC regulations. -
Page 9: Warranty, Customer Service, Warnings & F.a
(Warranty Certificate) The warranty certificate is enclosed separately and to be valid must be completed fill and returned to Blacknote® factory or the official distribution. In all countries where there is an official distribution network, the dealer must stamp the warranty certificate.
