Bafo BF-2103 User Manual

Usb2.0 slim cd-r/rw
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

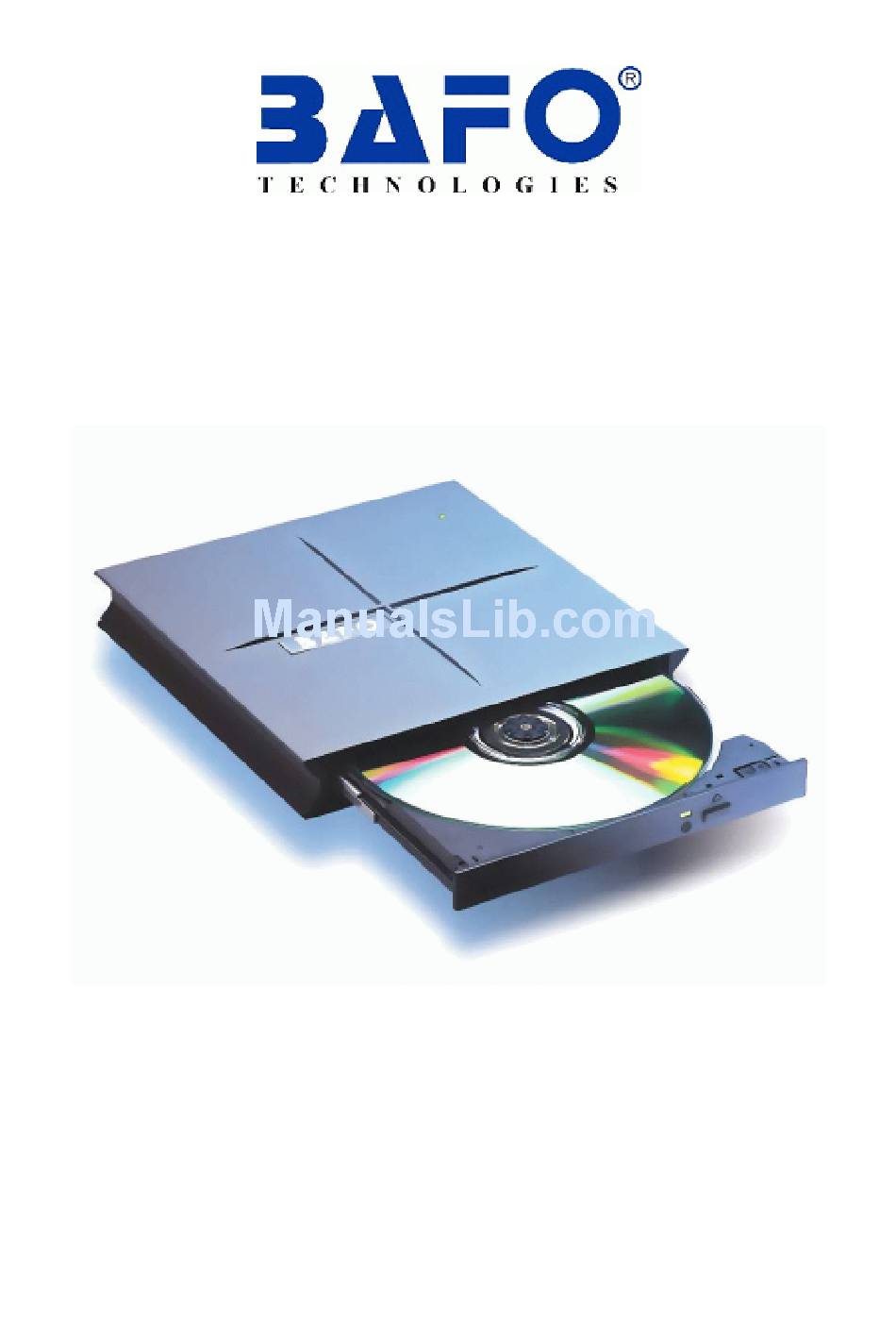

User's Manual
USB2.0 Slim CD-R/RW
BF-2103
Notice:
If you have any problem with this product, please do not open it or try to fix it by
yourself. The warranty void if the seal is broken.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF-2103 and is the answer not in the manual?

Questions and answers

Summary of Contents for Bafo BF-2103

  • Page 1 User’s Manual USB2.0 Slim CD-R/RW BF-2103 Notice: If you have any problem with this product, please do not open it or try to fix it by yourself. The warranty void if the seal is broken.

  • Page 2: Table Of Contents

    CONTENTS 1. Introduction-------------------------------------------------------------2 2. Package Content-----------------------------------------------------2 3. Product Features-----------------------------------------------------2 4. System Requirements----------------------------------------------2 5. Part Name and Functions----------------------------------------3 6. Driver Installation----------------------------------------------------3 ® Windows 98 installation--------------------------------------------------------4 ® Windows 98 un-installation---------------------------------------------------7 ® Windows ME installation------------------------------------------------------8 ® Windows 2000 installation----------------------------------------------------9 ® Windows XP installation-----------------------------------------------------10 MAC installation-----------------------------------------------------------------11 MAC un-installation-------------------------------------------------------------13 7.

  • Page 3: Introduction

    1. Introduction This USB2.0 Slim CD-R/RW provides an easy way to carry and flexible interface solution. This device supports USB 2.0 standard compliance interface, which enables people to easily connect to Desktop PC or Notebook or Mac machine without opening case.

  • Page 4: Part Name And Functions

    5. Part Name and Functions 5.1 Back Panel Power Jack USB Jack Headphone Jack 5.2 Front Panel CD-Tray Busy LED Emergency Eject Eject Button 5.2.1 Busy LED: When read or write, Busy LED will blink on. Please do not turn off PC power when Busy LED been blinking turn on.

  • Page 5: Driver Installation

    “Next” to continue. 6.1.3 Chose “Search for the best driver for your device (Recommended)” then click “Next” 6.1.4 Select “Specify a location” and type D:\DRIVER\BF-2103\WINDOWS (D: represents CD-ROM) in the dialog box, then click “Next” USB 2.0 Slim CD-R/RW User’s Manual...
  • Page 6 ® 6.1.5 Windows will search the driver for this device. Make sure the driver that ® Windows found is “D:\DRIVER\BF-2103\WINDOWS\TPP300.INF”• C then click “Next”. 6.1.6 Click “Finish” to complete the installation procedure of “BAFO USB Storage Adapter”. ® 6.1.7 After Windows installed all the driver, you have to check “My...
  • Page 7 6.1.8 Double click on “My Computer” icon on the desktop, if the driver has already installed and can work properly, you can see a new CD-ROM icon and named “E:” appears on the Desktop. USB 2.0 Slim CD-R/RW User’s Manual...

  • Page 8: Un-Installation

    6.2 Windows 98 un-installation ® 6.2.1 Click on “Control Panel”-“Add/Remove Programs” the display as below will show. Select “BAFO USB Storage Adapter” and click on “Remove” to un-install it. Click “OK” to continue. 6.2.2 Click “Yes” to confirm un-install. 6.2.3 Click on “Yes” to restart computer and complete uninstall procedure. USB 2.0 Slim CD-R/RW User’s Manual...

  • Page 9: Windows ® Me Installation

    6.3 Windows ME installation ® It doesn’t need to install any driver at Windows ® 6.3.1 Connect the USB port of USB 2.0 Slim CD-R/RW to PC’s USB port via USB cable. System will auto detect the device then load driver and create a new CD-ROM icon named “Compact Disc (E:)”...

  • Page 10: Windows 2000 Installation

    6.4 Windows 2000 installation ® It doesn’t need install any at Windows 2000 ® 6.4.1 Connect USB port of USB 2.0 Slim CD-R/RW to USB port of PC with a USB cable. System will auto detect the device then load driver and create a new CD-ROM icon named “Compact Disc (E:)”...
  • Page 11 USB 2.0 Slim CD-R/RW User’s Manual...

  • Page 12: Windows ® Xp Installation

    6.5 Windows XP installation ® It doesn’t need install any at Windows Windows ® ® 6.5.1 Connect USB port of USB 2.0 Slim CD-R/RW to USB port of PC with a USB cable. System will auto detect the device then load driver and create a new CD-ROM icon named “CD Drive (E:)”...
  • Page 13 NOTE: If you want to restart your computer, please disconnect the DC power adapter first, and then restart your PC. After Windows started, you can connect the DC power adapter. USB 2.0 Slim CD-R/RW User’s Manual...

  • Page 14: Mac Installation

    6.6 MAC installation 6.6.1 Turn on your Apple computer and make sure that the USB port is enabled and work properly. 6.6.2 Plug the USB 2.0 CD-R/RW to your MAC, the system will auto detect the driver and install the driver. 6.6.3 After the step, you can see a NEW CD-ROM icon appear on the desktop.

  • Page 15: Faq

    7 FAQ 7.1 Q: The “Add New Hardware Wizard” or “Found New Hardware Wizard” dialog box does not show up. A: Please check following items. i). Power indicator on? Make sure power adapter properly plug into power jack. ii). Un-plug USB cable first and then plug in USB cable again. iii).

  • Page 16: Fcc Statement

    9 FCC Statement This device generates and uses radio frequency and may cause interference to radio and television reception if not installed and used properly. This has been tested and found to comply with the limits of a Class B computing device in accordance with the specifications in Part 15 of FCC Rules.
