- Page 1 USER’ S MANUAL USB TO IrDA ADAPTER BF-120...
-
Page 2: Table Of Contents
CONTENT Introduction----------------------------------------------------------------------------------2 Application & Connection-------------------------------------------------------------2 Package Content--------------------------------------------------------------------------2 Product Features--------------------------------------------------------------------------2 System Requirements-------------------------------------------------------------------3 Driver Installation-------------------------------------------------------------------------3 ® Windows 98 Driver Installation---------------------------------------------------3 ® Windows ME Driver Installation--------------------------------------------------6 ® Windows 2000 Driver Installation------------------------------------------------9 ® Windows XP Driver Installation-------------------------------------------------11 Disclaimer-----------------------------------------------------------------------------------13 FCC Statement----------------------------------------------------------------------------14 Technical Support-----------------------------------------------------------------------14 USB To Irda Adapter User’s Manual 1... -
Page 3: Introduction

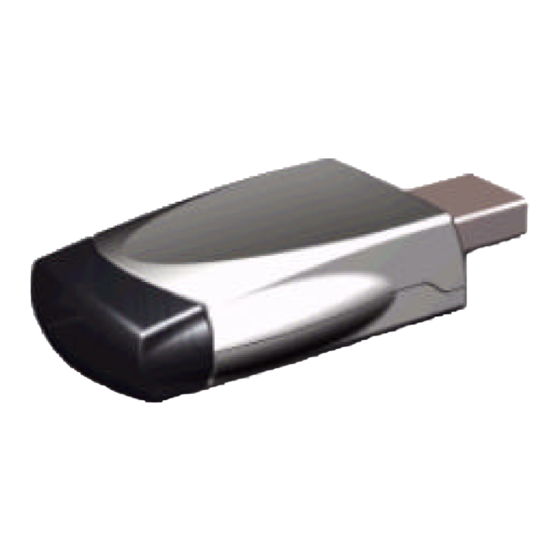

1. Introduction USB to IrDA bridge adapter is for enabling IrDA wireless data communication through a standard USB port. Powered from USB bus, this product does not require any external power adapter. It supports SIR (2.4Kbps to 115.2Kbps), MIR (576Kbps to 1152Kbps), and FIR (4Mbps) modes. -
Page 4: System Requirements
6.1.1 Power on the computers that you will connect the USB to IrDA Adapter and make sure the USB port is enabled and can working properly. 6.1.2 Put the driver CD into the CD-ROM and run the D:\Driver\BF-120 \Infineon\Windows\SETUP.EXE or D:\Driver\BF-120\Vishay 6101E \Windows\SETUP.EXE or D:\Driver\BF-120\Vishay 6102F\Windows... - Page 5 6.1.4 You can choose the destination folder that you want to install or use the default setting (C:\WINDOWS\Sigmatel\USB-IR). 6.1.5 The windows will install the driver into your system. 6.1.6 As the Windows appear as below, please plug the USB to IrDA Adapter into the USB port.
- Page 6 6.1.9 As the windows appear as below, you have to reboot your computer. 6.1.10 After the windows restart, you have to check “My Computer”-“Control Panel”-“System”-“Device Manager”, you can see a new “Infrared Communication Device” appear and “SigmaTel USB-IrDA Dongle” under the Network Adapter, “Virtual Infrared COM Port” and “Virtual Infrared LPT Port”...
-
Page 7: Windows Me Driver Installation
6.2.1 Power on the computers that you will connect the USB to IrDA Adapter and make sure the USB port is enabled and working properly. 6.2.2 Put the driver CD into the CD-ROM and run the D:\Driver\BF-120 \Infineon\Windows\SETUP.EXE or D:\Driver\BF-120\Vishay 6101E \Windows\SETUP.EXE or D:\Driver\BF-120\Vishay 6102F\Windows... - Page 8 6.2.5 The windows will install the driver into your system.. 6.2.6 As the Windows appear as below, please plug the USB to IrDA Adapter into the USB port. 6.2.7 Windows will detect the new device (Sigmal Tel USB-IrDA Dongle) and install the driver for the new device.
- Page 9 6.2.9 After the windows restart, you have to check “My Computer”-“Control Panel”-“System”-“Device Manager”, you can see a new “Infrared Communication Device” appear and “SigmaTel USB-IrDA Dongle” under the Network Adapter, “Virtual Infrared COM Port” and “Virtual Infrared LPT Port” under the Ports (COM & LPT)+ USB To Irda Adapter User’s Manual 8...
-
Page 10: Windows 2000 Driver Installation
6.3.1 Power on the computers tha t you will connect the USB to IrDA Adapter and make sure the USB port is enabled and can working properly. 6.3.2 Put the driver CD into the CD-ROM and run the D:\Driver\BF-120 \Infineon\Windows\SETUP.EXE or D:\Driver\BF-120\Vishay 6101E \Windows\SETUP.EXE or D:\Driver\BF-120\Vishay 6102F\Windows... - Page 11 6.3.5 Windows will install the driver into your computer. 6.3.6 When the Windows appears as below, plug the USB to IrDA Adapter into the USB port and click “Finish” to completed the installation step. 6.3.7 After the windows restart, you have to check “My Computer”-“Control Panel”-“System”-“Hardware”-“Device Manager”, you can see a new “SigmaTel USB-IrDA Dongle”...
-
Page 12: Windows Xp Driver Installation
XP Driver Installation ® Following the steps below to install driver of USB to IrDA Adapter USB cable: 6.4.1 Put the driver CD into the CD-ROM and run the D:\Driver\BF-120 \Infineon\Windows\SETUP.EXE or D:\Driver\BF-120\Vishay 6101E \Windows\SETUP.EXE or D:\Driver\BF-120\Vishay 6102F\Windows \SETUP.EXE. (According with the different transceiver type, you have to install the different driver.) - Page 13 6.4.5 Windows will install the driver to your computer. 6.4.6 When the Windows appears as below, click “OK” to continue, then plug the USB to IrDA Adapter into the USB port. 6.4.7 Windows will detect the SigmaTel USB-IrDA Dongle, click “NEXT” to continue.
-
Page 14: Disclaimer
6.4.8 Windows will install the driver into your system. 6.4.9 To make sure that the driver has already installed to your computer, you have to check “My Computer”-“Control Panel”-“System”- “Hardware”-“Device Manager”, you can see a new “SigmaTel USB- IrDA Dongle” under the Infrared devices. 7. -
Page 15: Fcc Statement
8. FCC Statement This device generates and uses radio frequency and may cause interference to radio and television reception if not installed and used properly. This has been tested and found to comply with the limits of a Class B computing device in accordance with the specifications in Part 15 of FCC Rules.
