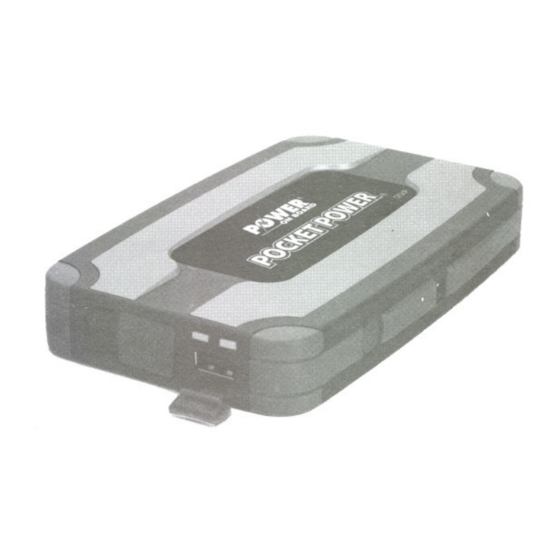

CPI20P
~.WE.@
~./
ON BOARD
POCKET POWER@
INSTRUCTION MANUAL
IMPORTANT SAFETYINFORMATION, SAVE THESEINSTRUCTIONS
TO REDUCE THE RISK OF INJURY. USER MUST READ AND
UNDERSTAND THIS INSTRUCTIONAL MANUAL. THIS MANUAL
CONTAINS
IMPORTANT INFORMATION
REGARDING
THE
OPERATION AND
WARRANTY OF THIS PRODUCT. PLEASE
RETAIN FOR FUTUREREFERENCE.
Cat. # CPI20P
AUGUST '06
Form # 90509158-00
Printed in China
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Summary of Contents for POWER ON BOARD POCKET POWER

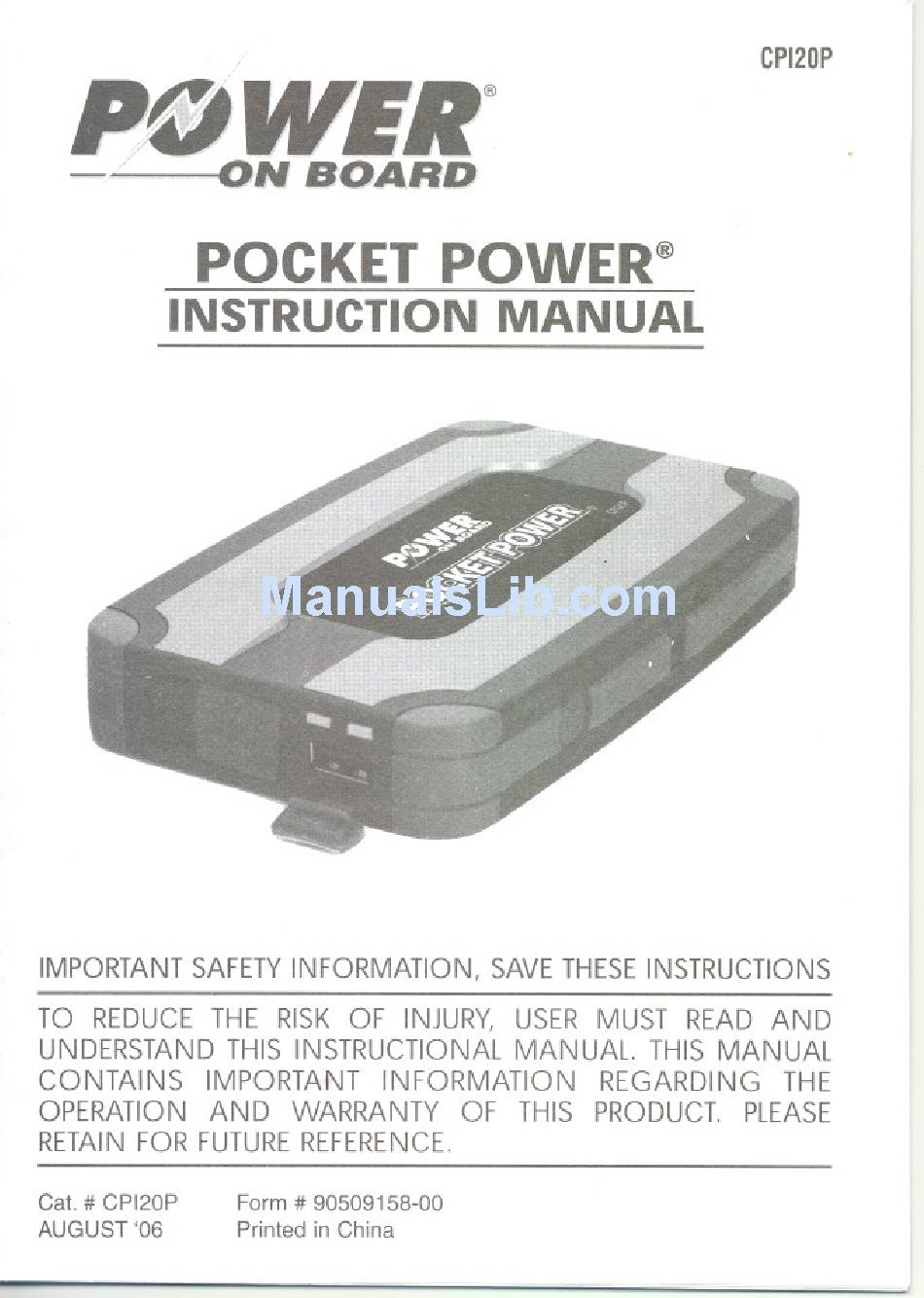

- Page 1 CPI20P ~.WE.@ ON BOARD POCKET POWER@ INSTRUCTION MANUAL IMPORTANT SAFETYINFORMATION, SAVE THESEINSTRUCTIONS TO REDUCE THE RISK OF INJURY. USER MUST READ AND UNDERSTAND THIS INSTRUCTIONAL MANUAL. THIS MANUAL CONTAINS IMPORTANT INFORMATION REGARDING OPERATION AND WARRANTY OF THIS PRODUCT. PLEASE RETAIN FOR FUTUREREFERENCE.
- Page 2 & GENERAL SAFETY W ARNINGS A NDINSTRUCTIONS ALLAPPLIANCES READ ALL INSTRUCTIONS & WARNING: Read and understand all instructions beforeoperating product.Failure to followall instructions listedbelowmayresultin electricshock,fire and/orseriousinjury. AVOID DANGEROUS ENVIRONMENT. Don'tuseappliances i n dampor wetlocations. D on'tuseappliances i n the rain. KEEP CHILDREN A WAY.
- Page 3 GROUND FAULT C IRCUIT INTERRUPTER (GFCI) protection shouldbe provided onthecircuitsor outlets to beused.Receptacles areavailable having builtin GFCI p rotection andmaybeused for this measure o f safety. USEOF ACCESSORIES A NDATTACHMENTS. The use of any accessory or attachment notrecommended for usewiththis appliance couldbehazardous.
- Page 4 for Cord Gage Minimum Sets Volts of Cord in Feet Total Length 0-25 120V 26-50 51-100 101-150 (0-7,6m) (7,6-15,2m) (15,2-30,4m) (30,4-45,7m) 240V 0-50 101-200 51-100 201-300 (0-15,2m) (15,2-30,4m) (30,4-60,9m) (60,9-91,4m) Rating Ampere More Not more American Wire Gage Than Than 10 - 12 - Not Recommended...
- Page 5 WARNING: Thisproduct or itspower c ordcontains l ead, a chemical known to theStateof California to causecancer andbirthdefector otherreproductive h arm.Washhandsafterhandling. WARNING: SHOCK HAZARD: Donotoperate unitwith damaged cord or plug;or if the unithasreceived a sharpblow,beendropped, o r otherwise damaged in anyway.Donotdisassemble t heunit;takeit to a qualified service technician whenserviceor repairis required.
- Page 6 LL CAUTION: T O REDUCE THE RISKOF INJURYORPROPERTY DAMAGE: Provide adequate ventilation andrefrainfrom placingitemson or aroundthe unit duringoperation. U nitmayoverheat a ndthermal shutdown will occur. Propercoolingis essential w henoperating this unit.Do notplaceit neara heatsourceor in directsunlight. Theinvertermaybecome uncomfortably w arm,reaching 1650 F (740 C)underextended highpoweroperation.
- Page 7 & CAUTION: Do notconnectliveACpowerto the PocketPower@ outlets.Thiswill damage theinverter, a ndthe damage is notcoveredby warranty. Donotconnect a nyACloadthat hasits neutral c onductor connected to groundto the PocketPower@ inverter. Thisinverterwill not operate highwattageappliances o r equipment that produce heat,suchashairdriers,microwave ovensandtoasters. It onlypowersupto 20 wattsfor 5 minutes, o r 16wattscontinuous. Thisunit hasnot beentestedfor usewith medical d evices.
- Page 8 COVER HOW THE POCKET POWER@ WORKS This Pocket Power" is an electronic devicethat converts low voltage DC (direct current) electricity from a battery to 115 volt AC (alternating current) householdpower. In designingthis inverter, Power On Board has incorporateddesign techniques previously employed in computer power supplies.
- Page 9 PocketPowerm InverterOutputWaveform TheACoutputwaveform of this inverteris knownasa modifiedsine wave.It is a stepped waveform that hascharacteristics s imilarto the. sinewaveshapeof utilitypower. T histypeof waveform is suitable for mostACloads,includinglinearandswitchingpowersuppliesusedin electronic equipment, transformers, a ndsmallmotors. Themodifiedsinewaveproduced bythis inverterhasan RMS(root meansquare) voltageof 115volts.MostACvoltmeters (bothdigitaland analog)aresensitive to theaverage valueof thewaveform ratherthan the RMSvalue.Theyarecalibrated for RMSvoltageunderthe assumption thatthewaveform measured will bea puresinewave.
- Page 10 OPERATING INSTRUCTIONS Charging the PocketPower Attachthebarreltip of theACCharging Adapter t o theACCharging Port of the Pocket P ower@ andplugthestandard two-prongplugintoan approppriate, functioning120volt ACoutlet.ThePocket P owe~Bi- colorBatteryStatusLEDIndicator w ill flashred,indicating a proper connection hasbeenmadeandthe unit is charging. T heinvertermust becharged for 8 hourspriorto first use. Whenit is fully charged, t he Pocket P ower@ Bi-colorBattery StatusLED Indicator w ill turn solidgreen.If the Bi-colorBatteryStatusLED Indicator l ightsred,theinverterneeds to berecharged usingtheAC...
- Page 11 2. PlugtheUSB-powered device intotheinverter's USBPowerPortand operate normally. Note: The inverter's USB Power Port does not support data communication. It onlyprovides 5 volts/350mA D Cpower t o an external U SB-powered device. Rated Versus ActualCurrentDraw of Equipment Mostelectrical tools,appliances, electronic devices andaudio/visual equipment h avelabelsthat indicate the powerconsumption in ampsor watts.Besurethatthe powerconsumption of the itemto beoperated is below20 watts.If thepowerconsumption is ratedin ampsAC,simply...
- Page 12 OPERATING TIPS ThePocketPowef'!> shouldonlybeoperated in locations thatare: DRY- Donotallowwateror otherliquidsto comeinto contact w ith the inverter. COOL - Surrounding airtemperature shouldbebetween -20°C and 40°C - ideally between 1 5°C and25°C (60 - 80°F).Keep theinverter awayfrom directsunlight,whenpossible. VENTILATED - Keep theareasurrounding theinverterclearto ensure freeair circulation aroundtheunit.Donot placeitemson or overthe inverterduringoperation.
- Page 13 Safe BatteryDisposal ThePocketPowe~contains a nickelmetalhydride rechargeable b attery, w hichmustbemustbedisposed of properly whenit will nolongerretaina charge. F or information on recycling this battery, c alltoll-free(877)822-8837. LhWARNINGS: TOREDUCE T HERISKOFINJURY I EXPLOSION Do notdisposeof batteriesin fire as this may result in an explosion. Donotexpose theunitcontaining a battery tofireor intense heatas it mayexplode.
- Page 14 Invertersudden shutdown, Overload condition,reduceloadto a InverterStatusLEDis lit red maximum of 20 wattsandattempta manual r eset. andBattery StatusLEDis lit green InverterStatusLEDis lit red LJ.nit shutdown from overload or andBatteryStatusLEDis lit green fault condition, a ttemptmanual resetandreduceload butthereis no ACpower BothLEDindicators areoff, HoldON/OFF p ushbutton for at least1 second to turn unitON unitmaynot be in the ONposition...
- Page 15 This Power On Board product is warranted, to the original purchaser only, to be free of defects in materials and workmanship for one year from the date of purchase without additional charge. The...
