Summary of Contents for Multi Wave PE653RC

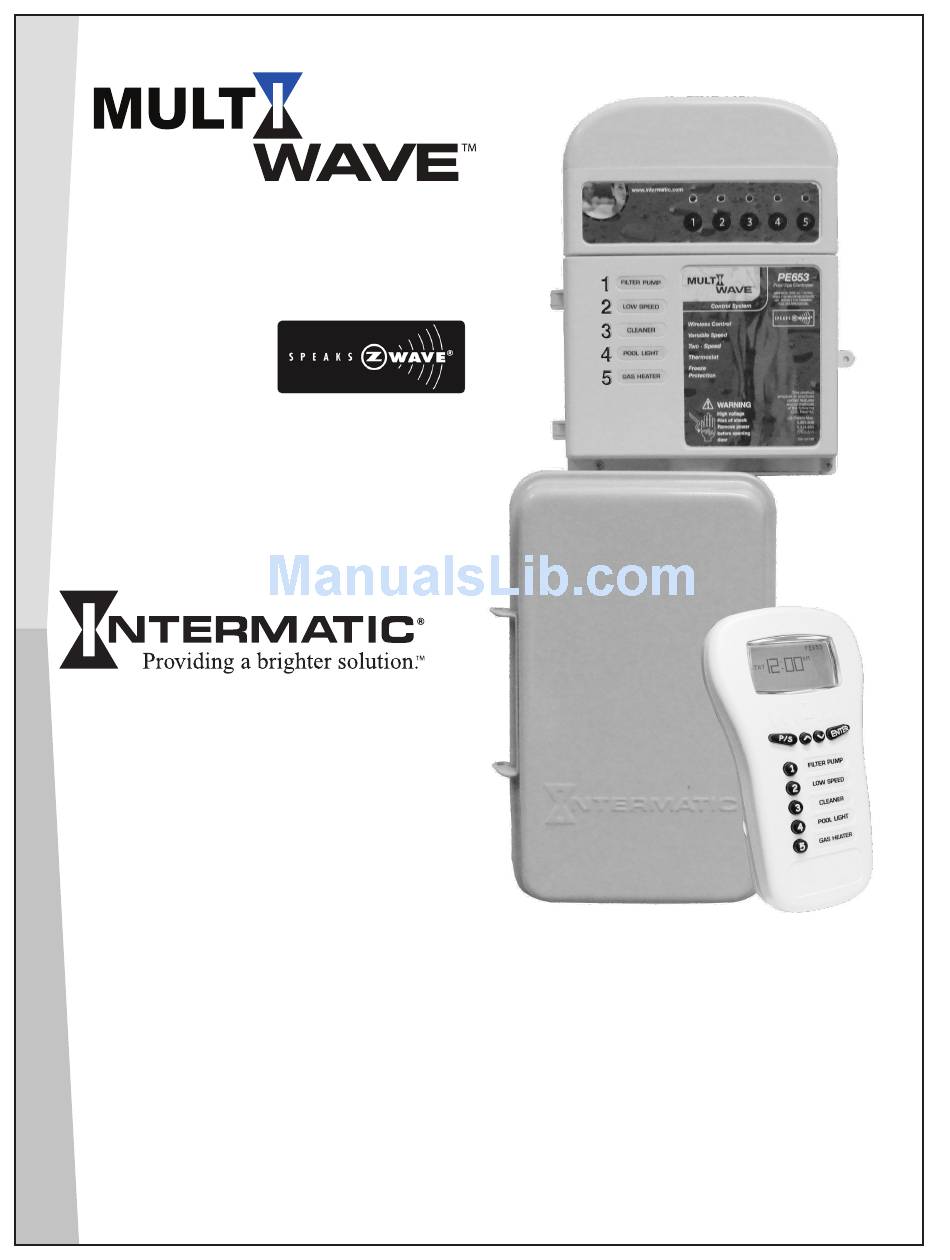

  • Page 1 PE653RC Pool/Spa Control System Installation and User Guide...

  • Page 2: Important Safety Instructions

    Multi-Wave PE653-PE953 Installation Guide Important Safety Instructions All electrical work must be performed by a licensed electrician and conform to all national, state, and local codes. When installing and using this electrical equipment, basic safety precautions should always be followed, including the following: DANGER: To reduce the risk of injury, do not remove the suction fittings of your spa or hot tub.
  • Page 3 Safety • Children should not use spas or hot tubs without adult supervision. • Do not use spas or hot tubs unless all suction guards are installed to prevent body and hair entrapment. • People using medications and/or having an adverse medical history should consult a physician before using a spa or hot tub.

  • Page 4: Table Of Contents

    Multi-Wave PE653-PE953 Installation Guide Contents Important Safety Instructions ......................2 Section 1: System Overview ......................8 Additional Detail on Key Components ..................9 Hand-Held Controller (PE953) ....................9 24-Volt Valve Actuator (PE24VA) ....................9 Water Temperature Sensor (PA122) ..................9 24-Volt Valve/Pump Switch (P4243ME) ................10 Optional — Freeze (Air Temperature) Sensor (178PA28A) ............10 Section 2: Plumbing Examples ....................11 For Pool and Spa Combo Installations ..................11...
  • Page 5 Contents Low-Voltage Wiring ........................35 Water Temperature Sensor .....................35 Freeze/Air Temperature Sensor ....................35 Communications to a Variable-Speed Pump .................36 Motorized Valve Actuator Connection and Synchronizing .............36 Fireman’s Switch Connection .....................37 Connection for Jandy Heaters ....................37 Connection for Raypak Heaters .....................38 Connection for Hayward Heaters ..................38 Connection for Pentair Heater ....................39 Connection for Sta-Rite / Pentair Heater with DDTC ..............40 Section 4:...
  • Page 6 Multi-Wave PE653-PE953 Installation Guide Section 6: Advanced Features ......................58 Configuring Two or More Hand-Held Controllers ..............58 Changing a Secondary Remote Control into a Primary Control ..........60 Including the PE953 Controller into a non-Multi-Wave (other manufacturer’s) network..61 Section 7: Programming for Use with Z-Wave Home Control Devices ........62 Deleting Any Existing Programming ..................62 Including Z-Wave Devices into the Network .................63 Including the PE653 Receiver onto a non-Multi-Wave remote controller .......63...
  • Page 7 Notes ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ ________________________________________________________________________________________________ Providing a brighter solution.™...

  • Page 8: System Overview

    Multi-Wave PE653-PE953 Installation Guide Section 1: System Overview The Intermatic Multi-Wave Pool/Spa PE653RC Wireless Control System brings wireless control to a new level of simplicity and affordability. The following features make the system distinctive: • Easy to Use — with simple, push button controls and a clear, easy-to-read display panel •...

  • Page 9: Additional Detail On Key Components

    One: System Overview Additional Detail on Key Components Hand-Held Controller (PE953) The main function of the Hand-Held Controller is to transmit user commands to the PE653 Receiving Device, PE650 Receiving Device, and/ or Z-Wave home control devices, and to display the status of the installed equipment.

  • Page 10: 24-Volt Valve/Pump Switch (P4243Me)

    Multi-Wave PE653-PE953 Installation Guide 24-Volt Valve/Pump Switch (P4243ME) Designed as part of the Multi-Wave system and for aftermarket and retrofit applications, the P4243ME is most suited for controlling up to two different circuits associated with pool/spa combinations, but can also be used to control all the equipment typically needed in connection with water features, water gardening, solar heating, and other similar applications.

  • Page 11: Plumbing Examples

    Two: Plumbing and Wiring Examples Section 2: Plumbing Examples The following diagrams show several plumbing and wiring examples of installations for pool and spa that share a single filter pump, filter, and heater. If you are installing a pool only or spa only, these diagrams will not apply.

  • Page 12: For Non-Booster Pump Pool Cleaner Installations

    Multi-Wave PE653-PE953 Installation Guide For Non-Booster Pump Pool Pool Cleaner Installations Return Return Intake Intake Energy Filter Check Valve Make-up Filter Filter Pump Heater Copyright © 2010 Intermatic, Inc.

  • Page 13: Installing And Wiring The Pe653 Receiving Device

    Three: PE653 Receiving Device Installation Section 3: Installing and Wiring the PE653 Receiving Device To avoid fire, shock, or death, turn off power at circuit breaker and test that power is off before wiring. • Read instructions completely before installation and retain for future reference. •...

  • Page 14: Wiring Instructions

    Multi-Wave PE653-PE953 Installation Guide Wiring Instructions INCLUDE/EXCLUDE switch Power Connections AC POWER & STATUS indicator • 1- Speed Pump: Must be powered from Manual ON/OFF Switches Terminal 3. • 2-Speed Pump: Must be powered from Terminal 3 for High-Speed and Terminal 4 for Low-Speed.

  • Page 15: Upper Terminal Connections

    Three: PE653 Receiving Device Installation Upper Terminal Connections Water Sensor (PA122) Solar Sensor (PA122) Air Sensor (178PA28A) Remote Antenna Connector Local Antenna Connector Serial Connection (RS485) NOTE: Observe polarity when connecting pump manufacturer’s cable to the Serial connection. Figure 3-3 PE653 Master Control Center Upper Terminal identification Installation Instructions To avoid fire, shock, or death, turn off power at circuit breaker and test that power is off before wiring.

  • Page 16: List Of Wiring Diagrams

    Multi-Wave PE653-PE953 Installation Guide List of Wiring Diagrams Variable-Speed Pumps 240V Variable-Speed Pump ......................Figure 3-4 One-Speed Pumps 120V 1-Speed Pump ........................Figure 3- 5 120V 1-Speed pump + any 4 120 VAC auxiliary equipment ............Figure 3- 6 120V 1-Speed pump + 120V Blower or Lights + 120V Booster Pump + 120V Actuator + Heater Figure 3-7 120V 1-Speed pump + 120V Lights + 120V Blower + 120V Actuator + Heater ......

  • Page 17: Variable-Speed Pumps

    Three: PE653 Receiving Device Installation Variable-Speed Pumps 240V Variable-Speed Pump Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 NOTE: The cable is Polarity Sensitive. Wires must be connected as shown below for proper operation. Select Breaker to match wire size and load requirement.

  • Page 18: 1-Speed Pumps

    Multi-Wave PE653-PE953 Installation Guide 1-Speed Pumps 120V 1-speed pump Make sure that voltage selector switch is in 120V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement. Observe maximum control circuit capacity. Single pole Breaker RECEIVER...

  • Page 19: 120V 1-Speed Pump + Any Four 120 Vac Auxiliary Equipment

    Three: PE653 Receiving Device Installation 120V 1-speed pump + any four 120 VAC auxiliary equipment Make sure that voltage selector switch is in 120V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement. Observe maximum control circuit capacity.

  • Page 20: 120V 1-Speed Pump + 120 Vac Blower Or Lights + 120V Booster Pump + 120V Actuator + Heater

    Multi-Wave PE653-PE953 Installation Guide 120V 1-speed pump + 120 VAC blower or lights + 120V booster pump + 120V actuator + heater Make sure that voltage selector switch is in 120V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement.

  • Page 21: 120V 1-Speed Pump + 120V Blower + 120V Lights + 120V Actuator + Heater

    Three: PE653 Receiving Device Installation 120V 1-speed pump + 120V blower + 120V lights + 120V actuator + heater Make sure that voltage selector switch is in 120V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement.

  • Page 22: 240V Pumps

    Multi-Wave PE653-PE953 Installation Guide 240V Pumps 240V 1-speed pump Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement. Observe maximum control circuit capacity. 2- pole Breaker RECEIVER...

  • Page 23: 240V 1-Speed Pump + Any Four 240 Vac Auxiliary Equipment

    Three: PE653 Receiving Device Installation 240V 1-speed pump + any four 240 VAC auxiliary equipment Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement. Observe maximum control circuit capacity.

  • Page 24: 240V 1-Speed Pump + 240V Blower + 240V Booster Pump + 240V Actuator + Heater

    Multi-Wave PE653-PE953 Installation Guide 240V 1-speed pump + 240V blower + 240V booster pump + 240V actuator + heater Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement.

  • Page 25: 240V 1-Speed Pump + 120V Lights + 120V Blower + 240V Actuator + Heater

    Three: PE653 Receiving Device Installation 240V 1-speed pump + 120V lights + 120V blower + 240V actuator + heater Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement.

  • Page 26: 240V 2-Speed Pump

    Multi-Wave PE653-PE953 Installation Guide 240V 2-Speed Pump Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement. Observe maximum control circuit capacity. 2-pole Breaker RECEIVER POWER SUPPLY...

  • Page 27: 240V 2-Speed Pump + Any Three 240Vac Auxiliary Equipment

    Three: PE653 Receiving Device Installation 240V 2-speed pump + any three 240VAC auxiliary equipment Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement. Observe maximum control circuit capacity.

  • Page 28: 240V 2-Speed Pump + Any 3 120 Vac Auxiliary Equipment

    Multi-Wave PE653-PE953 Installation Guide 240V 2-Speed pump + any 3 120 VAC auxiliary equipment Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement. Observe maximum control circuit capacity.

  • Page 29: 240V 2-Speed Pump + 240V Booster Pump + 240V Actuator + Heater

    Three: PE653 Receiving Device Installation 240V 2-Speed pump + 240V Booster Pump + 240V Actuator + Heater Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement.

  • Page 30: 240V 2-Speed Pump + 120V Lights + 240V Blower + Heater

    Multi-Wave PE653-PE953 Installation Guide 240V 2-speed pump + 120V lights + 240V blower + heater Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement. Observe maximum control circuit capacity.

  • Page 31: 240V 2-Speed Pump + 240V Blower + 240V Actuator + Heater

    Three: PE653 Receiving Device Installation 240V 2-speed pump + 240V blower + 240V actuator + heater Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement.

  • Page 32: 240V 2-Speed Pump + 240V Booster Pump + 240V Blower + Heater

    Multi-Wave PE653-PE953 Installation Guide 240V 2-speed pump + 240V booster pump + 240V blower + heater Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement.

  • Page 33: 240V 2-Speed Pump + 240V Booster Pump + 120V Light + Heater

    Three: PE653 Receiving Device Installation 240V 2-speed pump + 240V booster pump + 120V light + heater Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement.

  • Page 34: 240V 2-Speed Pump + 240V Booster Pump + Other 120 Vac Equipment + Heater

    Multi-Wave PE653-PE953 Installation Guide 240V 2-speed pump + 240V booster pump + other 120 VAC equipment + heater Make sure that voltage selector switch is in 240V position before applying power to Terminals 1 & 2 Select Breaker to match wire size and load requirement.

  • Page 35: Low-Voltage Wiring

    Three: PE653 Receiving Device Installation Low-Voltage Wiring Water Temperature Sensor The Multi-Wave Control System comes equipped with a Water Temperature Sensor. This sensor is needed to monitor both the pool and spa water temperature depending on the position of the diverter valves. It must be installed for the thermostat control to work.

  • Page 36: Communications To A Variable-Speed Pump

    P4243ME Valve/Pump Switch Mechanism. When used, the P4243ME must be installed in an enclosure that is separate from the PE653RC system. The P4243ME is prompted to position the 24 volt motorized actuators when the P /S (Pool / Spa) button is pushed on the PE953 Hand Held Transmitter.

  • Page 37: Fireman's Switch Connection

    Three: PE653 Receiving Device Installation The actuators must be installed to automatically rotate your valves between the pool and spa plumbing. The 24 VAC power for the Valve Actuators is produced by a transformer in the P4243ME. All power to both units must be turned OFF when connecting the black and white actuator control leads to the PE653 (see diagram above).

  • Page 38: Connection For Raypak Heaters

    Multi-Wave PE653-PE953 Installation Guide Locate the Fireman’s switch terminal in the control section of the heater. Remove the factory installed jumper wire. Connect the other ends of the #14 gauge wires from Step #1 to the Fireman’s Switch terminal bar in place of the factory installed wire loop. Do not disconnect high limit or pressure switches.

  • Page 39: Connection For Pentair Heater

    Three: PE653 Receiving Device Installation Connection for Pentair Heater Connect two #14 gauge wires, designed for use in hot environments, to terminals 8 and 9 in the PE653. Route the wires through the low voltage knockout in the PE653 enclosure. Make sure that the Low Voltage Divider is in place.

  • Page 40: Connection For Sta-Rite / Pentair Heater With Ddtc

    Multi-Wave PE653-PE953 Installation Guide Connection for Sta-Rite / Pentair Heater with DDTC (Digital Display Temperature Controller) Connect two #14 gauge wires, designed for use in hot environments, to terminals 8 and 9 in the PE653. Route the wires through the low voltage knockout in the PE653 enclosure. Make sure that the Low Voltage Divider is in place.

  • Page 41: Programming The Pe953 Hand-Held Controller

    Four: Programming the PE953 Hand-Held Controller Section 4: Programming the PE953 Hand-Held Controller Overview The Hand-Held Controller (PE953) is the focal point of user convenience. It’s water-resistant, shock-resistant, and is easy to program for handy remote control of the functions at a specific pool-spa installation, as well as a range of Z-Wave home control devices.
  • Page 42 Multi-Wave PE653-PE953 Installation Guide To Reset the PE953 Hand-Held Controller Press and release any button on the Hand-Held Controller to wake it from sleep. (The unit goes to sleep to conserve battery life when it has been idle for 60 seconds.) LEARN MODE 00-00P Press and hold the...

  • Page 43: Linking The Hand-Held Controller To The Pe653 Receiving Device

    Four: Programming the PE953 Hand-Held Controller If the action is successful, the screen displays the word SUCCESSFUL, as shown, then returns to the LEARN MODE screen. Any existing network or configuration programming in the PE653 Receiving Device is now deleted. The entire system is now at factory reset state and the components are ready to be linked together within a new electronic network.

  • Page 44: Configuring For A 1-Speed Or 2-Speed Pump

    Multi-Wave PE653-PE953 Installation Guide Configuring for a 1-Speed or 2-Speed Pump The default setup is for a single-speed pump, which you turn ON and OFF using button 1 on the Hand-Held Controller. If the pool/spa installation uses a two-speed pump, you need to program the Hand-Held Controller to be able to switch between speeds.

  • Page 45: Configuring For A Booster (Cleaner) Pump

    Four: Programming the PE953 Hand-Held Controller Press and release the <2> function button to select CALIBRATE CALIBRATE TEMP 00-00P TEMPS. The screen refreshes, as shown. CALIB POOL CALIB AIR UP-PREVIOUS DWN-MORE Using POOL as an example, press the <1> function button to calibrate the POOL temperature setting.

  • Page 46: Configuring The Fireman Switch Time Interval

    Multi-Wave PE653-PE953 Installation Guide Configuring the System to Control a Pool, a Spa or Both If necessary, press and release any button on the Hand-Held LEARN MODE 00-00P RESET CONTROLLER Controller to wake it from sleep. If the screen is not displaying RESET DEVICE LEARN MODE, press and hold the <P/S>...

  • Page 47: Setting The Time Of Day

    Four: Programming the PE953 Hand-Held Controller Setting the Time of Day This procedure sets the clock displayed on VARSPD INT PE653 VSP1 the Hand-Held’s screen. You can set the 12: O VSP2 STAT time from either the PE653 or VARSPD INT VSP3 VSP4 variable pump screens (as shown).

  • Page 48: Configuring The Freeze Temperature (Optional)

    Multi-Wave PE653-PE953 Installation Guide Press the <P/S> function button to advance to the next circuit. NOTE: To delete and reset all the events for one circuit you have scheduled for the current circuit (or VSP Speed) being configured, press the <4> function button. The screen displays reset instructions.

  • Page 49: Configuring For A Variable Speed Pump (Optional)

    Four: Programming the PE953 Hand-Held Controller Configuring for a Variable Speed Pump (optional) If a variable-speed pump has been installed for the filter and cleaner VARSPD INT pump functions, the Hand-Held Controller can be toggled between VSP1 the PE653 screen and this variable speed control screen (VARSPD INT) VSP2 VSP3 by pressing and releasing the <ENTER>...

  • Page 50: Testing Z-Wave Reception

    Multi-Wave PE653-PE953 Installation Guide Testing Z-Wave Reception At the heart of the Multi-Wave system is Z-Wave wireless technology. Test reception by walking around the yard with the Hand-Held Controller and look on the screen to see if there are any areas where STAT OK changes to STAT (which means the Hand-Held and the Receiving Device are no longer communicating).

  • Page 51: Labeling For The Pe653 Screen

    Four: Programming the PE953 Hand-Held Controller Cut out a knock-out for the wire to to pass through the cap, then screw the antenna cap to the bracket, using the screws supplied with the remote kit. Cut out a knock-out for the wire to to pass through the dummy cap, then screw the dummy cap to the top of the PE653 Receiving Device, using the original screws.

  • Page 52: Everyday Use Of The Hand-Held Controller

    Multi-Wave PE653-PE953 Installation Guide Section 5: Everyday Use of the Hand-Held Controller The complete everyday functionality of the pool/spa system you have installed can be conveniently controlled using the Hand-Held Controller. Depending on which components have been installed in the system, there may be several screens available as the primary screen when controlling the system: SCENE ACTIVATION VARSPD INT...

  • Page 53: Controlling The Pe653 Receiving Device

    Five: Everyday Use of the PE953 Hand-Held Controller Controlling the PE653 Receiving Device To control settings configured with the PE653 Receiving Device PE653 Press and release any button on the Hand-Held Controller to wake 1: 5 it from sleep. (The unit goes to sleep to conserve battery life when it STAT P 72 S 85...

  • Page 54: Setting Pool And Spa Temperatures

    Multi-Wave PE653-PE953 Installation Guide Setting Pool and Spa Temperatures When a heater is installed, the Hand-Held Controller controls the independent water temperatures of both the pool and spa. PE653 You can view the target temperature on the right side of the Hand- 1: 5 Held Controller Screen under the word SET.

  • Page 55: Changing Pump Speeds

    Five: Everyday Use of the PE953 Hand-Held Controller When you have selected the right letter or number, press the <P/S> button to move right to the next character. Repeat Steps 6 and 7 until you have completed the renaming. Press the <ENTER>...

  • Page 56: Controlling Pe650 Functions

    Multi-Wave PE653-PE953 Installation Guide Controlling PE650 Functions Depending on how the site has been installed with the PE650 Receiving Device, there may be up to five circuits being controlled. The five function buttons on the PE653 Hand-Held Controller will control the five circuits in the PE650 Receiving Device. If necessary, press and release any button on the Hand-Held Controller to wake it from sleep.

  • Page 57: Manually Turning Equipment On And Off

    Five: Everyday Use of the PE953 Hand-Held Controller Manually Turning Equipment On and Off At the Receiving Device For service purposes, the five circuits and / or the pool/spa actuators can be operated manually at the PE653 Receiving Device. Simply press any of the circuit buttons on the PE653 Receiving Device to toggle between ON and OFF.

  • Page 58: Advanced Features

    Multi-Wave PE653-PE953 Installation Guide Section 6: Advanced Features The PE953 controller is able to listen to Z-Wave commands while the controller is awake. (For example: requesting the controller to report Version or Manufacturer Specific information.) To wake up the controller, press any key. Configuring Two or More Hand-Held Controllers Many installations will find it convenient to use two Hand-Held Controllers.
  • Page 59 Six: Advanced Features On the Primary Hand-Held used to set up and configure the CNTRL COPY 00-00P SEND NETWORK ONLY network, press and release the <3> button to select SEND NET RECV NETWORK ONLY AND CONFG. SEND NET AND CONFG RECV NET AND CONFG SEND NODE INFO UP-PREVIOUS...

  • Page 60: Changing A Secondary Remote Control Into A Primary Control

    Multi-Wave PE653-PE953 Installation Guide Changing a Secondary Remote Control into a Primary Control There are several situations where you might want to create a primary remote control out of a secondary control. For example, an installer might set up similar customer systems using a master Hand-Held Controller (already programmed), and then want to transfer primary status to the customer’s remote.

  • Page 61: Including The Pe953 Controller Into A Non-Multi-Wave (Other Manufacturer's) Network

    Six: Advanced Features Including the PE953 Controller into a non-Multi-Wave (other manufacturer’s) network. The PE953 is a Z-Wave compliant device that may be included into networks created by other manufacturer’s Z-Wave compliant controllers. To include the PE953 into another manufacturer’s controller network: Activate the 3rd party controller’s Controller Replication function to transmit network information to the PE953 according to that controller manufacturer’s instructions.

  • Page 62: Programming For Use With Z-Wave Home Control Devices

    Multi-Wave PE653-PE953 Installation Guide Section 7: Programming for Use with Z-Wave Home Control Devices Models PE653 5-Circuit Digital Control and PE953 Remote Controller are compatible with Z-Wave enabled networks. Z-Wave enabled devices displaying the Z-Wave logo can be used with the PE653 and PE953 regardless of the manufacturer. Each Z-Wave enabled device is designed to act as a repeater, re-transmitting the RF signal around obstacles and radio dead spots when possible to ensure that messages are received by the intended destination device.

  • Page 63: Including Z-Wave Devices Into The Network

    Seven: Programming for Use with Z-Wave Devices Including Z-Wave Devices into the Network This procedure includes Z-Wave devices into a network controlled by the PE953 Hand-Held Controller. The PE953 is pre-configured to operate with the PE653 Receiving Device. The PE953 can also operate as a stand alone Z-Wave remote controller. Z-Wave devices from other manufacturers may be part of the same network as the PE953 and PE653, and depending on supported features, can act as repeaters.

  • Page 64: Adding Z-Wave Devices To Scenes For Everyday Control

    Multi-Wave PE653-PE953 Installation Guide Adding Z-Wave Devices to Scenes for Everyday Control Z-Wave devices must be added to Scenes for the Hand-Held Controller to be able to control them. Scenes are groups of Z-Wave devices that all act together. For example, you may group all outdoor lighting or all upstairs lighting into a single scene, so that the push of one button will turn everything on or off.

  • Page 65: Renaming A Scene

    Seven: Programming for Use with Z-Wave Devices Renaming a Scene As supplied, the PE953 screen displays the names of the five scenes as SCENE 1, SCENE 2, etc. You can rename the scenes so they better describe their actual function, making the system easier to use.

  • Page 66: Removing Z-Wave Devices From Scenes

    Multi-Wave PE653-PE953 Installation Guide Removing Z-Wave Devices from Scenes If a Z-Wave device is removed from a netwok for any reason whatsoever, you should go through this procedure to maximize prompt system response. Otherwise, system network configuration will be corrupted and communications between the system devices may be degraded and/or lost since the network will still retain information about the removed device(s).

  • Page 67: Setting Up Z-Wave Associations With Capable Devices

    Seven: Programming for Use with Z-Wave Devices Press the button on the Z-Wave device for resetting the device (refer to the manufacturer’s instructions). The screen displays WORKING followed by SUCCESSFUL. The device is now removed from the network. Press the <ENTER>...
  • Page 68 Multi-Wave PE653-PE953 Installation Guide Now press the button on a device that will be controlled as part ASSOCIATION 00-00P ADD DEVICE of the association. The screen displays SET DEVICE LEVEL THEN PRESS 1 TO ADD THE DEVICE TO THE ASSOCIATION. SET DEVICE LEVEL THEN PRESS 1 TO ADD Set the device to...

  • Page 69: Removing Z-Wave Devices From An Association

    Seven: Programming for Use with Z-Wave Devices Removing Z-Wave Devices from an Association If necessary, press and release any button on the Hand-Held LEARN MODE 00-00P Controller to wake it from sleep. If the screen is not displaying RESET CONTROLLER RESET DEVICE LEARN MODE, press and hold the <P/S>...

  • Page 70: Using The Pe953 With The Pe650 Receiving Device

    I-Wave PE653-PE953 Installation Guide Section 8: Using the PE953 with the PE650 Receiving Device It’s possible to control a PE650 network with the newer, more advanced PE953 Hand-Held Controller Control. Linking the PE953 Hand-Held Controller with the PE650 Receiving Device This procedure creates a network between the Hand-Held Controller and the PE650 Receiving Device, making it possible to complete the rest of the setup procedure and operate the system.

  • Page 71: Checking Out And Verifying The System

    Nine: Checking Out and Verifying the System Section 9: Checking Out and Verifying the System After you have completed installation and programming, make sure the system is working OK by completing the procedures listed below. Later on, if problems develop in using the system, going over these same procedures will help you troubleshoot the problem.
  • Page 72 I-Wave PE653-PE953 Installation Guide What to do If it doesn’t work Reference/Procedure Verify that the PE653 Device Verify that power is ON to Turn the main circuit breaker that feeds the panel to the is operational and working. the PE653 Device. ON position.
  • Page 73 Nine: Checking Out and Verifying the System What to do If it doesn’t work Reference/Procedure Verify that the PE953 Review the Section Carry the PE953 Hand-Held Controller to several parts Hand-Held Controller will covering “Testing Z-Wave of the area from which commands might be sent to the communicate with the PE653 Reception”...
  • Page 74 I-Wave PE653-PE953 Installation Guide What to do If it doesn’t work Reference/Procedure Verify that the Heater is Test the heater response. If necessary, press and release any button on the Hand- responding to commands Held controller to wake it from sleep. from the PE953 Hand-Held Make sure that the PE953 screen displays “POOL”...

  • Page 75: Troubleshooting

    Ten: Troubleshooting Section 10: Troubleshooting After you have completed installation and programming, make sure the system is working OK by completing the procedures listed below. Later on, if problems develop in using the system, going over these same procedures will help you troubleshoot the problem. This section will help you troubleshoot the following problems: •...
  • Page 76 I-Wave PE653-PE953 Installation Guide Problem What to do Reference/Procedure The 2-speed pump will not Verify that all wiring Refer to the Wiring Instructions in Section 3. operate in 2-Speed mode connections are correct Find the Wiring Diagram that is the most like the and that all terminals and installation starting on page 16.
  • Page 77 Ten: Troubleshooting Problem What to do Reference/Procedure The circuit breaker for the Confirm that the system is Press any release any button on the PE953 Hand-held pump trips every time that programmed for a 2-speed Controller to wake it up. the Pump turns ON.
  • Page 78 I-Wave PE653-PE953 Installation Guide Problem What to do Reference/Procedure The heater turns OFF but gets Verify that the heater has The Fireman Switch Time Interval is defined as the very hot after the pump turns a proper “Time Interval” additional time the pump will run after the heater circuit OFF.
  • Page 79 Ten: Troubleshooting Problem What to do Reference/Procedure The PE653 Device appears to Power down the PE653 Turn OFF the AC power to the PE653 by turning OFF be ‘LOCKED UP”. device to reset. the breaker that feeds terminals 1 & 2 on the device. Turn the AC power back ON.

  • Page 80: Appendix

    Multi-Wave PE653-PE953 Installation Guide Section 11: Appendix Glossary of Z-Wave Terminology Device — Any Z-Wave module, controller, or software that represents an item within a Z-Wave network. Exclusion — The process of resetting, removing, or deleting a device from a Z-Wave network. Inclusion —...

  • Page 81: Fcc Statement

    Eleven: Appendix FCC Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.

  • Page 82: Warranty

    Multi-Wave PE653-PE953 Installation Guide Section 12: Warranty ONE YEAR LIMITED WARRANTY If, within one (1) year from the date of purchase, this product fails due to defect in material or workmanship, Intermatic Incorporated will repair or replace it, as its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping, or abuse in handling, acts of God, or any negligent use;...
  • Page 83 Intermatic, Inc. 7777 Winn Road Spring Grove, Illinois 60081-9698 www.intermatic.com Intermatic Customer Service: 815-675-7000 (8 a.m. through 4:30 p.m. CT, Monday through Friday) ©2010 Intermatic, Inc. 158--00973...
