Enclosure Assembly - Airzone 14'SPRING TRAMPOLINE User Manual

WARNING: 2-3 adults in good physical condition are required for the following assembly. Wear proper shoes and maintain
balance to prevent a fall. Failure to follow all instructions and warnings exactly may result in serious injury.

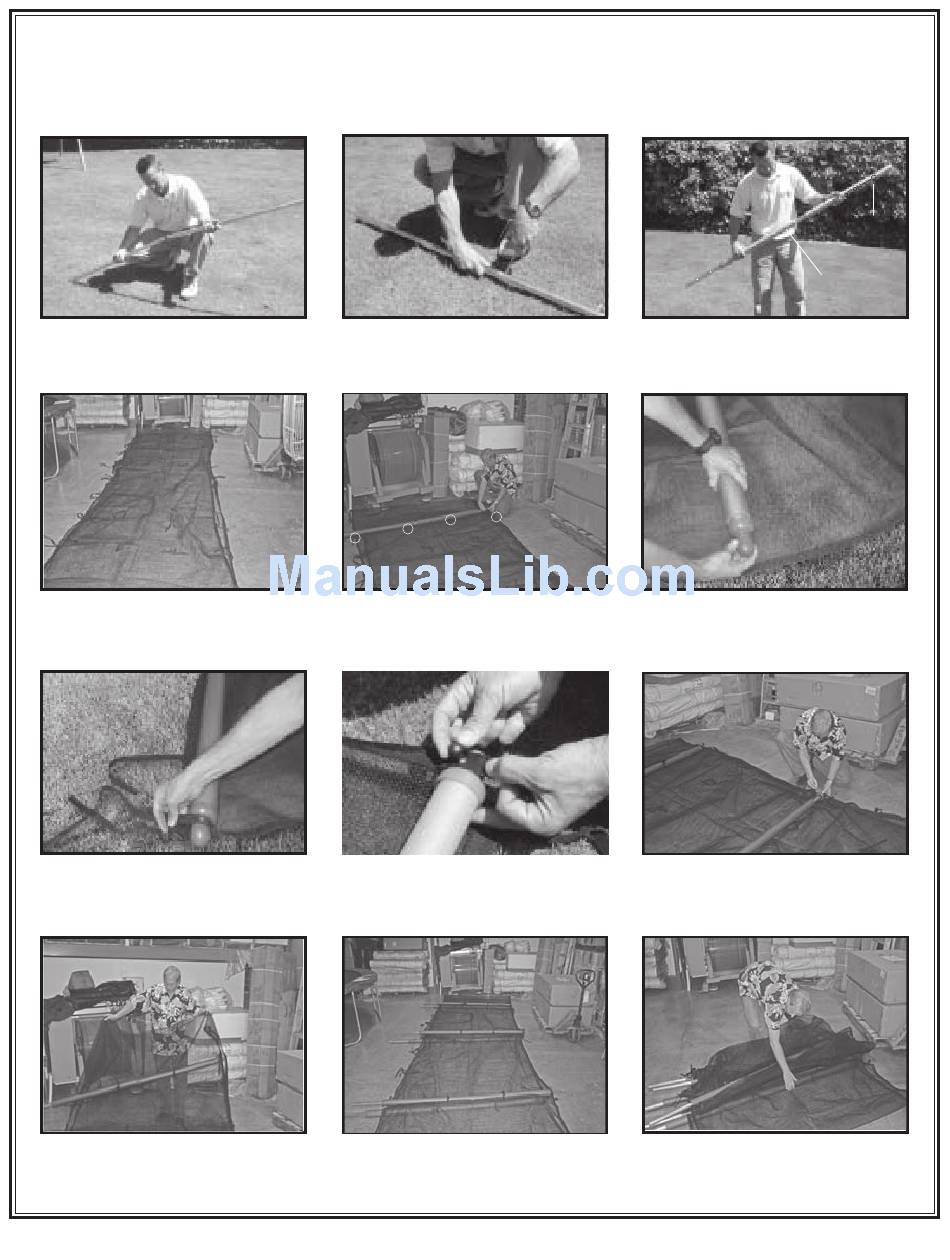

1
Slide upper pole onto lower pole. Align
the set screw holes.
4
Lay out the safety enclosure mesh as
shown. Tie straps must be on the outer
surface of mesh.
7
Place strap with grommet over hole in
pole cap. Align the holes.
10 With 3 poles tied in place, lift one end
of the mesh and carefully turn it over
so the remaining 3 sets of tie straps
are facing up.

ENCLOSURE ASSEMBLY

Refer to PARTS LIST for identification of parts.
2
Insert small set screw and lock washer
& tighten. Repeat this procedure with all
remaining poles.
Choose one pole and place across mesh
5
aligning it with straps as shown
indicated with white circles). Top of upper pole
should meet edge of mesh with grommets.
Tie middle pole straps around poles in a knot.
8
Insert pole cap bolt as shown and
secure with nut.
11
Using the remaining 3 poles,
repeat steps 5-9.
3
6
.
(Straps are
9
12
7
Bottom
Blank Foam
End
Starting from the upper pole, slide 2
foam tubes over pole assembly as
shown. Repeat with remaining poles.
Place pole cap at top of upper pole
assembly and align pole cap bolt
holes. (Foam tubes should be pushed
up snug in the cap with no gaps.)
Using 2 additional poles, repeat steps
5-8 twice more, continuing to use straps
that are located on the side of the mesh
that is facing upward.
Gather mesh and attached poles.
Top
End
Airzone
Embossed
Foam
