Advent LCDM42 User Manual

4.2” lcd rear vision mirror monitor

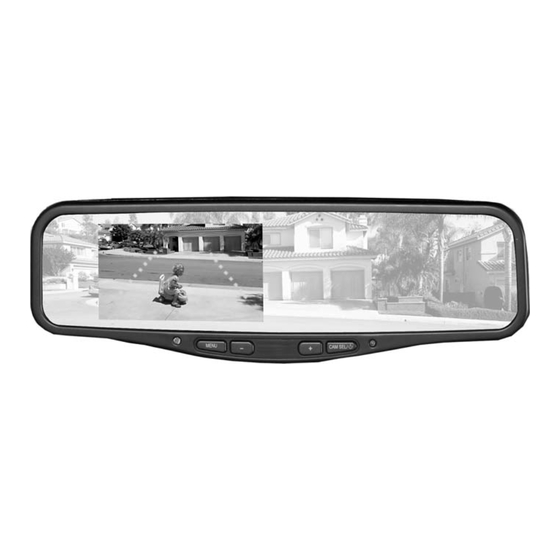

4.2" LCD Rear Vision Mirror Monitor

Features



Mirror with built in 4.2" LCD Monitor



Low Profile, Slim Design



High Resolution TFT LCD



Built in Speaker



Two video inputs



Fully Adjustable



Auto screen brightness adjustment

Model: LCDM42

User Manual

Table of Contents

Do you have a question about the LCDM42 and is the answer not in the manual?

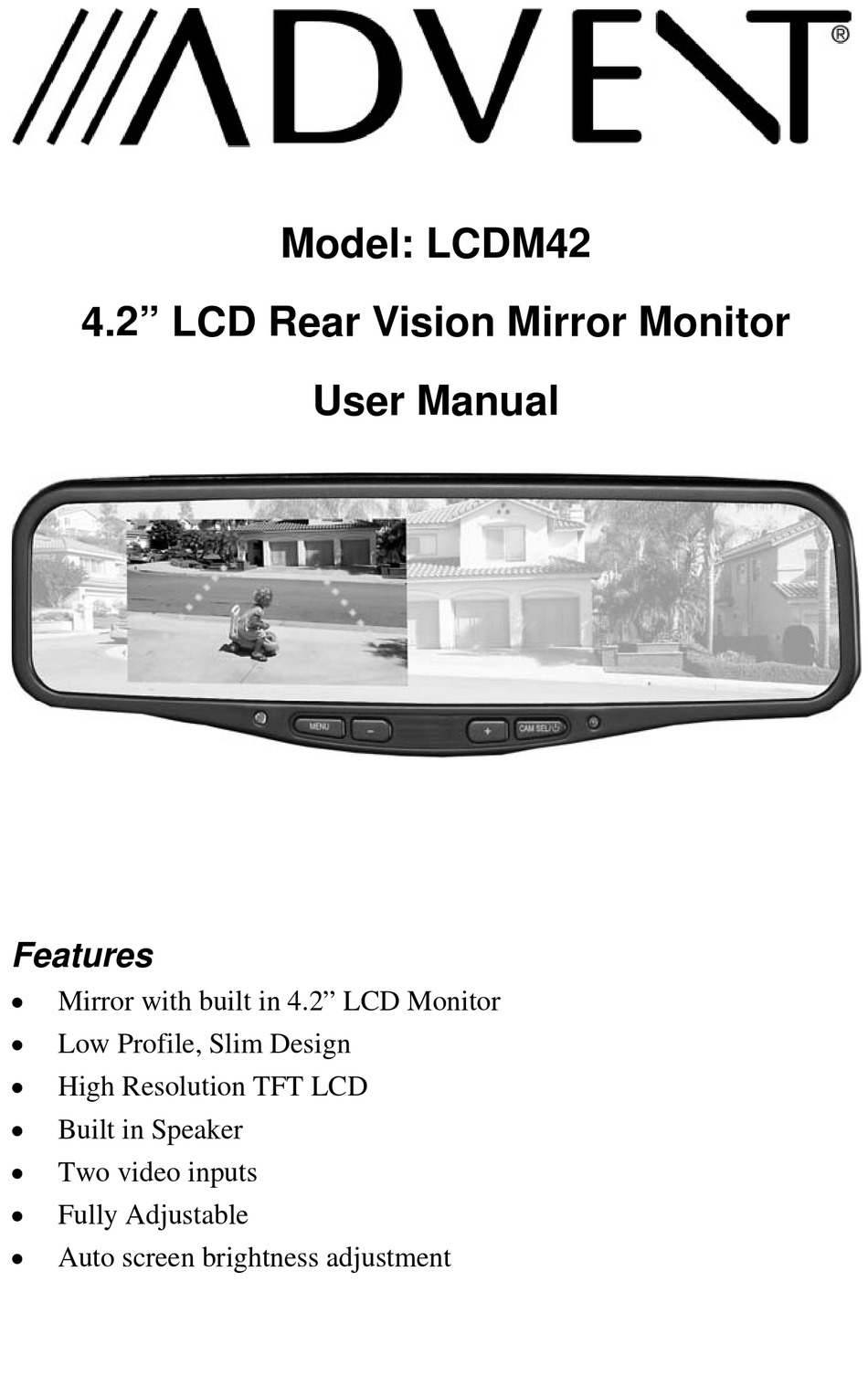

Page 1: User Manual
Model: LCDM42 4.2” LCD Rear Vision Mirror Monitor User Manual Features  Mirror with built in 4.2” LCD Monitor  Low Profile, Slim Design  High Resolution TFT LCD  Built in Speaker  Two video inputs  Fully Adjustable ...
Page 2 Warnings The product is intended to assist in safe driving and to allow the driver to have a broader rear view while the vehicle is in reverse. You, as the driver, are solely responsible for the safe operation of your vehicle and the safety of your passengers according to local traffic regulations.
Page 3: Product Description
The LCD is perfect for use in any vehicle with a rear vision mirror This Monitor is designed for use with an Advent camera but is compatible with most video sources and other cameras and can be connected using a standard RCA connector.
Page 4: Adjusting Settings
Adjusting Settings All adjustments are made with the four buttons on the front of the LCDM42: MENU - Pressing the menu button will scroll through the submenu items such as CONTRAST, BRIGHTNESS, VOLUME, V1 MIRROR, V2 MIRROR. - When scrolling through the submenu the + button will increase the value of the submenu (e.g.
Page 5: Troubleshooting
1. All settings are adjusted by adjustment pressing on the MENU button. Sound can not be heard from 1. Increase volume through Advent camera MENU button. 2. Ensure Camera is connected using supplied SVHS cable. 3. Not all cameras have a microphone, insure your model does.
