Summary of Contents for Alpha Design Labs GT40

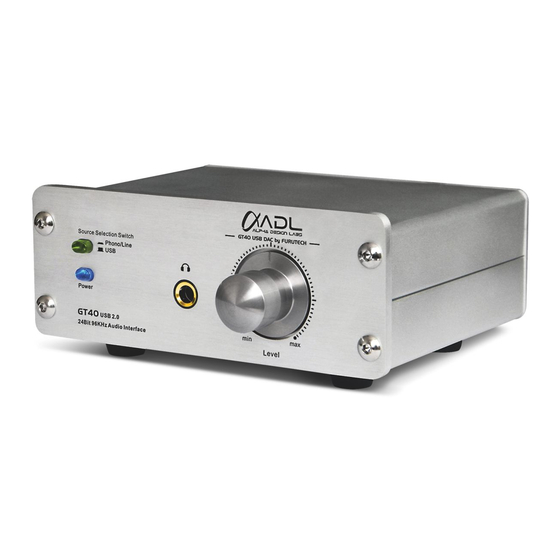

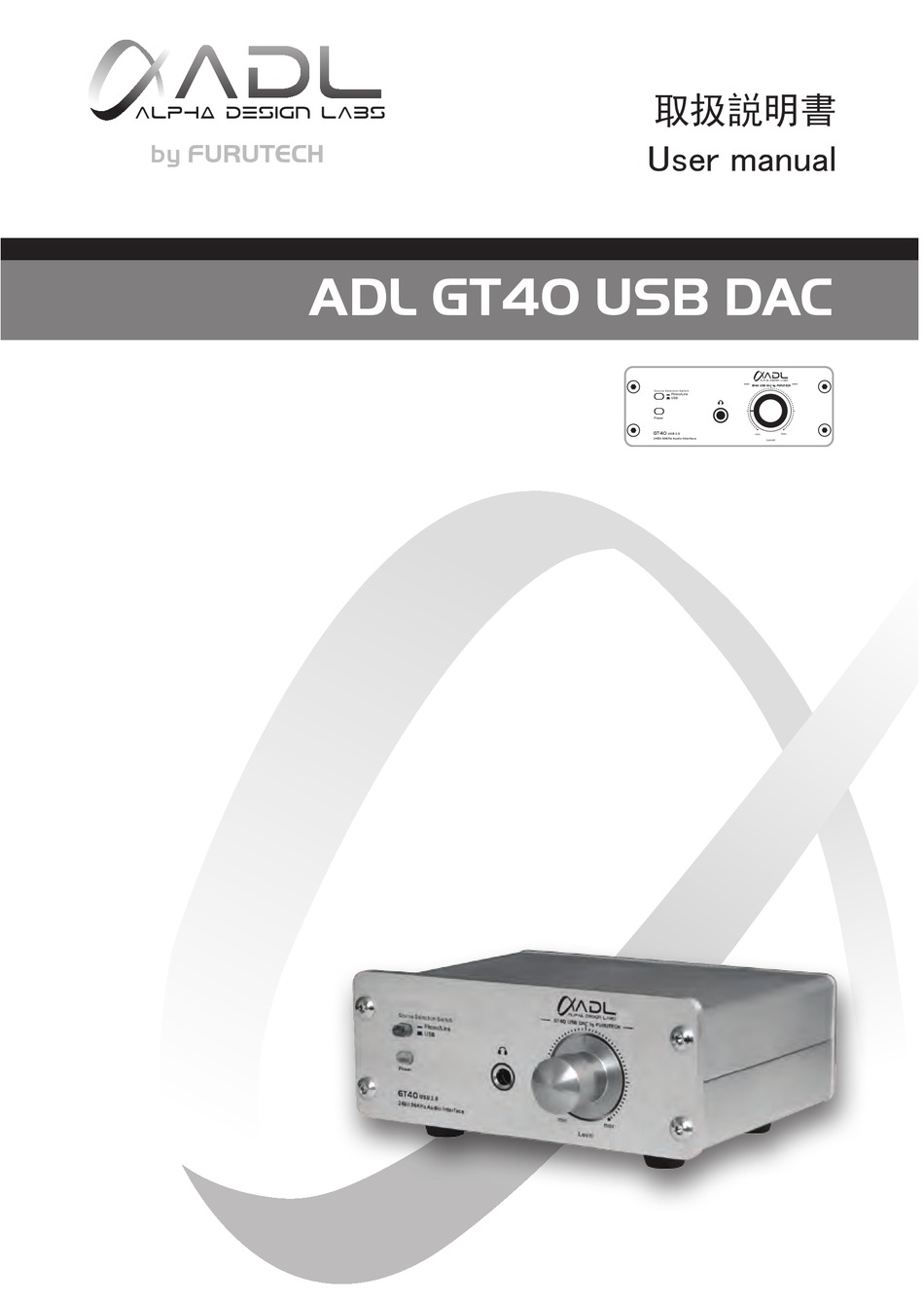

- Page 1 取扱説明書 Alpha Design LAbs by FURUTECH User manual ADL GT40 USB DAC GT40 USB DAC by FURUTECH Source Selection Switch GT40 USB 2.0 24Bit 96KHz Audio Interface Level...
- Page 2 6. Do not operate unit with a damaged power cord or if the unit has been dropped or damaged. To reduce the risk of electric shock do not disassemble or attempt to repair the GT40; take it to a qualified service technician for examination and repair. Incorrect reassembly or repair could cause a risk of fire, electric shock, or injury when the GT40 is used.
- Page 3 The GT40 is finally here, built for enthusiasts with growing music collections on their computer hard drives. It’s a high performance 24bit/96kHz USB DAC that’s amazingly affordable. Looking to convert your LPs or other analog sources to digital? The GT40 will take you to the podium with every album you archive.
-
Page 4: Table Of Contents
Keep this manual for future reference. Important Note: The GT40 has been designed as a USB DAC primarily for the playback of PC based digital audio and for the conversion and recording of analog signal via USB to your PC. -
Page 5: Functions And Part Names
Doing so may damage speakers. ⑥ USB Connector: Hook to USB connector on your computer. ※The Phono/Line or USB selector switch on the front panel must be set to USB for the GT40 to receive signal from the computer. ⑦... -
Page 6: Rear Panel
Recording from an Analog Source other than a Turntable to PC hard drive Analog Source > Line Cable > GT40 Analog Line or Phono MM/MC In > USB Cable > PC Note: USB button on the front panel must be in the Phono/Line setting and the MM/MC/Line switch on the rear panel must be switched to Line. -
Page 7: Basic Settings
Operating System: Windows XP or higher, Mac OS10 or higher Connections Connect the GT40 to the computer with a USB cable and power on the GT40. The computer will automatically recognize and install the GT40. System Settings for Recording at 16bit/44.1kHz In Control Panel choose Sounds and Audio Devices. - Page 8 Alpha Design LAbs Voice Tab Ensure ADL GT40 USB DAC is selected as the Default Playback Device Right click on the Volume icon on the Task Bar and under Options select Properties Select ADL GT40 as the mixer device and check both Recording...
-
Page 9: Windows 7
Operating System: Windows XP or higher, Mac OS10 or higher Connections Connect the GT40 to the computer with a USB cable and power on the GT40. The computer will automatically recognize and install the GT40. System Settings for Recording at 16bit/44.1kHz In Control Panel choose Sounds and Audio Devices. - Page 10 Alpha Design LAbs Recording Quality System Settings for Recording at 16bit/44.1kHz Double-Click the Line Input for Line Properties Levels Tab Ensure Levels are set to 100% Advanced Tab Ensure the sample rate and bit depth is set to either 2 channel, 16bit/44.1kHz...
-
Page 11: Mac Os
Hardware: One USB 2.0 port Operating System: Windows XP or higher, Mac OS10 or higher Connections Connect the GT40 to the computer with a USB cable and power on the GT40. The computer will automatically recognize and install the GT40. Note: Do not set the bit and sample rates on the MAC OS MIDI application to 24bit/96kHz. -
Page 12: Specifications
Specifications Alpha Design LAbs ■ USB DAC & analog playback and record multimedia device ■ Connectivity: USB B-type connector, analog input/outputs on RCAs ■ USB Playback Resolution : 24bit/96kHz ■ USB Recording Resolution: 96kHz (Max) supports 32kHz/44.1kHz/48kHz ■ Frequency response: 20Hz ~ 20kHz (40Hz: +0.5 dB, 15kHz:-0.5dB) ■... -
Page 13: Limited Warranty
ADL GT40 USB DAC LIMITED WARRANTY MODEL No. GT40 USB DAC This product is made of high quality materials and great care has been taken in its manufacture. It is designed to give good performance provided it is properly operated and maintained. This product is sold... - Page 14 Alpha Design LAbs 保証書 保証期間: 1 年間 ADL GT40 USB DAC 品番 年 月 日 ご購入年月日 お 客 様 （フリガナ） お名前 〒 ご住所 お電話番号 。 ご注意：販売店印ならびに購入日の記入がない場合は、無効となります 販売店印 フルテック株式会社 ■ ご購入された時にご記入ください。修理を依頼されるときなどに、お役に立ちます。 FURUTECH Co., Ltd. TOKYO , JAPAN 製造元：フルテック株式会社 〒141-0031東京都品川区西五反田7-11-1 TEL.03-5437-0281 FAX.03-5437-8470 www.adl-av.com e-mail:service@adl-av.com...
- Page 15 Alpha Design LAbs by FURUTECH...
